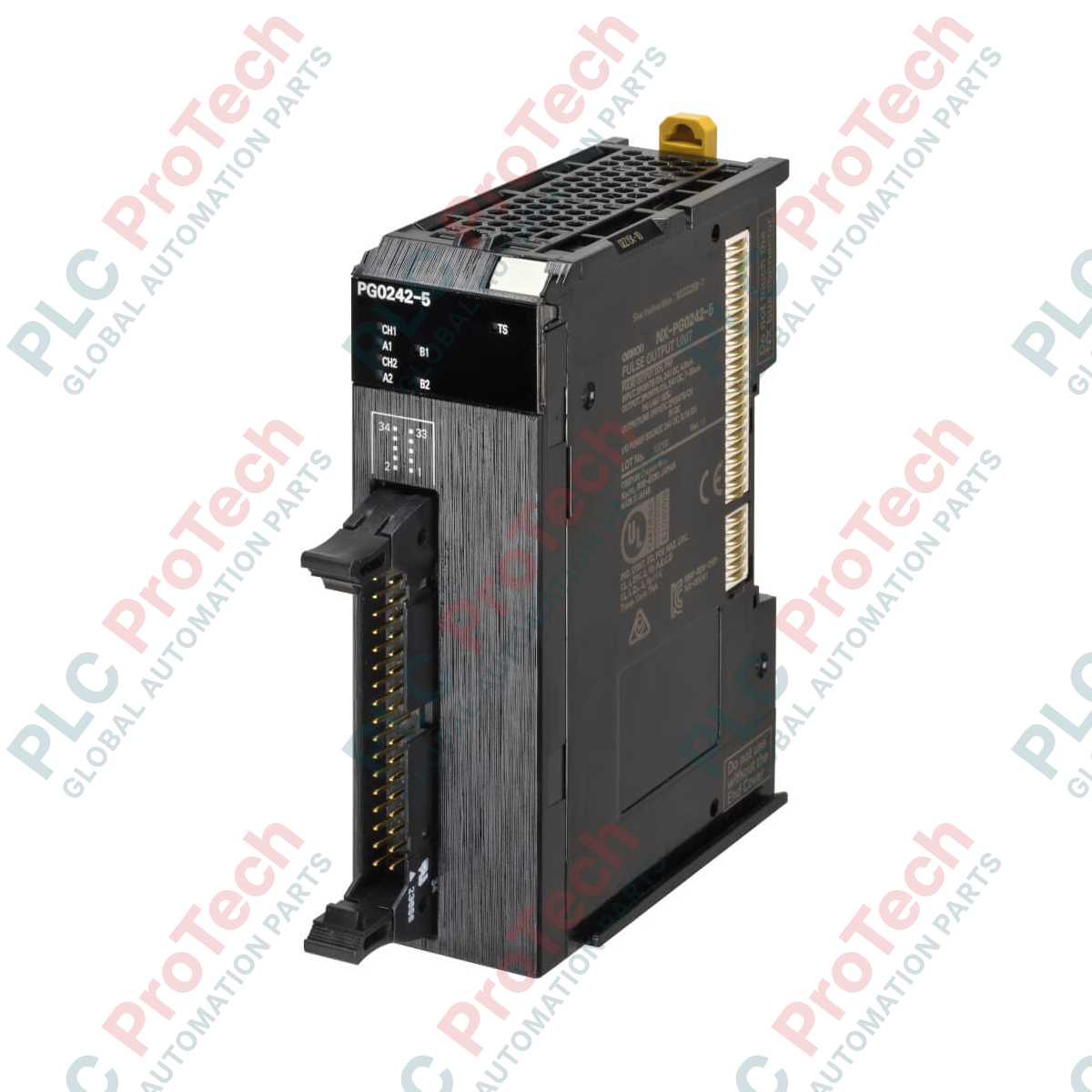

Omron NX-PG0242-5 NX Series Pulse Output Unit

Hanya 3 item tinggal dalam stok

Pengilang: Omron
No. Produk: NX-PG0242-5
Negara asal:Jepun
Jenis Produk: Pulse Output Units
Pembayaran: T/T, Western Union
Berat: 110g
Dimensi: 30 mm x 100 mm x 71 mm
Pelabuhan penghantaran: Xiamen
Jaminan: 12 bulan

Description

High-performance motion control applications require precise pulse train generation, which is delivered by the NX-PG0242-5 motion control module. Engineered as a high-density, 2-channel pulse output unit for the Omron Sysmac platform, this module provides line driver outputs compatible with PNP-type external interfaces. It integrates seamlessly into the NX-series I/O system, enabling synchronized open-loop control of servo drives and stepper motor drives.

Utilizing synchronous I/O refreshing or task period prioritized refreshing, this unit ensures minimal jitter and deterministic execution of motion profiles. Connection is consolidated through a high-density MIL connector interface, reducing panel footprint and wiring complexity while maintaining high signal integrity for high-speed transmission.

Features

Two independent pulse output channels for multi-axis positioning.
Support for synchronous I/O refreshing to coordinate motion tasks directly with the controller CPU cycle.
Multiple pulse output modes including Forward/Reverse direction, Pulse + Direction, and Phase Differential (x1, x2, or x4 multiplication).
Consolidated wiring via a 34-terminal MIL connector interface.
Integrated inputs and outputs (5 inputs and 5 outputs per channel) for limit switches, origin sensors, and auxiliary controls.

Applications

Packaging machinery and rotary indexing tables.
Semiconductor manufacturing and wafer handling systems.
High-speed pick-and-place gantry robots.
Multi-axis stepper and servo drive synchronization.

Technical Specifications

ManufacturerPart Number / ModelSeriesModule TypeNumber of ChannelsControl MethodPulse Output FormVelocity Control RangePosition Control RangeInputs per ChannelOutputs per ChannelI/O Refreshing MethodExternal Connection TypeCurrent Consumption (I/O Power Supply)Line Driver Cable LengthAuxiliary I/O Cable LengthDimensions (W x H x D)Weight

Omron

NX-PG0242-5

NX Series

Pulse Output Unit (Line Driver Output, PNP type)

Open-loop control through pulse string output

Line driver output

1 to 4,000,000 pps

-2,147,483,648 to 2,147,483,647 pulses

5 external inputs

5 (1 forward pulse, 1 reverse pulse, 3 external outputs)

Synchronous I/O refreshing or task period prioritized refreshing

MIL connector (34 terminals x 1)

50 mA maximum

10 m maximum

3 m maximum

30 mm x 100 mm x 71 mm

0.11 kg

Installation Guidelines

Mounting: Mount the module securely onto standard 35 mm DIN rail within the NX-series bus expansion assembly.
Shielding: Use shielded twisted-pair (STP) cabling for all line driver pulse outputs to minimize electromagnetic interference (EMI).
Cable Lengths: Ensure line driver output cables do not exceed 10 meters, and standard I/O sensor cables are kept under 3 meters.
Grounding: Ensure the DIN rail is connected to a protective ground (PE) terminal to maintain proper noise immunity.

Key Features:

#Omron NX Series #Pulse Output Units

What is the primary function of the Omron NX-PG0242-5?

The NX-PG0242-5 is a 2-channel motion control unit that generates high-speed pulse train outputs to drive stepper motor drives or servo drives in an open-loop configuration.

What kind of output stage does this unit use?

It utilizes a line driver output stage designed for high noise immunity and supports PNP-type external interfaces.

How are connections wired to the NX-PG0242-5?

All channel inputs, pulse outputs, and auxiliary outputs are consolidated into a single 34-terminal MIL connector.

What is the maximum cable length supported for the pulse outputs?

The line driver outputs support a maximum cable length of 10 meters, while other standard I/O lines are limited to 3 meters.

Which synchronization modes are supported by this module?

It supports synchronous I/O refreshing, which aligns I/O operations with the controller's primary CPU cycle, and task period prioritized refreshing.
