Architectural Infrastructure and System Expansion

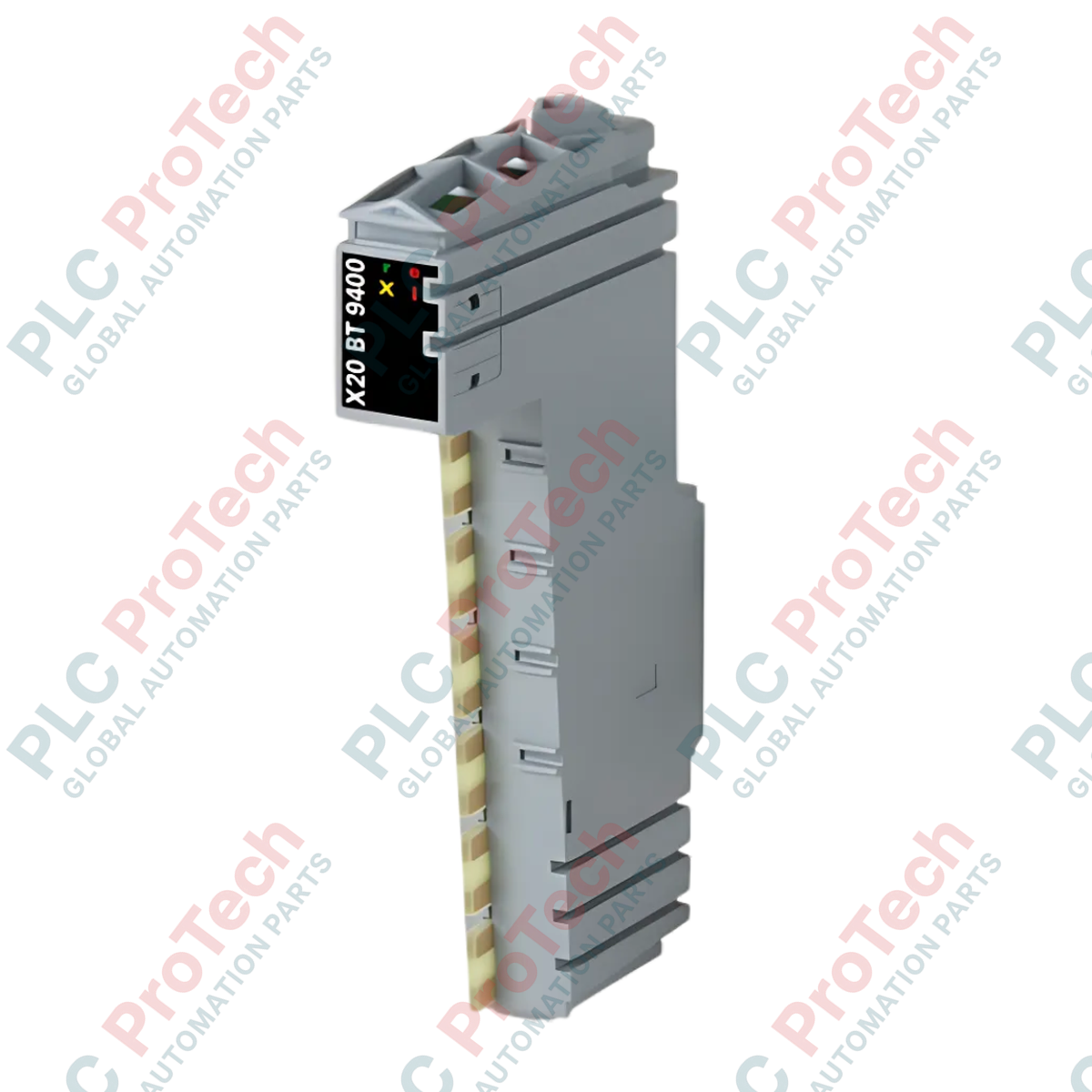

The X20BT9400 (X20 BT 9400) is an industrial bus transmitter module developed for the B&R X20 System platform. This module functions as a critical network expansion link, extending the internal proprietary X2X Link bus topology across multiple remote sub-racks or remote terminal assemblies. Operating in harsh, continuous-duty industrial environments such as automated warehouses, oil extraction rigs, and municipal water treatment infrastructure, the module maintains robust signal synchronization across distributed I/O stations.
By integrating a dual-purpose power architecture, the X20BT9400 supplies vital power to the local X2X Link communications line while simultaneously delivering an integrated power feed dedicated to the larger X67 System external field architecture. This dual-feed design reduces network bottleneck risks, prevents packet dropouts, and minimizes total system hardware footprints by eliminating standalone power injection modules.
Electrical Characteristics and Diagnostic Feedback
The electrical design requires a nominal 24 VDC input voltage with an operational tolerance window of -15% to +20%. To safeguard internal switching components, the hardware relies on an external, slow-blow 10 A maximum line fuse which dictates short-circuit response behavior and dictates maximum current thresholds.
Because the module does not include internal reverse polarity protection, precision engineering checks are mandatory prior to system commissioning. Local diagnostic evaluation is facilitated via low-latency front-panel LEDs that give maintenance personnel real-time visualization of the X2X Link bus operation, localized module states, and global hardware status parameters.
Engineering Specifications
| Operational Parameter |
Documented Technical Data |
| Model |
X20BT9400 |
| Brand |
B&R (Automation) |
| Origin |
Austria |
| Module Type |
X2X Link Bus Transmitter |
| Integrated Capabilities |
Local I/O supply and integrated X67 system power supply |
| Status Indicators |
X2X bus function, operating state, module status LEDs |
| Nominal Input Voltage |
24 VDC (-15% / +20%) |
| X2X Link Power Consumption |
1.38 W |
| Nominal Output Voltage |
24 VDC |
| Permissible Contact Load |
10 A |
| Short Circuit Defense |
External line fuse requirement (Max. 10 A slow-blow) |
| Shipping Weight |
2.0 kg |
Operational Logistics and Support FAQs
What are the system consequences of the lack of internal reverse polarity protection?
Because the X20BT9400 lacks internal reverse polarity circuitry, reversing the positive and negative 24 VDC supply lines will result in permanent damage to the internal bus transceiver electronics. Technicians must verify terminal wiring polarity with a digital multimeter before closing the main breaker.
How does this module bridge communication between the X20 and X67 product families?
The X20BT9400 functions as a physical and electrical bridge. It takes the standardized backplane data from the X20 rack and transmits it via the X2X Link protocol to remote modules. At the same time, its integrated power supply provides the voltage rails required to drive IP67-rated X67 remote field blocks over extended distances.
What components dictate the listed 2.0 kg shipping weight specification?
The 2.0 kg shipping mass accounts for heavy-wall industrial packaging designed for harsh logistics lines. The module is encased in heavy anti-static wrapping, nested inside high-density foam dampeners, and boxed alongside industrial manual updates to ensure structural and electronic preservation during global transport.
Field Wiring Protocols and Safety Instructions
-
Overcurrent Protection Validation: Install a high-quality 10 A slow-blow fuse on the incoming positive 24 VDC line directly preceding the module supply terminals. Failure to install this specified line fuse removes short-circuit protection, risking severe hardware damage or localized terminal overheating during a field fault event.
-
Bus Segment Cable Optimization: When running X2X Link communication cables from the transmitter to remote sub-racks, use industrial-grade double-shielded twisted-pair cables. Route these communication paths away from high-voltage energy lines, switching contactors, and variable frequency drives to prevent electromagnetic noise induction.
-
Terminal Loading Restrictions: Ensure that the cumulative current draw of all downstream I/O modules and attached X67 components does not exceed the 10 A permissible contact load rating of the transmitter. Exceeding this thermal ceiling triggers voltage drops across the bus, leading to intermittent node dropouts and communication timeouts.
