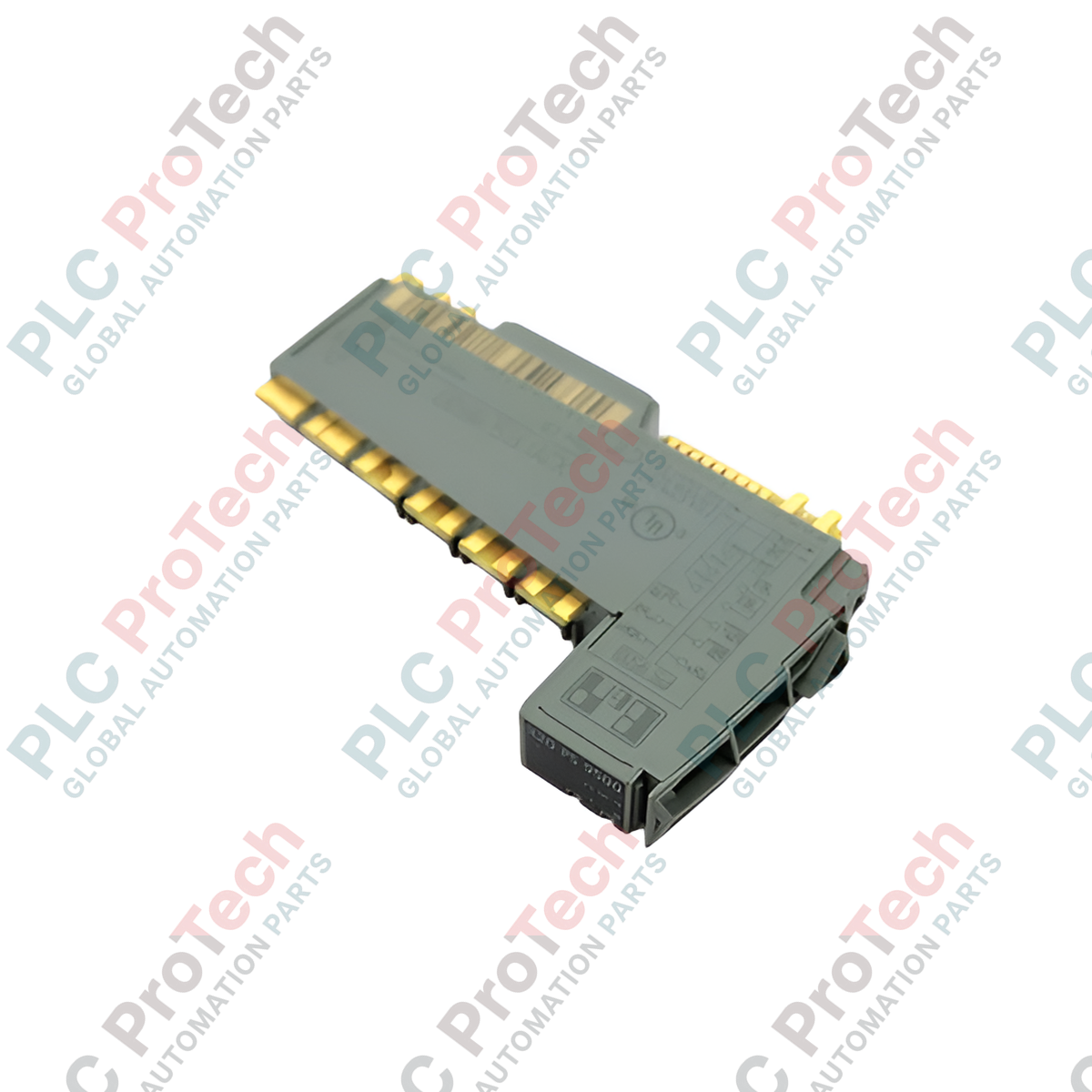

B&R X20PS9500 X20 System Compact CPU Power Supply Module

Equipment Overview

The B&R X20PS9500 (X20PS9500) is a high-efficiency 24 VDC system power supply module engineered for B&R Compact CPUs and Fieldbus CPU architectures. Operating within severe industrial environments such as petrochemical refining, thermal power generation, and heavy mining infrastructure, this module provides localized power conditioning for the X2X Link bus and connected I/O slices. By supplying stable voltage directly to the backplane, it ensures deterministic communication and uninterrupted CPU operation, drastically reducing unscheduled facility downtime and protecting critical process loops from voltage fluctuations.

Core Architecture and Interface Capabilities

This system module integrates both power regulation and critical communication interfaces within a single, space-saving slot. It features one RS232 interface and one CAN bus interface to deliver robust peripheral connectivity directly at the CPU level. The module regulates an input voltage range of 24 VDC (-15% / +20%) to provide nominal output power. Designed without internal reverse polarity protection, it relies strictly on an external 10 A slow-blow line fuse to manage short-circuit conditions and safeguard the downstream backplane hardware. The 10 A permissible contact load ensures sufficient headroom for high-density I/O configurations.

Hardware Specifications

Troubleshooting and Application FAQs

How does the module handle short-circuit events on the I/O bus?

The X20PS9500 does not include internal electronic short-circuit limitation. It relies entirely on the mandatory external 10 A slow-blow line fuse. When a short-circuit occurs, the fuse blows to isolate the module and protect the upstream Compact CPU and adjacent I/O infrastructure from thermal damage.

Can this module replace older system supply modules within the X20 series?

Yes. The X20PS9500 maintains full downward compatibility with standard X20 Compact CPU backplanes. However, system integrators must verify that the total power consumption of the existing X2X Link components does not exceed the 10 A nominal contact load rating of this module.

What are the critical considerations regarding the lack of reverse polarity protection?

Because the module lacks internal reverse polarity protection diodes, reversing the positive and negative 24 VDC input lines will cause immediate, irreversible damage to the internal logic circuitry. Always verify wiring polarity with a digital multimeter prior to energizing the incoming supply rail.

Field Engineering and Installation Directives

• Wiring and Polarity Verification: Before landing the 24 VDC power lines on the terminal block, confirm the physical layout. Connect the external Max. 10 A slow-blow fuse in series with the positive (+) line. Double-check that the ground reference is tied correctly to the functional earth rail to minimize electromagnetic interference across the RS232 and CAN bus interfaces.

• Shielding for CAN Bus Communication: When utilizing the integrated CAN bus interface, ensure that the communication cable shield is grounded at a single point, preferably at the entry to the control enclosure. Keep communication lines separated from high-voltage motor drive cables by at least 100 mm to prevent inductive noise coupling.

• Thermal Management and Airflow: Mount the module horizontally to optimize natural convection cooling. Maintain a minimum clearance of 30 mm above and below the X20 rack assembly. If enclosure ambient temperatures track near the upper limit of 55 deg C, install forced-air ventilation to prevent localized thermal degradation.
