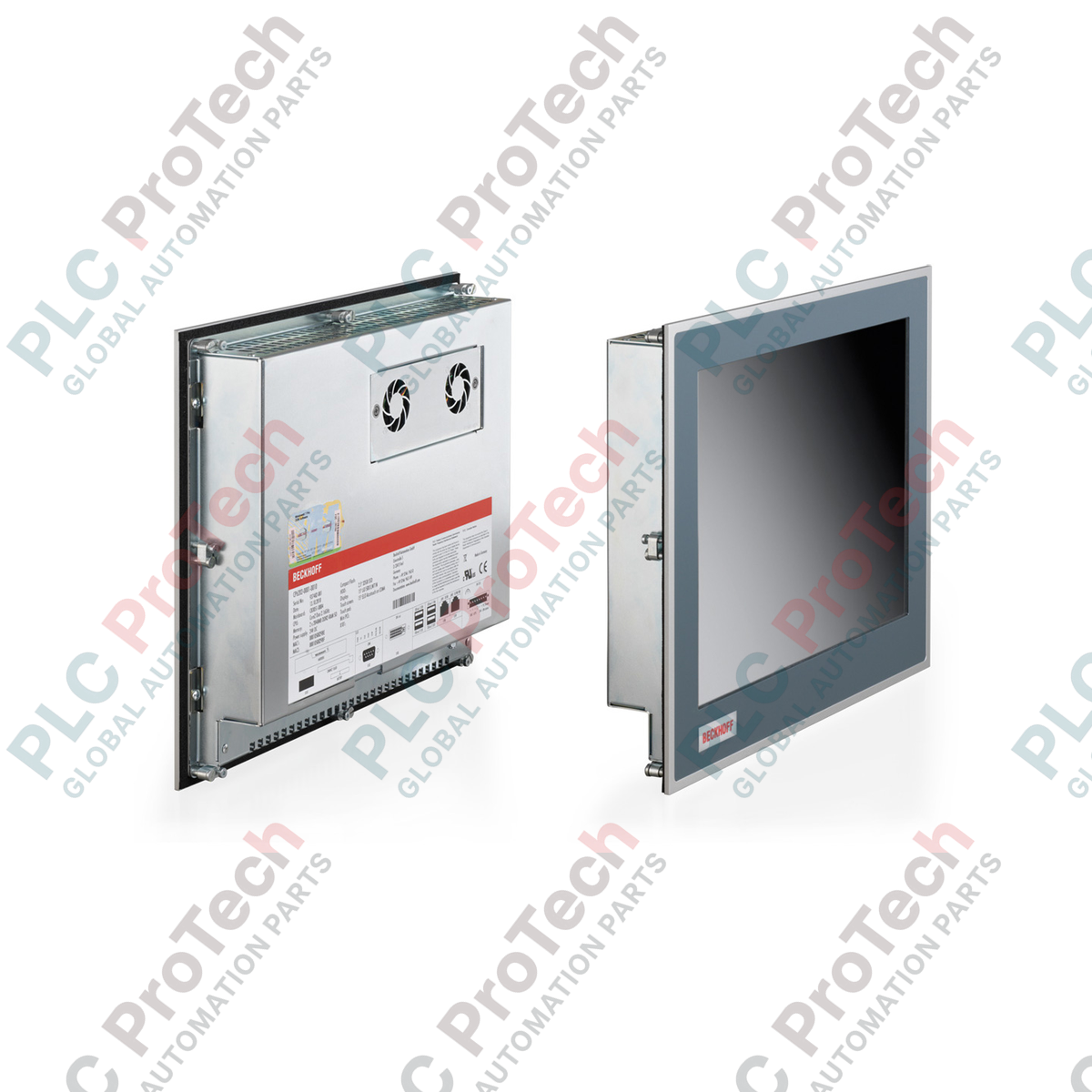

BECKHOFF CP6202-0020-0070 Economy Built-in Panel PC

Description

The BECKHOFF CP6202-0020-0070 is an industrial built-in Panel PC engineered for control cabinet and console integration. Built as a unified human-machine interface (HMI) and processing terminal, this model features a 15-inch TFT display with a crisp 1024 x 768 resolution. It serves as a central controller and visual system, delivering performance, longevity, and high-quality rendering in demanding manufacturing plants.

Designed with a durable aluminum front panel and a rugged sheet-steel rear cover, the BECKHOFF CP6202-0020-0070 is built to endure harsh factory conditions. The front side provides IP65 protection against dust and liquid splashback, making it highly reliable for washdown zones and dusty production areas. The rear side is rated IP20, ensuring protective ventilation and slot access within a secure control enclosure.

To streamline mechanical mounting, the unit uses tool-free pull-out clamping levers that lock the PC securely into cabinet cutouts. Its extensive interfaces, including USB 3.0 ports, RS232, and dual Gigabit Ethernet adapters, guarantee trouble-free integration with remote fieldbus interfaces, visual display networks, and standard local network components. Operating on a stable 24 V DC power supply, this built-in Panel PC interfaces smoothly with TwinCAT automation environments for precise, real-time machine execution.

Features

• 15-inch TFT visual display with 1024 x 768 pixels.
• Heavy-duty mechanical design featuring an aluminum front bezel and a sheet-steel rear casing.
• Front-side IP65 ingress protection rating; rear-side IP20 protection rating.
• Tool-free mounting system with quick-acting pull-out clamping levers.
• Dual 100/1000BASE-T Ethernet interfaces for independent network segments and high-speed controller-to-controller communication.
• Diverse built-in physical interfaces: four USB 3.0 ports, one RS232 serial interface, and one DVI connection.
• 24 V DC power supply input.

Applications

• Centralized HMI visualization and plant monitoring.
• Direct control cabinet mounting in machinery and processing systems.
• Data logging, telemetry, and supervision of production cells.
• Integration with TwinCAT runtimes for combined PC-based control and display.

Technical Specifications

Display and Mechanical

Interfaces and Power

Installation Guidelines

1. Verify that the model number BECKHOFF CP6202-0020-0070 matches the physical dimensions, cutout specifications, and application schematics of your system.
2. De-energize all system power supplies before preparing the panel cutout or mounting the PC.
3. Insert the Panel PC into the prepared opening in the control cabinet door or console.
4. Engage the integrated pull-out clamping levers to secure the unit flush against the cabinet wall, achieving an IP65 front-side seal.
5. Ensure correct electrical grounding by connecting the functional ground/PE conductor from the terminal PC housing to the cabinet's main grounding bus.
6. Connect the 24 V DC supply cable to the main power connector, double-checking the polarity of the terminals.
7. Plug in the network interfaces (Ethernet), USB accessories, and any auxiliary video cables (DVI) using industrial-grade, shielded cables.
8. Restore power and initialize your TwinCAT project or operating system configuration.
