Description

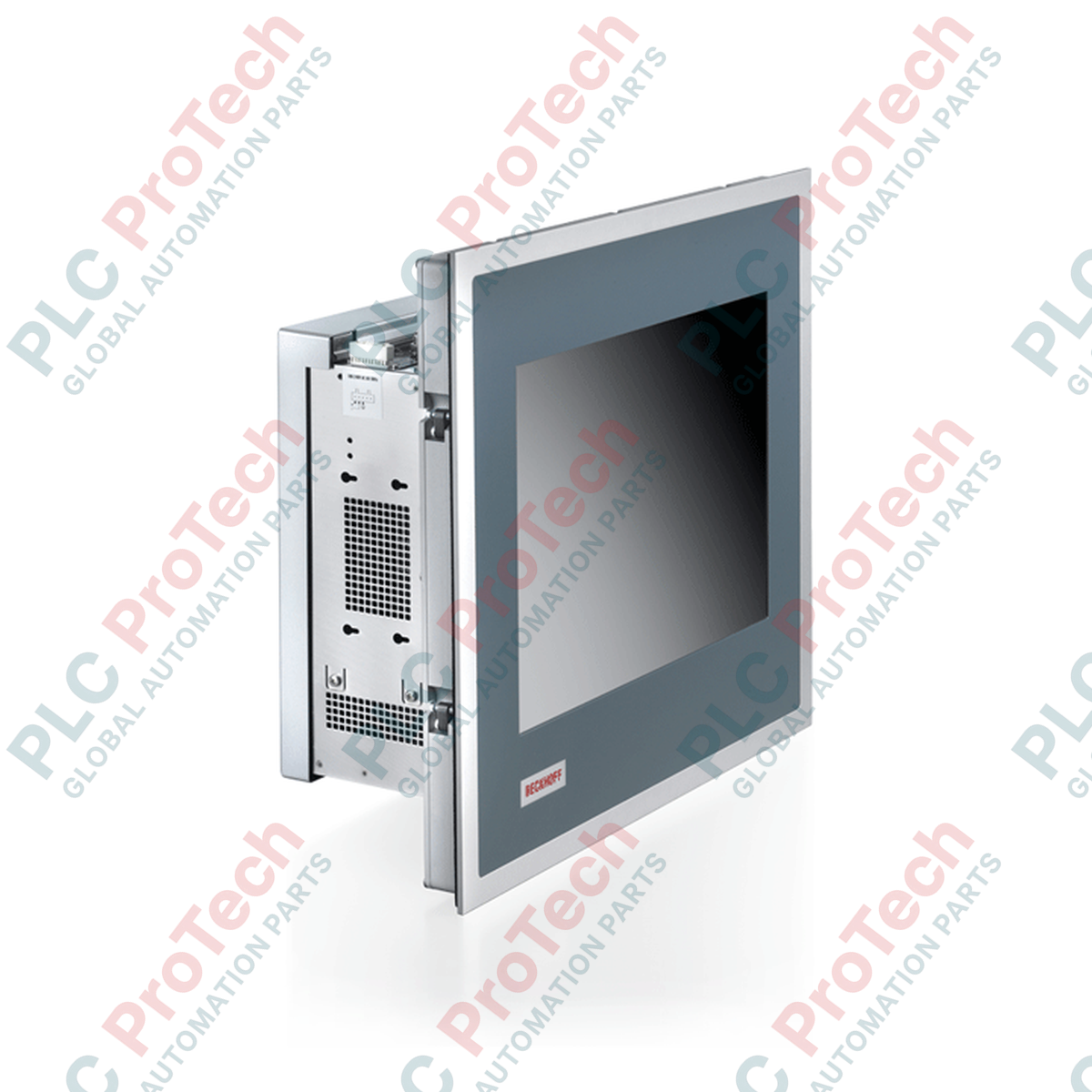

Designed for demanding industrial control and visualization tasks, the CP6533-0000-0080 built-in panel PC integrates a high-resolution 19-inch display with a modular ATX motherboard platform. This configuration features a robust 7-slot ATX housing equipped with pull-out clamping levers, enabling secure panel mounting and rapid installation into control cabinets without loose parts. It functions as an integrated control and monitoring node for complex industrial automation systems.

The internal architecture supports high-performance processor options from Intel Celeron up to Intel Core i7 configurations on an industrial ATX motherboard. Expansion capabilities are provided through a comprehensive slot layout, allowing the integration of multiple PCIe and PCI cards. This system features built-in dual Gigabit Ethernet controllers, extensive USB interfaces, and versatile graphical outputs to ensure seamless connectivity within legacy and modern control networks.

Features

• High-contrast 19-inch TFT display with a native resolution of 1280 x 1024 pixels.
• Robust 7-slot ATX housing containing 2 x PCIe-x1, 1 x PCIe-x4, 1 x PCIe-x16, and 3 x PCI slots.
• Tool-free mounting system using pull-out clamping levers for rapid installation.
• Dust and liquid protection with an IP65 rated front panel and an IP20 rated rear enclosure.
• Wide operational envelope, operating reliably in ambient temperatures from 0 to 55 degC.
• Integrated interfaces including 4 x USB 3.0, 8 x USB 2.0, dual DVI, DisplayPort, and serial RS232 connections.

Applications

• Automotive manufacturing and assembly lines.
• Process control and SCADA visualization.
• Heavy machinery control and custom test bench setups.
• Power generation and distribution facility monitoring systems.

Technical Specifications

Installation Guidelines

Ensure the mounting cutout matches the physical dimensions of the 19-inch bezel design. Insert the unit from the front into the prepared panel cutout, and extend the integrated pull-out clamping levers from the rear to secure the device firmly against the mounting surface. To maintain the IP65 seal, ensure the front gasket is completely flat and evenly compressed against the mounting panel.

Provide a minimum clearance of 50 mm above and below the rear ATX housing to facilitate adequate convection cooling. Ground the chassis using the dedicated grounding stud on the rear of the enclosure to protect sensitive internal electronics against electrostatic discharge (ESD) and electromagnetic interference (EMI).
