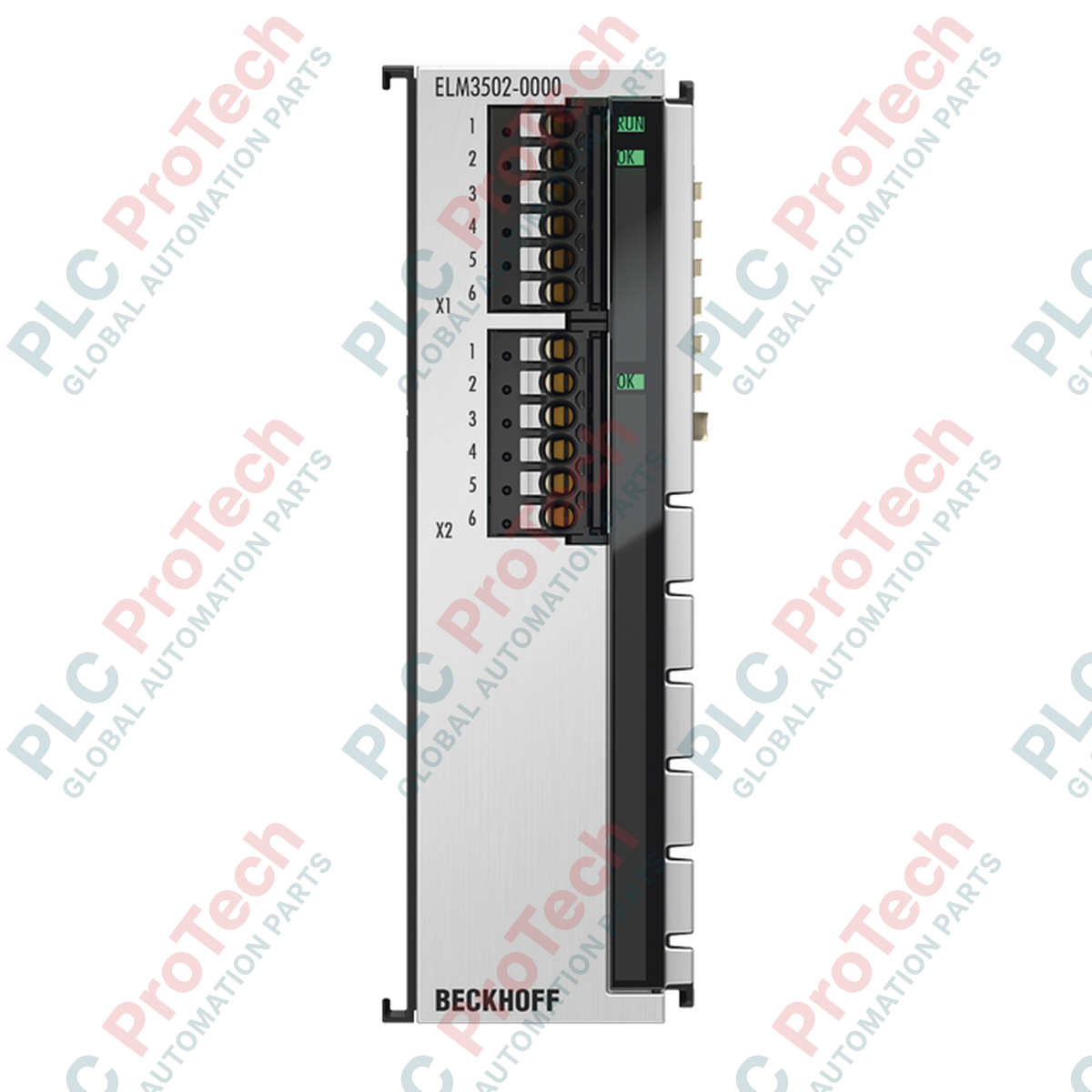

Engineered to meet the stringent demands of high-speed industrial metrology, the Beckhoff ELM3502-0000 measurement terminal captures precise differential signals from strain gauges and resistor bridges. Supporting full, half, and quarter-bridge topologies, this high-end module features 24-bit resolution and simultaneous sampling speeds up to 20 ksps per channel. Enclosed in a robust zinc die-cast housing for optimal thermal and electrical shielding, it integrates seamlessly into Beckhoff EtherCAT control architectures, utilizing Distributed Clocks for synchronized, sub-microsecond multi-channel alignment.
| Manufacturer | Beckhoff |
| Article Number / SKU | ELM3502-0000 |
| Number of Channels | 2 differential inputs |
| Supported Sensors | Resistor bridge, strain gauges (full, half, quarter bridge) |
| Connection Technology | 2-, 3-, 4-, 5-, or 6-wire configuration |
| Connection Type | Push-in, 6-pin service plug |
| Resolution | 24-bit (including sign) |
| Max. Sampling Rate | 20 ksps (50 us) per channel, simultaneous |
| Oversampling Factor | n = 1 to 100 (selectable) |
| Internal Input Resistance | > 4 MOhm |
| E-bus Current Consumption | 450 mA typical |
| Isolation Voltage | 707 V DC (Channel to Bus / Channel to SGND) |
| Thermal Dissipation | 3 W typical |
| Operating Temperature | -25 to +60 degC |
| Storage Temperature | -40 to +85 degC |
| Enclosure Material | Zinc die-cast |
| Dimensions (W x H x D) | 30 mm x 100 mm x 95 mm |
| Net Weight | 350 g |
| Shipping Weight (Calculated) | 2.0 kg |
The ELM3502-0000 is part of Beckhoff’s high-end measurement class. Unlike standard analog slice terminals (such as the EL3356), the ELM3502-0000 provides vastly superior sampling speeds and built-in numerical filters, making it compatible with complex TwinCAT 3 Metrology functions. It requires a compatible EtherCAT Coupler (e.g., EK1100) and proper configuration in TwinCAT for oversampling features.
Due to its high sampling rate of 20 ksps, the terminal is sensitive to high-frequency electrical noise and electromagnetic interference. Standard unshielded cabling can distort measurements. Ensure that the metal housing of the ELM3502-0000 makes direct, clean contact with the grounded DIN rail via the grounding springs on the rear panel. When routing signal lines, keep bridge cables separated from high-voltage AC or motor-drive output lines.
For quarter-bridge installations, verify that the internal completion resistors are correctly parameterized within the TwinCAT System Manager. Ensure the 6-pin push-in service plug is locked securely in place. If utilizing Distributed Clocks (DC), activate sync managers in TwinCAT to achieve sub-microsecond jitter timing across multiple measurement channels on the network segment.
Mount the ELM3502-0000 vertically onto a standard 35 mm DIN rail (EN 60715) with the double slot and key connection securely engaged with adjacent modules.
Connect the bridge measurement lines to the 6-pin service plug utilizing standard ferrules or solid conductors with a stripping length of 8 to 9 mm.
Ensure the shield of the bridge cable is terminated at the cabinet entry gland plate or connected to a low-impedance ground block nearby.
Power on the EtherCAT segment and scan the module in the TwinCAT System Manager to configure the digital filters and sensor calibration properties.
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: ELM3502-0000
Country of origin:Germany
Product Type: EtherCAT Measurement Terminals
Payment: T/T, Western Union
Weight: 2000g
Dimensions: 30 mm x 100 mm x 95 mm
Shipping port: Xiamen
Warranty: 12 months
