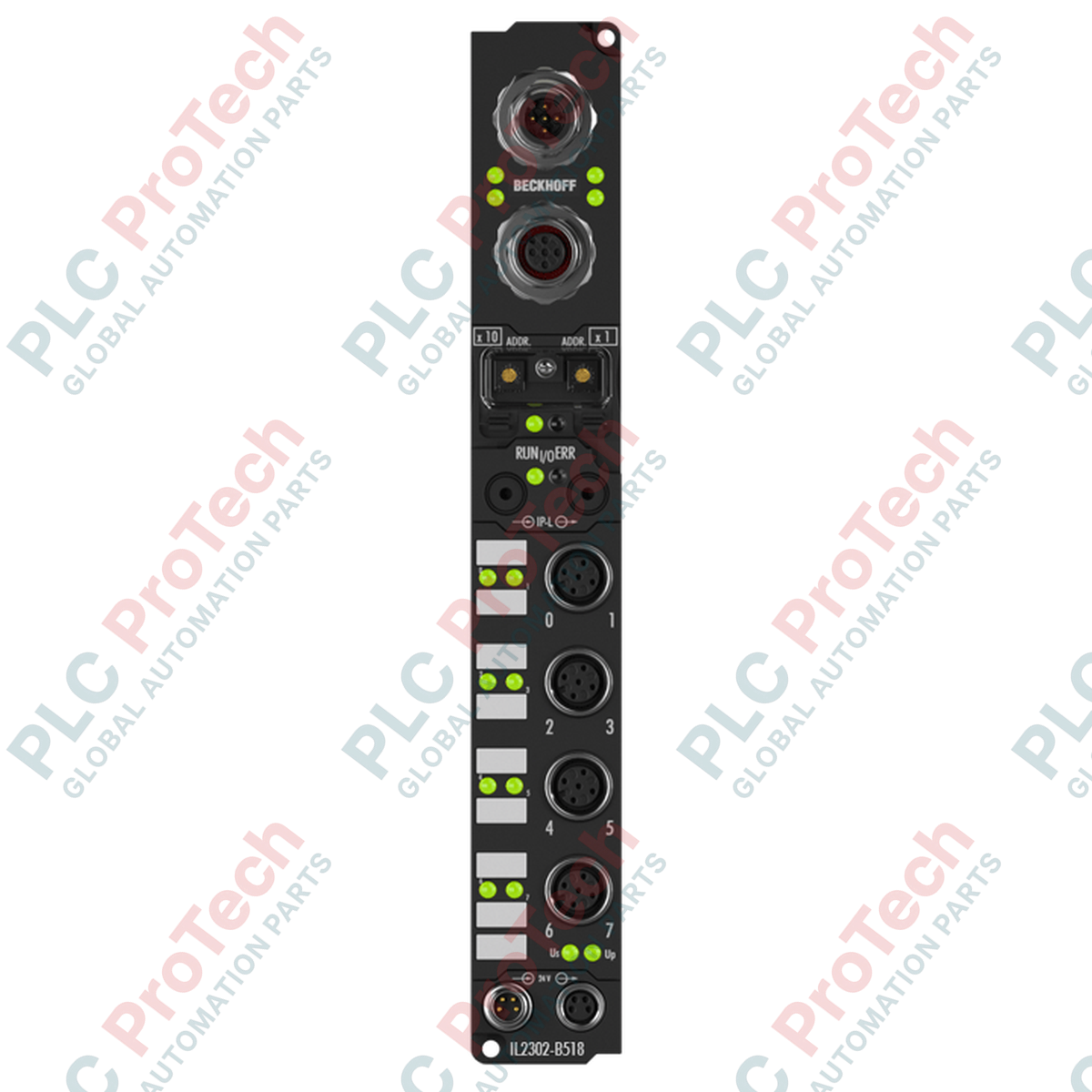

BECKHOFF IL2302-B518 Fieldbus Box CANopen Coupler Box

SKU IL2302-B518

In stock

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: IL2302-B518
Country of origin:Germany
Product Type: Coupler Boxes
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description

Designed to interface decentralized I/O signals directly in the field, the IL2302-B518 serves as a robust CANopen coupler box within the Beckhoff Fieldbus Box system. This module provides direct connection of IP-Link extension modules to a CANopen network, offering a highly efficient solution for distributing digital and analog signals without requiring a protective control cabinet.

The IL2302-B518 coordinates the transfer of decentralized process data from up to 120 extension modules to the higher-level controller. By integrating the fieldbus interface, power supply connections, and IP-Link communication into a single compact housing, this module minimizes installation complexity and space requirements in demanding industrial environments.

Features

Supports connection of up to 120 IP-Link extension modules.
Handles a maximum of 128 bytes of input data and 128 bytes of output data.
Integrated T-connector for seamless CANopen network routing.
Automatic detection of data transfer rates from 10 kbaud up to 1 Mbaud.
Comprehensive CANopen feature support including Node Guarding, Life Guarding, and Emergency Objects.
Configurable via the KS2000 software tool or through standard Service Data Objects (SDOs).

Applications

Heavy industrial machinery and manufacturing lines.
Material handling and conveyor systems.
Packaging and food processing equipment.
Decentralized control installations in washdown or high-dust zones.

Technical Specifications

ManufacturerPart Number / ModelProduct TypeProtocolNumber of Extension ModulesDigital Signal CapacityAnalog Signal CapacityNumber of PDOsData Transfer RatesPower Supply VoltageBox Supply CurrentElectrical IsolationProtection RatingOperating TemperatureStorage TemperatureVibration/Shock ResistanceEMC Immunity/Emission

BECKHOFF

IL2302-B518

CANopen Coupler Box

CANopen

Max. 120 (max. 128 byte input / 128 byte output)

Max. 960 inputs and 960 outputs

Max. 60 inputs and 60 outputs

16 send and 16 receive process data objects

10 kbaud to 1 Mbaud (automatic detection)

24 V DC (-15% / +20%)

45 mA + sensor current consumption (max. 0.5 A)

500 V (Control voltage / fieldbus)

IP65, IP66, IP67 (conforms to EN 60529)

0 to +55 degC

-25 to +85 degC

Conforms to EN 60068-2-6 / EN 60068-2-27

Conforms to EN 61000-6-2 / EN 61000-6-4

Connections and Interfaces

Bus Interface (Input)Bus Interface (Output)Power FeedPower Downstream

Interface Type	Connector Description	Function
1 x M12 plug, 5-pin	CANopen incoming bus connection
1 x M12 socket, 5-pin	CANopen outgoing bus connection (integrated T-connector)
1 x M8 male socket, 4-pin	Control voltage and sensor power feed
1 x M8 female socket, 4-pin	Power distribution to downstream modules

Installation Guidelines

Ensure the unit is securely mounted to a flat surface using the integrated mounting holes.
To maintain the IP67 protection rating, all unused M8 and M12 connection ports must be sealed with appropriate protective caps.
Verify that the control voltage is stable at 24 V DC before powering the network.
Keep bus cables isolated from high-voltage AC cables to minimize electromagnetic interference.

Compliance and Certifications

CE
UL

FAQ

What is the maximum number of extension modules the Beckhoff IL2302-B518 can support?

The IL2302-B518 coupler box can support up to 120 extension modules with a maximum of 128 bytes of input data and 128 bytes of output data.

Does this coupler box require a separate T-connector for the CANopen network?

No, the IL2302-B518 features an integrated T-connector with one M12 plug and one M12 socket, allowing direct network daisy-chaining.

What is the environmental protection rating of the IL2302-B518?

The module is rated IP65, IP66, and IP67, making it suitable for direct installation in harsh field environments without a control cabinet.

Does the module support automatic baud rate selection?

Yes, it features automatic detection of data transfer rates ranging from 10 kbaud up to 1 Mbaud.
