Bently Nevada 21504-00-32-10-02 5 mm and 8 mm Standard Mount Probe

Description

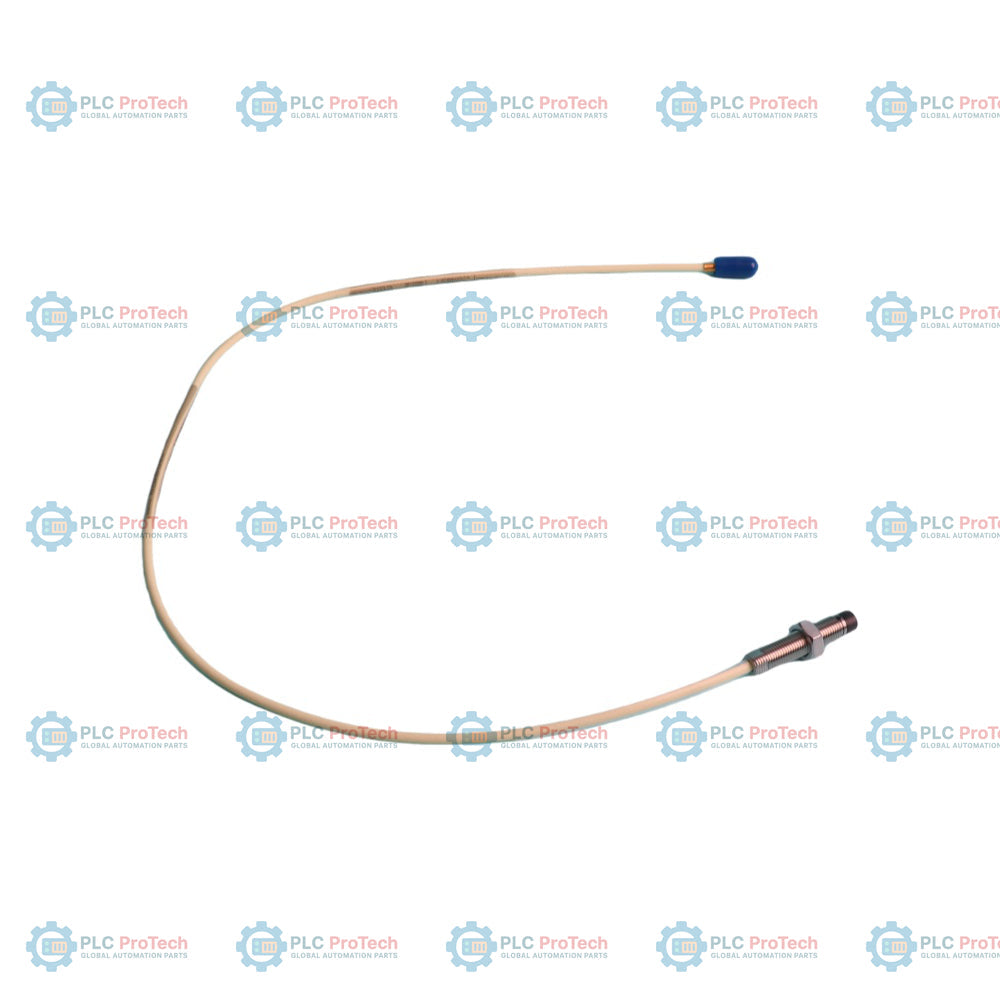

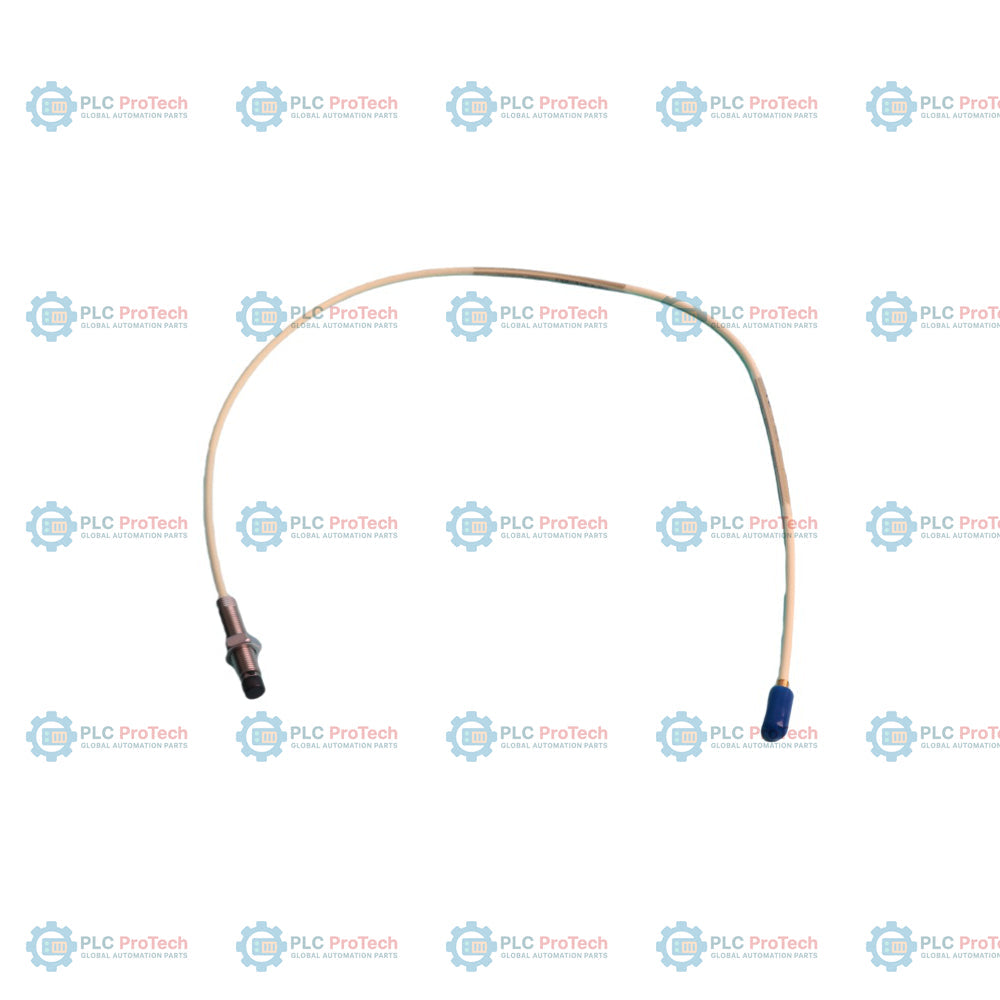

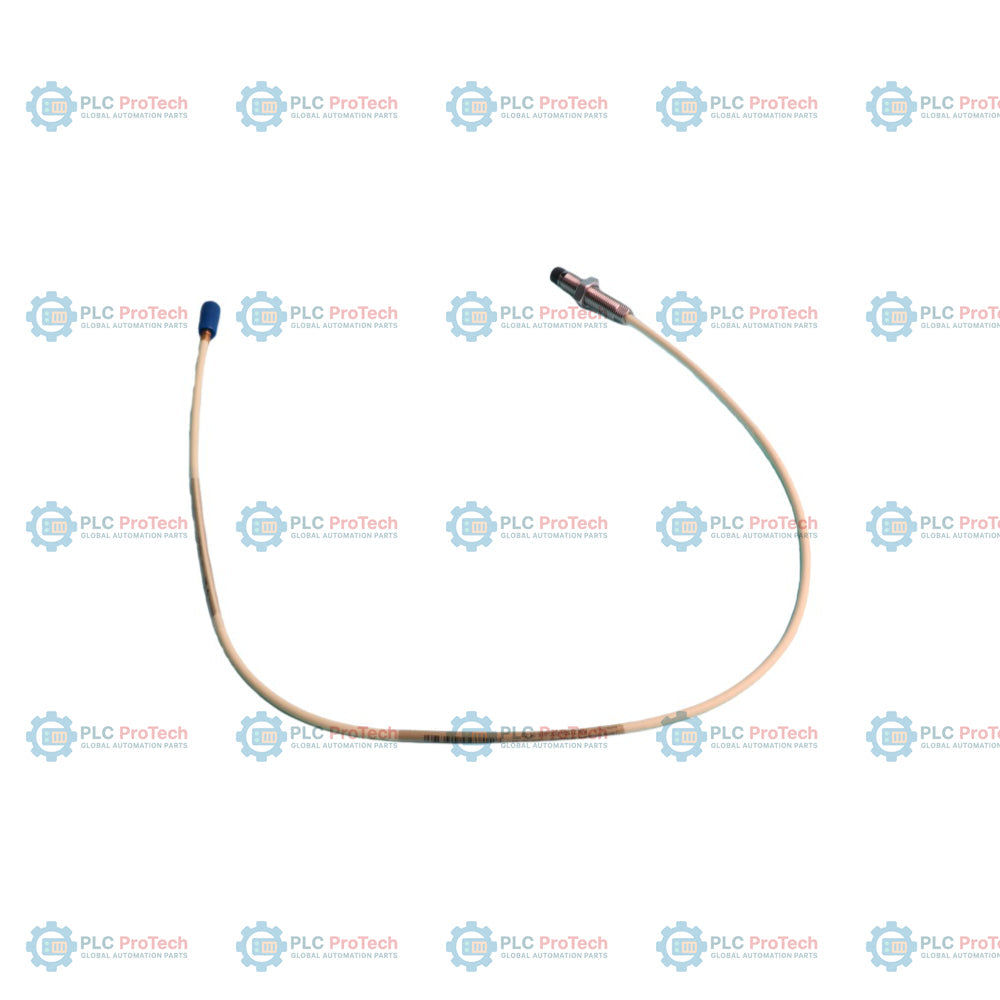

21504-00-32-10-02: 7200 series 8 mm standard mount proximity probe with 0.0 inch unthreaded length (Option 00), 3.2 inch case length (Option 32), 1.0 meter total lead length (Option 10), and miniature male coaxial connector (Option 02). This transducer is an eddy-current displacement sensor used for non-contacting measurements of shaft vibration and axial position on rotating machinery.

As part of the 7200 proximity transducer system, this 8 mm probe works in conjunction with a compatible Proximitor sensor and extension cable to provide a calibrated linear range of 80 mils (2.0 mm). The probe construction utilizes polyphenylene sulfide (PPS), making it suitable for demanding industrial environments including steam and gas turbines, compressors, and centrifuges. This specific configuration features a 3/8-24 UNF thread.

Features

• 8 mm probe diameter with 3/8-24 UNF-2A threading
• Option 00: 0.0 inch (0 mm) unthreaded length
• Option 32: 3.2 inch (81.3 mm) case length
• Option 10: 1.0 meter (39 inch) integral lead length
• Option 02: Miniature male coaxial connector
• Linear measuring range of 80 mils (2.0 mm)
• PPS probe tip material for harsh chemical and wet environments

Applications

• Radial vibration measurements for bearing condition monitoring
• Axial thrust position monitoring to detect bearing wear
• Shaft average radial position for rotor stability analysis
• Vibration amplitude and phase angle for Polar and Bode plotting
• Eccentricity measurements for rotor bow detection

Ordering Information

Technical Specifications

Installation Guidelines

Ensure the probe is mounted securely using the provided jam nut. Maintain proper probe-to-target gap as specified by the Proximitor calibration (typically starting at 10 mils / 0.25 mm). Route coaxial cables away from high-voltage lines and ensure all connections are tight and protected from excessive vibration. Utilize standard Bently Nevada 7200 series extension cables if total system length requirements exceed the integral lead length.

Compliance and Certifications

Compatible with API 670 requirements. Certified by CSA, BASEEFA, and FM for specific hazardous locations (consult product data sheet L1035 for specific hazardous location approvals).
