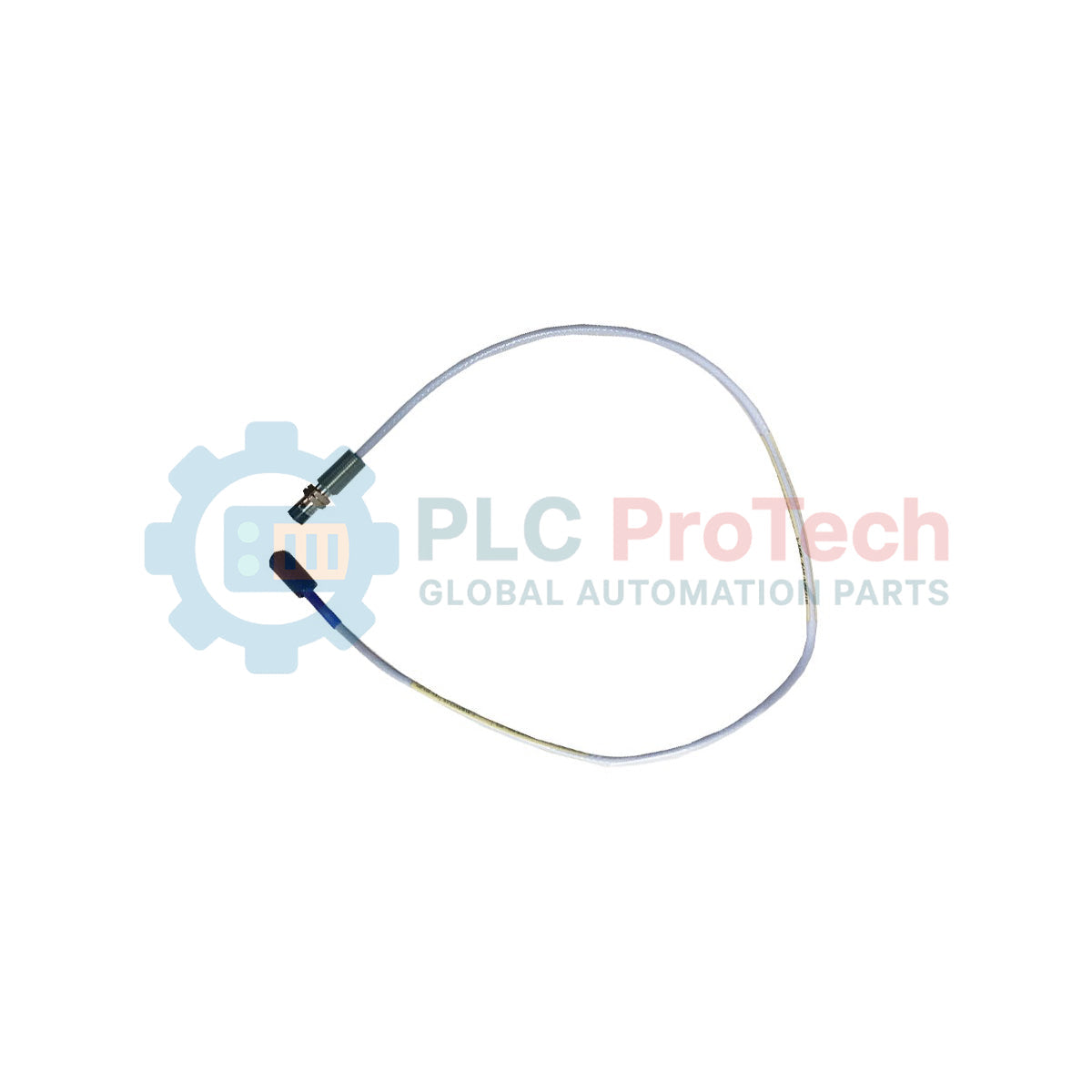

330101-00-24-10-02-CN | Bently Nevada | 3300 XL 8 mm Proximity Probes

Bently Nevada

Bently Nevada 330101-00-24-10-02-CN 3300 XL 8 mm Proximity Probe

SKU 330101-00-24-10-02-CN

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330101-00-24-10-02-CN
  • Origin United States
  • Product Type: Proximity Probes
  • Payment: T/T, Western Union
  • Weight: 1.5 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330101-00-24-10-02-CN 3300 XL 8 mm Proximity Probe

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

Designed for critical machinery monitoring, the 330101-00-24-10-02-CN non-contact displacement sensor belongs to the industry-standard Bently Nevada 3300 XL series. This high-precision sensor measures static (shaft position) and dynamic (shaft vibration) parameters, transmitting highly accurate physical displacement data to compatible proximity transmitters or monitoring modules. It is engineered to perform reliably under extreme industrial conditions.

Constructed with high-durability polyphenylene sulfide (PPS) for the probe tip and a robust AISI 303/304 stainless steel case, the assembly offers excellent structural integrity in demanding environments. This specific configuration features a 1.0-meter standard cable equipped with a miniature coaxial ClickLoc connector, providing a secure, vibration-resistant link to the system extension cable.

Features

  • Non-contact eddy current technology for highly repeatable mechanical displacement measurements.
  • Robust polyphenylene sulfide (PPS) tip material offering thermal stability and resistance to process fluids.
  • Corrosion-resistant AISI 303 or 304 stainless steel case.
  • Secure, gold-plated miniature coaxial ClickLoc connector system preventing accidental disconnects.
  • Optimized for integration with the Bently Nevada 3300 XL 8 mm proximity transducer system.

Applications

  • Industrial steam and gas turbine shaft vibration analysis.
  • Axial thrust and radial position displacement tracking in centrifugal compressors.
  • Reciprocating compressor piston rod drop monitoring.
  • Generator and pump shaft alignment and expansion tracking.

Ordering Information

Option Code Specification Type Value / Description
00 Unthreaded Length 0.0 inches
24 Overall Case Length 2.4 inches
10 Total Length 1.0 meter (3.3 feet)
02 Connector and Cable Type Miniature coaxial ClickLoc connector, standard cable
CN Agency Approvals Country-specific approvals (China)

Technical Specifications

Manufacturer Bently Nevada
Part Number / Model 330101-00-24-10-02-CN
Series 3300 XL 8 mm
Probe Tip Material Polyphenylene sulfide (PPS)
Probe Case Material AISI 303 or 304 stainless steel (SST)
Unthreaded Length 0.0 in
Overall Case Length 2.4 in
Total Length 1.0 meter (3.3 feet)
Connector Type Miniature coaxial ClickLoc connector
Cable Type Standard cable
Agency Approvals Country-specific (CN Approvals Option)
Shipping Weight 1.5 kg

Installation Guidelines

  • Maintain recommended target-to-probe-tip clearance based on system calibration parameters (typically 80 mils or 2.0 mm nominal range).
  • Ensure the installation area is free of magnetic side-loading materials to prevent eddy current interference.
  • Clean and dry the ClickLoc connector terminals before connection; do not use excessive torque during mating.
  • Route extension cables through protective conduit or flexible armor in areas exposed to high mechanical stress or extreme temperatures.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the significance of the CN suffix on this proximity probe?
The CN suffix indicates that this specific probe is designated with country-specific approvals, complying with regulatory and safety guidelines required for use within China.
What connector type does the 330101-00-24-10-02-CN use?
It is equipped with a miniature coaxial ClickLoc connector designed for standard cables, which ensures a secure and vibration-resistant connection.
What are the case and unthreaded length dimensions for this model?
This model configuration (00-24) features an unthreaded length of 0.0 inches and an overall case length of 2.4 inches.
