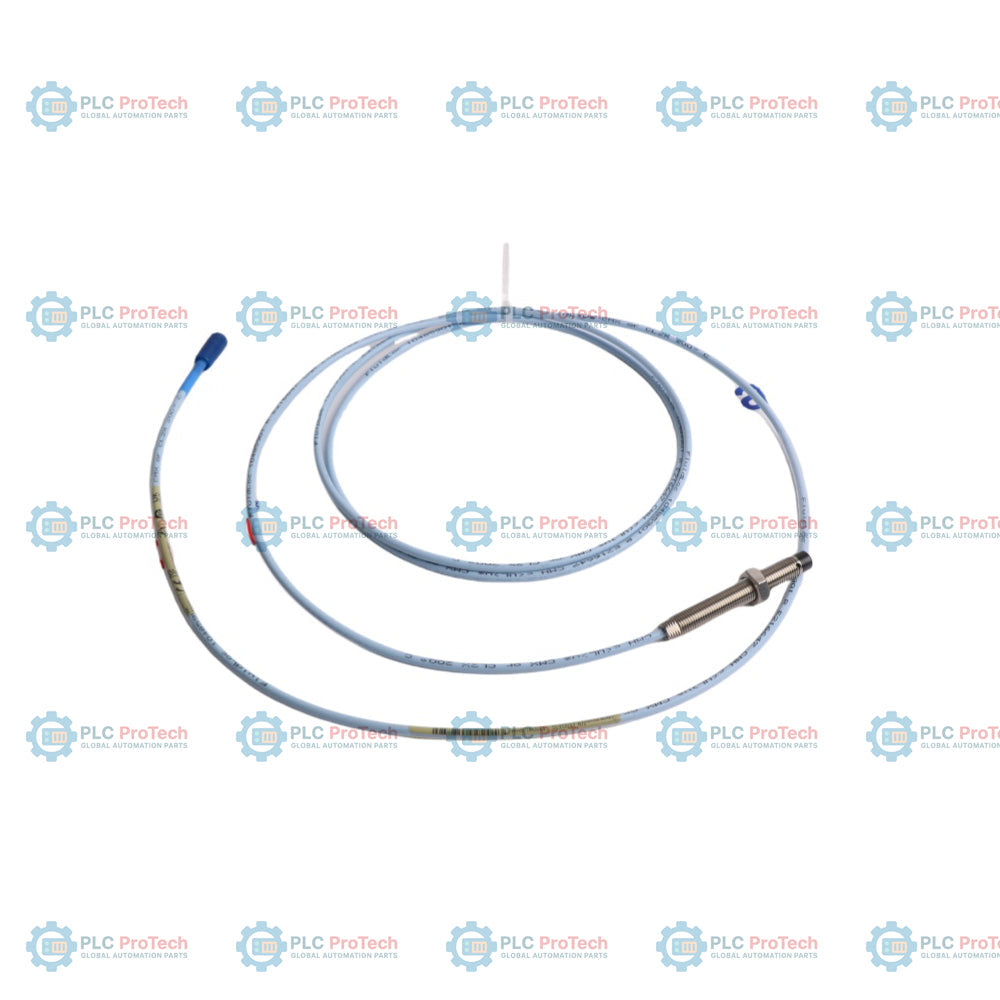

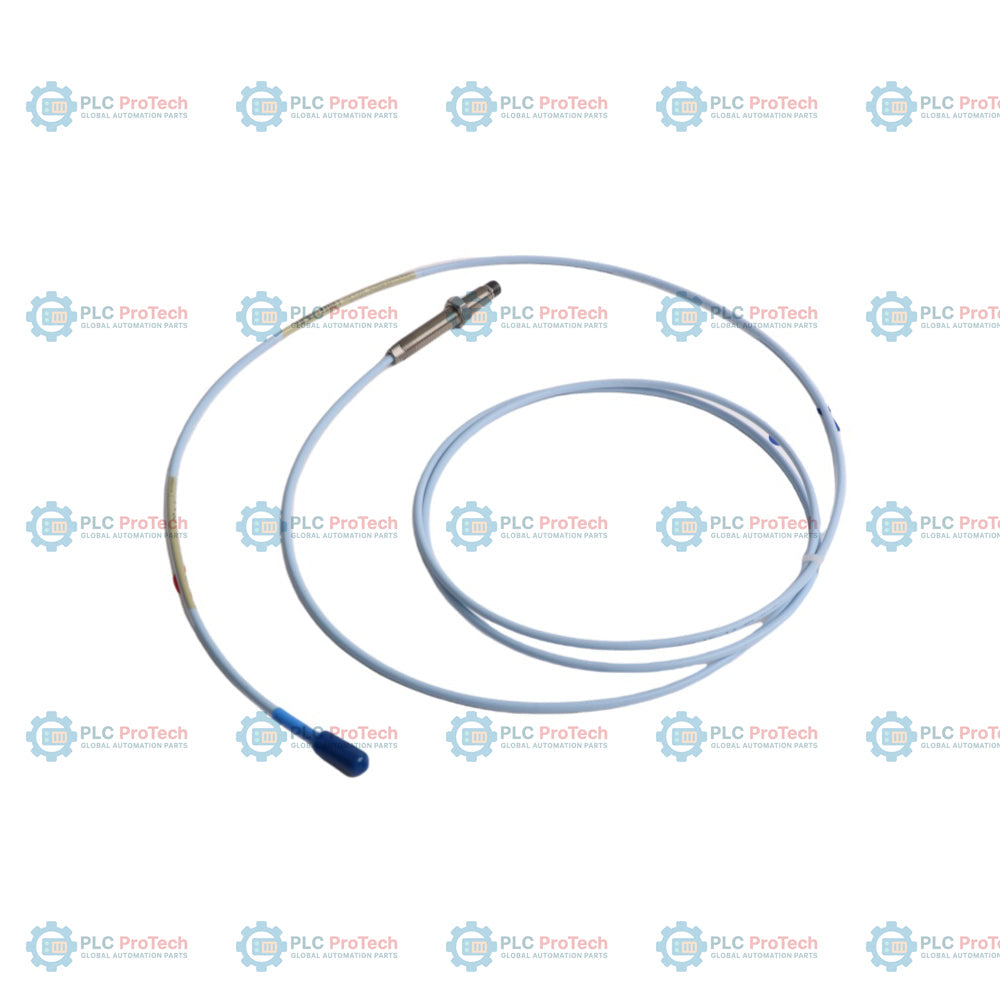

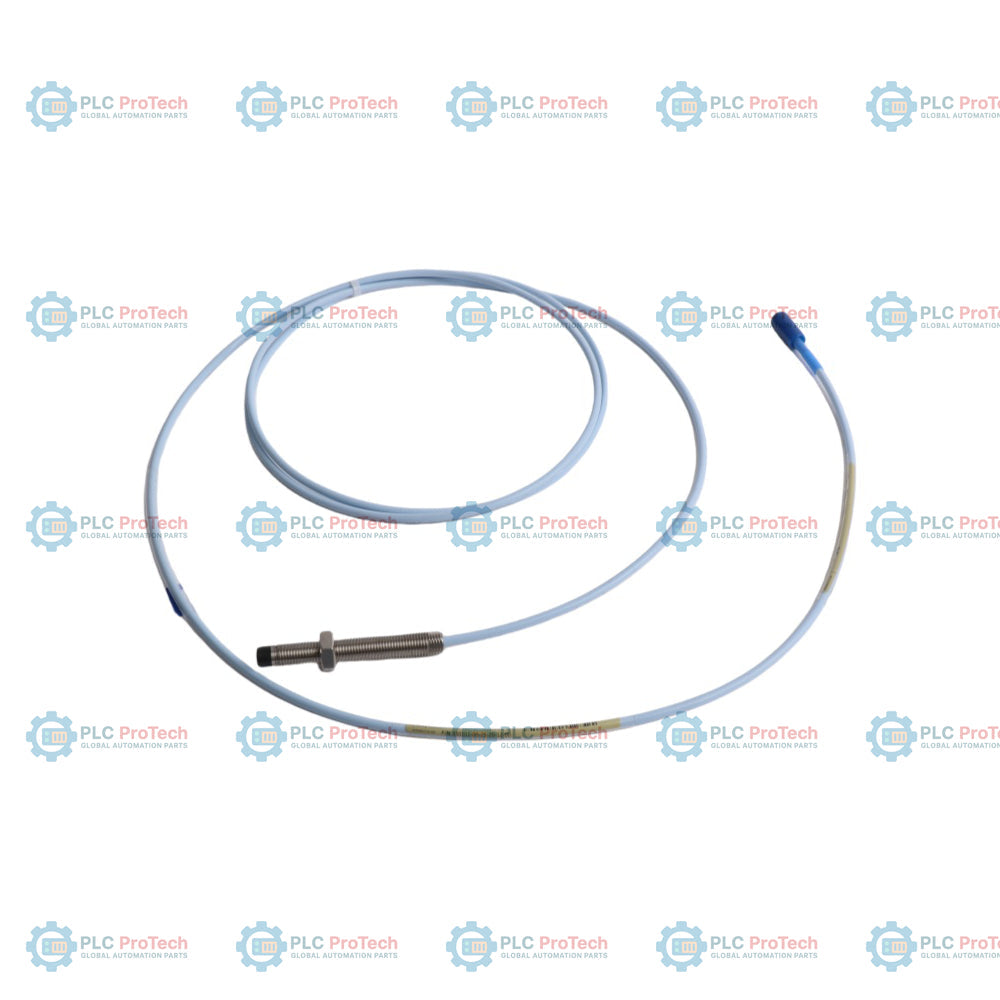

330101-00-25-10-02-05 specifies this 3300 XL 8 mm proximity probe configuration with a 0.0 in unthreaded length (fully threaded case), a 2.5 in overall case length, a 1.0 meter (3.3 feet) total cable length, a miniature coaxial ClickLoc connector on standard cable without an integrated connector protector, and CSA/ATEX/IECEx hazardous area approvals.
Unlike other configurations in the 330101 family, Option 02 provides a standard ClickLoc coaxial connector without an integrated protector, making it suitable for standard conduit runs or enclosed spaces where additional bulk is undesirable. Furthermore, its 1.0-meter total length (Option 10) connects directly to a matching 3300 XL extension cable in 5-meter or 9-meter transducer systems. The 2.5-inch overall case length (Option 25) with a fully threaded body (Option 00) allows exact mechanical positioning within bearing casings or machinery enclosures. This non-contacting eddy-current probe is used for static shaft position and dynamic shaft vibration monitoring when paired with a compatible 3300 XL Proximitor sensor.
| Option Segment | Code Value | Description |
|---|---|---|
| Base Model Number | 330101 | 3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, without armor |
| A - Unthreaded Length Option | 00 | 0.0 in unthreaded length (fully threaded case) |
| B - Overall Case Length Option | 25 | 2.5 in overall case length |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total length |
| D - Connector and Cable Option | 02 | Miniature coaxial ClickLoc connector, standard cable |
| E - Agency Approval Option | 05 | CSA, ATEX, IECEx approvals |
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330101-00-25-10-02-05 |
| Probe Diameter | 8 mm |
| Measurement Type | Displacement (proximity) |
| Operating Principle | Eddy current |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | AISI 303 stainless steel (SST) |
| Cable Insulation | 75 ohm triaxial fluorinated ethylene propylene (FEP) |
| Nominal Probe DC Resistance | 7.59 +/- 0.50 ohms (1.0 meter length) |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Maximum Case Torque (Rated) | 33.9 N-m (300 in-lbf) |
| Recommended Case Torque | 11.2 N-m (100 in-lbf) |
| Maximum Connector Torque | 0.565 N-m (5 in-lbf) |
| Tensile Strength (Max) | 330 N (75 lbf) probe case to probe lead |
| Dimensions (H x W x D) | 45 mm x 95 mm x 95 mm (H x W x D) |
| Weight | 0.14 kg |
Maintain the standard probe gap as specified by the system calibration (typically 1.27 mm or 50 mils). Route the coaxial cable with proper shielding and grounding to prevent signal interference. Avoid tight bends by maintaining a minimum bend radius of 25.4 mm (1.0 in). Tighten the probe case to the recommended installation torque of 11.2 N-m (100 in-lbf), avoiding the maximum structural limit of 33.9 N-m (300 in-lbf). Coaxial connections must be finger-tightened before applying a final connector torque of 0.565 N-m (5 in-lbf) using a dedicated connector wrench.
Associated with Option 05: CSA, ATEX, and IECEx approvals for use in hazardous area classifications.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330101-00-25-10-02-05
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 140g
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
