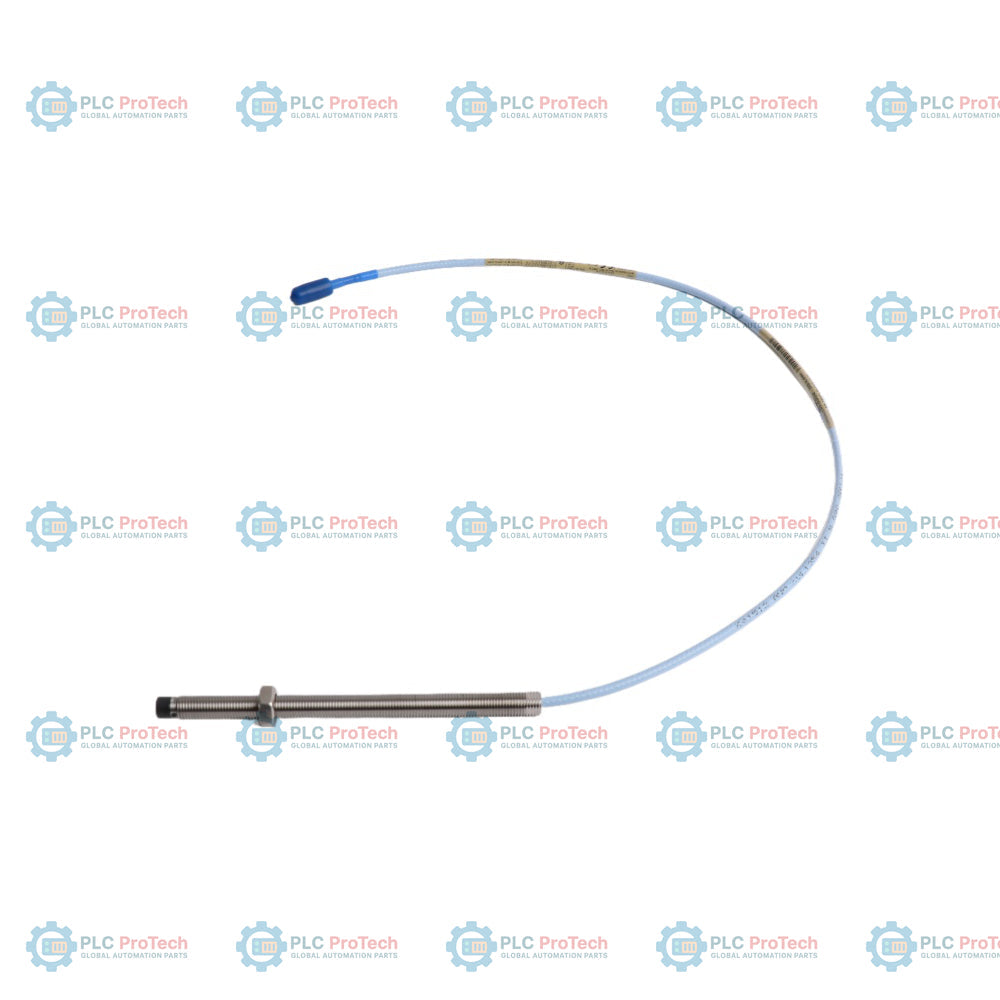

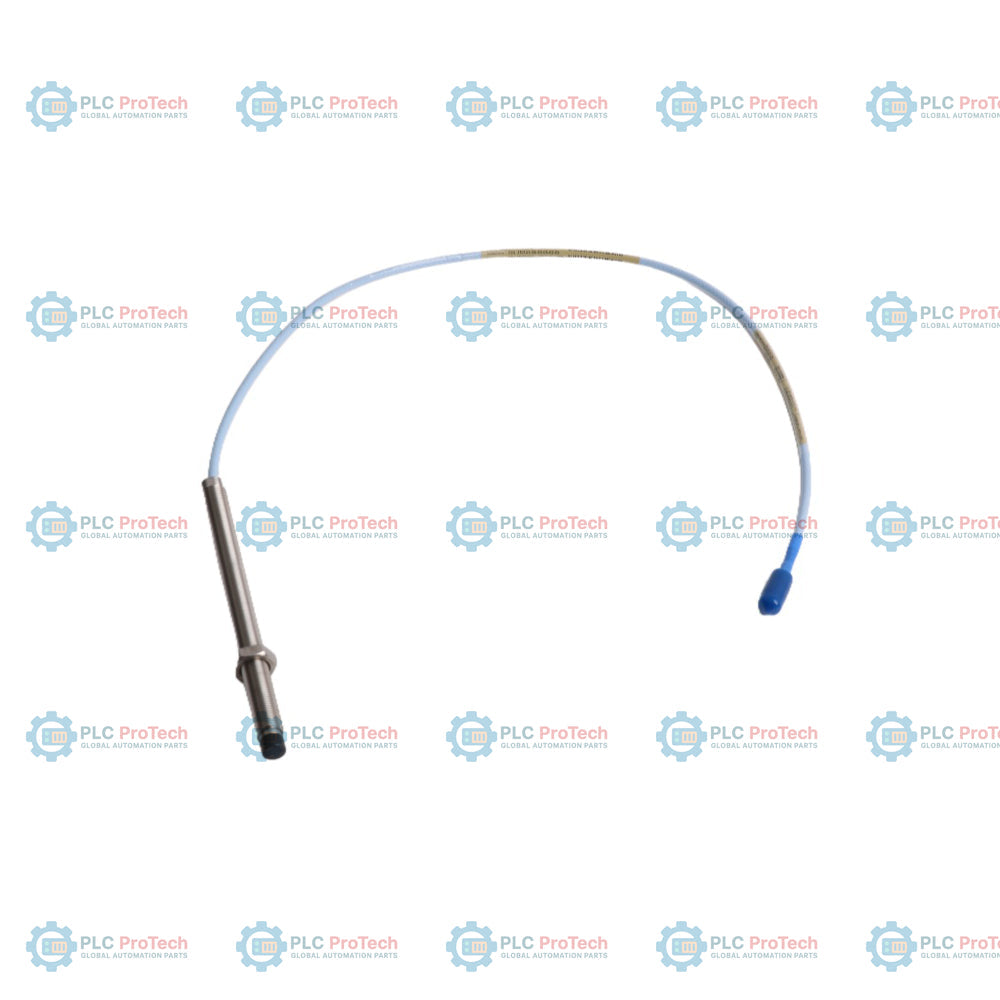

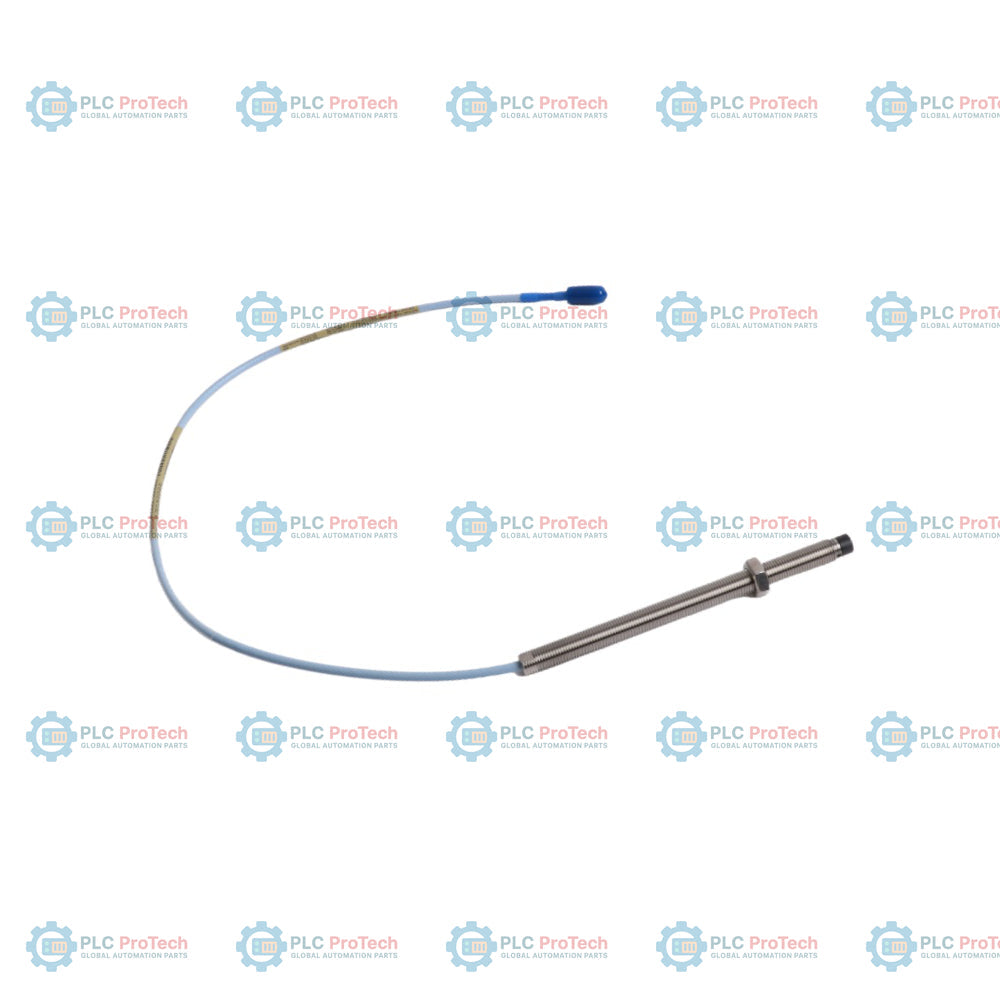

Bently Nevada 330101-00-59-10-01-05 3300 XL 8 mm Proximity Probe

SKU 330101-00-59-10-01-05

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330101-00-59-10-01-05
Origin United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.14 kg
Dimensions: 45 mm x 95 mm x 95 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Option 00 (0.0 in unthreaded length) and Option 59 (5.9 in overall case length) specify this 3300 XL 8 mm proximity probe configuration - 330101-00-59-10-01-05. It serves as a non-contact eddy-current displacement sensor within 3300 XL transducer systems, enabling shaft vibration and axial position monitoring. By pairing with a 330180 series 3300 XL Proximitor sensor and an extension cable, the probe translates the physical gap between its tip and a target material into a proportional voltage signal.

The 330101-00-59-10-01-05 proximity probe is unarmored and features a 1.0 m total length lead. It utilizes standard coaxial cable with a miniature ClickLoc connector and includes an integrated connector protector (Option 01). Certified with CSA, ATEX, and IECEx approvals (Option 05), it is configured for safety-critical environments and hazardous area installations.

Features

8 mm tip diameter designed for non-contact eddy-current displacement measurement
Threaded 3/8-24 UNF steel body without protective armor sleeve
Option 00 specifies a 0.0 inch unthreaded length, making the entire 5.9 inch case threaded
Option 59 provides a 5.9 inch overall case length for deep-reach installation requirements
Option 10 provides a 1.0 meter total probe length
Option 01 features a miniature coaxial ClickLoc connector supplied with a connector protector and standard cable insulation
Option 05 qualifies the probe with international CSA, ATEX, and IECEx hazardous area certifications

Applications

Steam and gas turbine shaft vibration measurement
Compressor rotor axial position and dynamic displacement monitoring
Industrial pump shaft alignment and radial vibration checks
Machinery protection systems for large rotating equipment assemblies

Ordering Information

Option / Segment	Code Value	Description / Meaning
Base Model	330101	3300 XL 8 mm Proximity Probe, 3/8-24 UNF thread, without armor
A - Unthreaded Length	00	0.0 in unthreaded length
B - Overall Case Length	59	5.9 in overall case length
C - Total Length	10	1.0 meter (3.3 feet)
D - Connector and Cable-Type	01	Miniature coaxial ClickLoc connector with connector protector, standard cable
E - Agency Approval	05	CSA, ATEX, IECEx Approvals

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada
Model Number	330101-00-59-10-01-05
Product Family	3300 XL 8 mm Proximity Transducer System
Probe Diameter	8 mm
Measurement Type	displacement (proximity)
Operating Principle	eddy current
Thread Size	3/8-24 UNF-2A
Unthreaded Length	0.0 in
Case Length	5.9 in
Total Length	1.0 m (3.3 ft)
Cable Type	Standard 75 ohm triaxial, FEP insulated
Connector Type	Miniature coaxial ClickLoc with connector protector
Nominal Probe DC Resistance	7.59 plus/minus 0.50 ohms
Operating and Storage Temperature	-52 degC to +177 degC (-62 degF to +350 degF)
Probe Case Material	AISI 303 or 304 stainless steel
Probe Tip Material	Polyphenylene sulfide (PPS)
Max Tensile Strength	330 N (75 lbf) probe case to probe lead
Minimum Bend Radius	25.4 mm (1.0 in)
Recommended Connector Torque	Finger tight
Dimensions	45 mm x 95 mm x 95 mm (H x W x D)
Weight	0.14 kg

Installation Guidelines

Mount with the appropriate probe gap per system calibration, ensuring the probe tip has adequate side view clearance and tip-to-tip spacing.
Always use the provided connector protector to shield connections from moisture and contaminants in machine casings.
Observe the minimum permissible cable bend radius of 25.4 mm (1.0 inch) during routing.
Implement proper shielding and grounding practices to minimize electrical noise interference in the vibration monitoring signal path.
Tighten standard coaxial ClickLoc connectors finger tight only to avoid thread or contact damage.

Compliance and Certifications

CSA Class I, Div 1 / Class I, Div 2
ATEX Zone 0 / Zone 2
IECEx

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the difference between this probe and the 330102 probe series?

The 330101 probe (this configuration) is unarmored, whereas the 330102 series includes an integrated flexible stainless steel protective armor jacket over the probe cable.

What does the Option 01 connector type signify?

Option 01 designates a standard coaxial cable terminated with a miniature gold ClickLoc connector and includes a pre-installed connector protector to seal the connection against environmental contaminants.

What are the dimensions and case specifications of this exact configuration?

This probe configuration features a 5.9 inch (150 mm) fully threaded case (Option 59) with an unthreaded length of 0.0 inches (Option 00), a 3/8-24 UNF thread, and a total probe length of 1.0 meter (Option 10).

What hazardous area certifications does this probe hold?

The Option 05 suffix guarantees that this probe is fully certified under CSA, ATEX, and IECEx standards for safe deployment in hazardous locations.

Does this probe require a matching Proximitor sensor length?

Yes, when combined with an extension cable, the total combined length of the probe and extension cable must match the calibrated total length of the 3300 XL Proximitor sensor (typically 5 or 9 meters).
