Bently Nevada 330103-00-06-50-01-00 3300 XL 8 mm Proximity Probe

Description

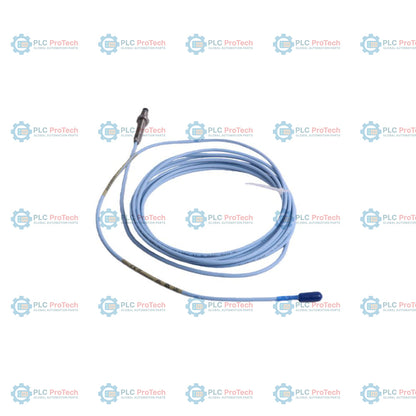

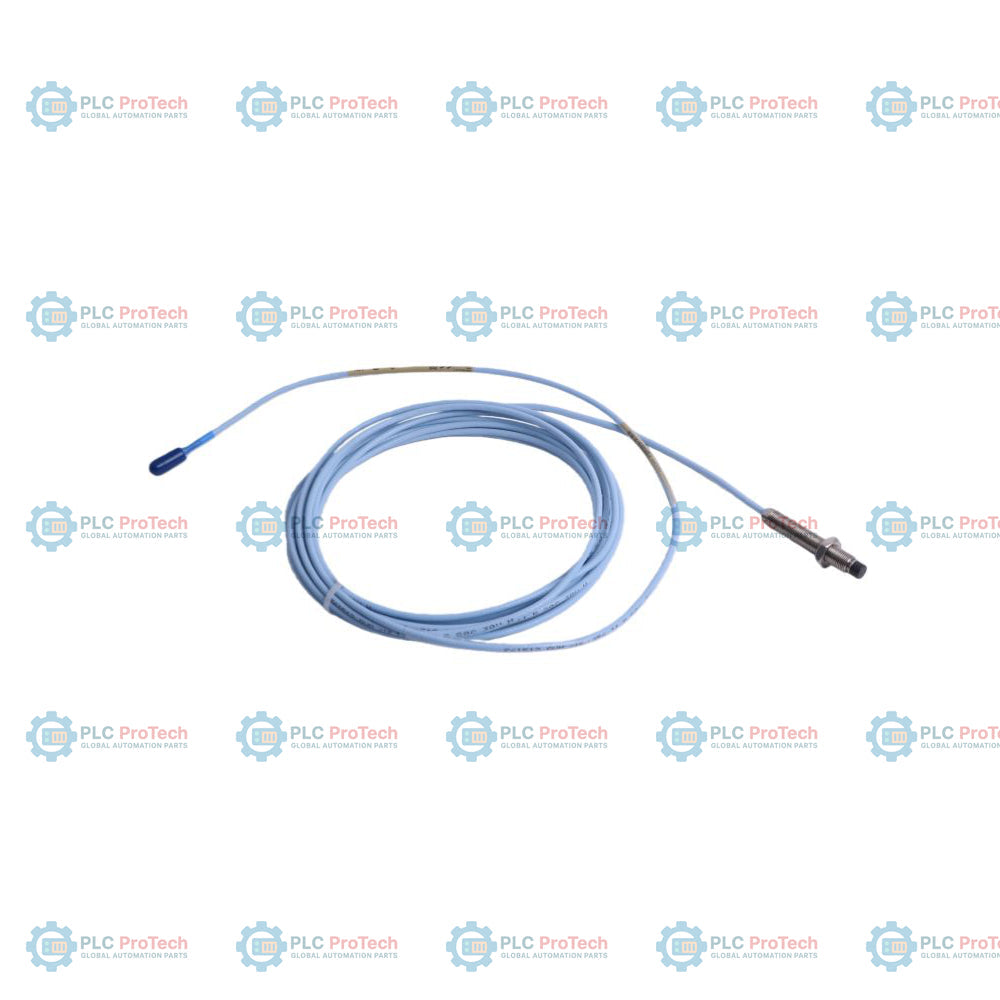

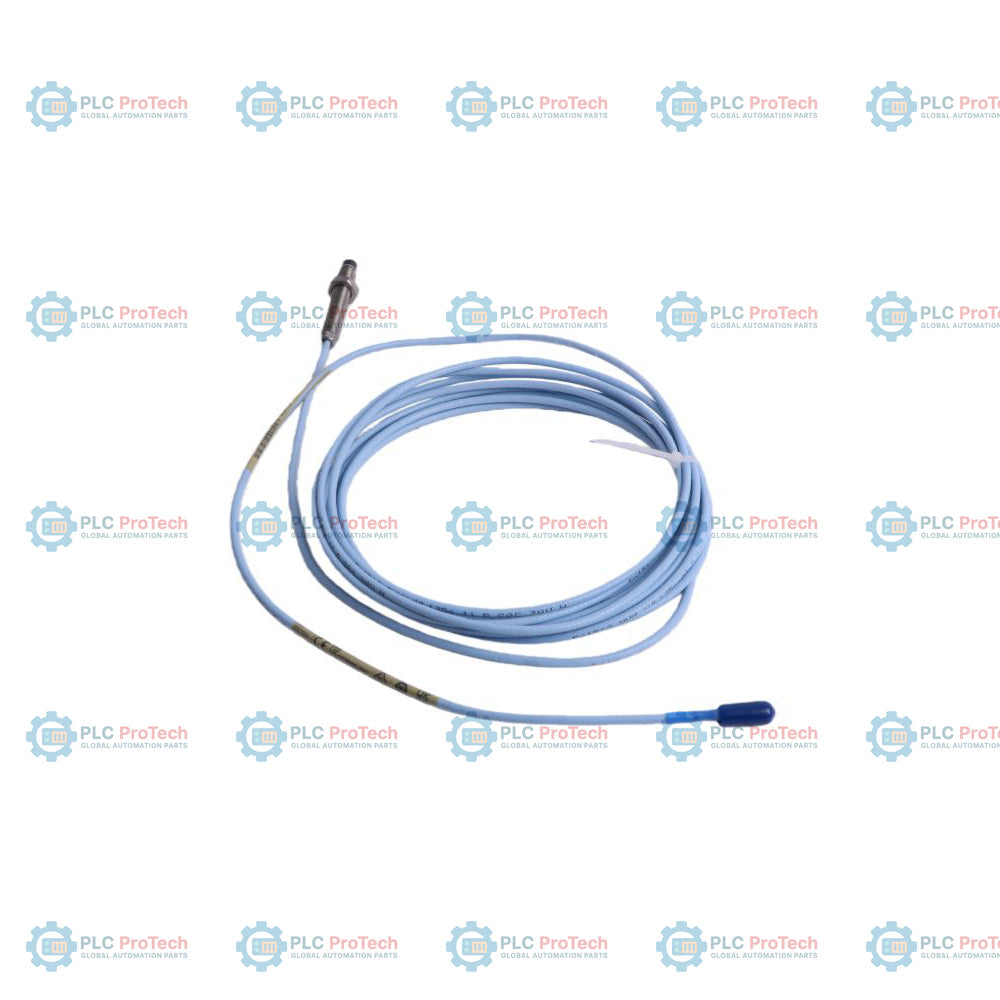

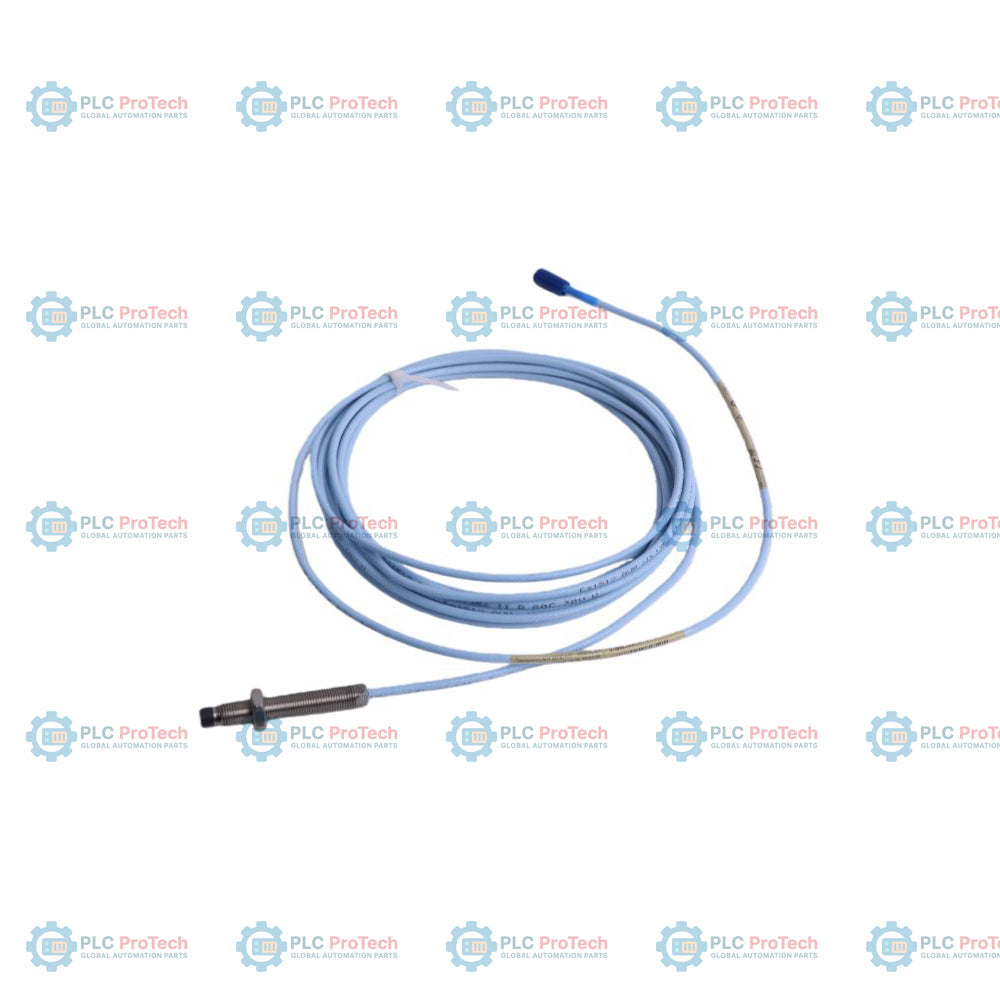

330103-00-06-50-01-00 is a 3300 XL 8 mm proximity probe configured with a metric M10 x 1 thread without armor. This configuration is defined by a 0 mm unthreaded length (Option 00), a 60 mm case length (Option 06), and a 5.0 m total length (Option 50). The probe features a miniature coaxial ClickLoc connector supplied with a pre-installed connector protector (Option 01), and does not require agency approvals (Option 00).

Unlike standard probe variants that require a separate extension cable to complete a 5.0-meter or 9.0-meter transducer system, this 5.0 m probe features an integral cable designed for direct connection to a 5-meter Proximitor sensor. This direct connection reduces the number of mating points in standard measurement chains, while the integrated fluorosilicone connector protector shields the ClickLoc connection from oil, moisture, and environmental particulates.

Features

• M10 x 1 metric thread configuration without armor for direct-mount metric casing installations.
• 0 mm unthreaded length (Option 00) providing a fully threaded probe casing.
• 60 mm overall case length (Option 06) suitable for standard depth measurement applications.
• 5.0 m total length (Option 50) designed to connect directly to 5-meter systems without an intermediate extension cable.
• Gold-plated miniature coaxial ClickLoc connector supplied with a pre-installed connector protector (Option 01).
• Polyphenylene sulfide (PPS) probe tip material for chemical and temperature resistance.

Applications

This proximity probe is used for shaft vibration and axial position measurements on rotating machinery, including steam turbines, centrifugal compressors, and industrial pumps. It is suitable for applications where space constraints or installation routing require a direct-connect 5.0 m cable layout to eliminate intermediate junction boxes.

Ordering Information

Technical Specifications

Installation Guidelines

• Do not exceed the maximum rated case torque of 22.6 N-m (200 in-lbf) during installation; use the recommended mounting torque of 7.5 N-m (66 in-lbf).
• Verify that the maximum thread engagement does not exceed 15 mm for this M10 x 1 case thread to avoid binding.
• Observe the minimum bend radius of 25.4 mm (1.0 in) when routing the triaxial cable.
• Ensure that this 5.0-meter probe is connected directly to a 5-meter Proximitor sensor; do not use with 9-meter systems.

Compliance and Certifications

• Agency Approval Option 00: Standard design, no hazardous area approvals required.
• RoHS: Compliant with applicable environmental directives.
