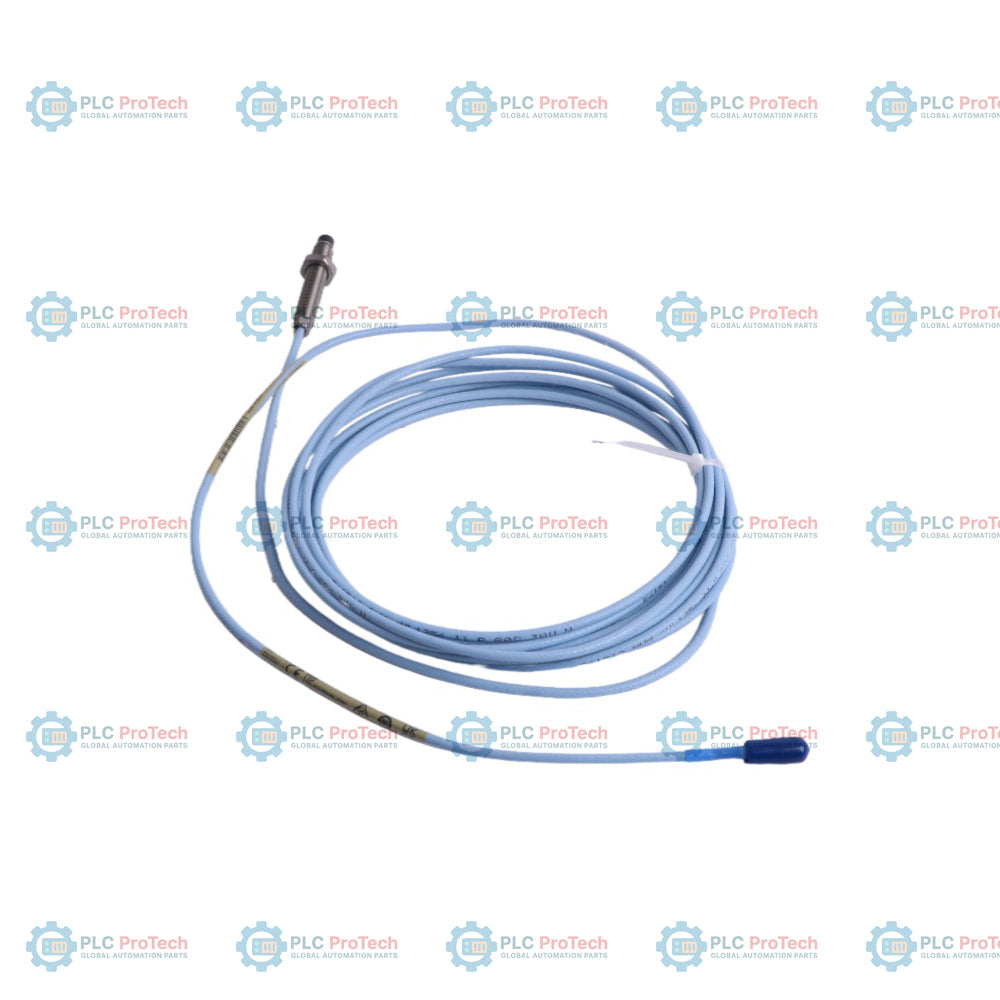

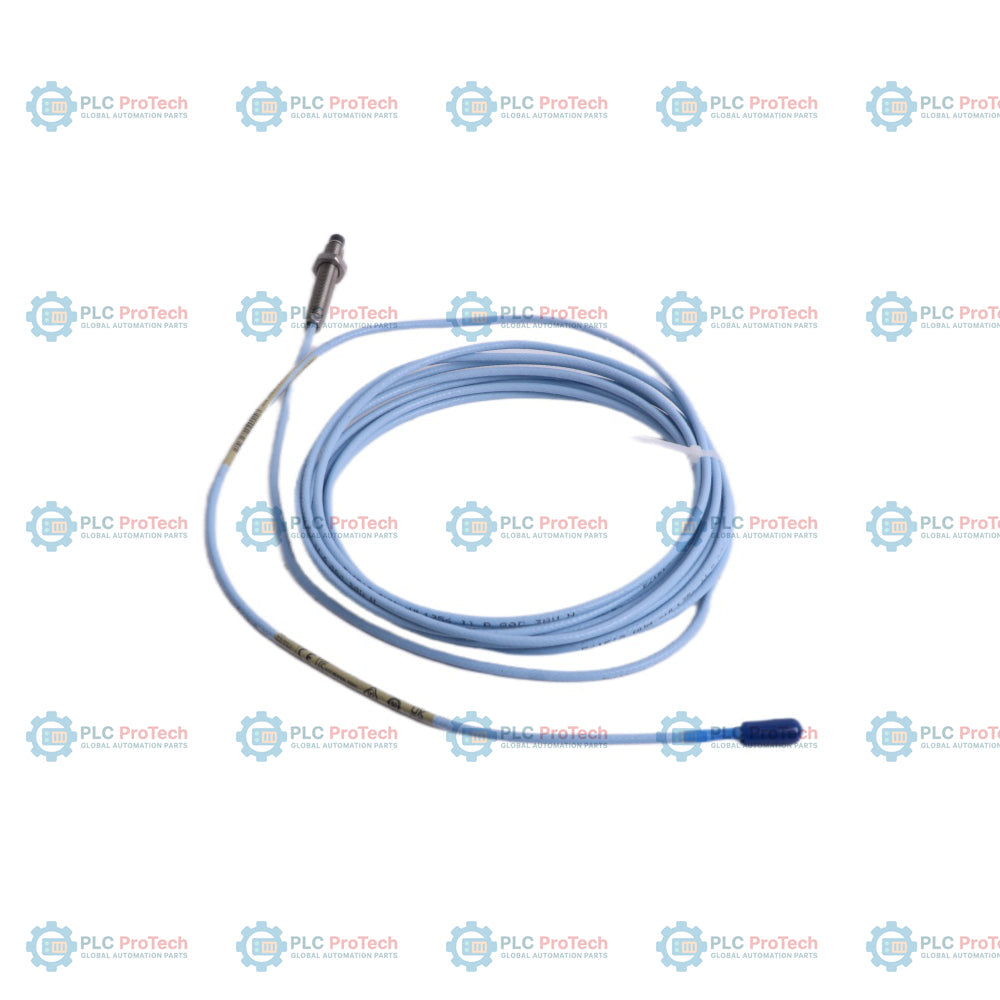

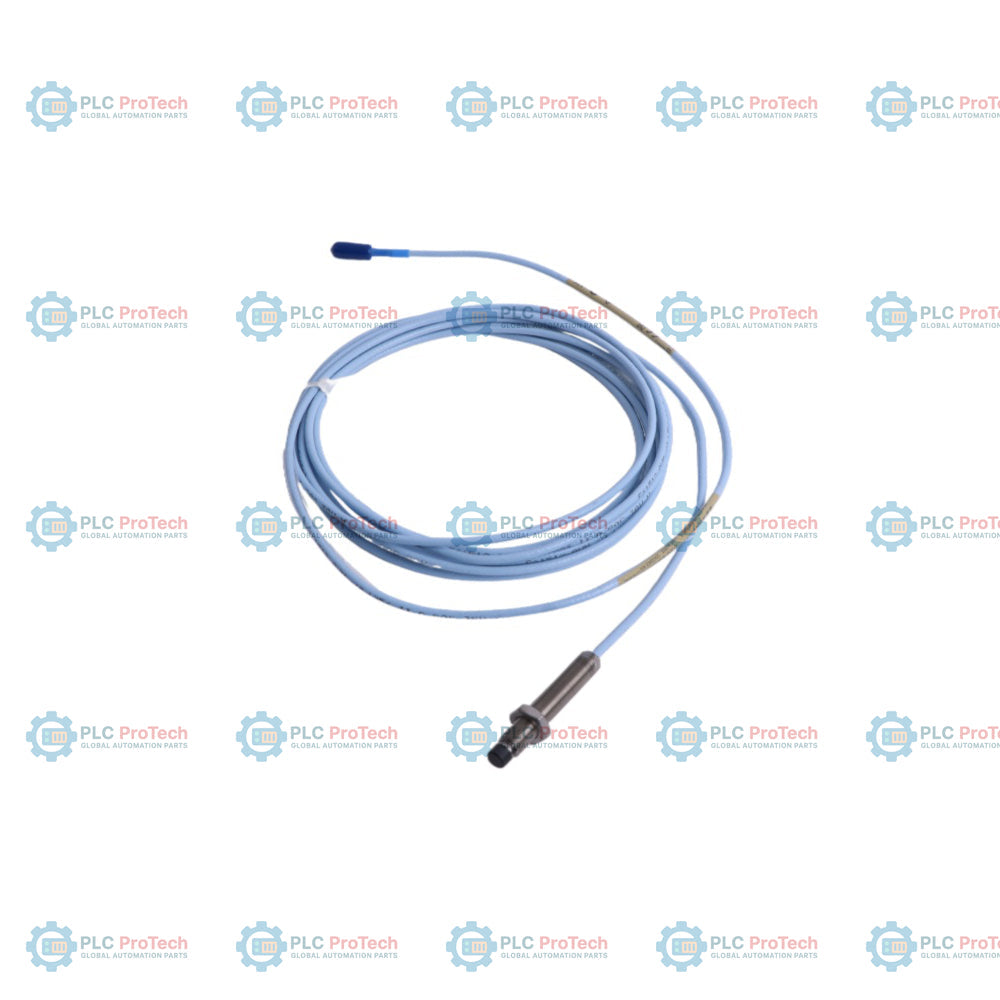

330103-00-06-15-02-05 specifies a 3300 XL 8 mm proximity probe configuration utilizing M10 x 1 metric threads without armor, defined by a 60 mm fully threaded case length (0 mm unthreaded length), 1.5-meter total cable length, standard coaxial ClickLoc connector, and CSA/ATEX/IECEx hazardous area certification.
This unarmored metric configuration is engineered for standard industrial installations requiring high-precision non-contact eddy-current shaft vibration and position measurements. Unlike its armored counterpart (the 330104 series) or variants equipped with integrated connector protectors (Option 01), this specific configuration utilizes a standard 1.5-meter coaxial cable with a bare ClickLoc connector (Option 02) to simplify routing through tight conduits or internal machine housings where mechanical abrasion protection is not required.
| Option | Code on This SKU | Description |
|---|---|---|
| Orderable Part Number | 330103-00-06-15-02-05 | 3300 XL 8 mm Proximity Probe, Metric (M10 x 1 thread, without armor) |
| A - Unthreaded Length Option | 00 | 0 mm (fully threaded case) |
| B - Overall Case Length Option | 06 | 60 mm case length |
| C - Total Length Option | 15 | 1.5 meters (4.9 feet) |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable (no connector protector) |
| E - Agency Approval Option | 05 | CSA, ATEX, IECEx approvals (Intrinsically Safe and Non-Incendive) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model / Part Number | 330103-00-06-15-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe, Metric |
| Thread Size | M10 x 1 metric thread |
| Armor Option | Unarmored (without armor) |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Cable Length | 1.5 meters (4.9 feet) |
| Connector Type | Miniature coaxial ClickLoc (Option 02) |
| Cable Type | Standard coaxial cable (FEP insulated) |
| Target Material | AISI 4140 steel (factory standard calibration) |
| Linear Range | 2.0 mm (80 mils), from approximately 0.25 to 2.25 mm (10 to 90 mils) |
| Average Scale Factor (ASF) | 7.87 V/mm (200 mV/mil) nominal |
| System Compatibility | Fully compatible with 3300 XL Proximitor Sensor and standard 3300 XL extension cables |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Tip Diameter | 8.0 mm |
| Operating Temperature Range | -52 degC to +177 degC (-62 degF to +350 degF) |
| Pressure Rating | Designed to seal differential pressure between tip and case (Viton O-ring tip seal) |
| Dimensions | 150 mm x 150 mm x 30 mm (H x W x D) (coiled for package) |
| Weight | 0.15 kg (150 g) |
Optimal proximity probe installation is essential for accurate machinery protection and condition monitoring. Observe the following guidelines for metric M10 x 1 probes:
The 330103-00-06-15-02-05 proximity probe complies with major international standards for industrial machinery environments:
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330103-00-06-15-02-05
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 150g
Dimensions: 150 mm x 150 mm x 30 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
