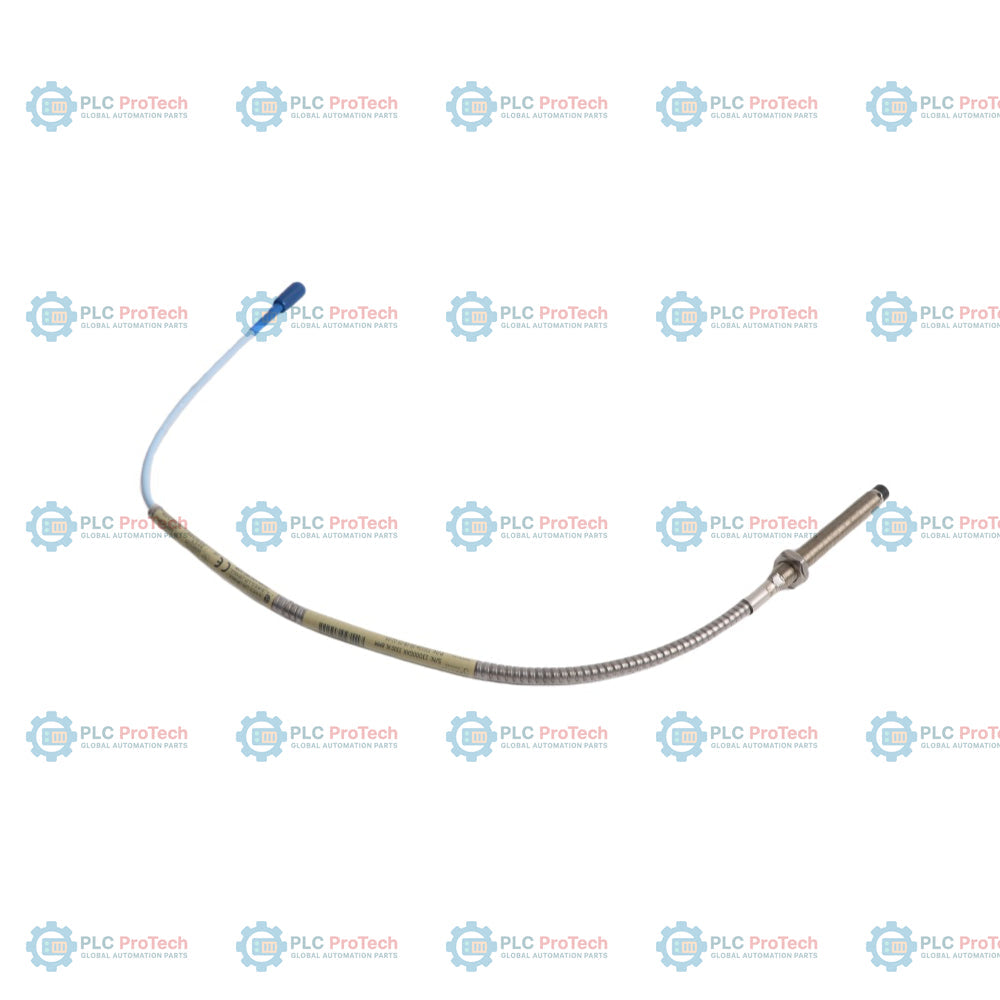

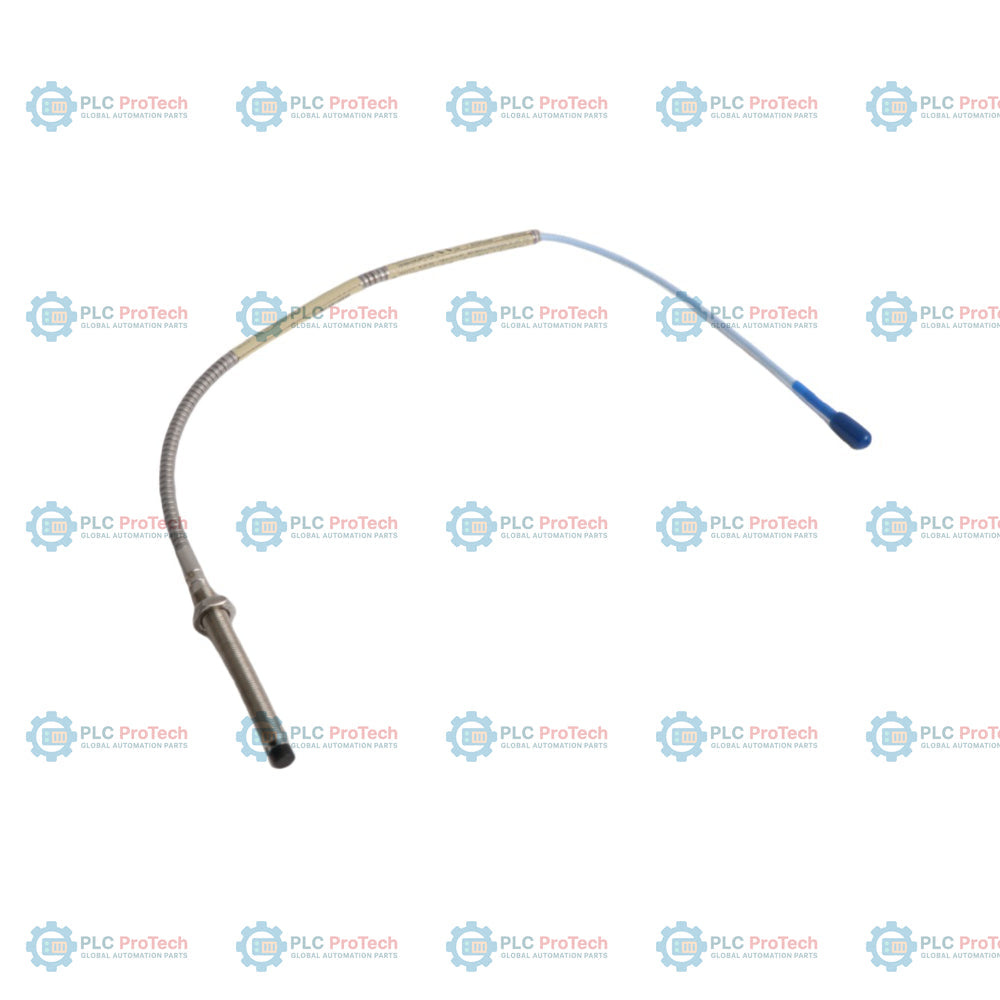

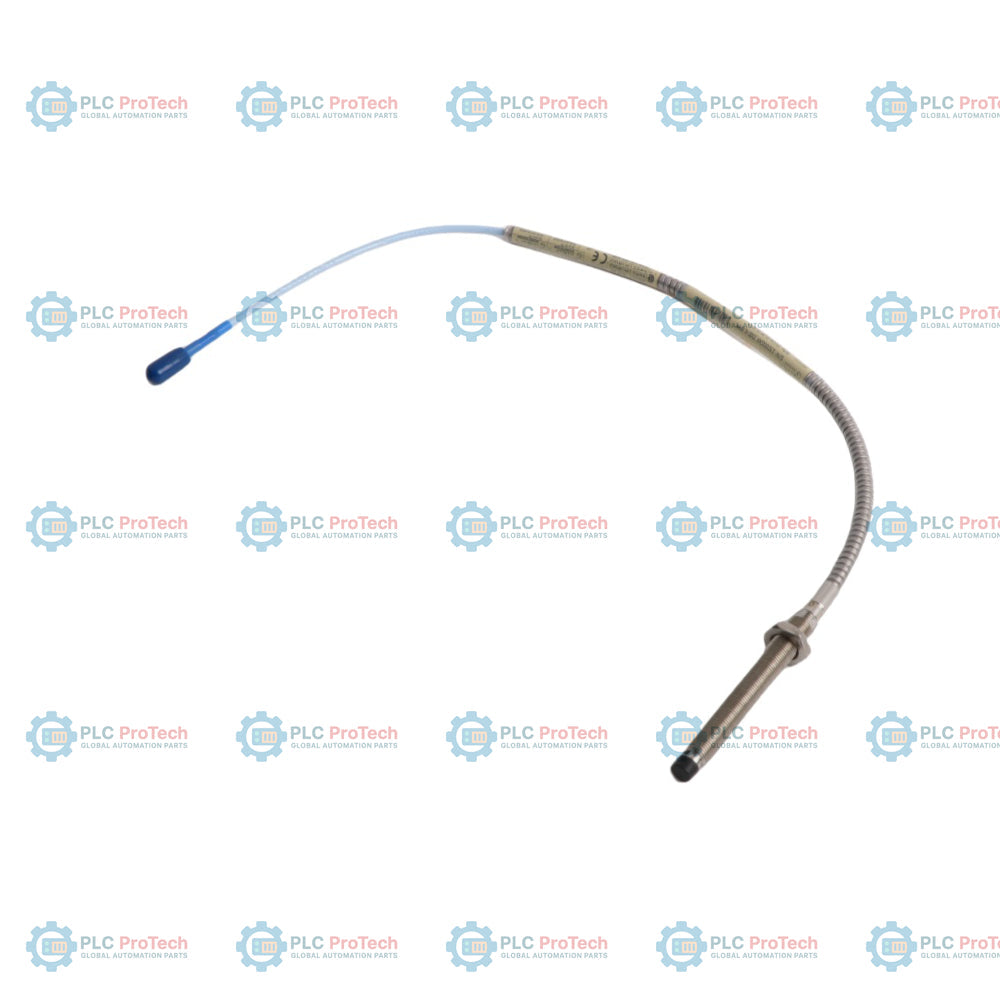

Bently Nevada 330104-00-08-90-02-05 3300 XL 8 mm Proximity Probe with Armor

SKU 330104-00-08-90-02-05

In stock

12-month warranty
Free returns within 30 days

Manufacturer: Bently Nevada
Product No.: 330104-00-08-90-02-05
Origin United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1.1 kg
Dimensions: 150 mm x 150 mm x 100 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Fully threaded M10 x 1 metric probe body with stainless steel armor (Option 00 unthreaded) specifies the 330104-00-08-90-02-05 3300 XL 8 mm proximity probe configuration, featuring an 80 mm case length and a 9.0 m total length.

This armored configuration prevents mechanical wear and abrasion on the triaxial FEP cable in severe industrial environments. The probe incorporates a miniature coaxial ClickLoc connector (Option 02) and holds ATEX, IECEx, and CSA approvals (Option 05) for hazardous locations.

Features

Miniature coaxial ClickLoc connector (Option 02) provides standard coaxial coupling without a connector protector.
Metrically threaded M10 x 1 probe body with integrated AISI 302 or 304 stainless steel armor protects against mechanical wear.
Total length of 9.0 meters (Option 90) connects directly to standard 9-meter Proximitor systems.
Zero unthreaded length (Option 00) and 80 mm case length (Option 08) provide deep thread depth for thick machine casings.
Certified under ATEX, IECEx, and CSA hazardous area frameworks (Option 05).

Applications

Fluid-film bearing radial vibration and axial position measurements on steam turbines, gas turbines, and compressors.
Shaft displacement and casing expansion monitoring on industrial pumps and cooling tower fans.
Keyphasor reference measurements and speed sensing on high-speed rotating shafts.

Ordering Information

Option Segment	Code	Meaning
Orderable Part Number	330104-00-08-90-02-05	3300 XL 8 mm Proximity Probe with armor, M10 x 1 thread
A - Unthreaded Length Option	00	0 mm (0.0 in)
B - Overall Case Length Option	08	80 mm (3.1 in)
C - Total Length Option	90	9.0 meters (29.5 feet)
D - Connector and Cable-Type Option	02	Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval Option	05	CSA, ATEX, IECEx approvals

Technical Specifications

Parameter	Specification
Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330104-00-08-90-02-05
Product Series	3300 XL 8 mm Proximity Transducer System
Probe Thread Size	M10 x 1 metric thread
Unthreaded Length	0 mm
Case Length	80 mm
Total Length	9.0 meters (29.5 feet)
Armor Protection	Flexible AISI 302 or 304 stainless steel with FEP outer jacket
Cable Construction	75 Ohm triaxial fluoroethylene propylene (FEP) insulation
Connector Type	Miniature coaxial ClickLoc connector (no connector protector)
Probe Tip Diameter	8.0 mm
Probe Tip Material	Polyphenylene sulfide (PPS)
Probe Case Material	AISI 303 or 304 stainless steel
Operating Temperature Range	-52 degC to +177 degC
Storage Temperature Range	-52 degC to +177 degC
Minimum Bend Radius	25.4 mm (1.0 in)
Tensile Strength (Case to Lead)	330 N (75 lbf) maximum
Tensile Strength (Lead to Connector)	270 N (60 lbf) maximum
Dimensions	150 mm x 150 mm x 100 mm (H x W x D) (packaged coil)
Weight	1.10 kg

Installation Guidelines

Keep the minimum bend radius of the armored cable to 25.4 mm to prevent signal degradation or physical breakage.

Torque the M10 x 1 probe body to the recommended 22.6 N-m (200 in-lbf) during installation. Do not exceed the maximum rated engagement of 15 mm.

Maintain adequate physical clearance between the 8.0 mm probe tip and neighboring structural components to prevent electrical cross-talk or physical damage.

Finger-tighten the miniature coaxial ClickLoc connector to 0.565 N-m (5 in-lbf) torque. Do not use pliers or other mechanical tools on gold ClickLoc connectors.

Compliance and Certifications

CSA: Class I, Division 1, Groups A, B, C, D; Class II, Groups E, F, G; Class III
ATEX: II 1 G Ex ia IIC T4/T5 Ga
IECEx: Ex ia IIC T4/T5 Ga
CE Mark: Yes
RoHS: Compliant
Agency Approval: Option 05 designates full hazardous area approvals including CSA, ATEX, and IECEx certifications.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the unthreaded and case length of the 330104-00-08-90-02-05 probe?

This specific probe configuration has a 0 mm unthreaded length (Option 00) and an 80 mm case length (Option 08) with M10 x 1 threads.

What cable length and protective options are included with this sensor?

The probe features a 9.0 meter (29.5 feet) total length (Option 90) with an integrated flexible stainless steel armor that shields the FEP-insulated coaxial cable.

Which connector option and agency approvals does this probe configuration feature?

The probe is equipped with a miniature coaxial ClickLoc connector without a connector protector (Option 02) and holds CSA, ATEX, and IECEx approvals (Option 05) for hazardous locations.

What is the minimum bend radius of the armored cable?

The minimum permissible bend radius for the armored cable is 25.4 mm (1.0 in) to prevent internal physical damage and signal distortion.
