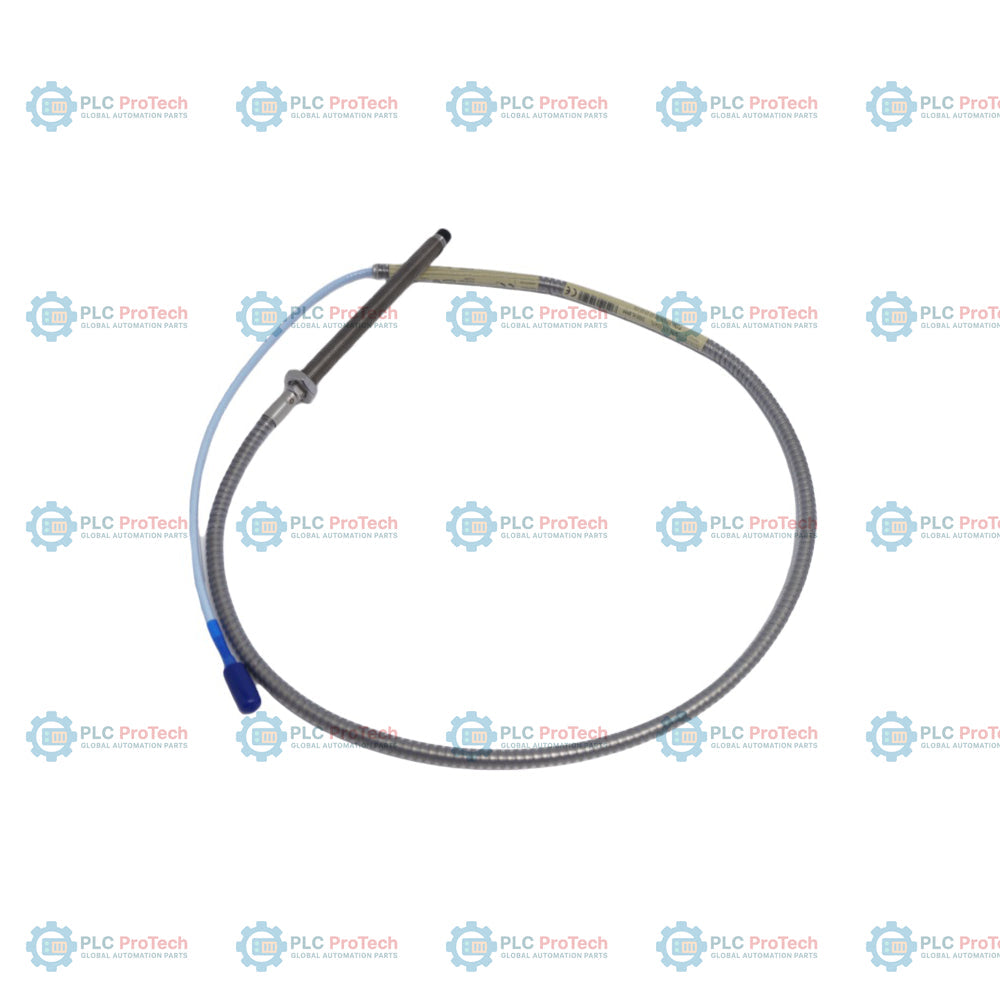

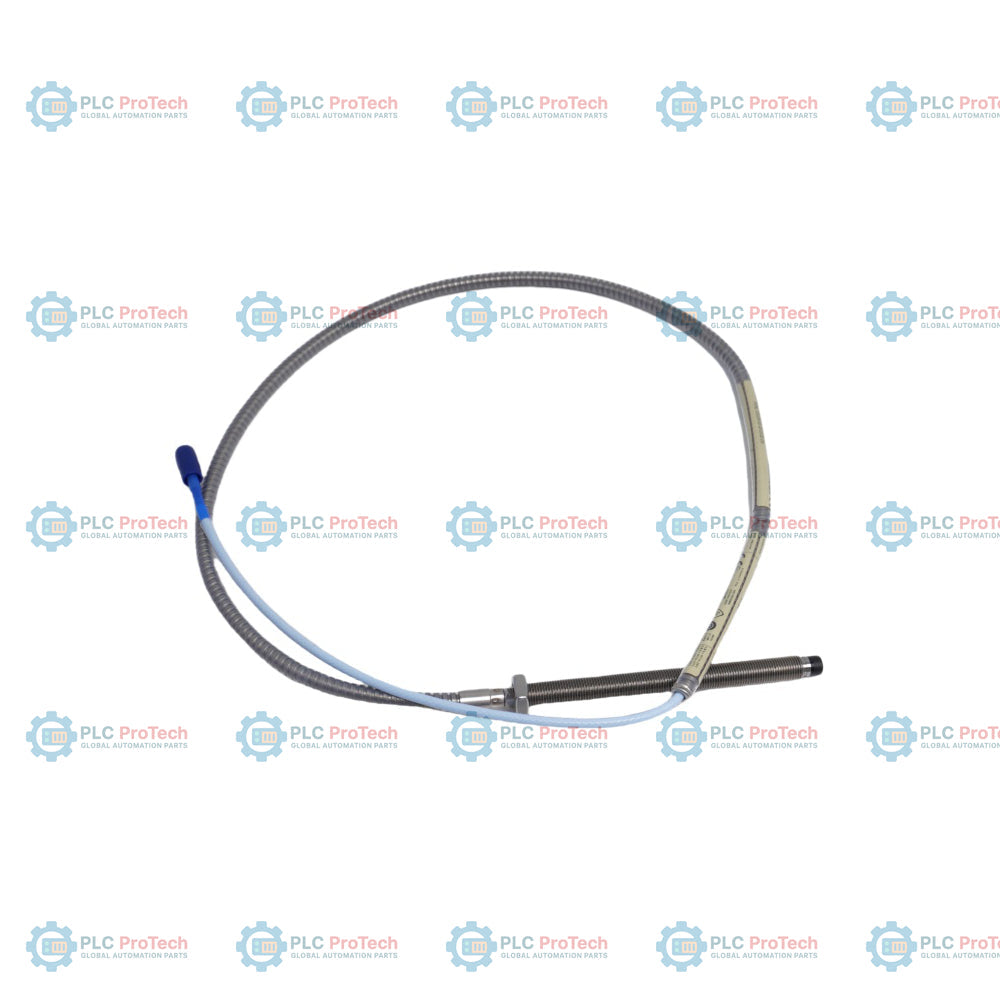

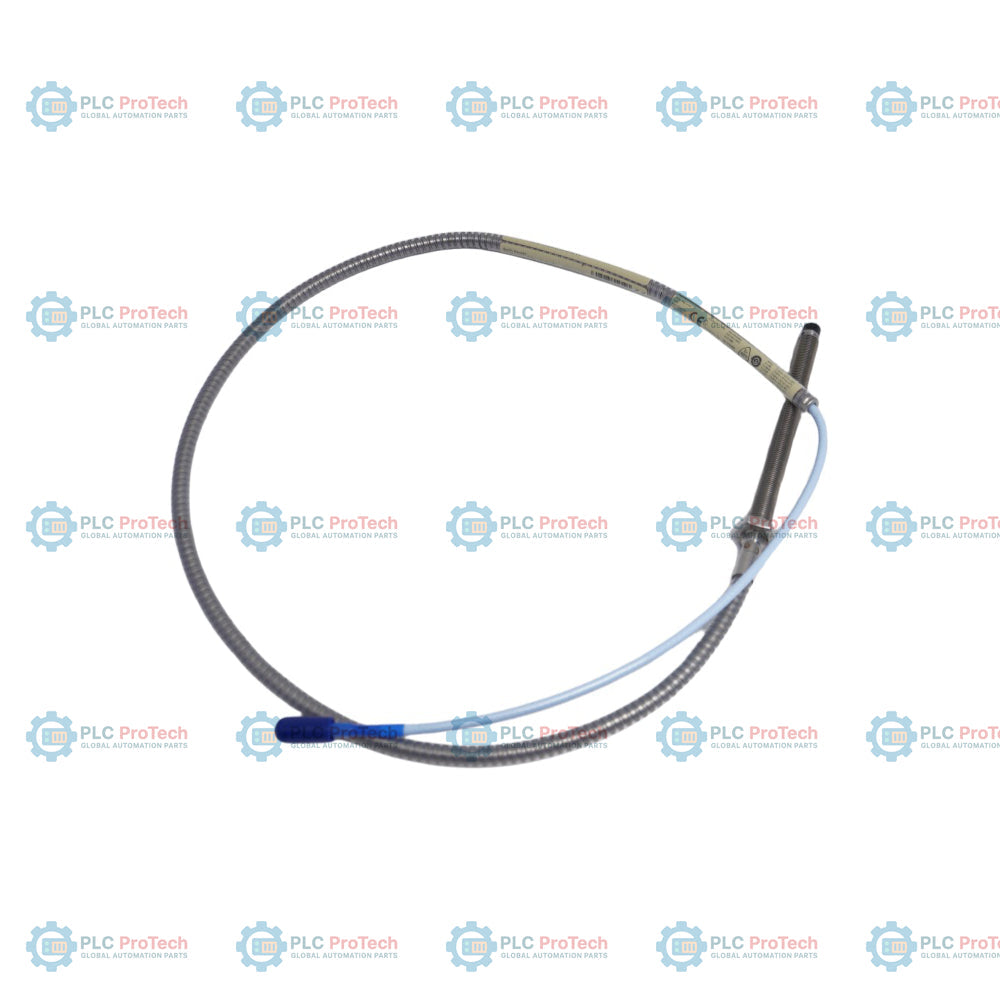

330104-00-10-10-11-00: Bently Nevada 3300 XL 8 mm proximity probe with M10 x 1 thread, featuring Option 00 (0 mm unthreaded length), Option 10 (100 mm case length), Option 10 (1.0 meter total length), Option 11 (ClickLoc connector with protector, FluidLoc cable), and Option 00 (no agency approvals).
Unlike the standard unarmored 330103 model, this 330104 variant has integrated stainless steel armor to withstand high-mechanical-stress environments. The FluidLoc cable configuration blocks process fluids or lube oil from weeping through the inside of the cable jacket, while the pre-installed connector protector shields the ClickLoc coaxial connection against environmental degradation. This probe is designed for direct mounting into metric-threaded machinery housings where no specialized hazardous area certifications are required.
Used for continuous machinery condition monitoring and protection, including shaft vibration, axial position, and radial position measurements on:
As a dash-coded configuration, the model number translates directly to the following technical segments:
| Option Code | This SKU Value | Description |
|---|---|---|
| Orderable Part Number | 330104-00-10-10-11-00 | 3300 XL 8 mm Proximity Probe, M10 x 1 thread, with armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length |
| B - Overall Case Length Option | 10 | 100 mm overall case length |
| C - Total Length Option | 10 | 1.0 meter (3.3 feet) total length |
| D - Connector and Cable-Type Option | 11 | Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
| E - Agency Approval Option | 00 | No approvals required |
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 330104-00-10-10-11-00 |
| Product Type | 3300 XL 8 mm Proximity Probe with Armor |
| Thread Size | M10 x 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 100 mm |
| Total Probe Length | 1.0 meter (3.3 feet) |
| Cable Type | FluidLoc coaxial cable (prevents fluid leakage through cable) |
| Armor Protection | Stainless steel protective armor sleeve |
| Connector Type | Miniature male coaxial ClickLoc connector |
| Connector Protection | Included environmental connector protector |
| Agency Approvals | None required (Option 00) |
| Linear Range | 2.0 mm (80 mils) |
| System Scale Factor | 7.87 V/mm (200 mV/mil) nominal |
| Probe Nominal Resistance | 7.59 +/- 0.50 ohms (center to outer conductor) |
| Operating Temperature | -52 degC to +177 degC (-62 degF to +350 degF) |
| Weight | 0.15 kg |
| Dimensions | 150 mm x 150 mm x 50 mm (H x W x D) |
Ensure correct thread engagement when installing the M10 x 1 threaded probe body. The maximum thread engagement length for an M10 x 1 thread is 15 mm. Exceeding this length may cause binding during installation. Use the integrated connector protector to keep the ClickLoc connection dry and free from contaminants. The FluidLoc cable provides additional sealing to block the movement of oil along the internal cable pathways, making it highly suitable for applications where the probe is exposed to pressurized lube oil fields.
