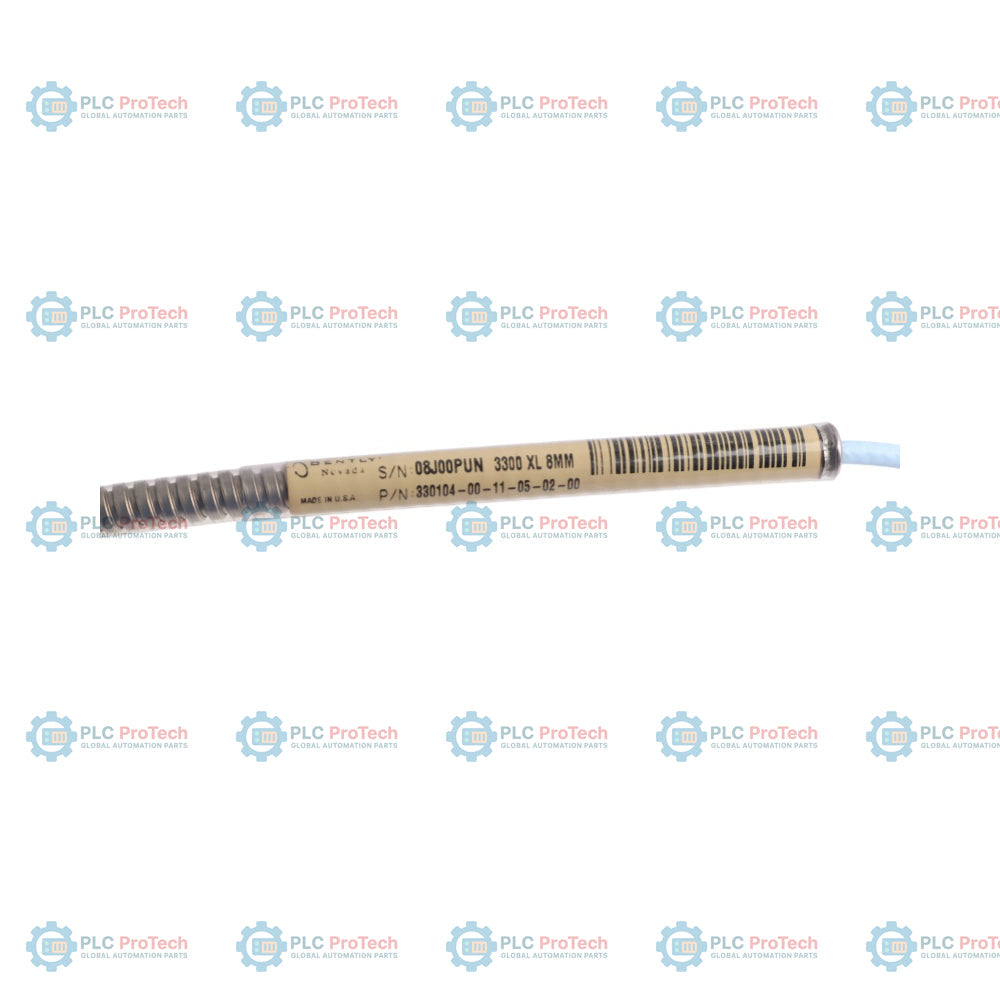

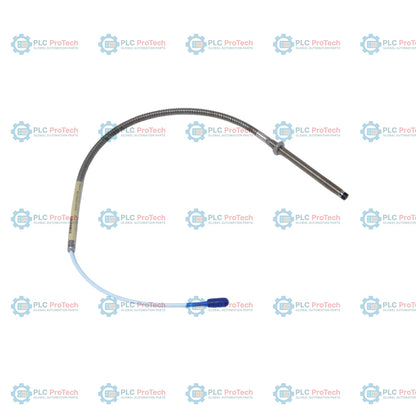

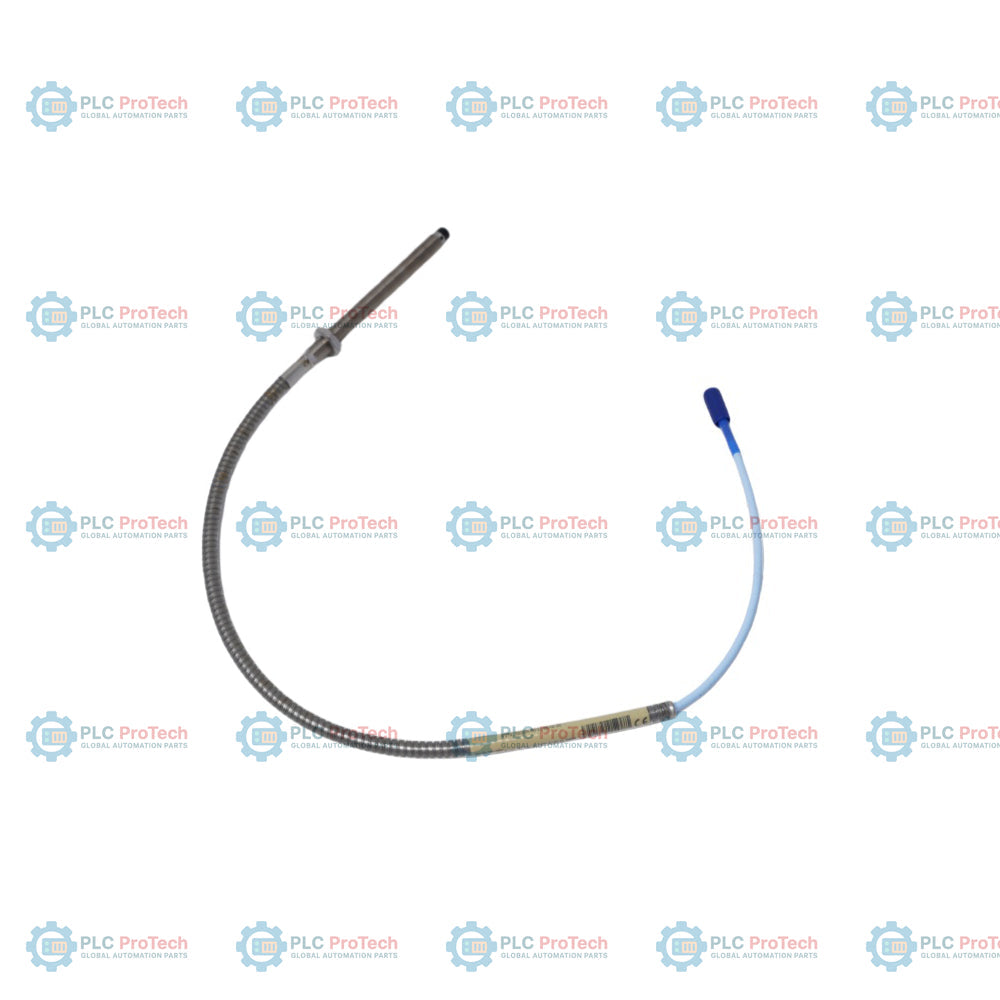

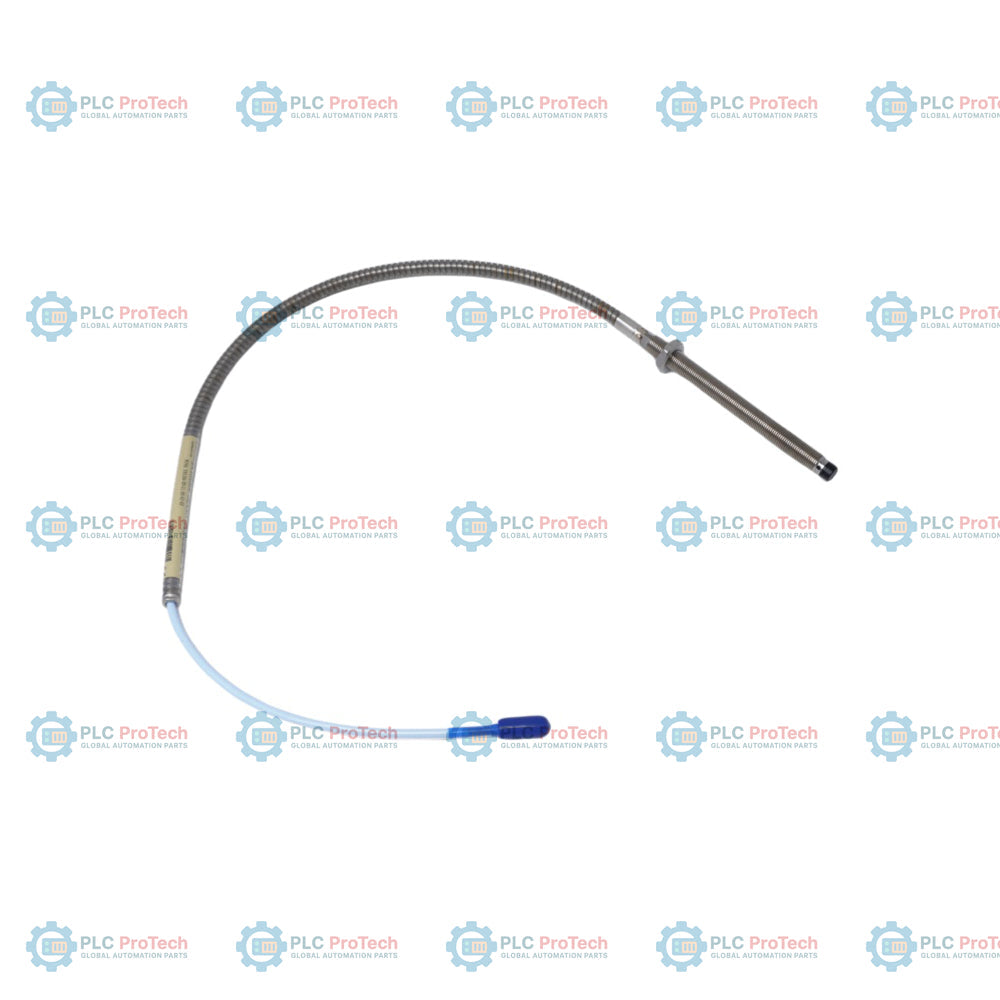

330104-00-11-05-02-00 specifies this M10 x 1 threaded, armored 3300 XL 8 mm proximity probe configuration with 0 mm unthreaded length (fully threaded), 110 mm case length, 0.5 m total length, standard ClickLoc coaxial connector without connector protector, and no agency approvals.
This configuration incorporates stainless steel armor (flexible AISI 302 or 304 SST with FEP outer jacket) to shield the 75-ohm coaxial cable from physical wear and abrasion, distinguishing it from unarmored models such as the 330103. The 110 mm case length meets specific penetration requirements for target sensing in tight spaces. Since Option 02 is selected, it features a standard miniature coaxial ClickLoc connector without an integrated connector protector, and standard industrial non-hazardous applications are covered under Option 00 (no specialized agency certifications required).
| Option / Segment | Code on This SKU | Meaning / Description |
|---|---|---|
| Orderable Part Number | 330104-00-11-05-02-00 | 3300 XL 8 mm proximity probe, M10 x 1 thread, with armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length (fully threaded case) |
| B - Overall Case Length Option | 11 | 110 mm case length (ordered in increments of 10 mm) |
| C - Total Length Option | 05 | 0.5 meter (1.6 feet) total length |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable with armor |
| E - Agency Approval Option | 00 | No agency approvals required |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number / Model | 330104-00-11-05-02-00 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Cable Material | 75-ohm triaxial FEP insulated probe cable |
| Armor Material | Flexible AISI 302 or 304 SST with FEP outer jacket |
| Thread Size | M10 x 1 |
| Unthreaded Length | 0 mm |
| Case Length | 110 mm |
| Total Length | 0.5 meters (1.6 feet) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Recommended Case Torque (Maximum Rated) | 33.9 N-m (300 in-lbf) |
| Recommended Case Torque (First Three Threads) | 7.5 N-m (66 in-lbf) |
| Recommended Connector Torque | 0.565 N-m (5 in-lbf) |
| Operating and Storage Temperature | -52 degC to +177 degC for probe and cable |
| Probe Tip Sealing | Viton O-ring, pressure sealed |
| Tensile Strength | 330 N (75 lbf) maximum rated probe case to probe lead |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Dimensions | 17 mm x 17 mm x 110 mm (H x W x D) [Probe body dimensions] |
| Weight | 0.20 kg |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330104-00-11-05-02-00
Country of origin:United States
Product Type: 3300 XL 8 mm Proximity Probe
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 200g
Dimensions: 17 mm x 17 mm x 110 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
330104-00-11-05-02-00 specifies this M10 x 1 threaded, armored 3300 XL 8 mm proximity probe configuration with 0 mm unthreaded length (fully threaded), 110 mm case length, 0.5 m total length, standard ClickLoc coaxial connector without connector protector, and no agency approvals.
This configuration incorporates stainless steel armor (flexible AISI 302 or 304 SST with FEP outer jacket) to shield the 75-ohm coaxial cable from physical wear and abrasion, distinguishing it from unarmored models such as the 330103. The 110 mm case length meets specific penetration requirements for target sensing in tight spaces. Since Option 02 is selected, it features a standard miniature coaxial ClickLoc connector without an integrated connector protector, and standard industrial non-hazardous applications are covered under Option 00 (no specialized agency certifications required).
| Option / Segment | Code on This SKU | Meaning / Description |
|---|---|---|
| Orderable Part Number | 330104-00-11-05-02-00 | 3300 XL 8 mm proximity probe, M10 x 1 thread, with armor |
| A - Unthreaded Length Option | 00 | 0 mm unthreaded length (fully threaded case) |
| B - Overall Case Length Option | 11 | 110 mm case length (ordered in increments of 10 mm) |
| C - Total Length Option | 05 | 0.5 meter (1.6 feet) total length |
| D - Connector and Cable-Type Option | 02 | Miniature coaxial ClickLoc connector, standard cable with armor |
| E - Agency Approval Option | 00 | No agency approvals required |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number / Model | 330104-00-11-05-02-00 |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 stainless steel (SST) |
| Cable Material | 75-ohm triaxial FEP insulated probe cable |
| Armor Material | Flexible AISI 302 or 304 SST with FEP outer jacket |
| Thread Size | M10 x 1 |
| Unthreaded Length | 0 mm |
| Case Length | 110 mm |
| Total Length | 0.5 meters (1.6 feet) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Recommended Case Torque (Maximum Rated) | 33.9 N-m (300 in-lbf) |
| Recommended Case Torque (First Three Threads) | 7.5 N-m (66 in-lbf) |
| Recommended Connector Torque | 0.565 N-m (5 in-lbf) |
| Operating and Storage Temperature | -52 degC to +177 degC for probe and cable |
| Probe Tip Sealing | Viton O-ring, pressure sealed |
| Tensile Strength | 330 N (75 lbf) maximum rated probe case to probe lead |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Dimensions | 17 mm x 17 mm x 110 mm (H x W x D) [Probe body dimensions] |
| Weight | 0.20 kg |
