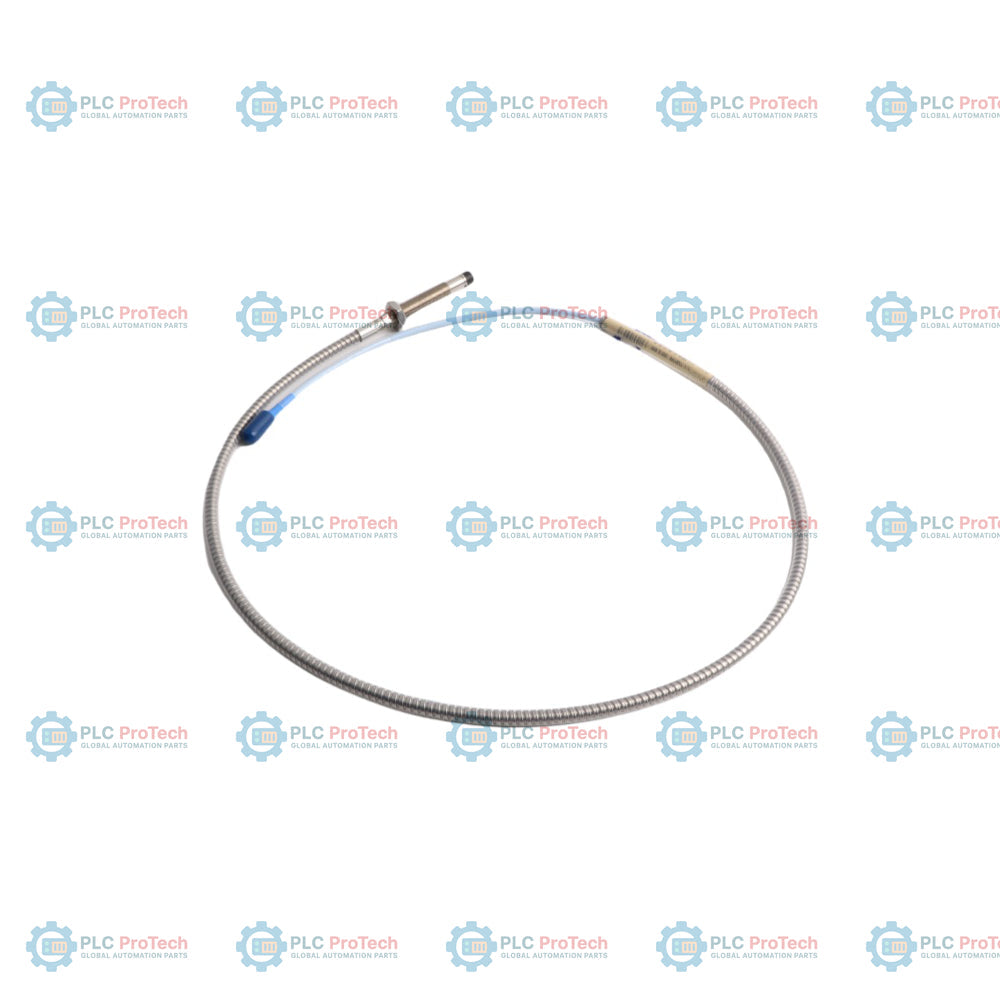

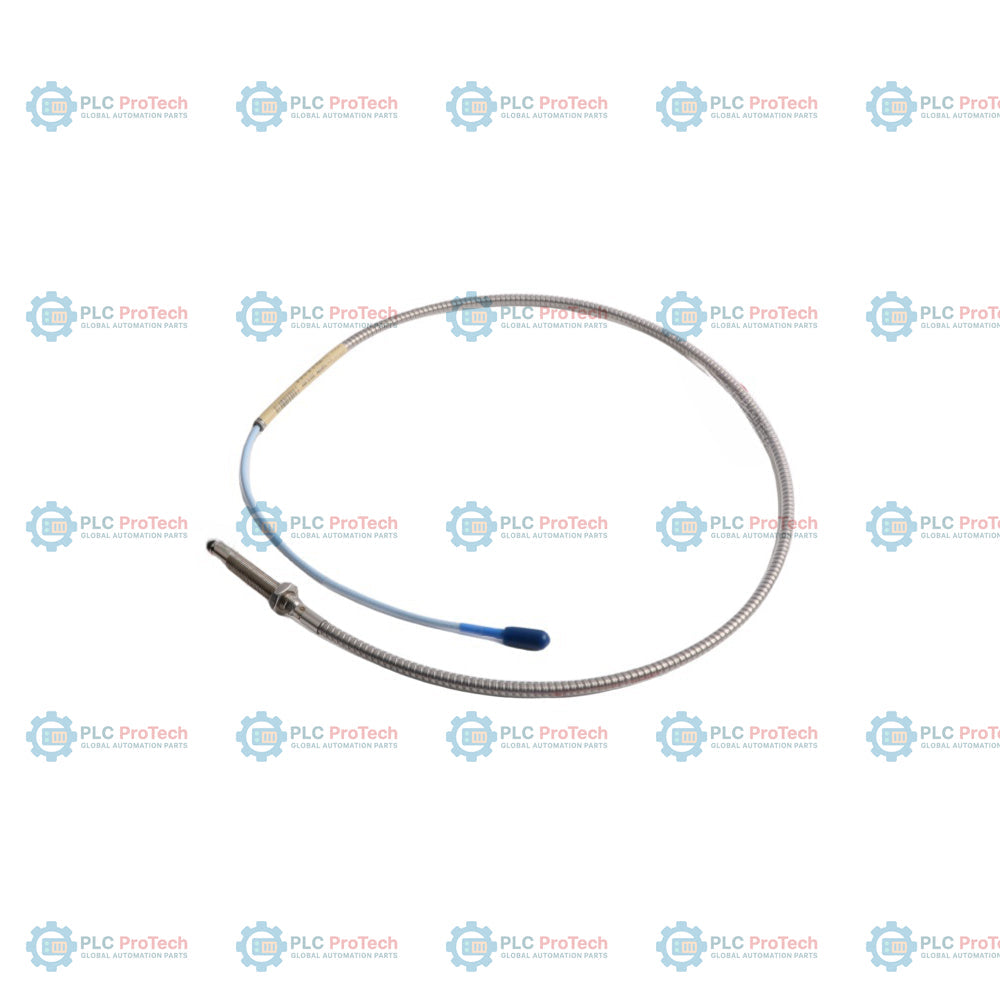

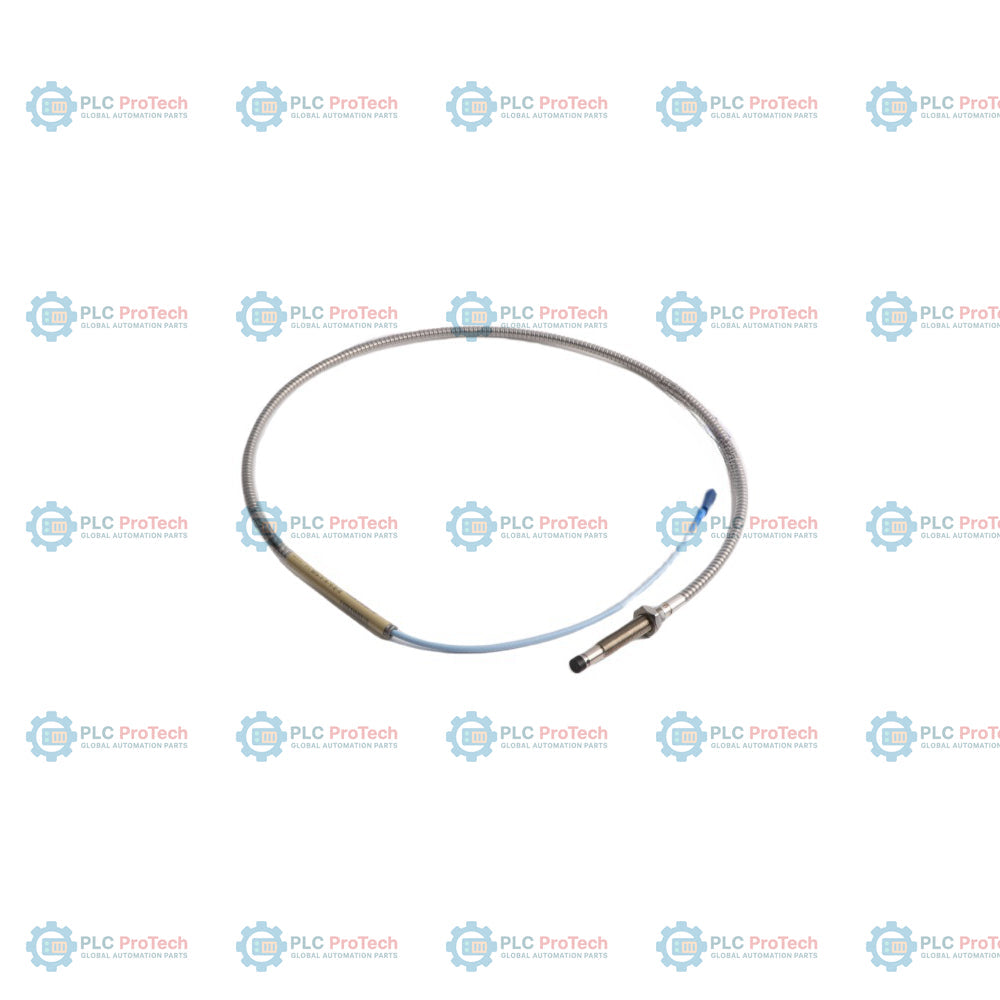

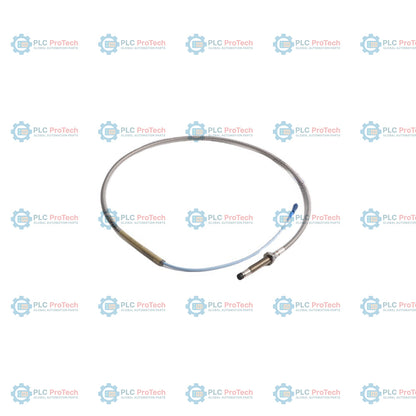

Bently Nevada 330104-01-06-10-02-00 3300 XL 8 mm Proximity Probe

SKU 330104-01-06-10-02-00

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bently Nevada
  • Product No.: 330104-01-06-10-02-00
  • Origin United States
  • Product Type: 3300 XL 8 mm Proximity Probe
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.14 kg
  • Dimensions: 150 mm x 150 mm x 30 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

3300 XL Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330104-01-06-10-02-00 3300 XL 8 mm Proximity Probe

Download Open in new tab
Quantity
Call sales Contact

Product Description

Description

330104-01-06-10-02-00 specifies this metric-threaded 3300 XL 8 mm proximity probe configuration, which features an M10 x 1 threaded body with integrated stainless steel armor, a 10 mm unthreaded length (Option 01), a 60 mm overall case length (Option 06), a 1.0 meter total length (Option 10), a miniature coaxial ClickLoc connector on standard cable (Option 02), and no hazardous area approvals (Option 00). Unlike unarmored or connector-protected variants, this configuration utilizes flexible stainless steel armor with an outer FEP jacket to prevent mechanical wear and abrasion on the coaxial cable while maintaining standard cable-to-connector clearances.

This non-contact eddy-current displacement sensor is used in industrial machinery protection systems. It operates as part of a 3300 XL transducer chain to measure static axial shaft position or dynamic shaft vibration on rotating machinery with fluid-film bearings, such as steam turbines, compressors, and generators. When paired with a compatible 3300 XL Proximitor sensor and extension cable, the probe provides a linear sensitivity of 7.87 V/mm (200 mV/mil) over a 2.0 mm (80 mils) linear range.

Features

  • Option 01 specifies a 10 mm unthreaded length on an M10 x 1 threaded case.
  • Option 06 defines a 60 mm overall case length made of corrosion-resistant 303 stainless steel.
  • Option 10 provides a 1.0 meter total length of 75-ohm coaxial cable with integrated stainless steel armor.
  • Option 02 includes a miniature coaxial ClickLoc connector without an external connector protector.
  • Option 00 indicates that agency approval is not required.
  • Integrated FEP-jacketed stainless steel armor provides protection against abrasive environments and physical wear.
  • Polyphenylene sulfide (PPS) probe tip is rated for harsh chemical and turbine oil environments.
  • Fully compatible and interchangeable with non-XL 3300 series 5 mm and 8 mm system components.

Applications

  • Shaft radial vibration and axial position monitoring on fluid-film bearing machines.
  • Shaft speed and Keyphasor reference measurements.
  • Machinery protection systems on steam turbines, gas turbines, centrifugal compressors, and cooling tower fans.
  • Hydroelectric generators and large industrial electric motors.

Ordering Information

Option Segment Code on This SKU Description / Meaning
Orderable Part Number 330104-01-06-10-02-00 3300 XL 8 mm proximity probe, M10 x 1 thread, with armor
A - Unthreaded Length 01 10 mm
B - Overall Case Length 06 60 mm
C - Total Length 10 1.0 meter (3.3 feet)
D - Connector/Cable 02 Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval 00 Not required

Technical Specifications

Parameter Specification Value
Manufacturer Bently Nevada (Baker Hughes)
Part Number 330104-01-06-10-02-00
Product Type 3300 XL 8 mm Proximity Probe, Metric, with Armor
Thread Type M10 x 1
Unthreaded Length 10 mm
Case Length 60 mm
Cable Length 1.0 meter (3.3 feet)
Connector Type Miniature male coaxial ClickLoc
Linear Range 2.0 mm (80 mils), starting at 0.25 mm (10 mils)
Linear Sensitivity 7.87 V/mm (200 mV/mil)
Probe Tip Material Polyphenylene sulfide (PPS)
Case Material 303 stainless steel (SST)
Mechanical Protection Stainless steel armor with FEP outer jacket
Probe Temperature Range -52 to +177 Celsius
Pressure Sealing Viton O-ring (probe tip and case)
Dimensions 150 mm x 150 mm x 30 mm (H x W x D)
Weight 0.14 kg

Connections and Interfaces

Connection Point Function
Coaxial Center Conductor Signal path for eddy-current driver circuit
Coaxial Outer Shield Common return path / shielding

Installation Guidelines

  • Probe gap must be set using the standard 3300 XL Proximitor sensor output voltage (typically -9 Vdc for radial vibration, corresponding to approximately 1.27 mm or 50 mils gap).
  • Ensure the thread engagement of the M10 x 1 case does not exceed 15 mm to avoid binding during installation.
  • Hand-tighten the miniature coaxial ClickLoc connector to the extension cable; do not use tools unless mating to a non-XL connector.
  • Maintain a minimum clearance of 3.0 mm around the probe tip from surrounding metal to prevent side-view interference.
  • Avoid pulling the FEP-jacketed armor with excessive tension; keep bend radii above the recommended limit of 25 mm.

Compliance and Certifications

  • CE compliant (EMC Directive)
  • RoHS compliant
  • WEEE compliant
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What does the 330104-01-06-10-02-00 configuration specify?
This SKU specifies a 3300 XL 8 mm metric probe (M10 x 1 thread) with protective stainless steel armor. It has a 10 mm unthreaded length, a 60 mm overall case length, a 1.0 meter total length, a standard cable with a miniature ClickLoc coaxial connector, and no agency approval requirements.
How does this probe protect against harsh industrial environments?
The probe cable is protected by a flexible stainless steel armor sheath with an outer FEP jacket, preventing physical damage and fluid ingress. The probe tip is molded from durable polyphenylene sulfide (PPS) to withstand exposure to hot turbine oil and typical process chemicals.
What is the linear range of this proximity probe?
The probe provides a 2.0 mm (80 mils) linear range beginning approximately 0.25 mm (10 mils) from the target surface, yielding a standard sensitivity of 7.87 V/mm (200 mV/mil) when paired with a compatible 3300 XL Proximitor sensor.
Can this probe be connected directly to a monitor?
No, the probe must be connected through a compatible 3300 XL extension cable to a 3300 XL Proximitor sensor, which conditions the signal before routing it to a continuous machinery monitoring rack.
Reviews

More from this brand

Bently Nevada 3300/16-02-01-01-01-00-00 XY/GAP Dual Vibration Monitor
3300/16-02-01-01-01-00-00Bently Nevada 3300/16-02-01-01-01-00-00 XY/GAP Dual Vibration Monitor
Bently Nevada 87890-01 Monitor Circuit Assembly for 3300/03 System Monitor
87890-01Bently Nevada 87890-01 Monitor Circuit Assembly for 3300/03 System Monitor
Bently Nevada 3300/16-11-01-02-03-02-00 PWA 86739-01 Dual Vibration Monitor
3300/16-11-01-02-03-02-00 86739-01Bently Nevada 3300/16-11-01-02-03-02-00 PWA 86739-01 Dual Vibration Monitor
Bently Nevada 330180-X0-00 MOD 161255-02 3300 XL 5/8 mm Proximitor Sensor
330180-X0-00 161255-02Bently Nevada 330180-X0-00 MOD 161255-02 3300 XL 5/8 mm Proximitor Sensor

330104-01-06-10-02-00

Stock & lead time on request

Call
  • Bently Nevada 330104-01-06-10-02-00
  • Bently Nevada 330104-01-06-10-02-00
  • Bently Nevada 330104-01-06-10-02-00
1 3

Bently Nevada 330104-01-06-10-02-00 3300 XL 8 mm Proximity Probe

Only 6 item(s) left in stock

  • Manufacturer: Bently Nevada
