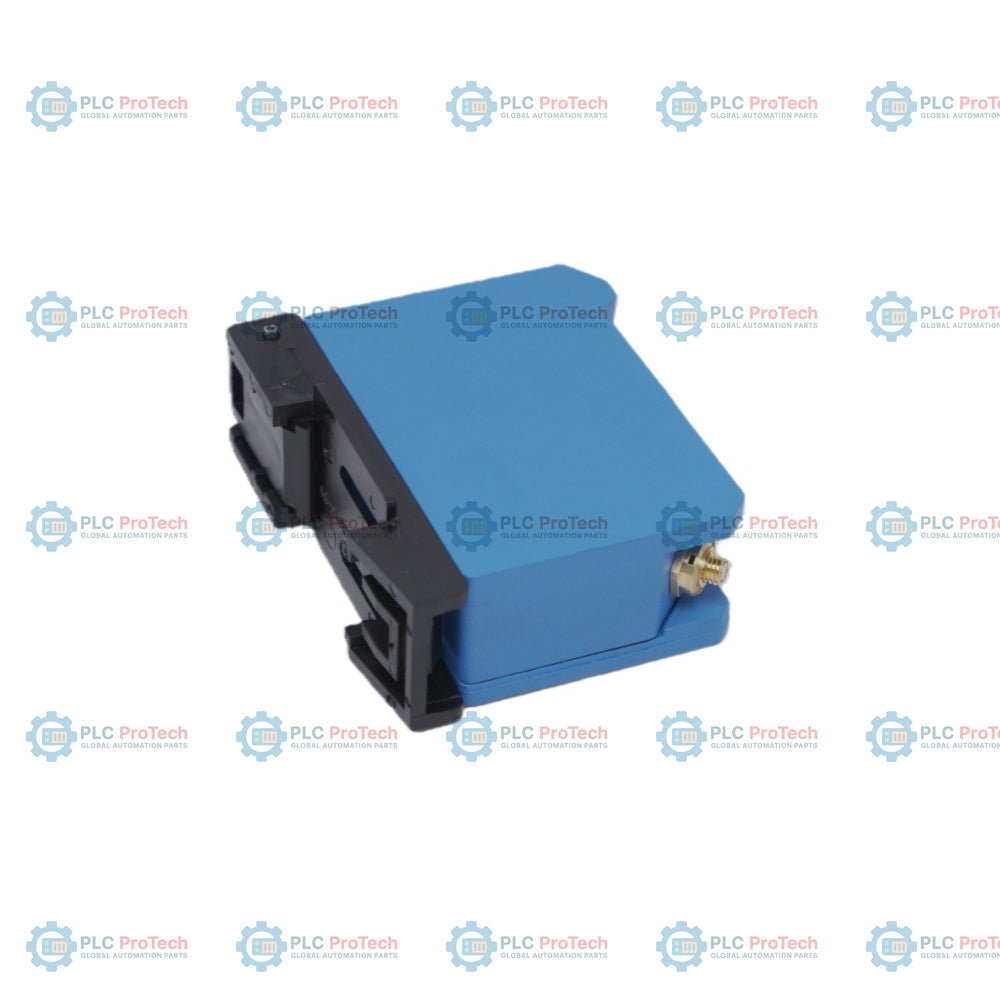

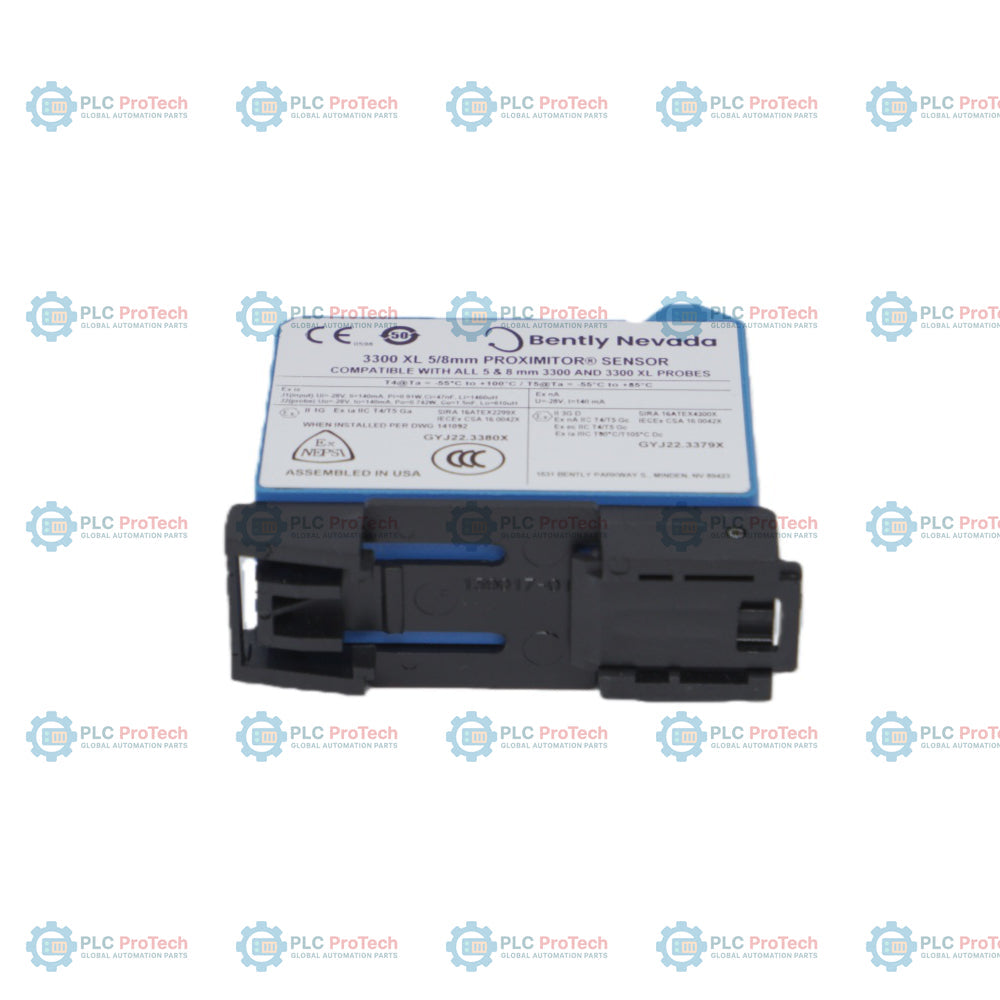

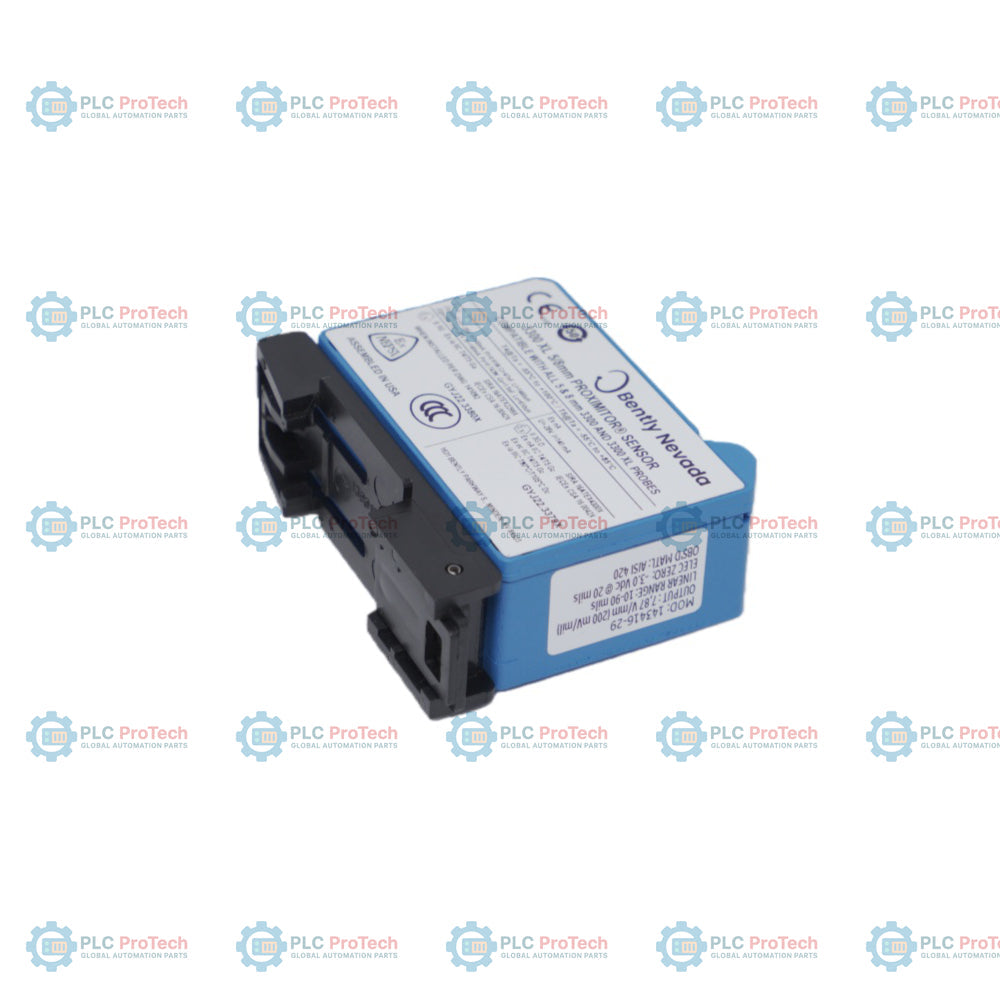

Bently Nevada 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor

Product Overview

The 330180-X1-CN MOD 145004-82 is a highly specialized 3300 XL Proximitor Sensor engineered for precise machinery protection in the most demanding industrial environments. This specific configuration is tailored for the Chinese market, meeting stringent NEPSI, CCC, and SRRC regulatory requirements for hazardous area operation and electromagnetic compatibility. Unlike standard proximity sensors calibrated for 4140 steel, the MOD 145004-82 variant is factory-calibrated for Ni-Cr-Mo-V (Nickel-Chrome-Moly-Vanadium) target materials. This specialized calibration is critical for assets like high-pressure steam turbines or specialized compressors where exotic alloy shafts are utilized. By providing a linearized 7.87 V/mm (200 mV/mil) output against non-standard metallurgy, this sensor ensures the integrity of vibration and position data, preventing false trips or missed alerts in mission-critical rotating machinery.

Suffix & Modification Breakdown

The technical complexity of the 330180-X1-CN is defined by its specific ordering options and hardware modifications:

• X1 Modification: Designates a custom hardware configuration featuring DIN rail mounting for high-density cabinet installations.

• CN (China Specific Options): * Hazardous Area: NEPSI certified for explosive atmospheres.

• Compliance: CCC mandatory safety certification and SRRC radio frequency approval.

• Environmental: China RoHS compliant with a 50-year environment-friendly use period (EFUP).

• MOD 145004-82: Indicates a factory modification to the Printed Wiring Assembly (PWA) and calibration process. This "MOD" replaces the standard 4140 steel working standard with a Ni-Cr-Mo-V target (Target CT # CT-0069), ensuring the 3300 XL system maintains its linear range across the specialized material.

Technical Specifications

Engineering FAQs

Why is the MOD 145004-82 required instead of a standard 330180?Proximity sensors operate on eddy current principles, which are highly sensitive to target metallurgy. A standard sensor calibrated for 4140 steel will produce significant scale factor errors when measuring a Ni-Cr-Mo-V shaft. The MOD 145004-82 hardware is physically adjusted and calibrated to this specific alloy to ensure accuracy.

What system length must be used with this Proximitor?Per the labeling information, this unit is designed for a 9.0 metre system. You must use a 3300 XL 5mm or 8mm probe and extension cable that combine for a total electrical length of 9.0 metres to maintain calibration integrity.

How does the -CN suffix affect international compliance?The -CN suffix ensures the device is legal for installation within the People's Republic of China, meeting local explosive safety (NEPSI) and mandatory certification (CCC) laws. It is functionally equivalent to global 3300 XL sensors but carries the required local labeling and documentation.

Installation Guidelines and Safety Maintenance

• Material Verification: Before installation, verify the shaft material metallurgy. The MOD 145004-82 is specifically for Ni-Cr-Mo-V. Using this sensor on 4140 steel or other alloys will result in incorrect vibration readings. Reference the job number (162282) and CT-0069 target code for your facility's asset records.

• Electrical Zeroing: During commissioning, set the probe gap to achieve the electrical zero of -3.0 VDC @ 20 mils. This ensures the measurement stays within the optimized linear range of the 3300 XL system.

• DIN Rail Grounding: Ensure the DIN rail is properly bonded to the instrument earth. While the Proximitor housing is designed for isolation, proper rack grounding is essential to maintain the CCC/SRRC electromagnetic compatibility standards and prevent signal noise in high-frequency switching environments.

• Hazardous Area Integrity: For NEPSI-certified installations, ensure all cable glands and conduit seals meet the local explosion-proof requirements. Modification of the PWA (as specified in BOM 145004) must only be performed by Bently Nevada factory-authorized service centers to maintain the safety rating.
