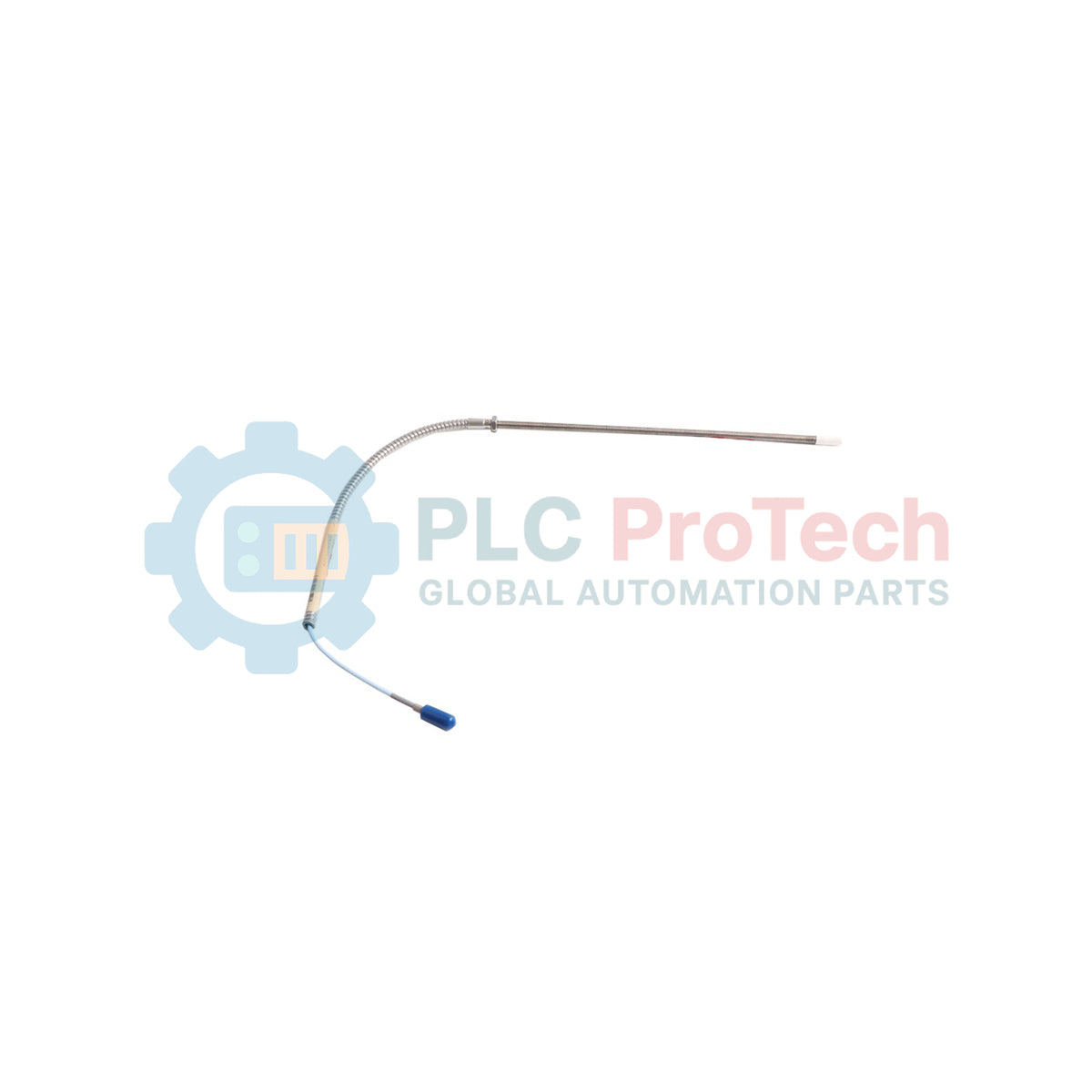

Designed for restricted-clearance applications, the Bently Nevada 330902-00-95-05-02-CN operates as a critical component of the 3300 XL NSv Proximity Transducer System. This eddy current-based sensor is engineered to monitor shaft vibration and position in industrial rotating machinery where conventional probes cannot fit. Outfitted with robust stainless steel armor, this specific configuration provides superior mechanical protection for demanding industrial environments.
This 3300 NSv probe features a 1/4-28 UNF threaded case, delivering high-precision displacement measurements. Built with high-grade chemical-resistant tip materials and robust cabling, the unit ensures stable signaling and long-term durability when paired with a matching 3300 XL NSv Proximitor Sensor.
| Option Code | Configuration Parameter | Specification |
|---|---|---|
| 330902 | Probe Option | 3300 NSv Probe, 1/4-28 UNF thread, with armor |
| 00 | Unthreaded Length Option | 0 mm |
| 95 | Overall Case Length Option | 241.3 mm (9.5 inches) |
| 05 | Total Length Option | 0.5 meter (20 inches) |
| 02 | Connector and Cable-Type Option | Miniature coaxial ClickLoc connector, standard cable |
| CN | Agency Approval Option | Country-specific approvals (China/CN) |
| Parameter | Specification Value |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330902-00-95-05-02-CN |
| System Compatibility | 3300 XL NSv Proximity Transducer System |
| Thread Specification | 1/4-28 UNF |
| Unthreaded Length | 0 mm |
| Case Length | 241.3 mm (9.5 in) |
| Total Probe Length | 0.5 meter (20 in) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel (SST) |
| Cable Construction | 75 ohm coaxial, FEP insulated, with armor |
| Connector Type | Miniature coaxial ClickLoc |
| Agency Approvals | CN Approvals |
| Shipping Weight | 2.0 kg |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330902-00-95-05-02-CN
Country of origin:United States
Product Type: Proximity Probes
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
