GE DS3800HIOD1H1G Mark IV Digital I/O Board

Description

The DS3800HIOD1H1G functions as a discrete digital input/output routing interface component within the Mark IV Speedtronic industrial management sequence. This line driver circuit board processes binary automation signals to govern gate controls and logic networks connected to heavy-duty gas turbine systems.

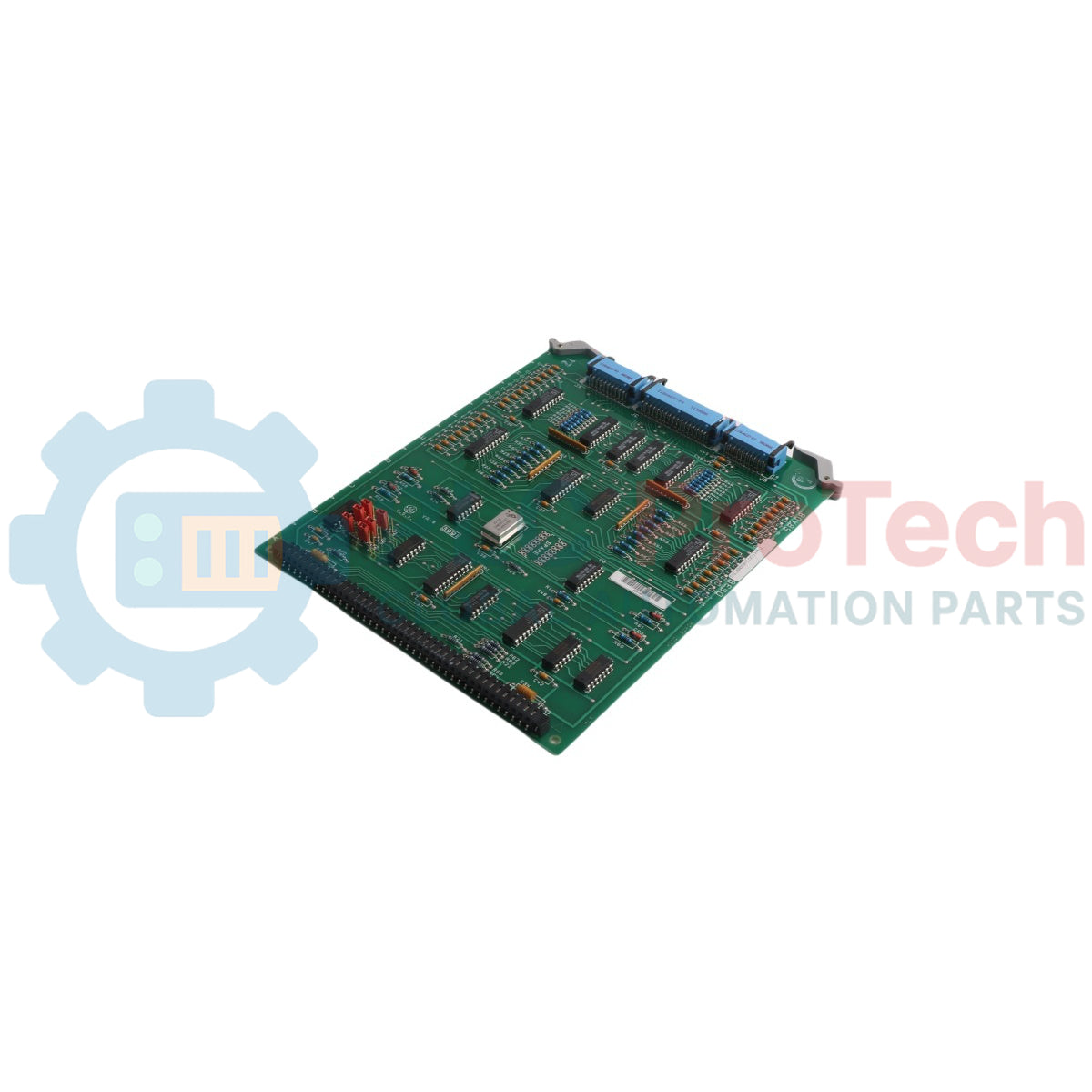

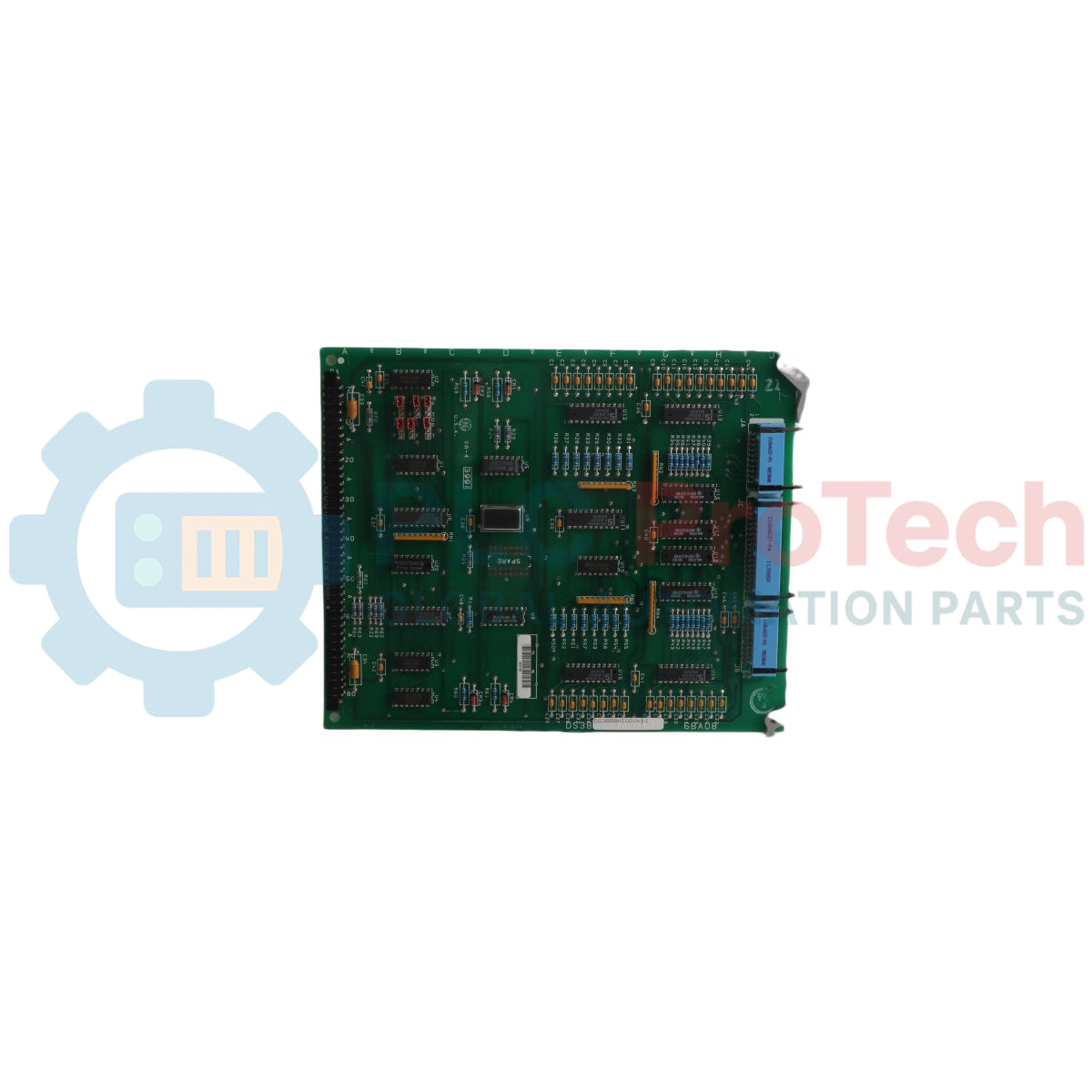

The hardware implementation of the DS3800HIOD1H1G incorporates high-density front-accessible line interfaces to establish robust plant interconnects. On one side of the layout, a built-in modular plug links the board channels directly into the system backplane, while the opposite side features integrated mechanical retention levers to facilitate clean extraction and secure locking into the drive slot housing. Positioned squarely between the dual extraction levers are two 10-pin interface terminals and one high-density 40-pin connector layout, allowing engineers to service discrete field wiring from the front faceplate area. Additionally, six adjustable physical onboard jumpers are integrated into the surface matrix to configure custom hardware line tracking. The component traces are highly susceptible to electrostatic accumulation, requiring careful ESD grounding controls during field retrofitting.

Features

• High-Density Front Connectivity: Integrates 2 ten-pin connection headers and 1 forty-pin primary connector placed for clean access between retention levers.
• Onboard Signal Customization: Populated with 6 operational hardware jumpers to support manual logic path selection across the line driver framework.
• Lever-Lock Insertion Interface: Features factory-installed mechanical retention clips on the front edge to ensure positive board locking inside tight slots.
• Dedicated Gas Turbine Processing: Engineered to meet the precise timing tolerances required by legacy Speedtronic gas turbine automation panels.

Applications

• Speedtronic Signal Line Driving: Drives digital command and feedback signals across distributed gas turbine control systems.
• Discrete I/O Multiplexing: Manages auxiliary control paths and binary inputs coming from peripheral turbine infrastructure devices.
• Industrial Automation Line Protection: Serves as an isolated signal interface to prevent electrical cross-talk across backplane communication buses.

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Complete System Depower: De-energize, lock out, and tag out all primary and auxiliary power distribution grids feeding the control chassis before touching the slot space.
• Static Discharge Containment: Keep the board inside its sealed static protection shipping container until active deployment. Field engineers must wear an approved, grounded ESD anti-static wrist strap clipped to a verified metal structure throughout handling.
• Card Slot Insertion: Align the board edges inside the drive track, pushing steadily until the rear modular connector docks into the receiver block. Do not force alignment.
• Retention Clip Securing: Press the front mechanical retention levers completely down to lock the module face securely into the rack frame, preventing terminal drift from industrial turbine vibration.
