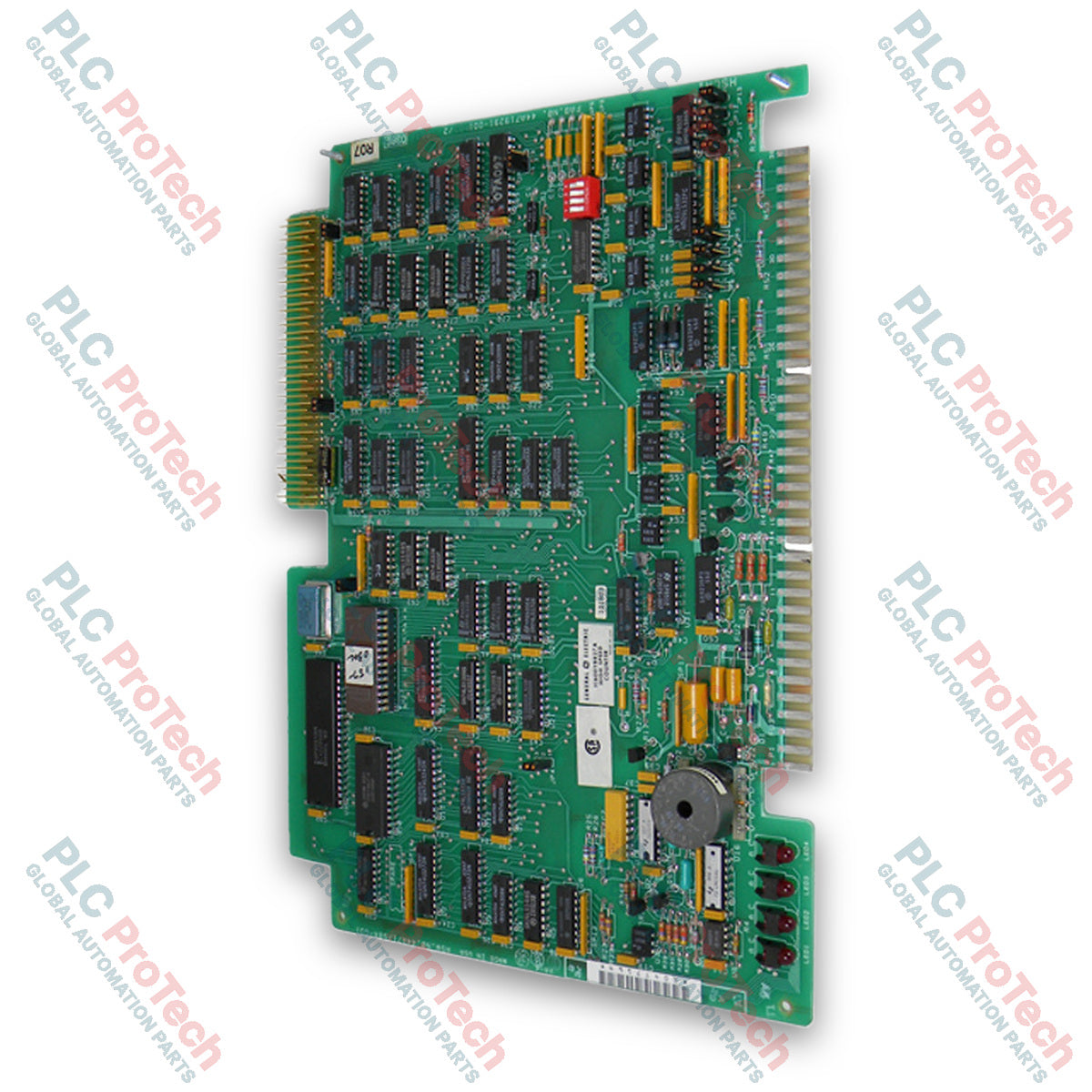

General Electric IC600BF827 Series Six High Speed Counter Module

Description

The General Electric IC600BF827 is a specialized microprocessor-based High Speed Counter module designed specifically for the Series Six programmable logic controller platform. This module serves a critical architectural role in industrial automation systems by processing high-frequency pulse trains, velocity measurements, and rotational speed inputs that would otherwise overwhelm the host Series Six central processing unit. By offloading high-speed pulse acquisition directly to dedicated onboard hardware registers, the IC600BF827 ensures deterministic data capture and precise motion or flow monitoring.

Operating within the Series Six rack architecture, the module directly interfaces with pulse-generating field devices such as incremental encoders, flow meters, and proximity sensors. It executes real-time counting functions independently of the main CPU scan cycle, storing preset values and updating register data for controller retrieval. This local processing capability makes the module indispensable for high-speed automated machinery requiring exact position tracking, rate monitoring, and event counting.

Features

• Designed for integration within the General Electric Series Six PLC architecture
• Microprocessor-based design offloads high-frequency pulse processing from the main CPU
• Accepts standard industrial 10 to 30 VDC input signal levels
• Supports up to 12 software-configurable presets within its internal registry
• Performs high-speed velocity, rate, and pulse-width measurement

Applications

• High-speed pulse train acquisition from incremental encoders
• Rotational speed and velocity measurement in automated machinery
• Real-time flow rate monitoring and totalization
• Precise event counting and high-speed sorting applications
• Position tracking for industrial web handling and indexing systems

Technical Specifications

Connections / Interfaces

The module connects to the Series Six backplane via standard rack insertion slots for power and system communication. Field wiring interfaces directly to dedicated front-edge terminal connections designed to receive high-frequency 10 to 30 VDC pulse signals from compatible industrial sensors and encoders.

Compliance and Certifications

Manufactured in accordance with industrial electrical standards for programmable controllers, meeting standard requirements for safe integration into industrial control panels.
