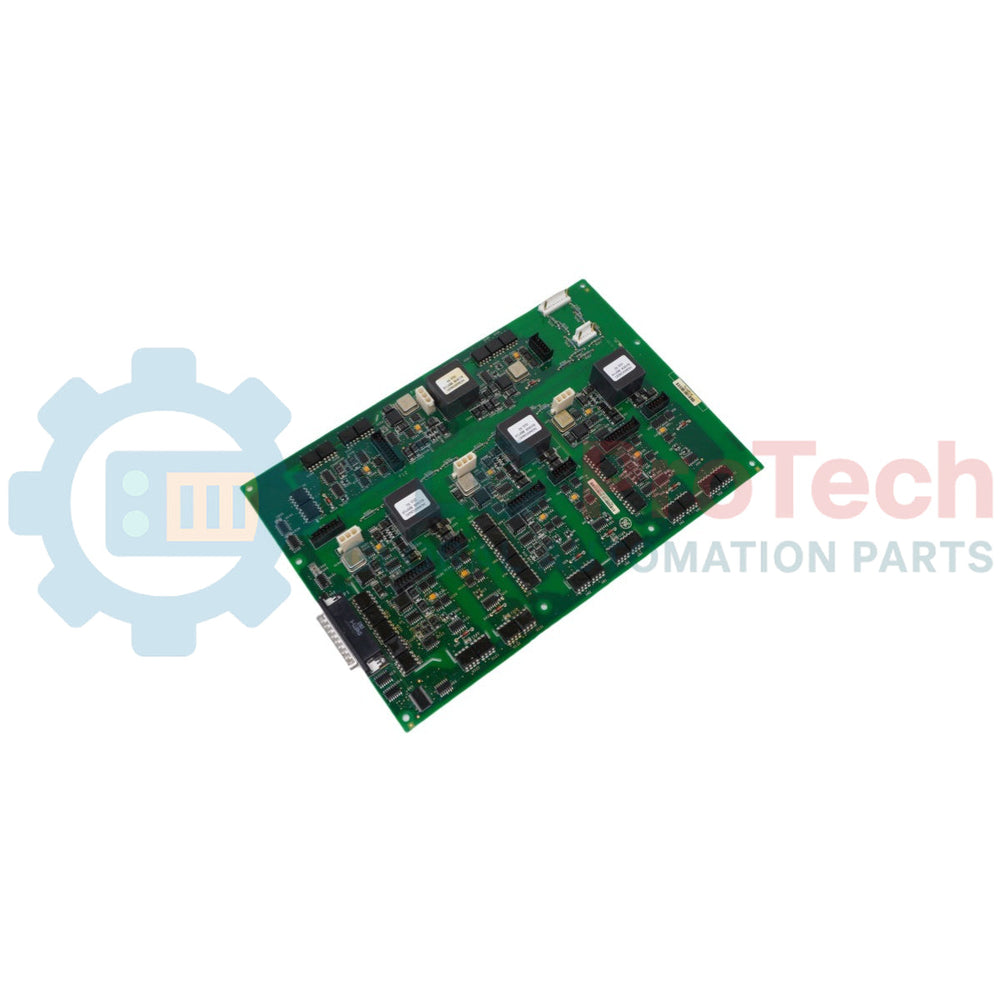

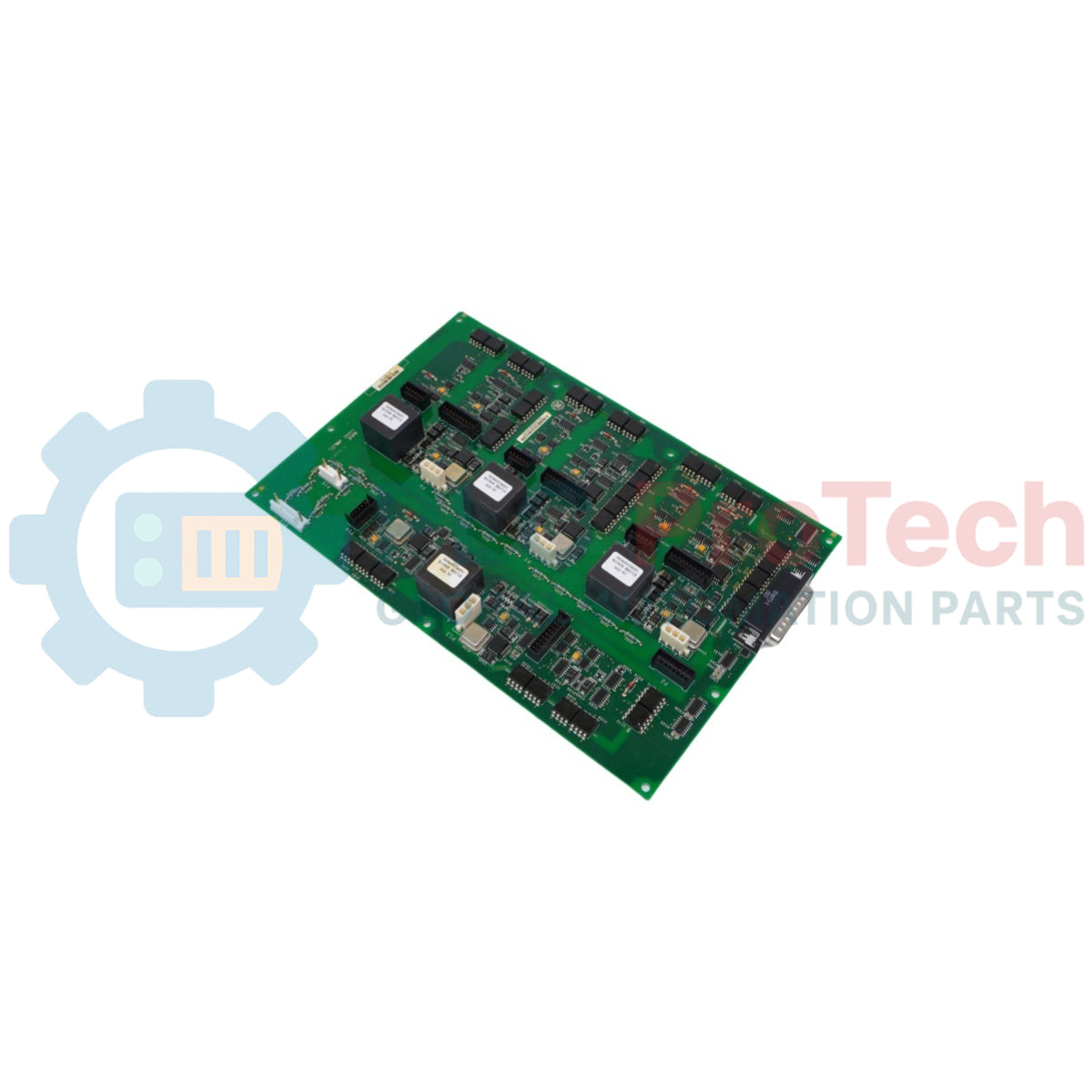

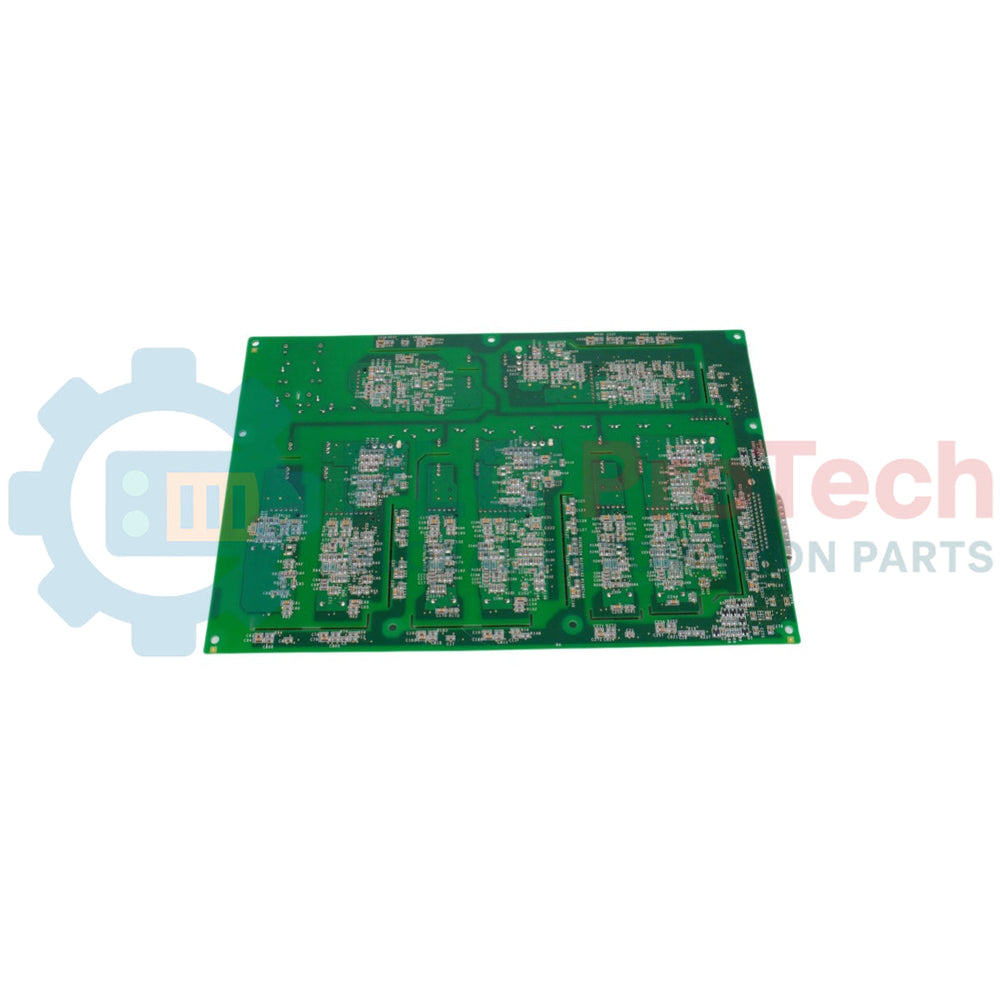

The IS210AEDBH4A is a specialized bridge interface card engineered by GE for the Mark VIe control system suite. This board functions as a high-reliability bridge interface device, providing hardware link conditioning within the management framework of gas and steam turbine systems. The IS210AEDBH4A features components mounted on both its front and back surfaces, including over 175 integrated circuits such as read-only chips and oscillating chips. To ensure maximum operational isolation and signal reliability, the board incorporates four specialized Bicron pulse transformers designed to satisfy stringent Basic Insulation Level (BIL) parameters. The physical assembly utilizes a special modular construction technique, characterized by pre-drilled layout points and dedicated insulation slots populated with integrated modules across their length.
| Parameter | Specification |
|---|---|
| Original Manufacturer | GE (General Electric) |
| Model Number | IS210AEDBH4A (Alternative reference: IS210AEDBH4AGD) |
| Series | Mark VI / Mark VIe System |
| Product Type | Bridge Interface Card |
| Transformer Manufacturer | Bicron |
| Transformer Model Marking | B9178 |
| Transformer Type | Encapsulated switch mode / pulse transformers |
| Hipot Level | 5 KVAC |
| Switching Frequency Range | 10KHz to 500 KHz |
| Total Integrated Circuits | Over 175 (including read-only and oscillating chips) |
| Metal Film Resistors | 20 (on front surface) |
| Board Drilled Locations | 9 positions |
| Plugs | 4 plugs (with 3 positions each) |
| Connector / Interface Component | Function / Technical Description |
|---|---|
| Right-Angled Cable Connector | Heavy-duty signal connection interface marked 574 9771-1 1301 |
| Header Connectors | Two headers with 4 or 6 positions paired with 2 vertical pins each |
| Male Vertical Pin Connectors | Nine vertical male interfaces ranging from 6 pins to 10 pins in size |
| Three-Position Plugs | Four separate plugs featuring three active alignment positions each |
Global Express Shipping
Returns & Warranty
Manufacturer: General Electric
Product No.: IS210AEDBH4A
Country of origin:United States
Product Type: Bridge Interface Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1850g
Dimensions: 130 mm x 130 mm x 85 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
The IS210AEDBH4A is a specialized bridge interface card engineered by GE for the Mark VIe control system suite. This board functions as a high-reliability bridge interface device, providing hardware link conditioning within the management framework of gas and steam turbine systems. The IS210AEDBH4A features components mounted on both its front and back surfaces, including over 175 integrated circuits such as read-only chips and oscillating chips. To ensure maximum operational isolation and signal reliability, the board incorporates four specialized Bicron pulse transformers designed to satisfy stringent Basic Insulation Level (BIL) parameters. The physical assembly utilizes a special modular construction technique, characterized by pre-drilled layout points and dedicated insulation slots populated with integrated modules across their length.
| Parameter | Specification |
|---|---|
| Original Manufacturer | GE (General Electric) |
| Model Number | IS210AEDBH4A (Alternative reference: IS210AEDBH4AGD) |
| Series | Mark VI / Mark VIe System |
| Product Type | Bridge Interface Card |
| Transformer Manufacturer | Bicron |
| Transformer Model Marking | B9178 |
| Transformer Type | Encapsulated switch mode / pulse transformers |
| Hipot Level | 5 KVAC |
| Switching Frequency Range | 10KHz to 500 KHz |
| Total Integrated Circuits | Over 175 (including read-only and oscillating chips) |
| Metal Film Resistors | 20 (on front surface) |
| Board Drilled Locations | 9 positions |
| Plugs | 4 plugs (with 3 positions each) |
| Connector / Interface Component | Function / Technical Description |
|---|---|
| Right-Angled Cable Connector | Heavy-duty signal connection interface marked 574 9771-1 1301 |
| Header Connectors | Two headers with 4 or 6 positions paired with 2 vertical pins each |
| Male Vertical Pin Connectors | Nine vertical male interfaces ranging from 6 pins to 10 pins in size |
| Three-Position Plugs | Four separate plugs featuring three active alignment positions each |
Global Express Shipping
Returns & Warranty
Orders are processed and delivered Monday-Friday (excluding public holidays).
For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
| Color pattern |
Green
|
| Country of origin |
United States
|
| Power source |
DC Power
|
