6SL3130-6TE21-6AB0

Siemens

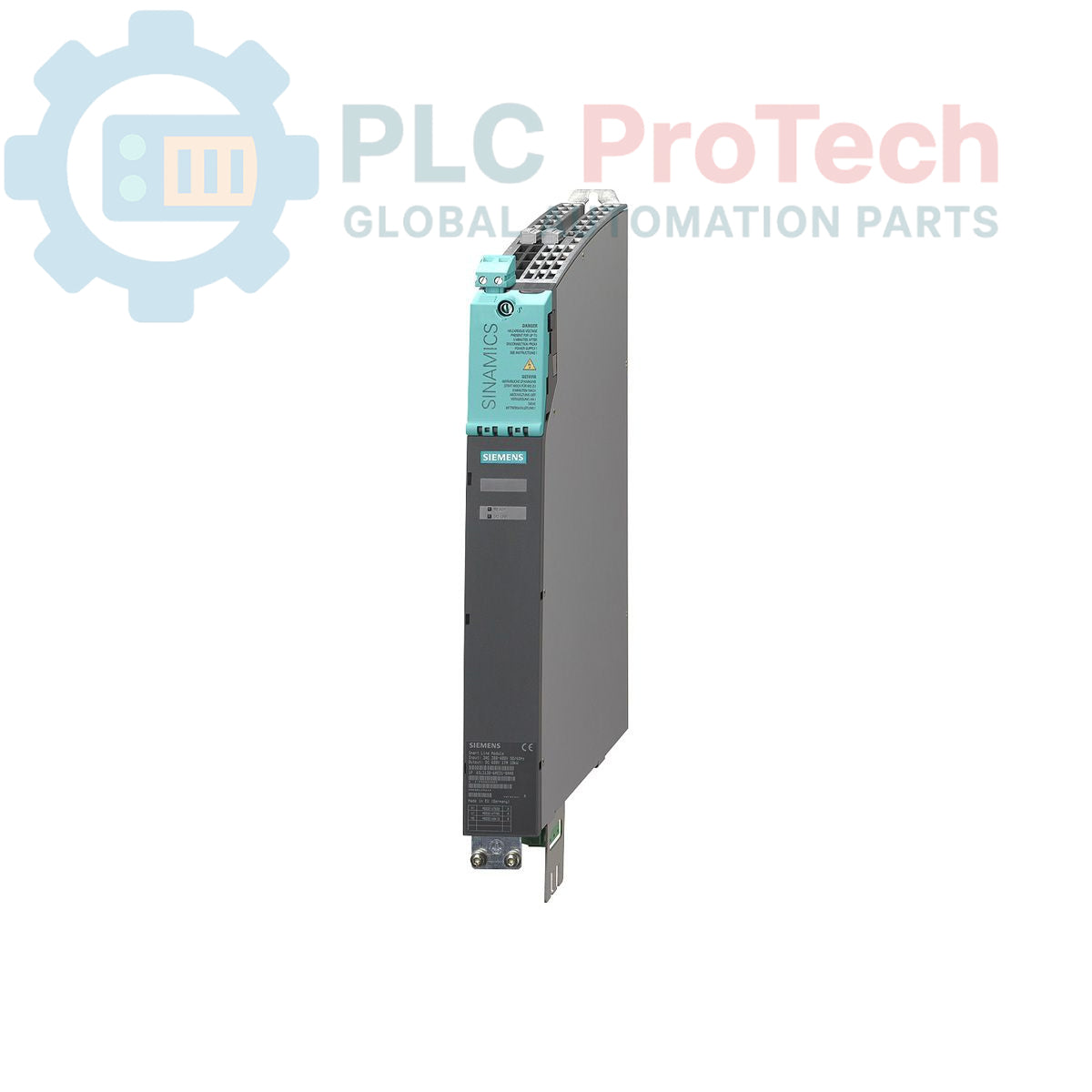

Siemens 6SL3130-6TE21-6AB0 | SINAMICS S120 | Smart Line Module

SKU 6SL3130-6TE21-6AB0

In stock
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6SL3130-6TE21-6AB0
  • Origin Germany
  • Product Type: SMart line Modules
  • Barcode: 85044095
  • Payment: T/T, Western Union
  • Weight: 7.3 kg
  • Dimensions: 10.20cm x 27.90cm x 40.60cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

SINAMICS SMart line Modules
Quantity
Call sales Contact

Product Description



Description

The 6SL3130-6TE21-6AB0 is a SINAMICS S120 Smart Line Module designed for efficient power supply in modular drive systems. This module converts 3-phase AC line voltage (380-480 V) into a constant DC link voltage (600 V DC), supporting a nominal power rating of 16 kW with a rated output current of 27 A. It features a robust, painted housing and relies on integrated internal air cooling to maintain thermal stability during high-load operations. The module includes a Control Voltage Adapter and a DRIVE-CLiQ cable to facilitate rapid communication and power management within the SINAMICS drive line. Please note that this product is currently in the Phase-Out stage of its lifecycle.

Features

  • Power Conversion: Converts 380-480 V 3 AC input to a stable 600 V DC link.
  • Integrated Components: Includes Control Voltage Adapter and DRIVE-CLiQ cable for system connectivity.
  • Performance: Rated for 16 kW power output and 27 A nominal current.
  • Thermal Management: Integrated internal air cooling system.
  • Durability: Painted module surface for enhanced environmental protection.
  • Versatility: Compatible with S120 drive configurations for complex multi-axis motion control.

Applications

  • Multi-axis drive systems for machine tools
  • Material handling and automated assembly lines
  • Packaging and processing machinery
  • High-precision motion control systems requiring consistent DC link stability
  • Industrial applications requiring regenerative power handling capabilities

Technical Specifications

Parameter Specification
Manufacturer Siemens
Product Range SINAMICS
Subrange S120
Model 6SL3130-6TE21-6AB0
Nominal Power 16 kW
Input Voltage 342-528V AC (3-Phase)
Output Voltage 600 V DC
Nominal Output Current 27 A
Main Frequency 50/60 Hz
Cooling Method Internal air cooling
Weight 7.30kg
Dimensions 10.20cm x 27.90cm x 40.60cm
Product Phase Phase-Out
Commodity Code 85044095
Export Control (ECCN) EAR99

Installation Guidelines

  • Mounting: Ensure the module is installed in a vertical, upright position to allow optimal airflow through the internal cooling fins.
  • Clearance: Respect the minimum clearance dimensions above and below the unit as specified in the SINAMICS S120 equipment manual to avoid thermal derating.
  • DRIVE-CLiQ: Connect the module to the Control Unit using the provided DRIVE-CLiQ cable; ensure the connector is fully locked to prevent communication errors.
  • Grounding: Establish a solid low-impedance ground connection for the module chassis to ensure EMC compliance and safety.
  • Environment: Install in an electrical cabinet with adequate dust and moisture protection, adhering to the specified operating ambient temperature range.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the function of the Smart Line Module?
The module converts 3-phase AC supply voltage into a regulated DC link voltage, which serves as the power source for the S120 drive system.
Does this module support regenerative feedback?
Smart Line Modules are capable of non-regenerative operation (diode-based input) and provide constant DC link voltage.
What cooling method is used for this module?
The 6SL3130-6TE21-6AB0 utilizes integrated internal air cooling.
What is the current status of this product?
The product is currently in the Phase-Out stage of its lifecycle.
