EPI2008-0001 BECKHOFF IO-Link Box 8-channel Digital Output

Product Overview

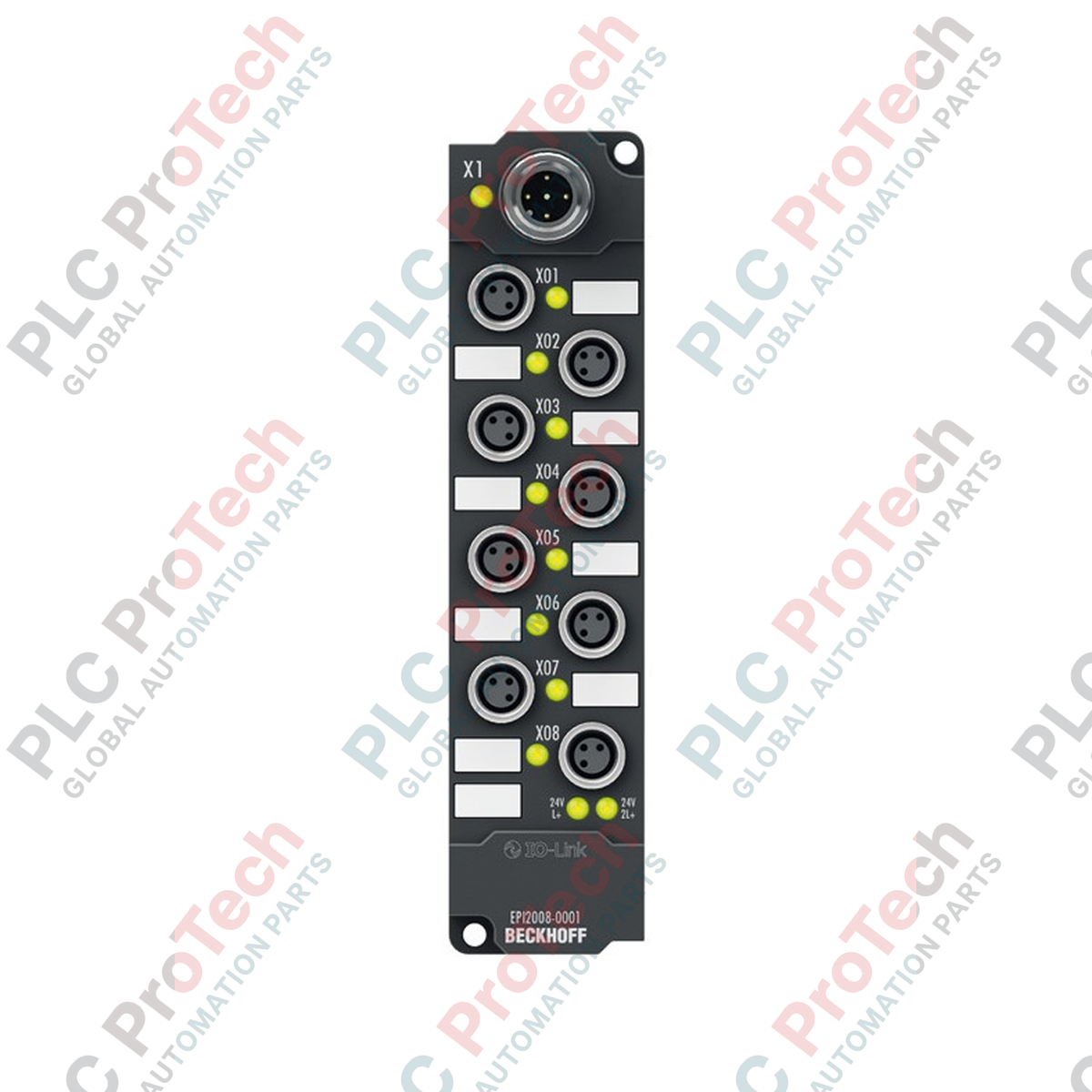

The EPI2008-0001 (EPI2008-0001) is a high-performance industrial IO-Link box from Beckhoff, designed to bridge the gap between field-level sensors/actuators and higher-level control systems. This 8-channel digital output module is engineered for decentralized automation, allowing for the direct connection of actuators in rugged environments without the need for a protective control cabinet. By utilizing the IO-Link V1.1 (Class B) protocol, the EPI2008-0001 ensures high-speed data transfer rates of 230.4 kbaud (COM 3) and provides extensive diagnostic capabilities. Its robust IP67-rated construction makes it an ideal solution for material handling, automotive assembly lines, and food processing plants where resistance to moisture, vibration, and dust is a mechanical necessity for reducing system downtime and simplifying field wiring.

Technical Configuration

The EPI2008-0001 features a modular and compact design optimized for direct machine mounting. It is equipped with one A-coded M12 plug for IO-Link communication and power supply, and eight M8 screw-type connectors for output signals. The "Class B" specification indicates that the module provides additional power supply lines (P24) for the connected actuators, which are electrically isolated from the logic power (L+). Each of the 8 channels supports a nominal output current of 0.5 A and is individually short-circuit proof, ensuring that a fault in one actuator does not compromise the entire module. The internal logic consumes a typical 100 mA from the L+ line, while the auxiliary power line handles the load current, making it a reliable choice for high-density I/O configurations in demanding EMC environments.

Technical Specifications

Technical FAQs

What are the diagnostic advantages of using the IO-Link V1.1 interface?

The EPI2008-0001 provides real-time status data via the IO-Link master. This includes channel-specific short-circuit detection and supply voltage monitoring. These parameters can be read by the PLC to trigger predictive maintenance alerts before a total system failure occurs.

Does the "Class B" port mean I need a special IO-Link master?

Yes, to utilize the full capability of the EPI2008-0001, it should be connected to an IO-Link Master Class B port. This ensures the isolated 24 V auxiliary power (P24) is correctly supplied to the actuators via the additional pins in the M12 connection.

Can this module be mounted in any orientation?

The module is designed for a "variable" installation position. Its high vibration resistance (EN 60068-2-6) and shock resistance (EN 60068-2-27) ensure that performance remains consistent whether it is mounted horizontally on a conveyor frame or vertically on a robotic arm.

Engineering & Installation Guide

Power Supply Separation and Safety:

The EPI2008-0001 maintains electrical isolation between the control electronics (L+) and the auxiliary power for outputs (P24). When wiring your IO-Link master, ensure that both power circuits are correctly fused. In safety-critical applications, the P24 supply can be switched off externally via a safety relay to bring all 8 outputs to a "Safe State" without losing IO-Link communication and diagnostic data.

M8 Connector Torque and Sealing:

To maintain the IP67 protection rating, all M8 screw-type connectors must be tightened to the manufacturer's specified torque (typically 0.4 Nm). Any unused ports must be sealed with professional-grade M8 protective caps. Failure to seal unused ports will lead to moisture ingress, which can cause internal short circuits and permanent damage to the logic board.

EMC and Grounding Best Practices:

While the module conforms to EN 61000-6-2/4 for EMC immunity, it is critical to ground the mounting surface if it is metal. If mounting on non-conductive surfaces, ensure the functional earth (FE) is connected via the provided mounting holes to a central grounding point to divert high-frequency interference away from the IO-Link communication line.
