Mitsubishi Electric GT1575-VTBA GOT1000 Graphic Operator Terminal

Description

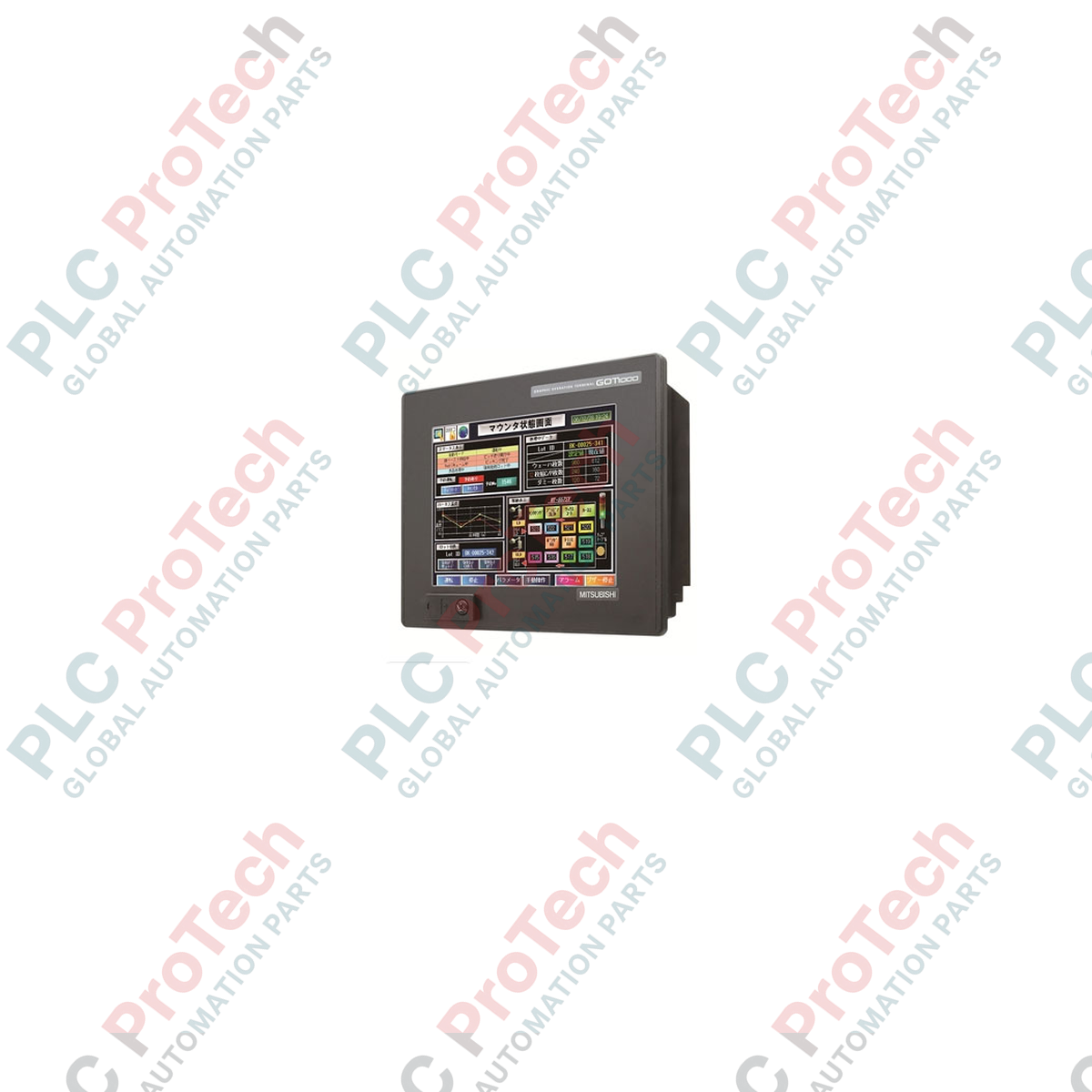

Designed to provide high-performance human-machine interface (HMI) capabilities, the GT1575-VTBA functions as a robust visualization and control hub within the Mitsubishi Electric GOT1000 platform. This graphic operator terminal features a high-resolution 10.4-inch VGA TFT display, supporting detailed graphical representation of industrial processes and intuitive touch-screen operation.

The unit incorporates 9 MB of internal flash memory for project screen data and operating system storage. Standard built-in communication interfaces include RS-232C and USB ports, facilitating straightforward PLC connection, peripheral interfacing, and project uploads or downloads. Engineered to withstand demanding factory environments, the front panel features an IP67F oil-tight/waterproof rating when properly panel-mounted, while operating on a flexible universal 100-240V AC power supply.

Features

• 10.4-inch TFT color LCD display with a resolution of 640 x 480 pixels (VGA).
• Analog resistive touch panel allowing flexible key layouts and precise touch response.
• 9 MB internal flash memory for efficient project screen management and system files.
• Integrated RS-232C and USB (Type Mini-B) interfaces for direct controller connection and PC configuration.
• Universal AC power input compatibility (100 to 240 V AC) for worldwide application.
• Robust IP67F front panel rating providing advanced dust and oil resistance.

Applications

• Automotive assembly lines and conveyor control panels.
• Packaging, labeling, and food processing machinery.
• Water and wastewater treatment station monitoring.
• General factory automation and multi-axis motion control visualization.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Panel Mounting: Install the terminal into a clean panel cutout. Tighten the mounting brackets to the specified torque to maintain the IP67F front seal integrity.
• Clearance: Maintain at least 100 mm of clearance at the top and bottom of the unit, and 50 mm on the sides for natural convection cooling.
• Grounding: Connect the ground terminal directly to a dedicated protective earth ground (Class D grounding, 100 ohms or less) using a minimum 2 mm² wire.
• Wiring: Route high-voltage power supply cables separately from low-voltage signal and communication lines to minimize electromagnetic interference.

Compliance and Certifications

• CE Directive Compliant
• UL / cUL Listed
