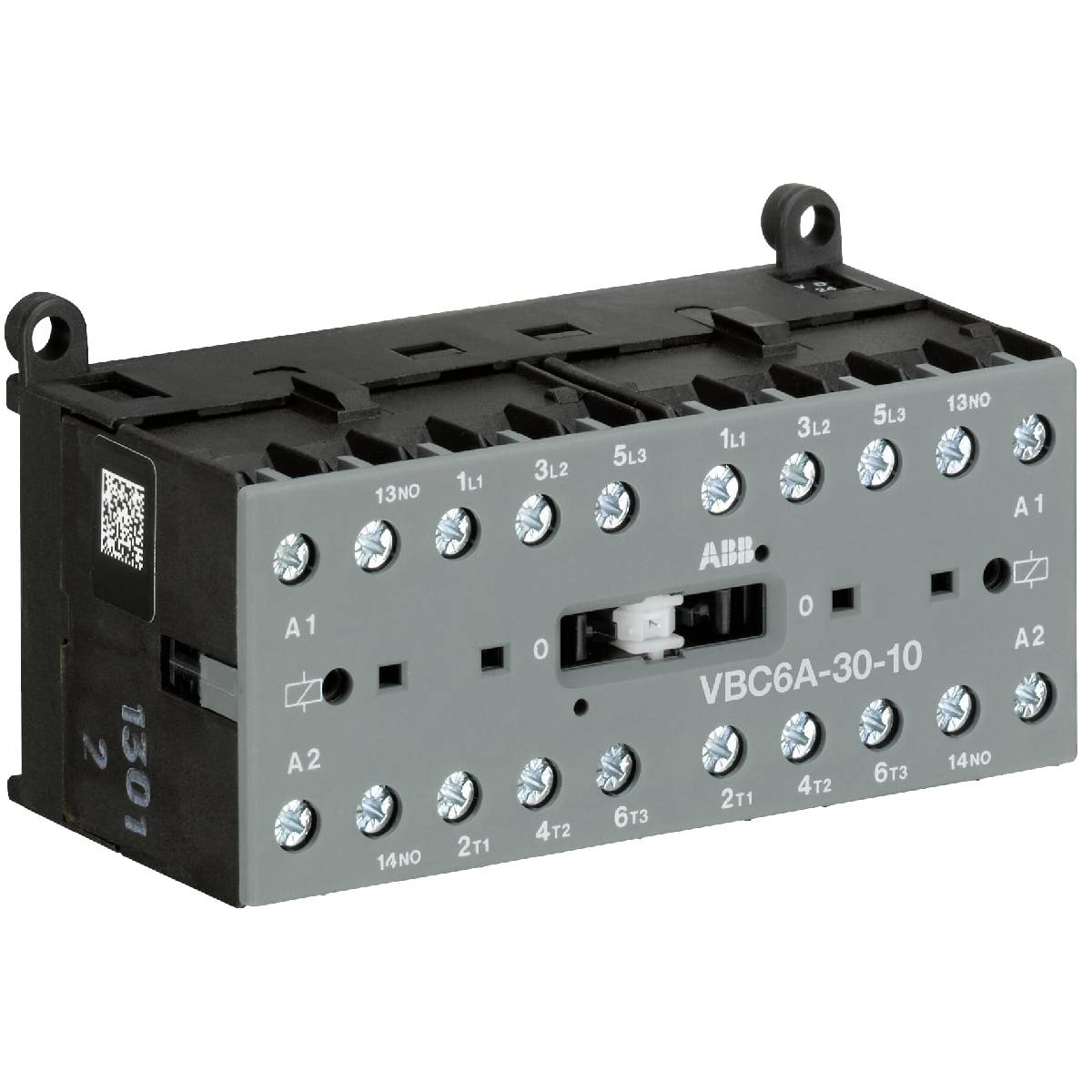

ABB VBC6A-30-10-01 GJL1213911R0101 Mini Reversing Contactor

Description

The VBC6A-30-10-01 mechanical assembly is a compact 3-pole mini reversing contactor with 1 integrated auxiliary contact, screw terminals, mechanical interlocking, and safety blocking functions. This electrical device controls three-phase motor loads up to 4 kW (AC-3), enabling safe operational directional switching by preventing simultaneous activation of reversing coils. Engineered for applications where reliability is critical and space is at a premium, it is widely used in residential, commercial, and industrial automation control environments.

Features

• Equipped with a built-in mechanical interlock and safety blocking to protect the reversing mechanism.
• Integrated noiseless and hum-free 24 V DC operational coil.
• Clear visual switch position indication on the front casing.
• Flexible mounting flexibility supporting both standard rail and flat wall installations.

Applications

• Three-phase motor control loads up to 4 kW (AC-3 environment).
• Automated directional control loops in industrial automation fields.
• Space-constrained motor branch control setups in commercial and residential facilities.

Ordering Information

Technical Specifications

Installation Guidelines

• Mounting Setup: Snap securely onto standard DIN rail frameworks or use the dedicated wall mounting apertures for surface installations.
• Terminal Wiring: Route incoming and outgoing three-phase paths to the specified screw terminals, ensuring clean connections.
• Space Optimization: Leverage the compact mechanical footprint to minimize overall panel assembly space.

Compliance and Certifications

• Declaration of Conformity - CE: 1SAD101100-3101
• Declaration of Conformity UKCA: 1SAD201100-3101
• CB Certificate: 1SAA938000-2002
• CCC Certificate: 2024010304658943
• UL Certificate: E191658-19881208
• DNV GL Certificate: 15AA938000-0306
• RMRS Certificate: 15AA938000-0704
• A2L Certificate - IEC: 15AA938000-4601
• Environmental Product Declaration - EPD: 1SAC200410H0001
