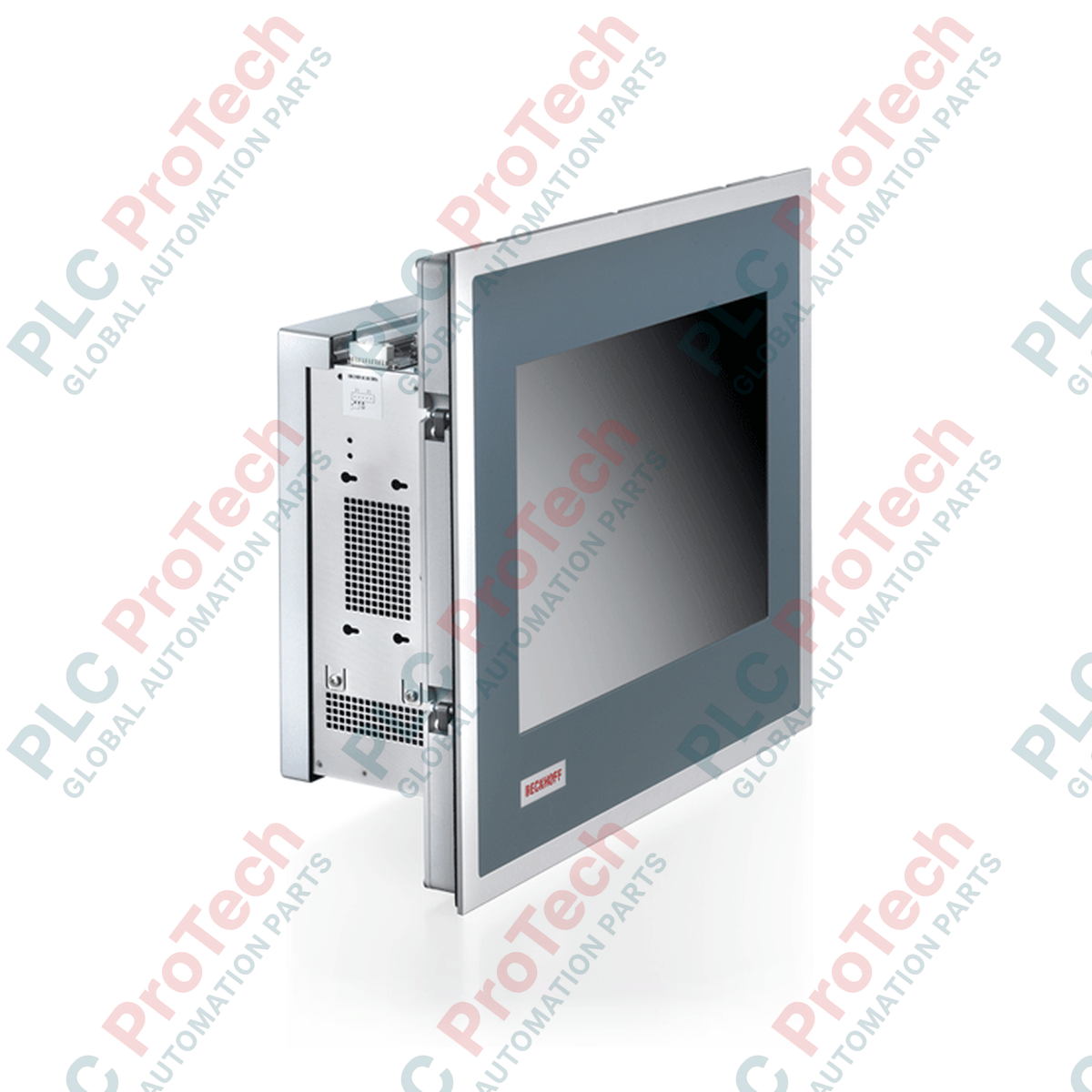

CP6501-0021-0080 | BECKHOFF | Écran 12 pouces 800 x 600

Description

Providing industrial-grade visualization and computing power, the BECKHOFF CP6501-0021-0080 serves as a robust built-in Panel PC designed for demanding control cabinet installation. This unit integrates a high-resolution 12-inch TFT display with a versatile ATX motherboard, allowing seamless execution of complex TwinCAT automation and visualization tasks. The mechanical design incorporates a space-saving yet highly expandable 7-slot ATX housing, optimized for clean integration into control panel cutouts.

Engineered for high-stress industrial environments, the front panel of the CP6501-0021-0080 provides IP65 protection against liquid ingress and dust, while the rear components maintain IP20 protection. Installation is simplified through integrated pull-out clamping levers, eliminating the risk of loose mounting parts during commissioning. The combination of flexible PCIe/PCI expansion slots and extensive standard interfaces makes it highly compatible with diverse industrial communications architectures.

Features

• 12-inch TFT display with an active resolution of 800 x 600 pixels.
• Built-in cabinet mounting design with pull-out clamping levers for rapid, secure installation.
• Robust 7-slot ATX housing supporting long-format plug-in cards up to 190 mm.
• Front-side IP65 ingress protection rating; rear-side IP20.
• On-board dual 100/1000BASE-T Ethernet ports for reliable network integration.
• Integrated SATA RAID 1 controller for critical data redundancy options.

Applications

• Automotive assembly line visualization and process control.
• Central HMI terminal for machine tools and manufacturing systems.
• Oil and gas monitoring interfaces requiring front-panel environmental sealing.
• Water and wastewater plant control panel integration.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Ensure the panel cutout dimensions match the mechanical specifications for the 12-inch display housing.
• Fully extend the pull-out clamping levers to lock the Panel PC into the front plate without over-tightening.
• Maintain a clear air path around the rear 7-slot ATX housing to ensure adequate convective cooling during continuous operation up to 55 degC.
• Connect the ground terminal securely to the cabinet common ground rail to prevent electromagnetic interference.
