Description

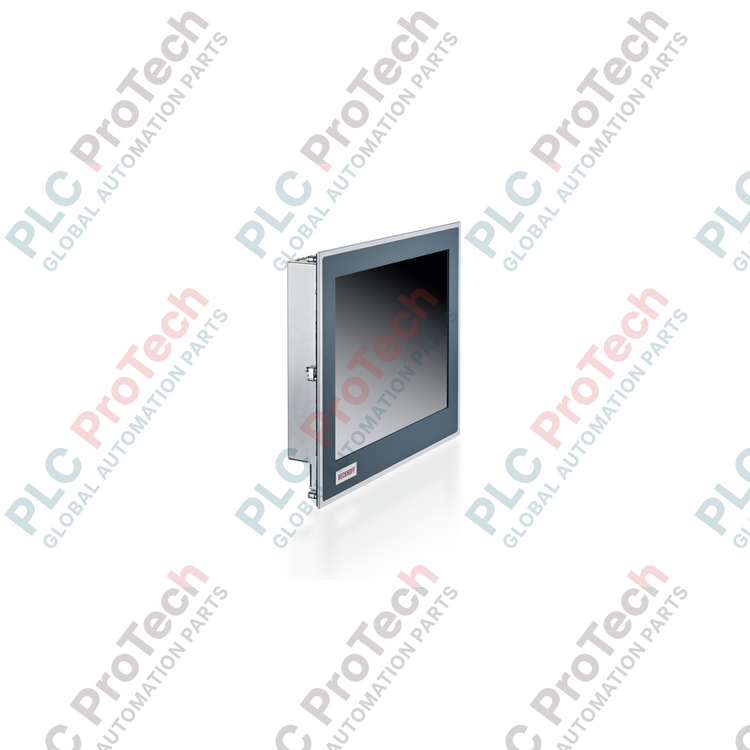

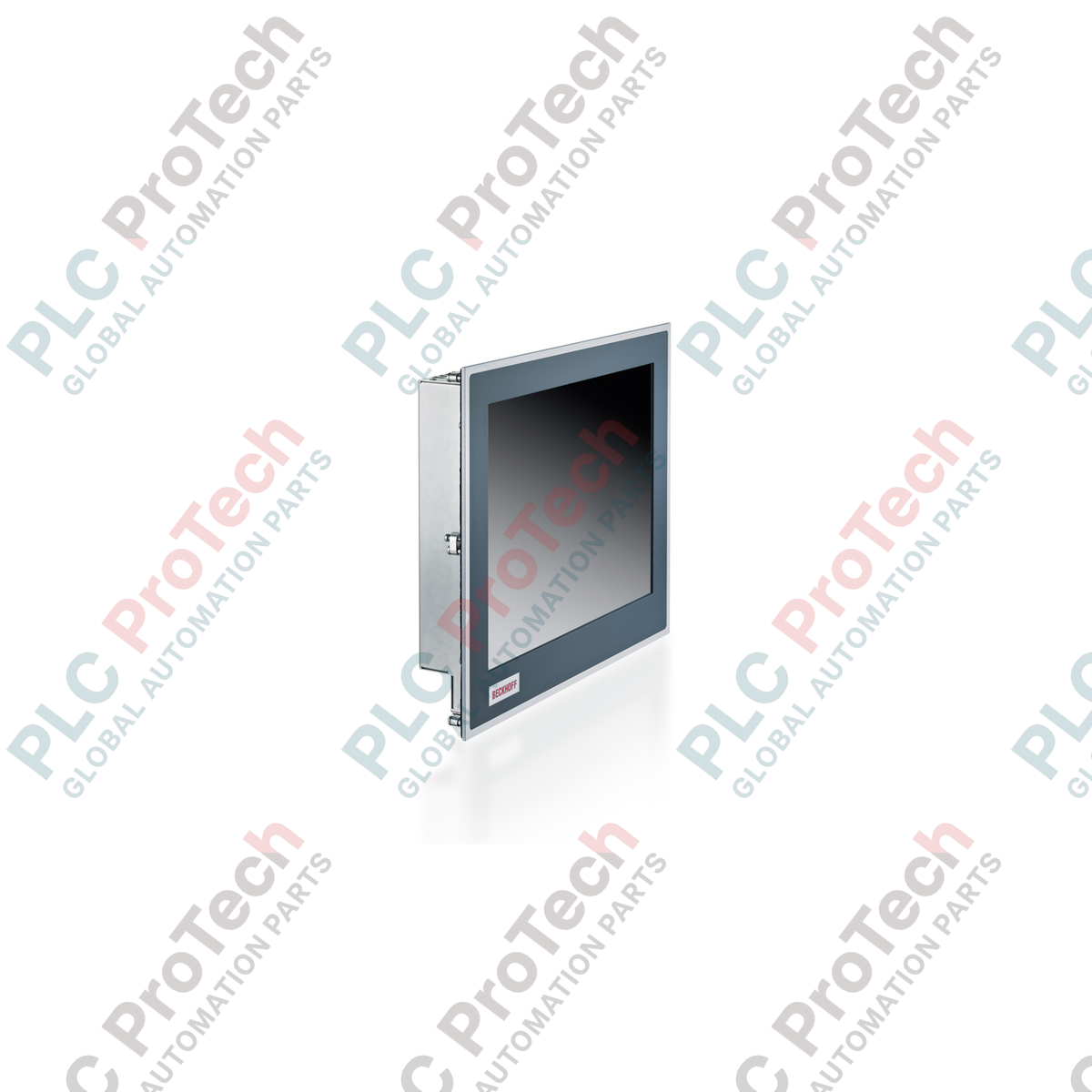

Designed for seamless integration into control cabinet doors and operator consoles, the Beckhoff CP6723-0002-0050 serves as a space-saving industrial computing platform. This unit combines a 12.1-inch TFT display with a fanless Intel Atom processing architecture, providing a reliable operator interface for localized control tasks. Constructed with a robust aluminum front bezel and a protective sheet-steel rear cover, the hardware is built to withstand continuous operation in demanding manufacturing environments.

Features

• Industrial Display: 12.1-inch TFT screen featuring an 800 x 600 SVGA resolution with a built-in single-finger touch screen interface.
• Fanless Processor: Powered by an Intel Atom E3815 1.46 GHz single-core processor for efficient thermal performance and reliability.
• Robust Protection: Offers IP65 ingress protection on the front face and IP20 protection on the rear housing.
• High-Speed Communication: Equipped with dual on-board 100/1000BASE-T RJ45 Ethernet ports for fieldbus connection and network isolation.
• Toolless Installation: Employs integrated pull-out clamping levers to secure the unit within panel cutouts without loose components.
• Solid-State Storage: Utilizes a dedicated CFast slot to prevent mechanical failure points associated with traditional rotating media.

Applications

• Machine-Level HMI: Local visualization and control interfaces for production line machinery.
• Embedded Control Stations: Run-time operations utilizing TwinCAT PLC and Motion Control software.
• Automotive Assembly: Panel-mounted monitoring terminals subjected to mechanical vibrations.
• Material Handling: Distributed operator panels in automated sorting and logistics systems.

Technical Specifications Table

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The CP6723-0002-0050 utilizes an Intel Atom E3815 single-core CPU, positioning it within TwinCAT Performance Class 40. When swapping this module with legacy CP67xx systems, verify your existing TwinCAT licensing. Moving execution from multi-core systems (such as the E3845-powered variants in Performance Class 50) to this single-core unit requires task reassignment within TwinCAT System Manager to prevent CPU overruns.

Application Pitfalls & Engineering Notes

Because this Panel PC relies purely on passive convection cooling, it is imperative to maintain a minimum of 50mm clearance above and below the rear chassis within the control panel. Mounting the unit directly above high-heat emitting devices like variable frequency drives (VFDs) can compromise the passive heat sink performance and cause CPU thermal throttling above 55 degC ambient internal temperatures.

Commissioning & Wiring Tips

Always route the 24V DC input supply through a dedicated, class-2 isolated power supply. Ground loop noise on the protective earth (PE) path can disrupt resistive touch controller signal stability. It is recommended to connect a low-impedance ground strap directly from the functional earth pin of the power connector to the main panel grounding bus.
