IP1012-B518 | Beckhoff | Boîtier de bus de terrain

Description

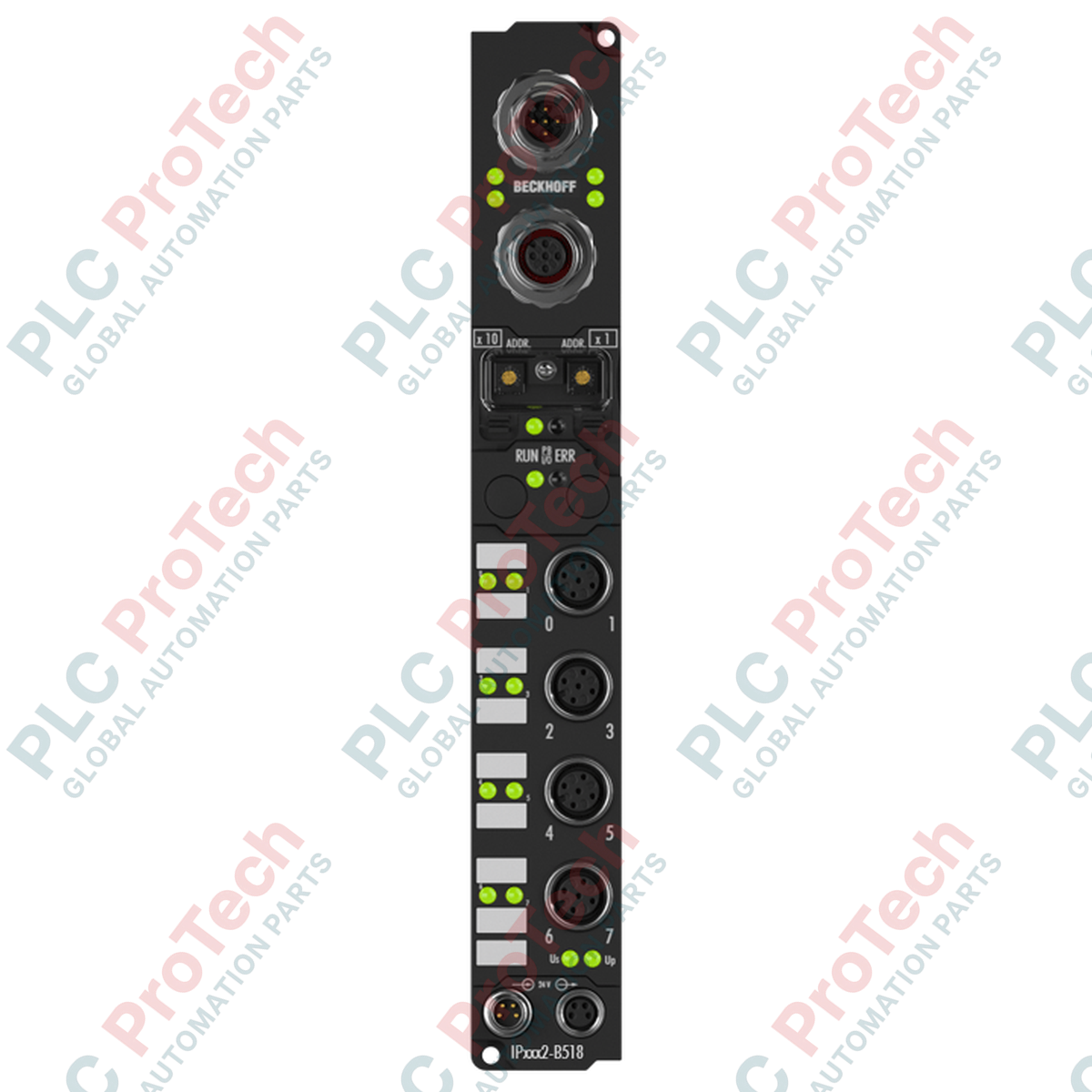

Designed for decentralized automation setups without control cabinets, the IP1012-B518 is an 8-channel digital input module integrated into a robust CANopen Fieldbus Box housing. This module allows the direct acquisition of up to eight binary control signals from sensors and transducers operating in demanding industrial environments. Equipped with an integrated M12 T-connector, it simplifies fieldbus line routing by facilitating direct looping of the CANopen bus without requiring external splitters or distribution blocks.

With an extremely fast input filter of 0.2 ms, this CANopen Fieldbus Box ensures high-speed signal capture and optimal dynamic performance. It operates with a nominal 24 V DC supply and is sealed within a high-grade polyamide housing, achieving IP65/66/67 ingress protection. The device is optimized for mounting directly onto machines, significantly reducing wiring overhead and cabling costs in complex plant configurations.

Features

• Eight independent digital input channels for binary sensor signals.
• Integrated CANopen bus interface with a built-in T-connector (1 x M12 plug, 5-pin and 1 x M12 socket, 5-pin).
• Rapid input filter time of 0.2 ms for time-critical automation applications.
• Robust, fully sealed PA6 (polyamide) XXL housing suited for harsh industrial environments.
• M12 connection technology for digital inputs to ensure reliable, secure cabling.
• M8 connectors for downstream power feed-through to adjacent modules.
• Diagnostic and status LEDs for rapid visual fault isolation on-site.

Applications

• De-centralized machinery control and assembly systems.
• Material handling, packaging, and sorting conveyor systems.
• Automotive manufacturing and robotic assembly lines.
• Process plants requiring direct, field-level sensor integration without terminal enclosures.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Mount the unit directly to the machine frame using the two 3.5 mm diameter fixing holes designed for M3 screws. Ensure a flat surface to prevent mechanical stress on the PA6 housing.
• Grounding: Guarantee proper functional grounding to secure high EMC immunity in noisy environments.
• Cable Routing: Keep high-voltage cables separated from the CANopen and M12 sensor cables to prevent electromagnetic interference.
• IP Rating Integrity: Use IP67-rated mating connectors and protective caps on all unused M12 and M8 ports to maintain the unit’s environmental sealing integrity.

Compliance and Certifications

• CE
• UL
