IP2320-B200 | Beckhoff | Boîtier de bus de terrain

Description

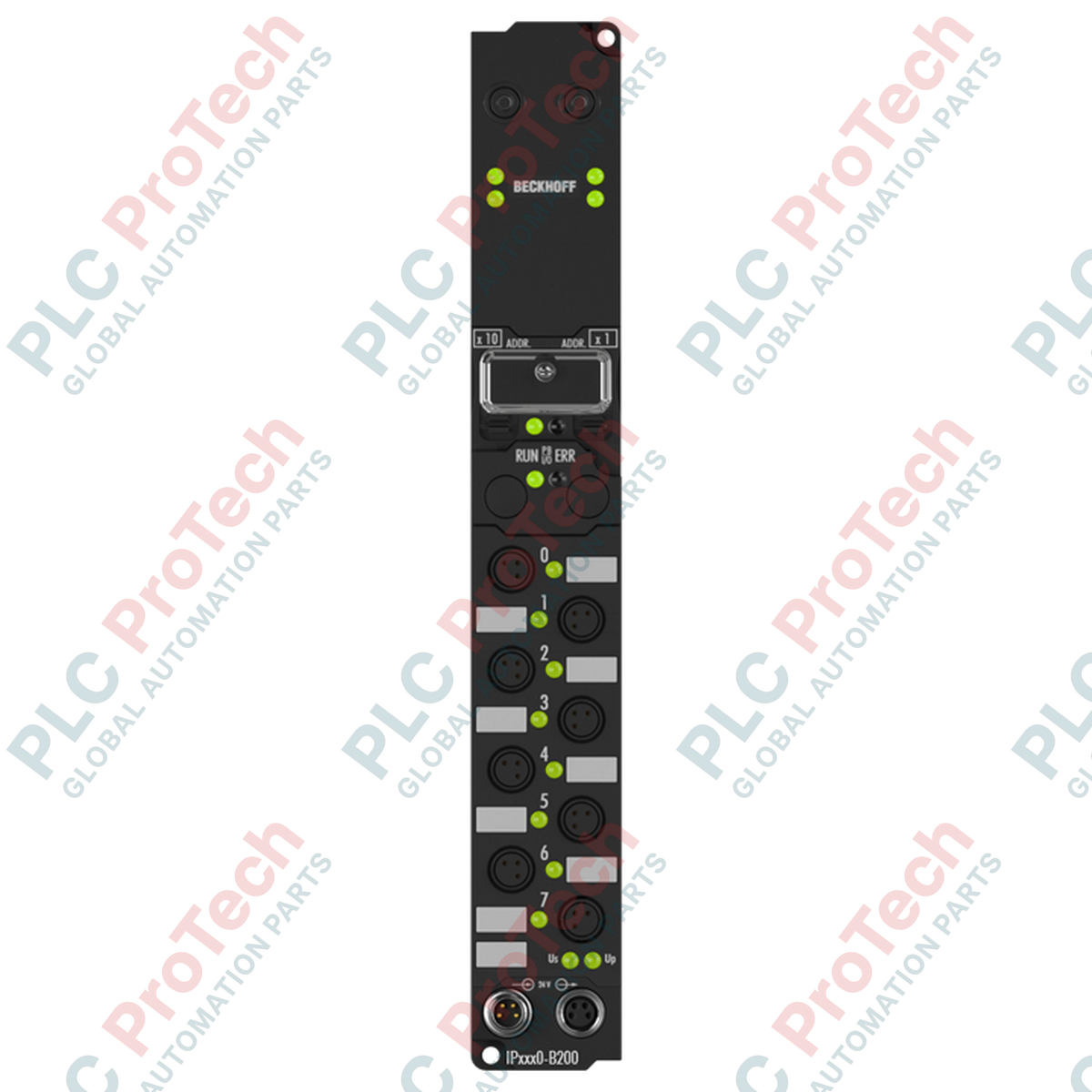

Designed for distributed industrial automation architectures, the IP2320-B200 provides a robust digital interface designed to mount directly on machinery without requiring an enclosure. This ruggedized fieldbus box interfaces directly with Beckhoff Lightbus networks, offering high-speed fiber optic data transmission immune to electromagnetic interference.

The unit features four digital inputs with a integrated 3 ms hardware filter to eliminate signal bounce, paired with four digital outputs designed for switching high-current loads up to 2 A per channel. Standard M8 circular connectors facilitate fast, secure sensor and actuator connections under harsh operating conditions.

Features

• Direct integration with Beckhoff Lightbus optical fiber network configurations.
• Four digital inputs (24 V DC) featuring 3 ms input filters for noise suppression.
• Four high-current digital outputs (24 V DC) delivering up to 2 A per channel.
• M8 circular screw-lock connectors for secure industrial cabling.
• IP67-rated enclosure, providing complete protection against dust and temporary water immersion.
• Diagnostic LEDs for status monitoring of inputs, outputs, network traffic, and local power supply.

Applications

• Packaging machinery and material handling conveyors.
• De-centralized control systems in high-EMI environments.
• Pneumatic valve manifold control and actuator switching.
• Automotive assembly lines requiring localized high-current digital I/O.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Secure the unit to a flat surface using the integrated mounting holes. Ensure proper alignment to avoid strain on the optical fibers.
• Optical Fiber Handling: Maintain the specified minimum bending radius for Lightbus optical fibers to prevent attenuation or physical fiber damage.
• M8 Connector Torque: Tighten all M8 circular connectors to the recommended torque specification (typically 0.4 Nm) to ensure the IP67 protective seal.
• Grounding: Connect the functional ground lug on the chassis directly to the machine frame or system ground plane to ensure electromagnetic compatibility.
