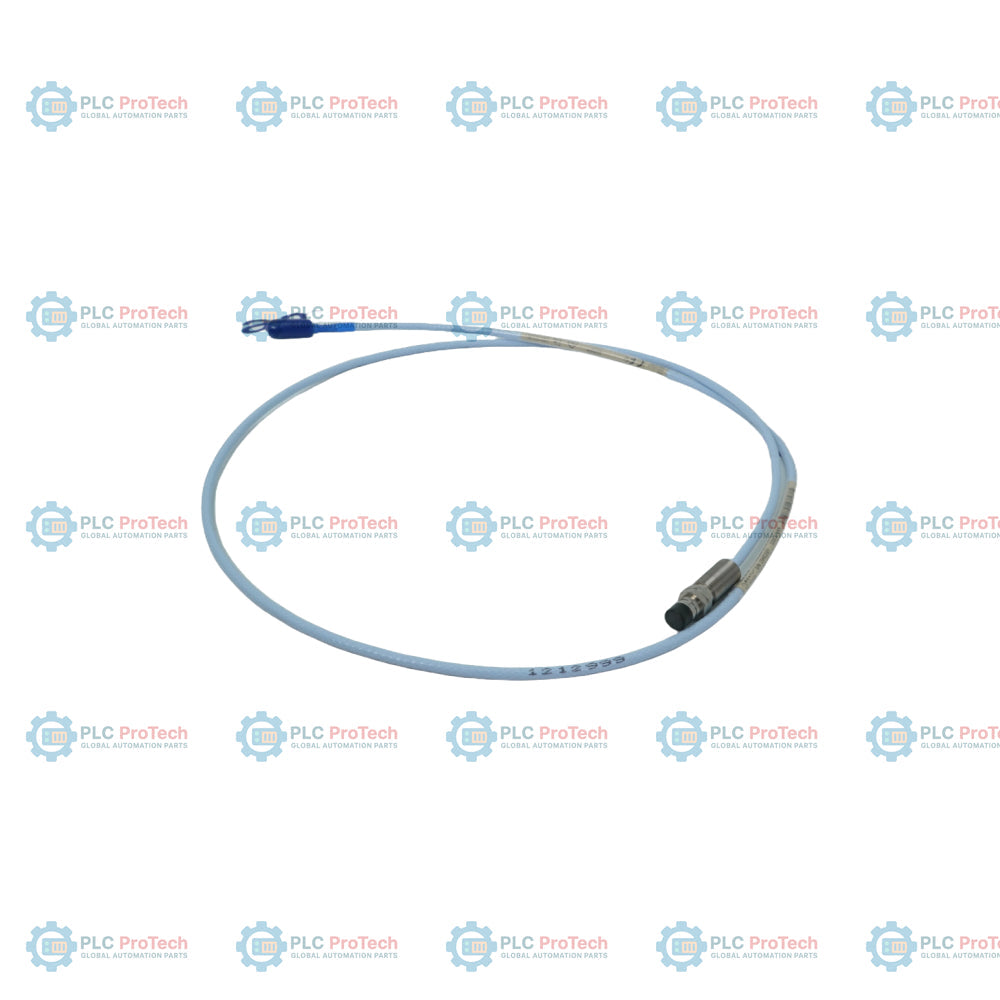

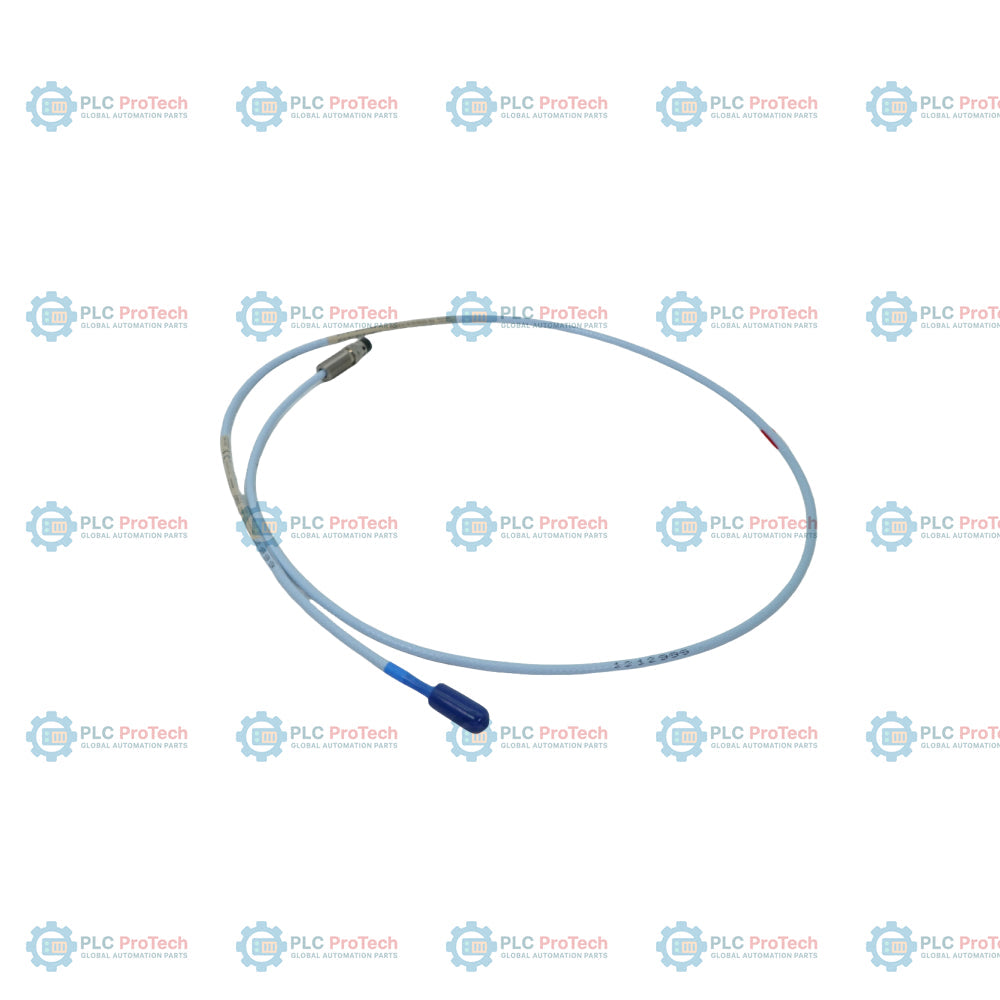

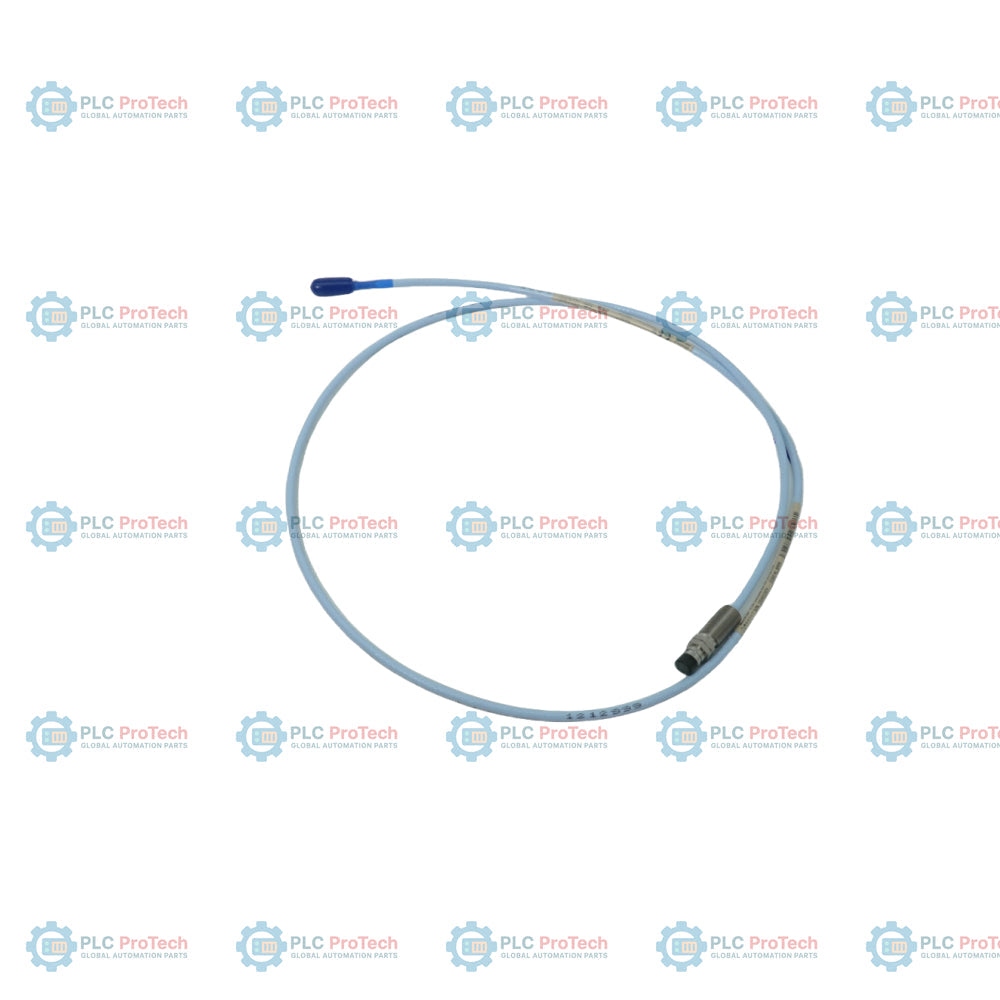

Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm Reverse Mount Proximity Probe

Il ne reste que 4 article(s) en stock

Fabricant : Bently Nevada
N° de produit : 330106-05-30-10-02-CN
Pays d'origine :États-Unis
Type de produit : 3300 XL 8 mm Reverse Mount Probes
Code-barres : 8537101190
Paiement : Virement bancaire, Western Union
Poids : 140g
Dimensions : 50 mm x 120 mm x 120 mm (H x W x D)
Port d'expédition : Xiamen
Garantie : 12 mois

Voir les détails complets

Description

Metric M10 x 1 threaded steel probe body featuring a 5.0 mm unthreaded length, a 30 mm overall case length, a 1.0 meter (3.3 feet) standard coaxial cable, and a miniature ClickLoc connector without connector protector specifies the configuration of the Bently Nevada 330106-05-30-10-02-CN 3300 XL 8 mm reverse mount proximity probe. This reverse-mount variant mounts from the inside of a machine casing or sleeve using metric M10 x 1 threads, with the -CN suffix indicating China hazardous area approvals including NEPSI and CCC certifications.

Unlike sibling configurations with standard fractional inch threads (such as the 330105 3/8-24 UNF series) or armored cable protections, this 330106 option utilizes a standard unarmored coaxial cable. The miniature male ClickLoc coaxial connector (Option 02) terminates the 1.0 meter cable, connecting to a 3300 XL extension cable and Proximitor sensor to complete a 5 meter or 9 meter system loop. The system measures shaft vibration, axial position, and speed on rotating machinery.

Features

Option 05 unthreaded length specifying 5.0 mm (0.20 inches).
Option 30 case length specifying 30 mm (1.2 inches) overall body length.
Option 10 total length specifying 1.0 meter (3.3 feet) of standard cable.
Option 02 connector type providing a miniature male coaxial ClickLoc connector.
Suffix -CN adding China hazardous area approvals with NEPSI and CCC certification.
Reverse mount body design allowing installation through the machine casing.
Metric M10 x 1 threads on the stainless steel probe body.
Coaxial cable with 75 Ohm impedance and FEP insulation.

Applications

Steam turbines, gas turbines, and hydro turbines.
Centrifugal and axial compressors.
Industrial pumps, gearboxes, and generators.
Shaft vibration and axial position measurement.
Speed and phase reference (Keyphasor) monitoring.
Inside-casing installations requiring reverse-mount physical access.

Ordering Information

Option Segment	Code on This SKU	Description / Meaning
Base Model	330106	3300 XL 8 mm Reverse Mount Proximity Probe, M10 x 1 threads
A - Unthreaded Length Option	05	5.0 mm unthreaded length
B - Overall Case Length Option	30	30 mm overall case length
C - Total Length Option	10	1.0 meter (3.3 feet) total cable length
D - Connector Option	02	Miniature ClickLoc coaxial connector, standard cable
Suffix	-CN	China hazardous area approval package (NEPSI + CCC + applicable markings)

Technical Specifications

Parameter	Value / Specification
Manufacturer	Bently Nevada (Baker Hughes)
Part Number / SKU	330106-05-30-10-02-CN
Product Type	3300 XL 8 mm Reverse Mount Proximity Probe
Thread Type	Metric M10 x 1 threads
Unthreaded Length	5.0 mm (0.20 in)
Case Length	30 mm (1.2 in)
Total Cable Length	1.0 meter (3.3 feet)
Connector Type	Miniature male coaxial ClickLoc connector (7.24 mm maximum outside diameter)
Cable Type	Standard unarmored coaxial cable (3.68 mm outside diameter)
Nominal DC Resistance	7.59 ohms +/- 0.50 ohms (center conductor to outer conductor)
System Target Calibration	AISI 4140 steel target
Operating Temperature Range	-52 degC to +177 degC (operating and storage)
Pressure Seal Limit	Differentially pressure sealed
Dimensions	50 mm x 120 mm x 120 mm (H x W x D)
Weight	0.14 kg

Connections and Interfaces

Connector Part	Signal Mapping
Center Conductor	Signal (RF/DC voltage)
Outer Conductor / Shield	Common / Shield ground

Compliance and Certifications

NEPSI (China hazardous area approval)
CCC (China Compulsory Certification)
ATEX / IECEx / CSA

Model Number / Title	Condition	Availability	Action
Bently Nevada 330901-00-78-10-02-00 Sonde de proximité NSv 3300 XL	Original New	In Stock	View Details
Bently Nevada 330104-00-04-10-11-01 Sonde de proximité 8 mm 3300 XL	Original New	In Stock	View Details
Bently Nevada 330104-00-04-10-02-01 Sonde de proximité 8 mm 3300 XL	Original New	In Stock	View Details

Key Features:

#Bently Nevada 3300 XL #Reverse Mount Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What does the -CN suffix mean on the 330106-05-30-10-02-CN proximity probe?

The -CN suffix represents the China hazardous area approval package, which certifies the probe under NEPSI and CCC regulations for installation in explosive atmospheres.

How do the unthreaded and case length options differ on this reverse mount probe?

This probe features a fixed 5.0 mm unthreaded length (Option 05) and a 30 mm overall case length (Option 30). This configuration is specifically designed to fit standard metric machine casing or sleeve depths.

Which threads are used on the 330106 probe body?

The probe body has standard metric M10 x 1 external threads. For applications requiring fractional imperial threads, the 330105 series with 3/8-24 UNF threads should be used instead.

Can this probe connect directly to a Proximitor sensor?

The probe features a 1.0-meter cable with a ClickLoc connector. It must be paired with a matching 3300 XL extension cable (typically 4.0 meters for a 5-meter system or 8.0 meters for a 9-meter system) to connect to a 3300 XL Proximitor sensor.
