Variateur servo AC série ASDA-A2 DELTA ASD-A2-3023-M

Product Overview

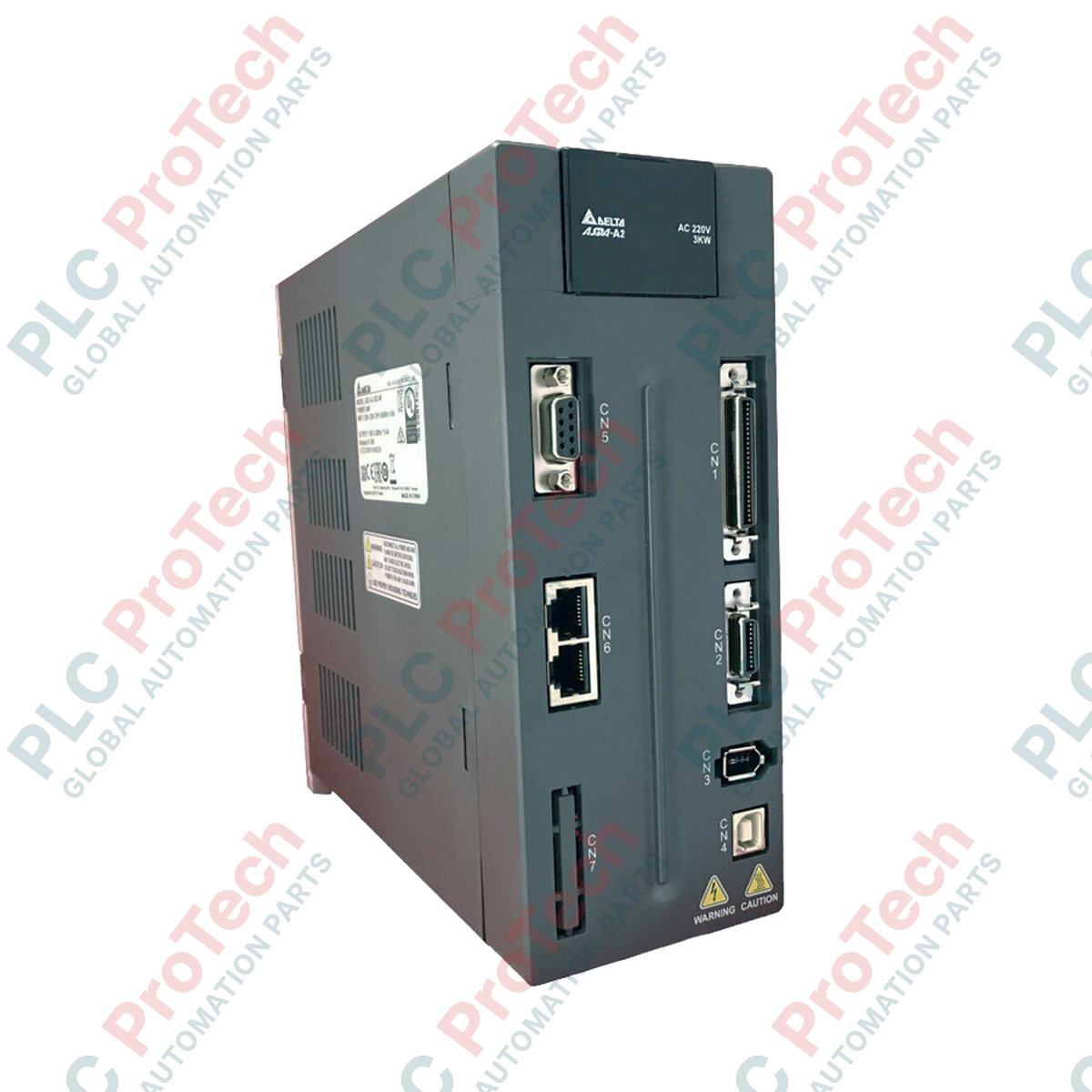

The ASD-A2-3023-M (ASDA23023M) is a high-performance 3.0 kW AC servo drive from Delta’s flagship ASDA-A2 series. Engineered for applications requiring high precision and superior motion control, this drive is a cornerstone in industries ranging from semiconductor manufacturing and industrial robotics to high-speed CNC machinery. The A2 series is specifically designed for complex trajectory control, offering exceptional response speeds and advanced electronic cam (E-CAM) functionality, which allows for smooth synchronization in multi-axis systems.

Technical Configuration

The ASDA-A2 series is distinguished by its high-performance processing capabilities, which facilitate stable control of high-inertia loads and minimize settling times for high-accuracy positioning tasks. The drive supports various communication interfaces (depending on the specific "M" variant) that enable it to integrate seamlessly into sophisticated automated networks. Its robust architecture includes advanced gain tuning features, which can be performed automatically or manually, allowing the drive to adapt to varying mechanical resonances in real-time, thereby maximizing the lifespan of connected transmissions like lead screws and gearboxes.

Technical Specifications

Frequently Asked Questions

What are the primary benefits of the ASDA-A2 series over the general-purpose A series?

The A2 series is designed specifically for motion control that demands high-precision trajectory tracking. It includes a built-in E-CAM (Electronic Cam) function, which is critical for applications like rotary cutting or non-circular motion profiling that require synchronization between multiple axes.

Does this drive support advanced communication protocols?

Yes, the ASDA-A2 series is known for its extensive support of high-speed motion buses. Depending on the specific hardware revision, it is commonly used with CANopen, EtherCAT, or DMCNET, enabling real-time multi-axis synchronization with a master controller.

How does the auto-tuning feature work on this model?

The auto-tuning function analyzes the mechanical load's inertia and resonance frequencies in real-time. It then adjusts the internal Proportional-Integral-Derivative (PID) gains to achieve the fastest possible response without overshoot, significantly reducing the manual engineering time required during machine commissioning.

Installation and Operational Best Practices

• Thermal Management: Given its 3.0 kW power capacity, ensure the drive is mounted in a vertical orientation with at least 100 mm of clearance above and below the unit. Do not install the drive in environments with excessive conductive dust, which can cause short circuits across the high-density terminal blocks.
• Grounding: To ensure EMI compliance and prevent signal noise, the drive must be connected to a common, low-impedance ground bus using a short, braided copper strap. High-speed encoder feedback signals are extremely sensitive to electrical noise generated by other high-power devices; keep these signal lines separate from motor power cables by at least 300 mm.
• Regenerative Energy: Since this is a 3.0 kW unit, rapid deceleration of high-inertia loads will generate significant regenerative energy. If you encounter over-voltage faults during standard operations, ensure you have an appropriately sized external braking resistor installed.
