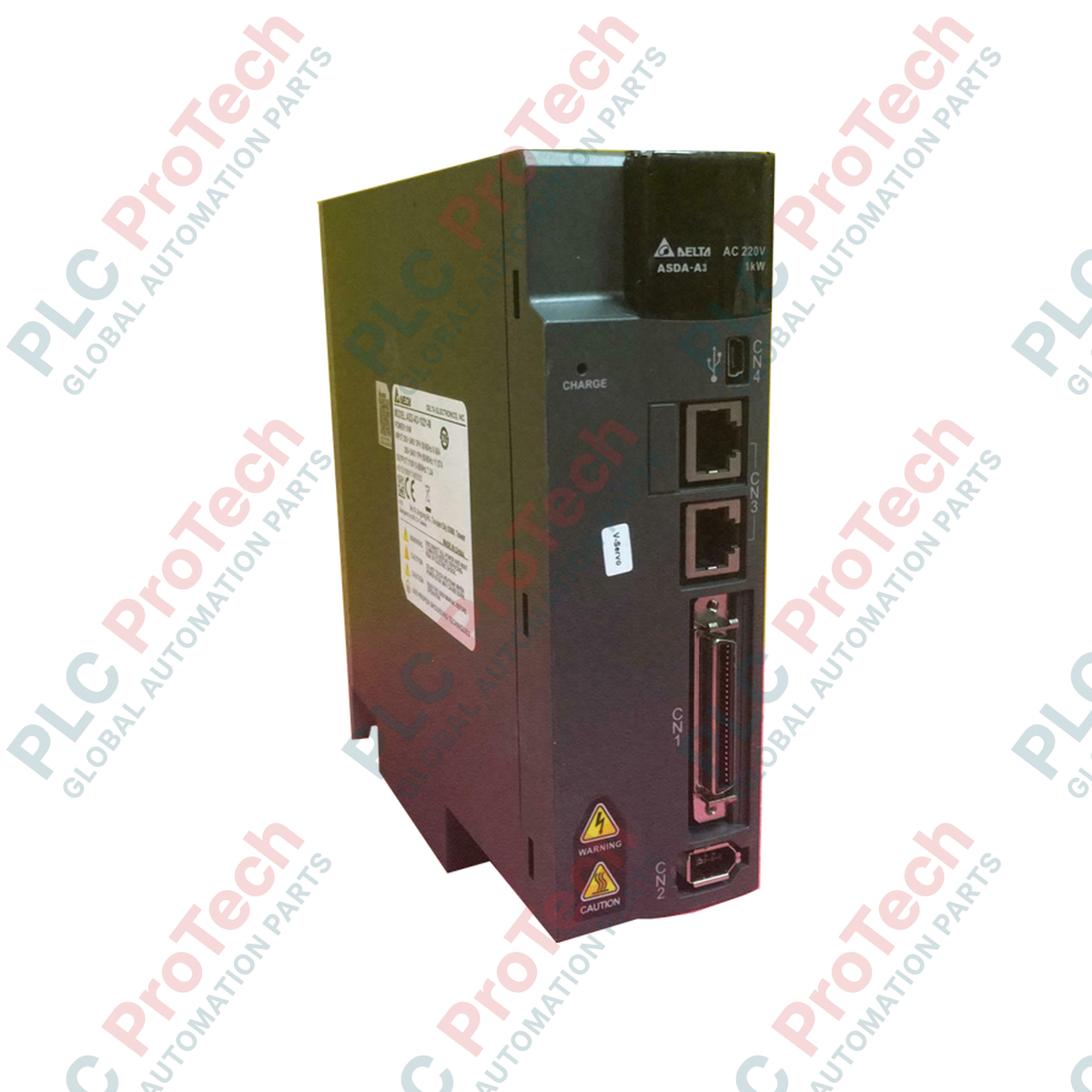

DELTA ASD-A3-3023-L Variateur servo AC série A3

Product Overview

The ASD-A3-3023-L (ASDA33023L) is an advanced 3.0 kW AC servo drive from the Delta A3 series, specifically engineered for high-precision motion control systems. Designed for industrial three-phase 220 VAC power environments, this drive delivers a massive instantaneous maximum output current of 70.71 A, providing the peak torque necessary for high-speed dynamic applications. As a cornerstone of the A3 series, it enables superior machine throughput by reducing vibration and shortening settling times, which is essential for industries like high-speed packaging, automated assembly, and semiconductor fabrication.

Technical Configuration

The ASD-A3-3023-L utilizes a sophisticated SVPWM (Space Vector Pulse Width Modulation) control algorithm to maximize motor efficiency and torque smoothness. The drive features an industry-leading 24-bit (16,777,216 pulses per revolution) resolution, offering unparalleled positioning accuracy for critical tasks. To ensure smooth motion transitions, it incorporates advanced smoothing strategies including low-pass and P-curve filtering. The unit is equipped with a built-in regenerative resistor to handle high-inertia deceleration energy, and its robust hardware supports both auto and manual tuning modes to accommodate diverse mechanical load characteristics.

Technical Specifications

Frequently Asked Questions

What does the 'L' suffix signify in the ASD-A3-3023-L model?

The 'L' suffix typically identifies the communication and control interface configuration. In the A3 series, it denotes support for specific high-speed protocols or specialized I/O configurations optimized for the North American or specific industrial machine builder market requirements.

How does the 24-bit resolution impact system performance?

The 24-bit resolution (over 16 million pulses per revolution) drastically improves the low-speed smoothness of the motor and reduces ripple, which is critical for applications like high-precision printing, scanning, or semiconductor wafer handling.

Does the built-in regenerative resistor cover all applications?

The built-in resistor is designed for standard cyclic applications. If your machine involves high-inertia loads with frequent, rapid deceleration cycles, you may need an external, higher-wattage regenerative resistor to prevent drive over-voltage faults.

Installation and Operational Best Practices

• Thermal Management: The ASD-A3-3023-L uses active fan cooling. Ensure the drive is installed in an upright, vertical position. There must be at least 100 mm of clearance above and below the unit, and 50 mm on the sides, to allow for adequate airflow through the heat sink.
• Input Power Quality: The permissible voltage range is 200–230 VAC (-15% to +10%). In industrial areas with unstable grids, utilize an isolation transformer or a line reactor to protect the drive's front-end rectifier circuitry from voltage spikes.
• Control Signal Shielding: Given the high encoder resolution (24-bit), the feedback signal is susceptible to electromagnetic interference. Always route the encoder cable separately from high-current motor power cables and ensure that the cable shield is grounded using a metal-to-metal contact at the drive end.
