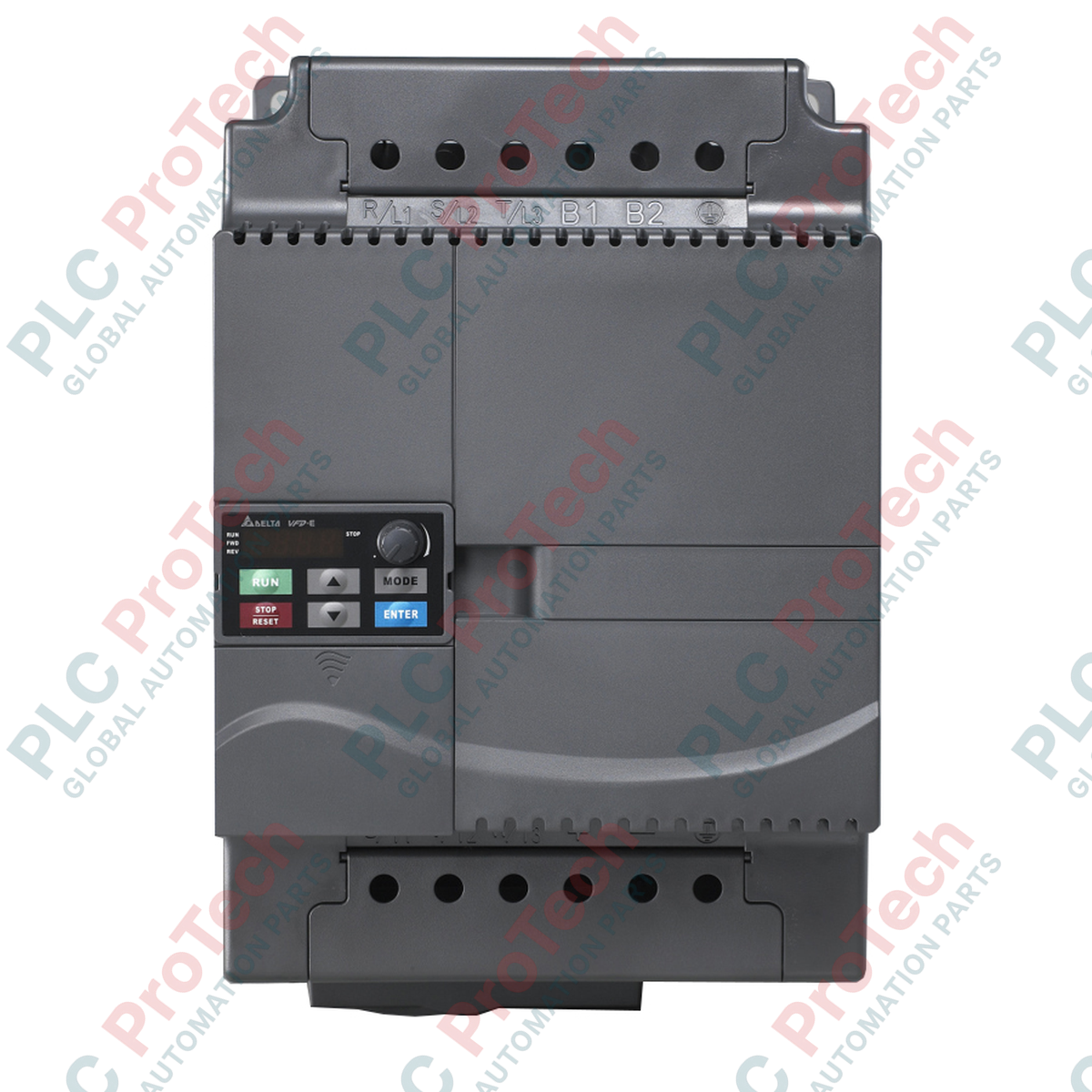

Variateur de fréquence Delta Electronics VFD185E43A série VFD-E

Description

Control and regulation of three-phase asynchronous motor speeds is handled efficiently by the VFD185E43A variable frequency drive, a core component of the modular Delta Electronics VFD-E Series. Engineered for low-horsepower, high-performance industrial applications, this drive delivers a maximum applicable motor output of 18.5 kW (25 HP). Its physical architecture features a highly adaptable modular design that supports standard extension cards for I/O functions and fieldbus communications, allowing integration into diverse distributed control topologies.

The unit features built-in PLC functionality, allowing users to write and execute basic ladder logic programs directly within the drive. With an integrated RS-485 interface supporting the Modbus protocol, the VFD185E43A establishes robust communication links with PLC systems, HMIs, and supervisory networks. The physical chassis is designed with forced fan cooling and an IP20 protection rating to withstand industrial control panel environments.

Features

• Built-in basic PLC functionality enables standalone sequencing and local control operations without an external controller.
• Modular extension architecture supports options for fieldbus communication modules (including DeviceNet, Profibus, and CANopen) and additional I/O expansion.
• Removable keypad module allows remote mounting on cabinet doors for convenient parameter access.
• Flexible control modes including V/f control and Sensorless Vector Control (SVC) for precise torque and speed management.
• Comprehensive protective features: Overcurrent, overvoltage, undervoltage, overheating, motor overload, and ground fault protection.
• Side-by-side installation capability optimizes physical space within control enclosures.

Applications

• Material handling systems, including conveyor networks and sorting equipment.
• HVAC systems for fan, blower, and compressor control.
• Water and wastewater treatment infrastructure, specifically centrifugal and dosing pumps.
• Woodworking machinery and light packaging equipment.
• Textile processing machines requiring precise speed synchronization.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting Orientation: Install the drive vertically on a flat, non-flammable vertical surface (such as a metal panel) to ensure proper natural convection.
• Clearance Requirements: Maintain a minimum clearance of 50 mm on both sides and 120 mm above and below the drive to prevent heat accumulation.
• Grounding: Connect the PE terminal to a dedicated, low-impedance ground point. Do not loop ground connections with other high-current devices.
• Wiring Isolation: Route main power cabling (R/L1, S/L2, T/L3) and motor cabling (U/T1, V/T2, W/T3) away from low-voltage control and communication cables to avoid electromagnetic interference.
• Environmental Conditions: Ensure the installation environment is free of conductive dust, corrosive gases, and direct exposure to moisture. Operating temperature should not exceed 50 degC without derating.

Compliance and Certifications

• CE
• UL
• cUL
