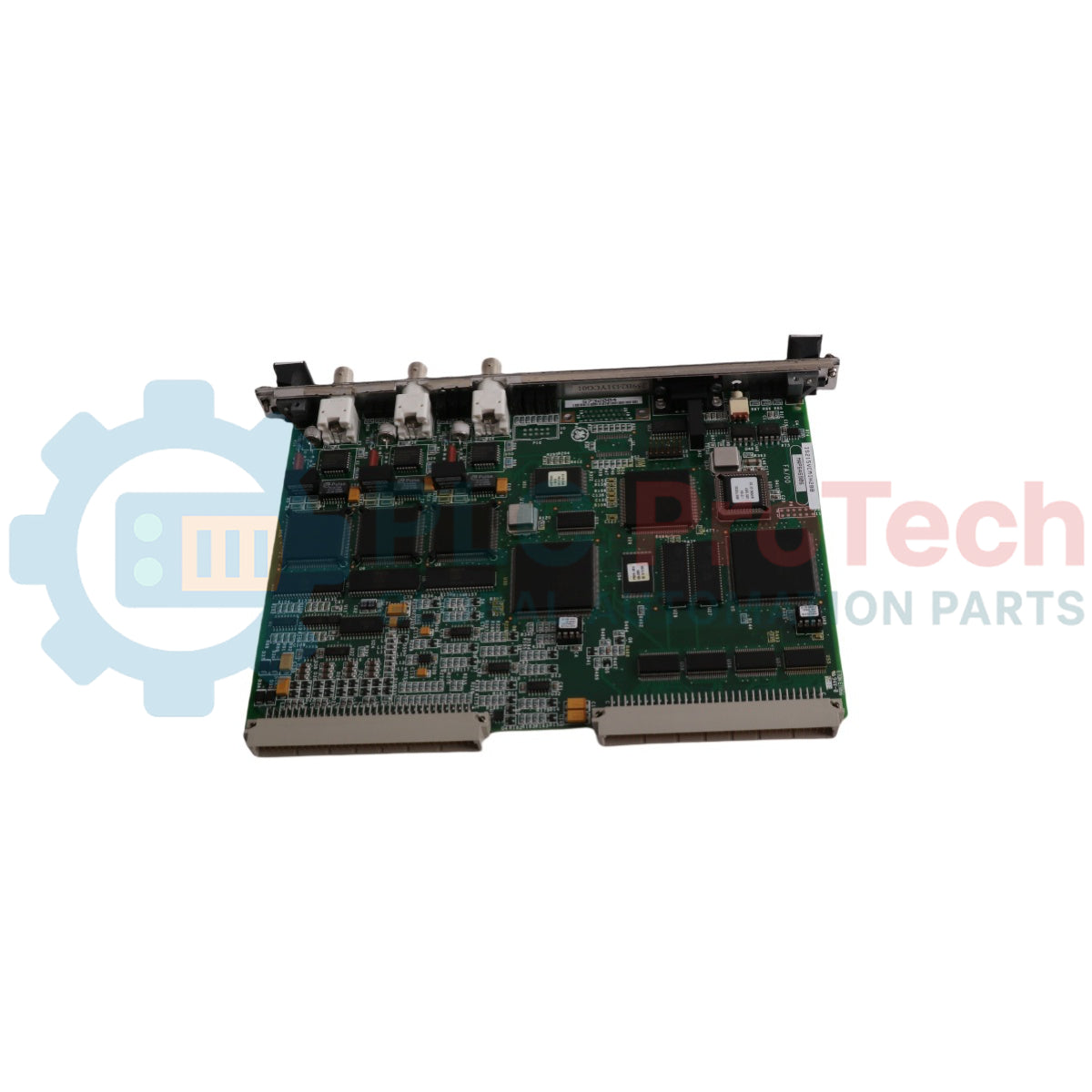

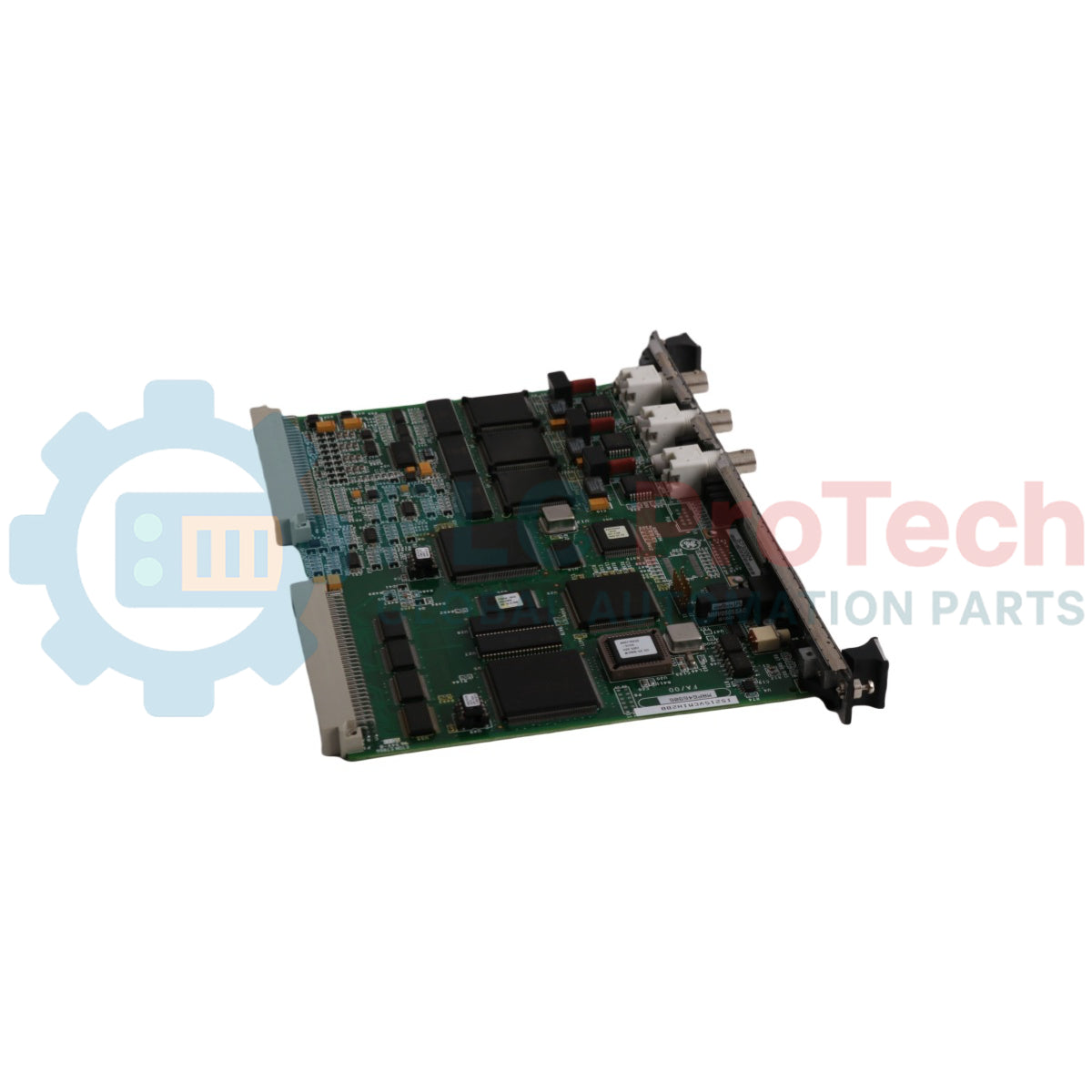

Carte d'interface de communication VME GE Mark VI IS215VCMIH2B

Description

The IS215VCMIH2B functions as the primary communication interface hub within the control rack assembly of the GE Mark VI industrial turbine control platform. This single-slot VME board acts as the critical bridge managing high-speed data translation between the localized control rack backplane and external monitoring components, supervisor operator stations, or broader network segments.

The core utility of the IS215VCMIH2B centers on its ability to coordinate deterministic data processing loops essential for heavy machinery synchronization. By aggregating digital status inputs, parameter variations, and logic diagnostics directly across the VME backplane, the module conditions real-time diagnostic parameters into transferable network formats without introducing timing drift to critical controller tasks. Equipped with standard communication port groupings on its integrated faceplate, it links localized turbine control operations to centralized control rooms and data logging stations running software interfaces such as CIMPLICITY. Built onto a standard modular VME card format, it slides directly into designated controller slots to offer permanent, low-latency infrastructure for continuous system profiling.

Features

• VME Bus System Integration: Designed specifically to slide into the standard Mark VI controller rack backplane to manage parallel data pathways.
• Deterministic Interface Coordination: Handles high-volume communication loops across internal control tasks without impacting localized turbine processor clock routines.
• Supervisory System Interfacing: Supports reliable high-speed data exchanges directed toward central monitoring screens and engineering diagnostic workstations.
• Rugged Control Architecture: Built using high-integrity, industrial-grade board components to maintain data link alignment under constant operation.

Applications

• Steam Turbine Control Sequences: Installed inside the central controller core of the Mark VI system to handle diagnostic and status loops for large industrial steam turbines.
• Gas Turbine Grid Management: Deployed within utility generation plants to monitor structural feedback, load balances, and generator automation links.
• Substation Power Network Monitoring: Distributes synchronized operational metrics from field instrumentation arrays over to local HMI nodes and central SCADA historians.

Technical Specifications

Installation Guidelines

• System Power Safety: Isolate, lock out, and verify the complete removal of all operational voltage sources from the VME control rack chassis before executing card replacement or physical handling procedures.
• Electrostatic Shock Prevention: Technical personnel must utilize a fully grounded anti-static wrist strap throughout the entire installation cycle to protect sensitive microprocessors and onboard bus logic from latent damage.
• Slot Alignment Mapping: Position the board along the designated horizontal aluminum chassis guides, pushing evenly on the top and bottom injector/ejector handles until the rear multi-pin layout fits tightly into the backplane socket.
• Cable Strain Management: Route all network communication and transceiver cables with adequate bend clearance, securing front faceplate fasteners tightly to prevent intermittent data link failures caused by system vibration.
