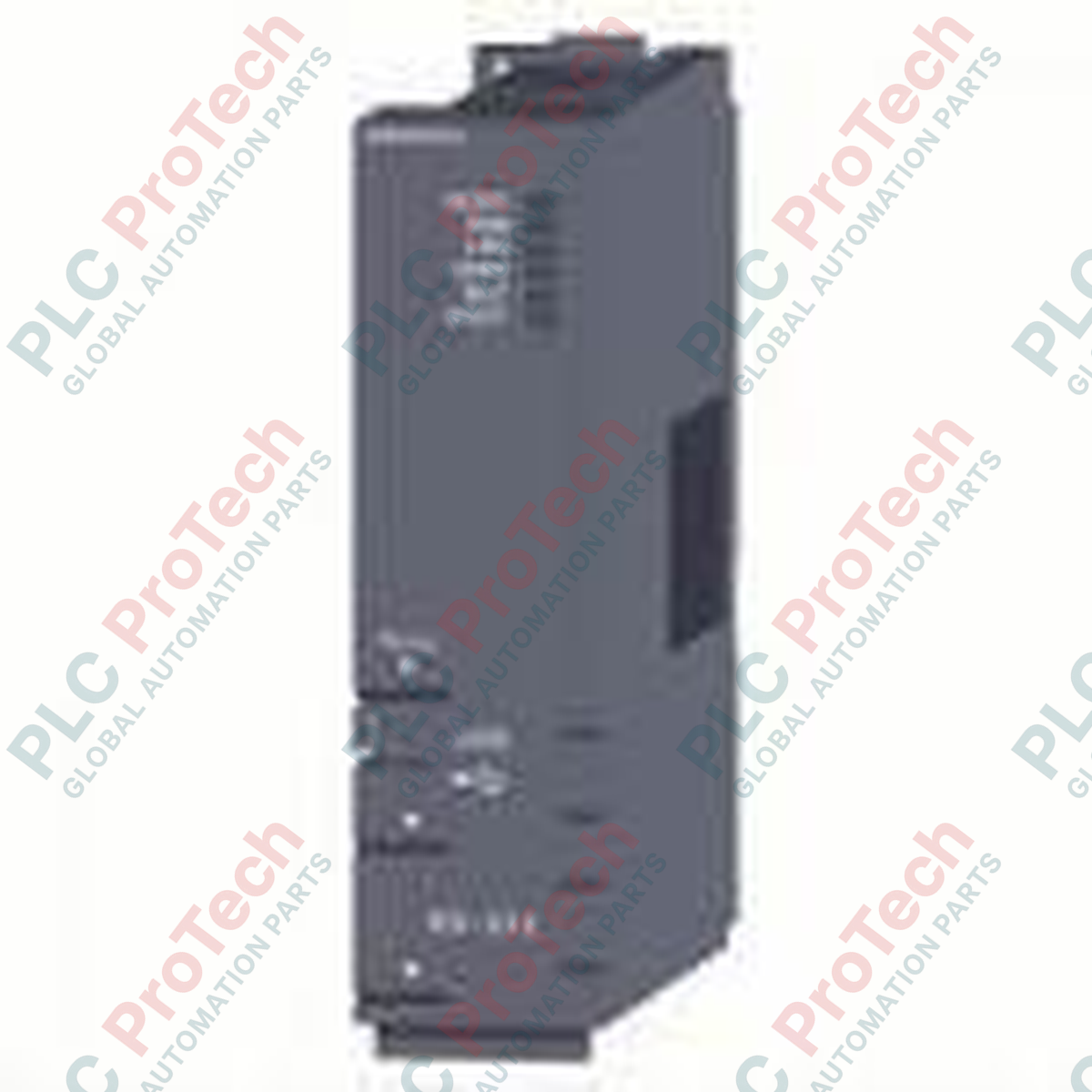

Module CPU PLC universel Mitsubishi Electric Q06UDEHCPU série MELSEC-Q

Product Overview

The Q06UDEHCPU (Q06UDEHCPU) by Mitsubishi Electric is a high-performance Universal Model QCPU designed to anchor complex automation architectures. Featuring a built-in Ethernet Port and a massive 4096 I/O point capacity, this module excels in high-speed data processing and seamless network integration. Its ultra-fast instruction execution speed of 9.5 ns per LD command makes it indispensable for time-critical applications in automotive assembly, semiconductor manufacturing, and advanced water treatment facilities. By consolidating communication and high-speed logic into a single unit, the Q06UDEHCPU reduces system latency and hardware footprint, providing a reliable foundation that minimizes unexpected downtime in sophisticated multi-axis control environments.

System Architecture and High-Speed Processing

The MELSEC-Q Q06UDEHCPU architecture represents the pinnacle of the Universal Model evolution. It supports a program memory of 60k steps, allowing for complex sequential logic and extensive data handling. The integrated Ethernet interface supports high-speed data communication with HMIs, PCs, and other PLCs, eliminating the need for separate communication modules. This CPU also features a USB port for rapid programming and monitoring. For large-scale distributed systems, it handles a total of 8192 I/O points when combining local and remote stations. The hardware is designed for maximum throughput, with a MOV instruction cycle time of only 19 ns, ensuring that data registers are updated with minimal jitter, which is vital for precise motion control synchronization.

Technical Specifications

Lifecycle and Compatibility FAQ

What is the current lifecycle status of the Q06UDEHCPU?

Mitsubishi Electric officially moved this model to Discontinued (EOL) status on January 12, 2024. However, a Last Time Buy (LTB) is available until August 30, 2026, with technical service support (EOS) extending until October 31, 2033.

Does this CPU require a specific programming software?

The Q06UDEHCPU is fully compatible with GX Works2 and GX Developer. The built-in Ethernet port allows for direct connection without specialized serial adapters.

Can I upgrade an older Q-Series system to this Universal Model?

Yes. While this module acts as a successor to the 130121, it maintains high backward compatibility with existing Q-Series I/O modules and base units, though software parameters may need minor adjustments for the Ethernet configuration.

Hardware Installation and Field Engineering Guide

• Ethernet Cable Shielding: To prevent data packet loss in high-interference environments (near VFDs or heavy motors), always use Category 5e (or higher) Shielded Twisted Pair (STP) cables. Ensure the shield is grounded at the switch side to minimize noise injection into the CPU port.

• Battery Maintenance: The Q06UDEHCPU relies on a buffer battery to retain program memory and latch relays during power-off states. Implement a preventative maintenance schedule to replace the battery every 3-5 years, or immediately upon the "BAT" LED activation, to prevent data loss.

• Base Unit Mounting: Ensure the module is firmly locked onto the Q-Series base unit. Use the top and bottom locking mechanisms to ensure a low-impedance connection to the backplane, which is critical for maintaining the high-speed 9.5 ns execution integrity.

Engineering Advantages and Environmental Resilience

The Q06UDEHCPU is built to withstand rigorous industrial conditions, carrying extensive shipping approvals such as ABS, BV, DNV GL, and Lloyd's Register (LR), making it suitable for maritime and offshore applications. Despite its compact 27.4 mm width, the module is engineered for high heat dissipation efficiency, operating reliably within standard industrial temperature ranges. Furthermore, its CE and UKCA compliance ensures it meets the latest electromagnetic compatibility standards. Its native Ethernet capability offers a future-proof path for IoT integration while maintaining the proven durability of the MELSEC-Q platform.
