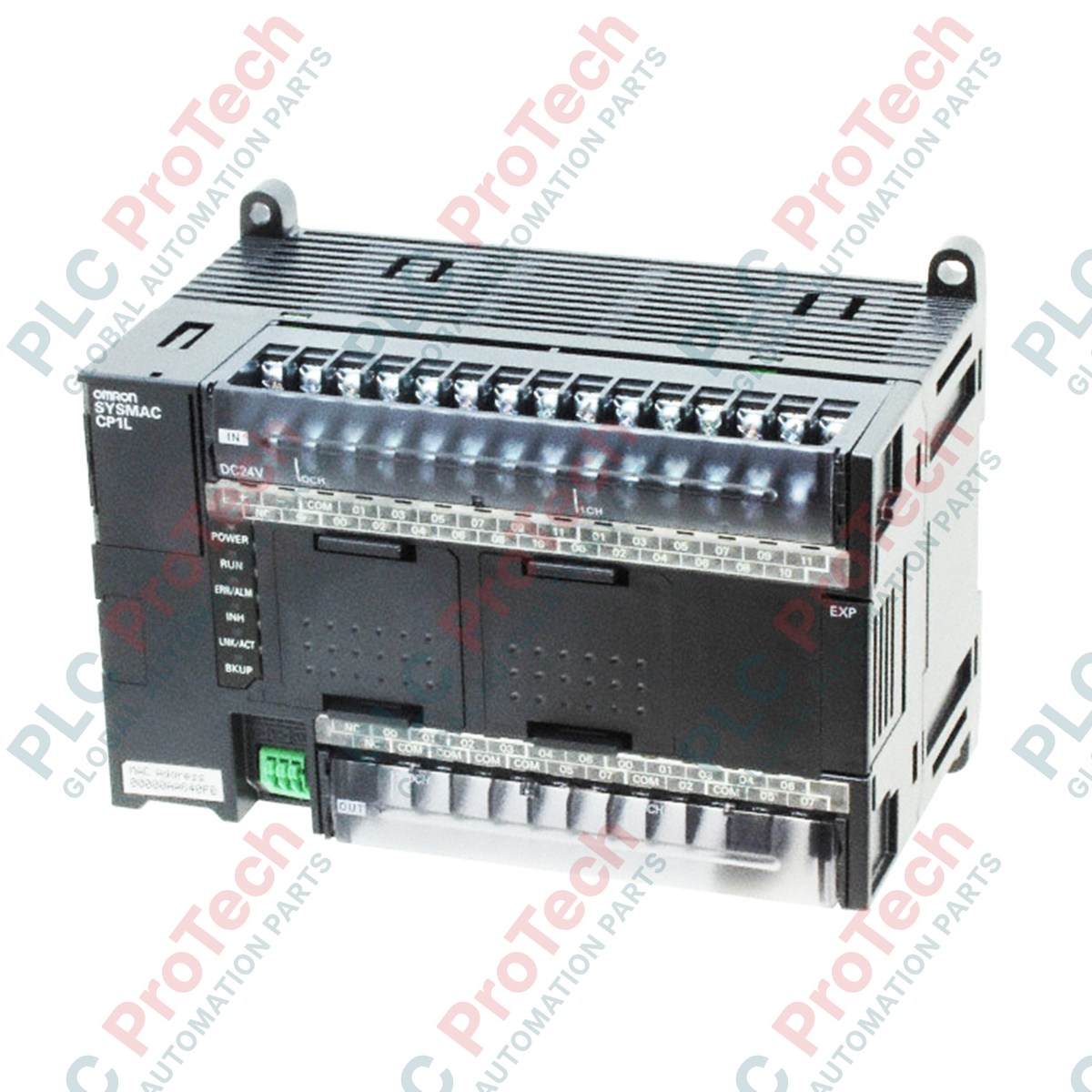

CP1L-EM40DR-D | Omron | Automate programmable haute performance avec Ethernet intégré

Description

Engineered for flexible machine control and seamless industrial networking, this Omron CP1L-EM40DR-D controller integrates embedded Ethernet communication with robust processing capability in a compact form factor. By eliminating the need for external option boards for basic networking, this CP1L series CPU optimizes panel space and simplifies network commissioning. The platform features a high-density 40-point I/O configuration consisting of 24 inputs and 16 robust relay outputs, making it highly suitable for material handling, auxiliary system control, and packaging applications.

Features

• Embedded Ethernet Port: Supports FINS/TCP communication for easy connection to host systems, HMIs, and programming software without auxiliary modules.
• High-Speed Counter Inputs: Features 4 axes of 100 kHz high-speed counters for precise positioning and rotary encoder feedback.
• Substantial Memory Capacity: 10K steps program capacity and ample data memory to accommodate complex sequencing and scaling instructions.
• Expandable Architecture: Compatible with CP1W series expansion I/O and analog units for flexible system scaling.
• Relay Outputs: Rugged 16-point relay output stage capable of direct pilot duty load switching.

Applications

• Packaging Equipment: Ideal for wrapping, cartoning, and labelling machines requiring localized Ethernet monitoring and basic motion feedback.
• Conveyor and Material Handling: Manages distribution networks, sorters, and lifters utilizing integrated Ethernet peer-to-peer data links.
• Water and Wastewater Systems: Controls small-scale pumping, aeration, and filtration stations with direct HMI integration.
• HVAC Control Panels: Provides logical sequence execution for industrial chillers, boilers, and air handling units.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The CP1L-EM40DR-D with integrated Ethernet replaces configurations that historically relied on basic CP1L-M series units fitted with add-on CP1W-CIF41 Ethernet boards. This reduces hardware points of failure and saves the option board slot for other serial interfaces (such as RS-232C or RS-422A/485). Programs created for non-Ethernet CP1L units can be migrated easily inside CX-Programmer by updating the PLC model type and adjusting network settings.

Application Pitfalls & Engineering Notes

Keep in mind that because this unit uses relay outputs, it does not support high-speed pulse outputs (such as PTO for servo or stepper control). If your application requires high-speed pulse outputs, you must select a transistor output model (e.g., CP1L-EM40DT-D or CP1L-EM40DT1-D). Furthermore, ensure the inductive loads driven by the relay outputs are suppressed using external diodes or RC snubbers to protect the internal physical contacts from premature pitting and contact welding.

Commissioning & Wiring Tips

To configure the embedded Ethernet interface, ensure your programming PC is set to the same subnet mask. The default IP address setup of the CP1L-EM can be set using CX-Programmer. When wiring high-speed inputs to the high-speed counters, route the encoder cables inside shielded twisted pairs separate from high-power AC lines to prevent noise-induced false triggers on the high-speed digital inputs.
