NS10-TV00B-ECV2 | Omron | IHM série NS

Description

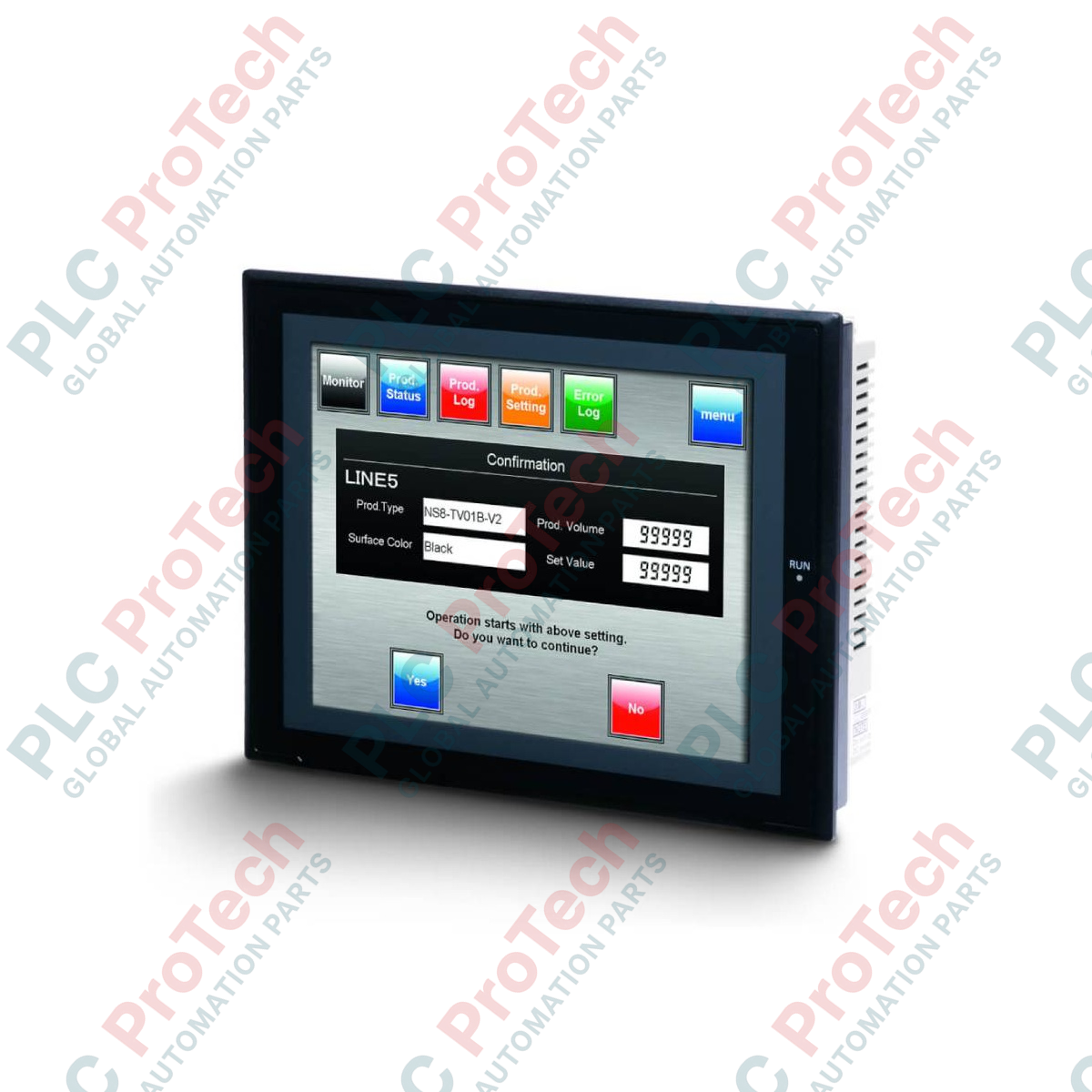

Industrial control architectures requiring robust visualization capabilities frequently utilize the Omron NS10-TV00B-ECV2 operator interface. Operating within the high-performance NS Series, this human-machine interface (HMI) provides a clear and responsive monitoring platform for automated machinery and plant systems. Equipped with a 10.4-inch TFT active-matrix color display, the unit ensures high visibility and precise data representation for real-time monitoring and parameter adjustment.

The system integrates an analog resistive touch panel that removes layout limitations common to matrix-style screens, enabling flexible positioning of buttons, charts, and input fields. Outfitted in a durable black enclosure, the unit features an LED backlight designed for longevity and reduced energy draw, ensuring continuous operation in harsh manufacturing environments.

Features

• High-visibility 10.4-inch TFT color LCD displaying sharp operational data.
• Analog resistive touch screen allowing precise, multi-point placement of control elements.
• Energy-efficient LED backlight offering reliable display performance over extended life cycles.
• Built-in communications interface supporting seamless integration with Omron PLCs and external automation systems.
• Rugged industrial enclosure with a black bezel suitable for cabinet mounting.

Applications

• Automated assembly and manufacturing machinery.
• Packaging, labeling, and filling equipment.
• Water treatment facility monitoring panels.
• Material handling and conveyor system control centers.
• Food processing and chemical batching units.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Panel Mounting: Install the device into a panel cutout of corresponding size, ensuring the waterproof packing is correctly seated to maintain IP65 protection.
• Power Supply: Connect to a stable 24V DC power source. Ensure the grounding terminal is connected directly to a dedicated class-D ground (100 Ohms or less resistance) to mitigate electrical noise.
• Thermal Management: Maintain a minimum clearance of 100 mm around the top, bottom, and sides of the unit to ensure adequate ventilation. Avoid installation areas with direct sunlight or high radiant heat.
• Cable Routing: Keep communication cables separated from high-voltage AC lines to prevent signal interference.
