Siemens 6AV3607-5BB00-0AH0 Panneau opérateur SIMATIC HMI OP7

Description

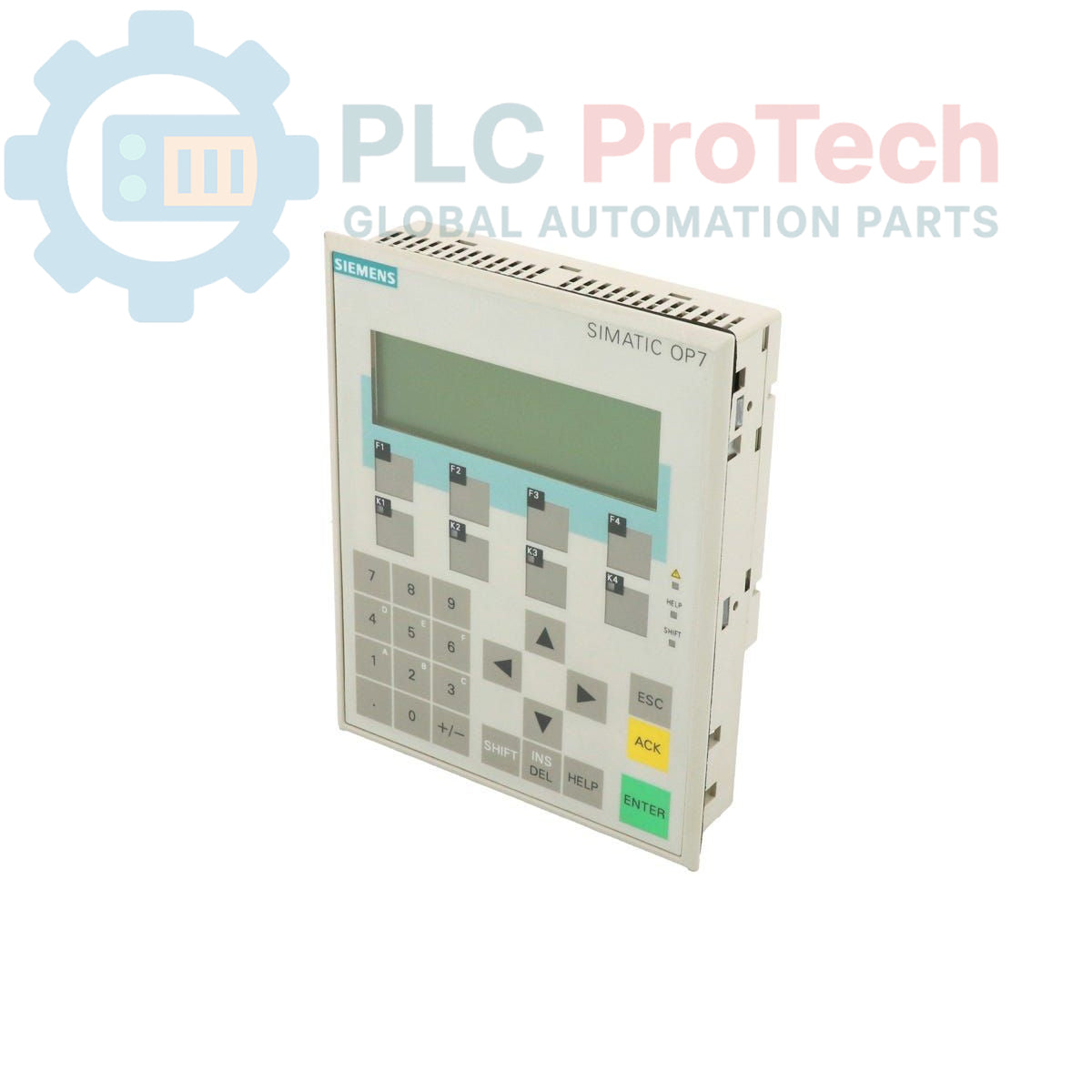

The Siemens 6AV3607-5BB00-0AH0 is a SIMATIC HMI OP7 series operator panel, specifically configured as an OP7/DP model with a customer-specific design (Version B). This operator panel is designed to provide a human-machine interface for machine control, parameter monitoring, and diagnostic reporting. It features a reliable, ruggedized interface suitable for integration with SIMATIC S7 PLC systems via the PROFIBUS-DP network. Although this unit incorporates customer-specific design elements, it is delivered with a standard front interface consistent with the functional capabilities of the OP7 series. Note that this product is currently classified as Obsolete in the Siemens product lifecycle.

Features

• Designed for PROFIBUS-DP (OP7/DP) network integration
• Compact operator panel interface for S7 PLC systems
• Robust construction for industrial environments
• Customer-specific design version B
• Standard front interface design

Technical Specifications

Installation Guidelines

• Mounting: Ensure the panel is mounted in a stable, flat surface on the control cabinet door or console using the provided clamping elements to maintain the required IP protection rating.
• Environmental Considerations: Protect the unit from direct sunlight, excessive vibrations, and conductive dust to ensure long-term reliability.
• Wiring: Use screened cables for PROFIBUS-DP communication to minimize electromagnetic interference (EMI). Ensure the bus termination is correctly set at both ends of the segment.
• Grounding: Maintain a low-impedance connection between the panel and the cabinet common ground to prevent potential equalization issues.
• Power Supply: Verify that the supply voltage matches the requirements of the specific OP7/DP model before initial power-up.
