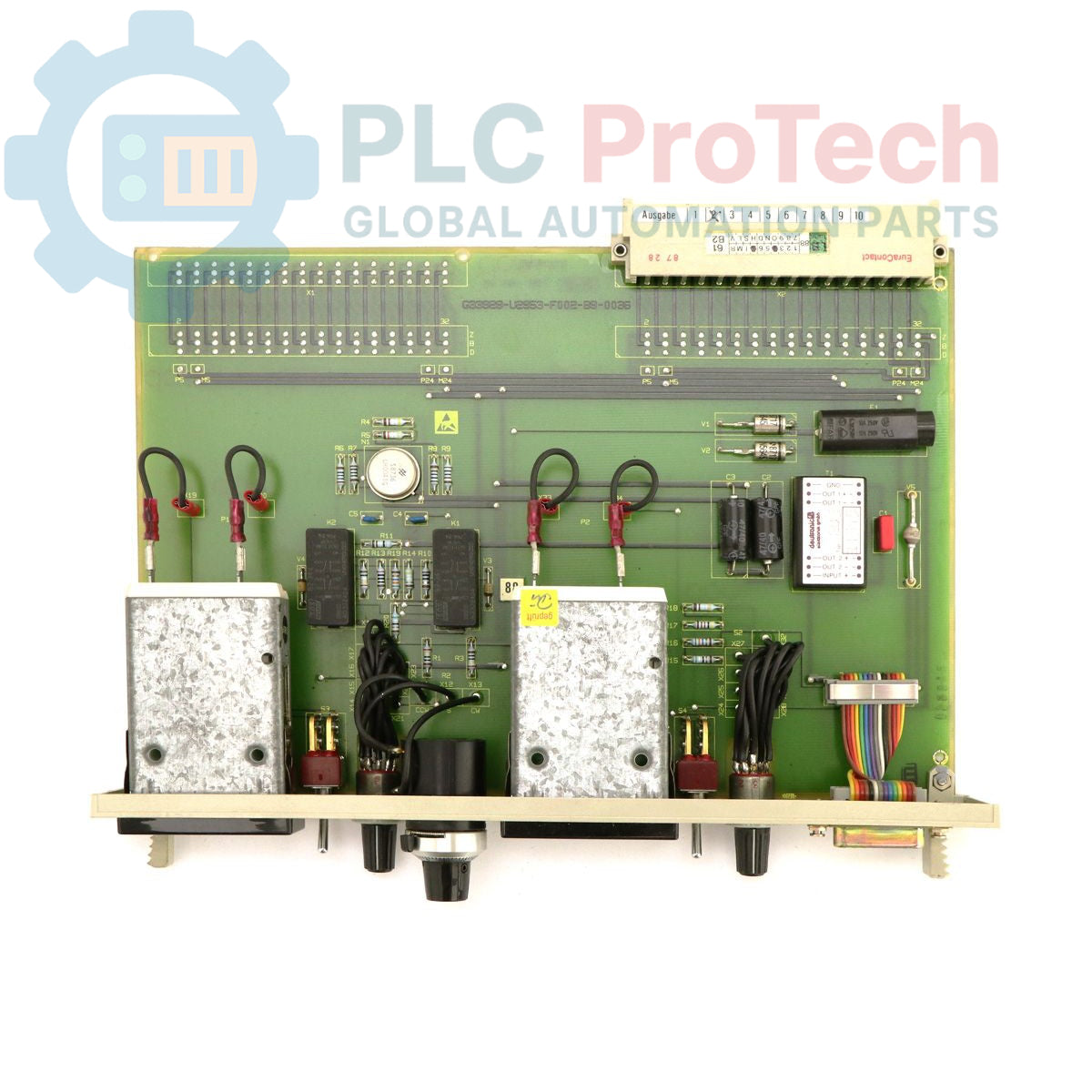

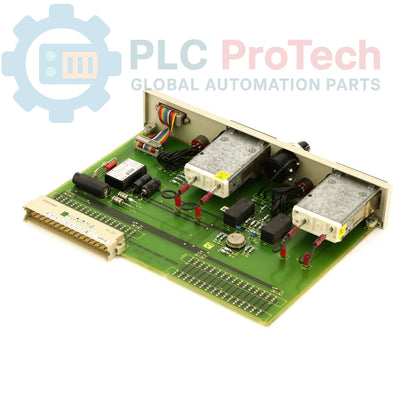

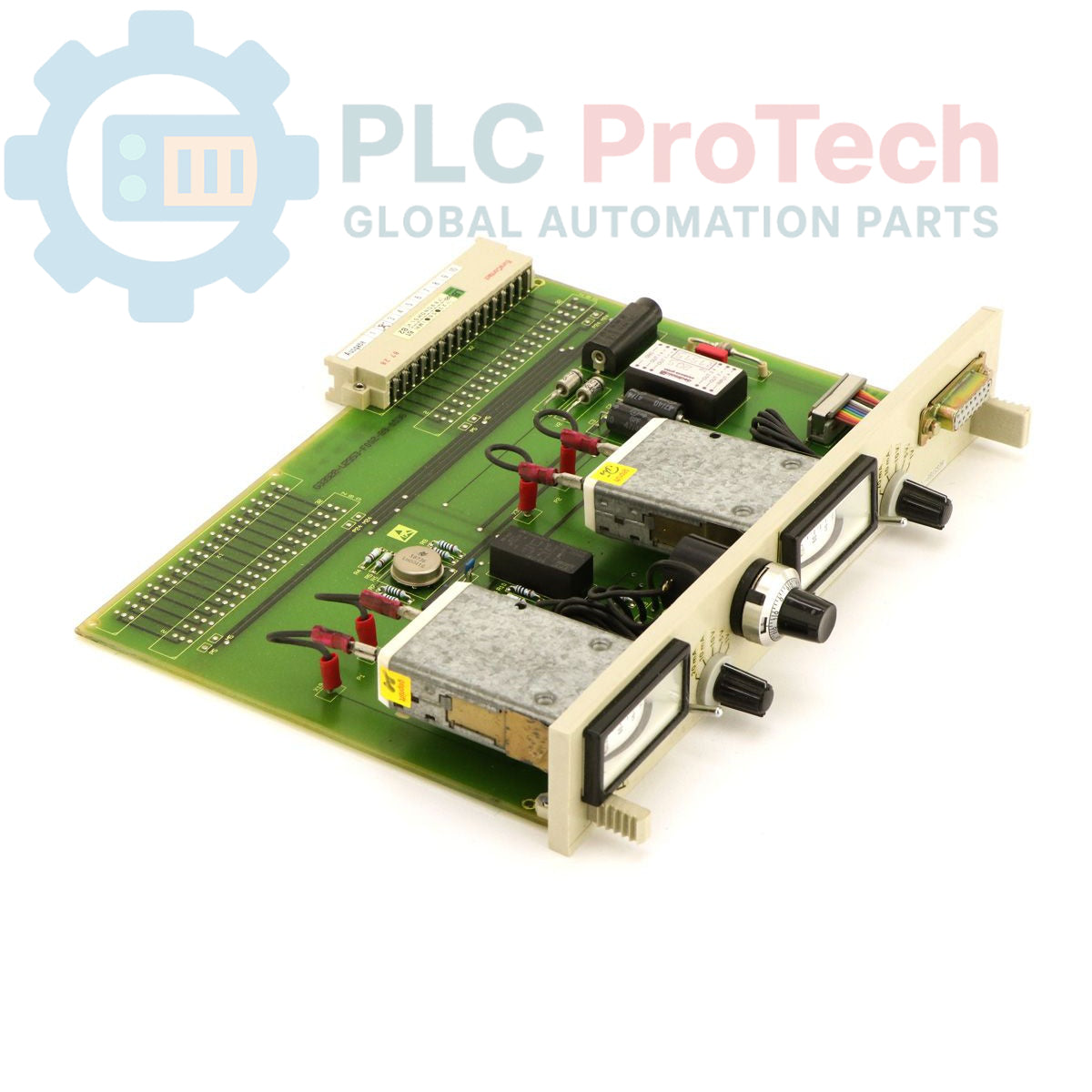

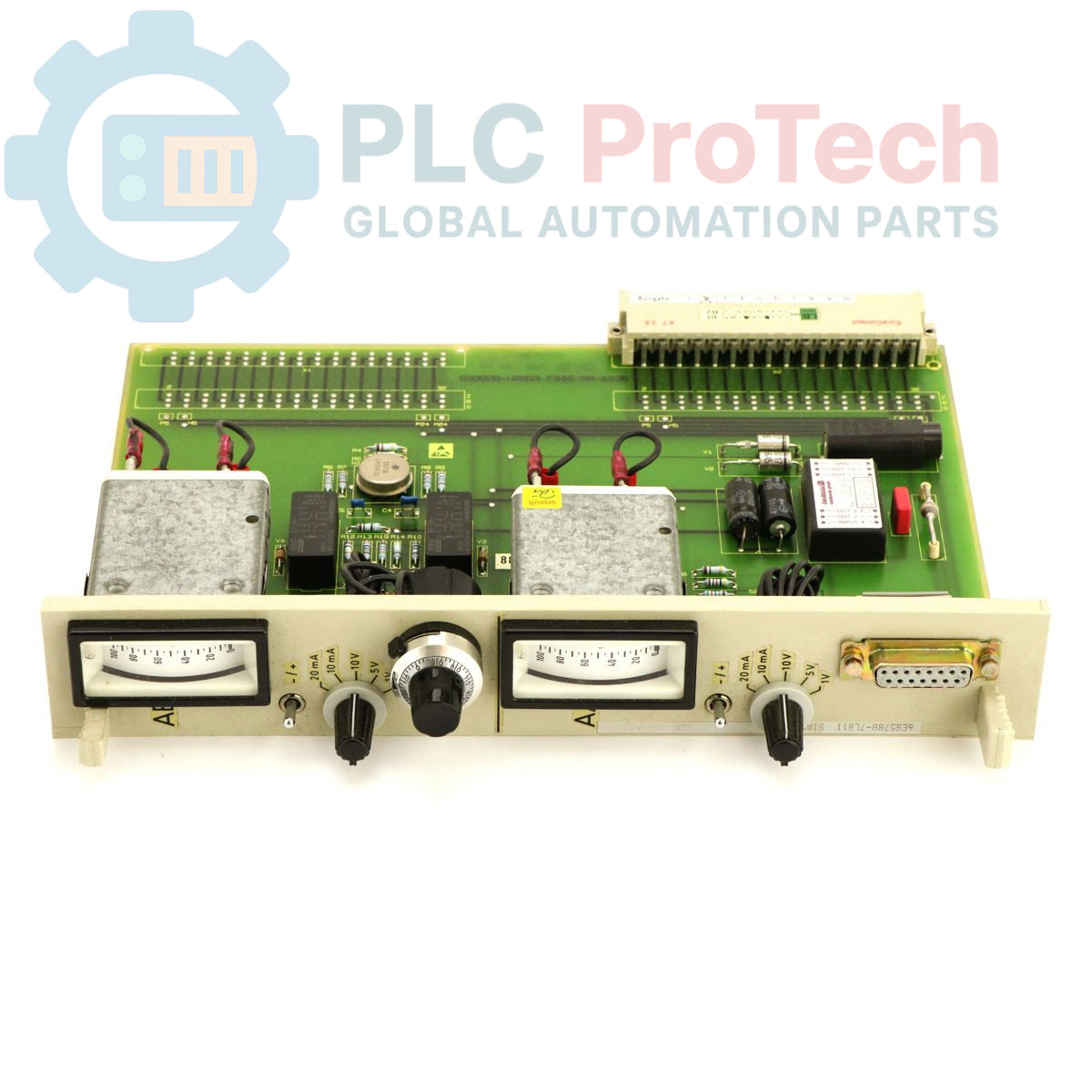

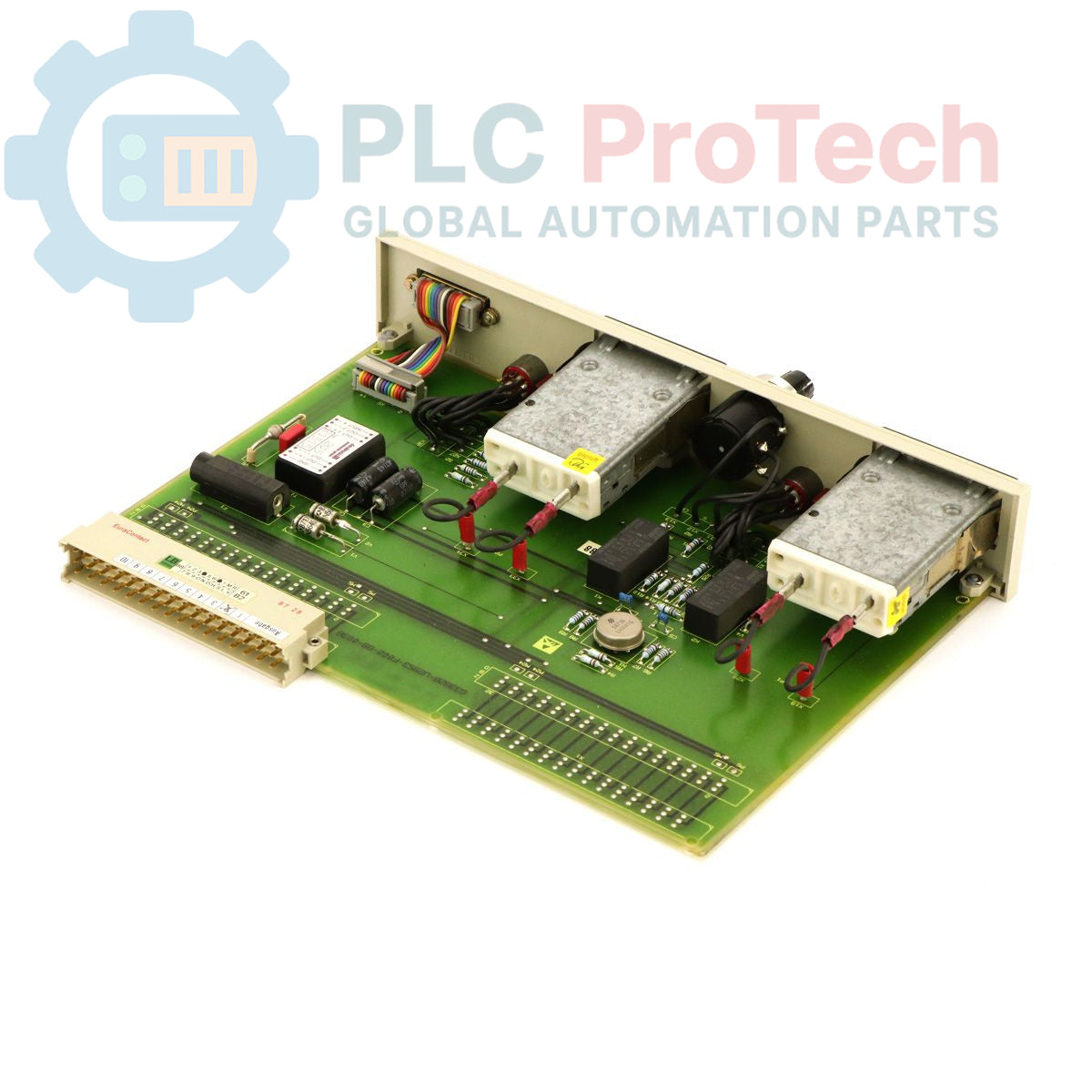

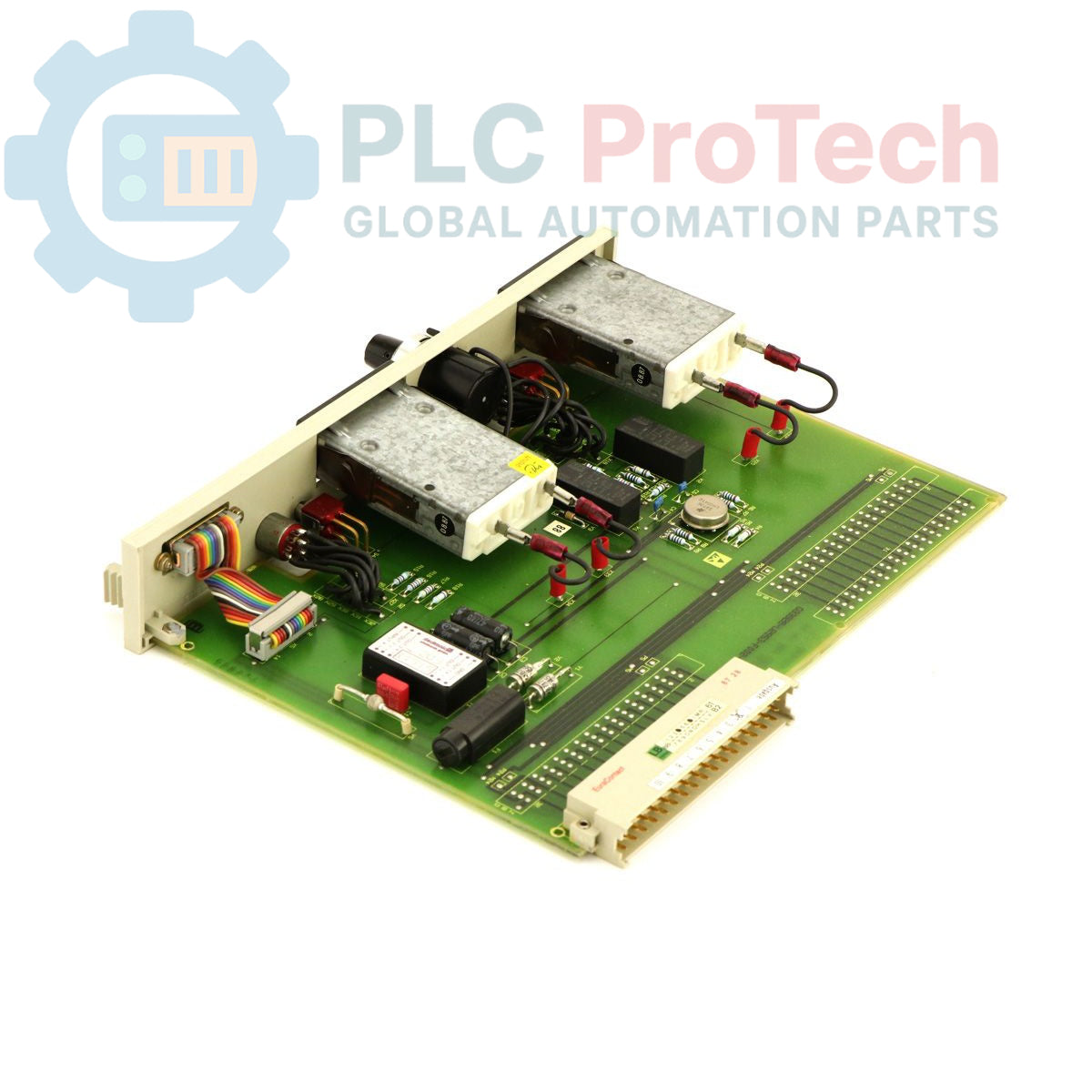

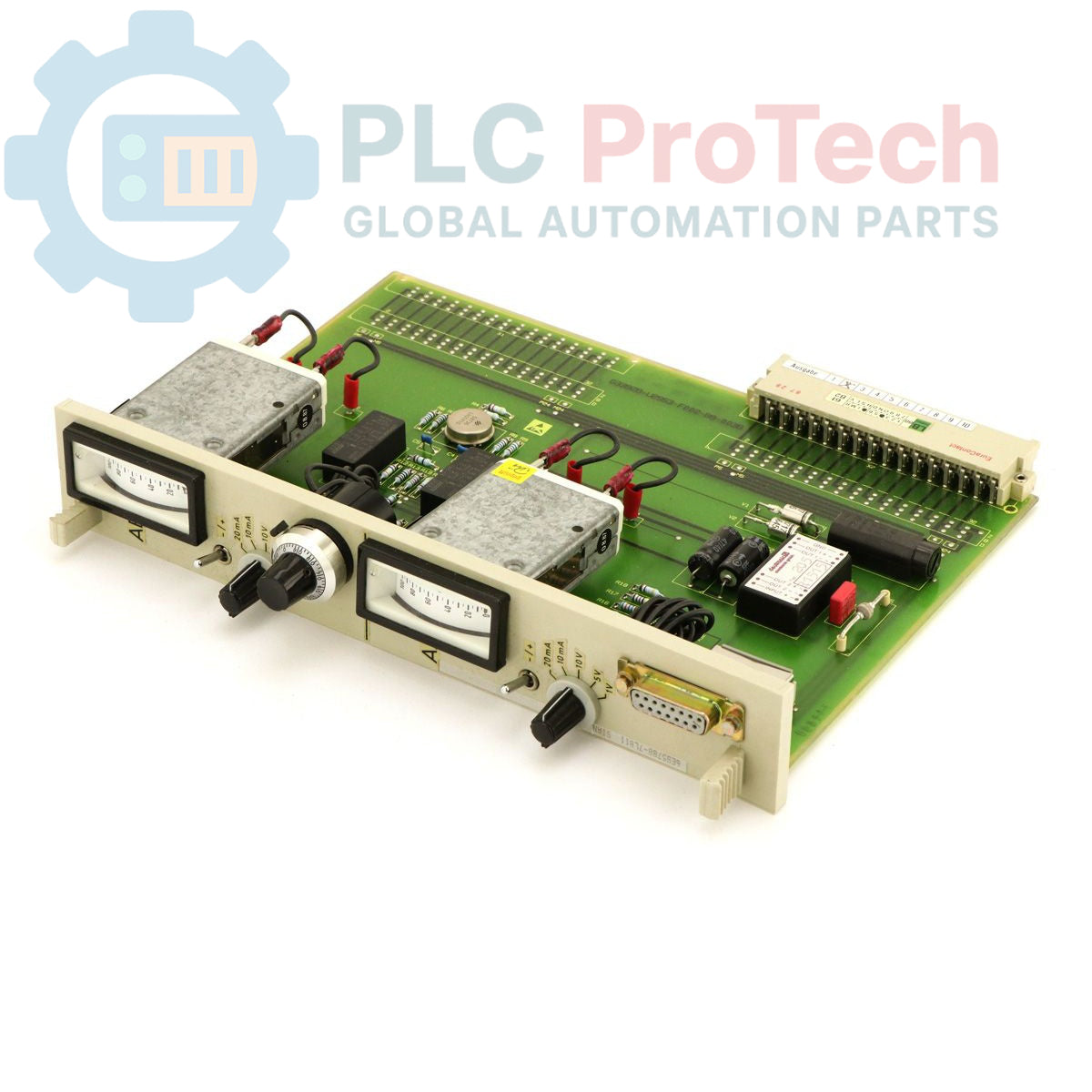

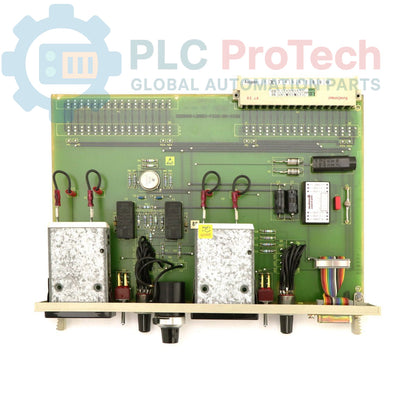

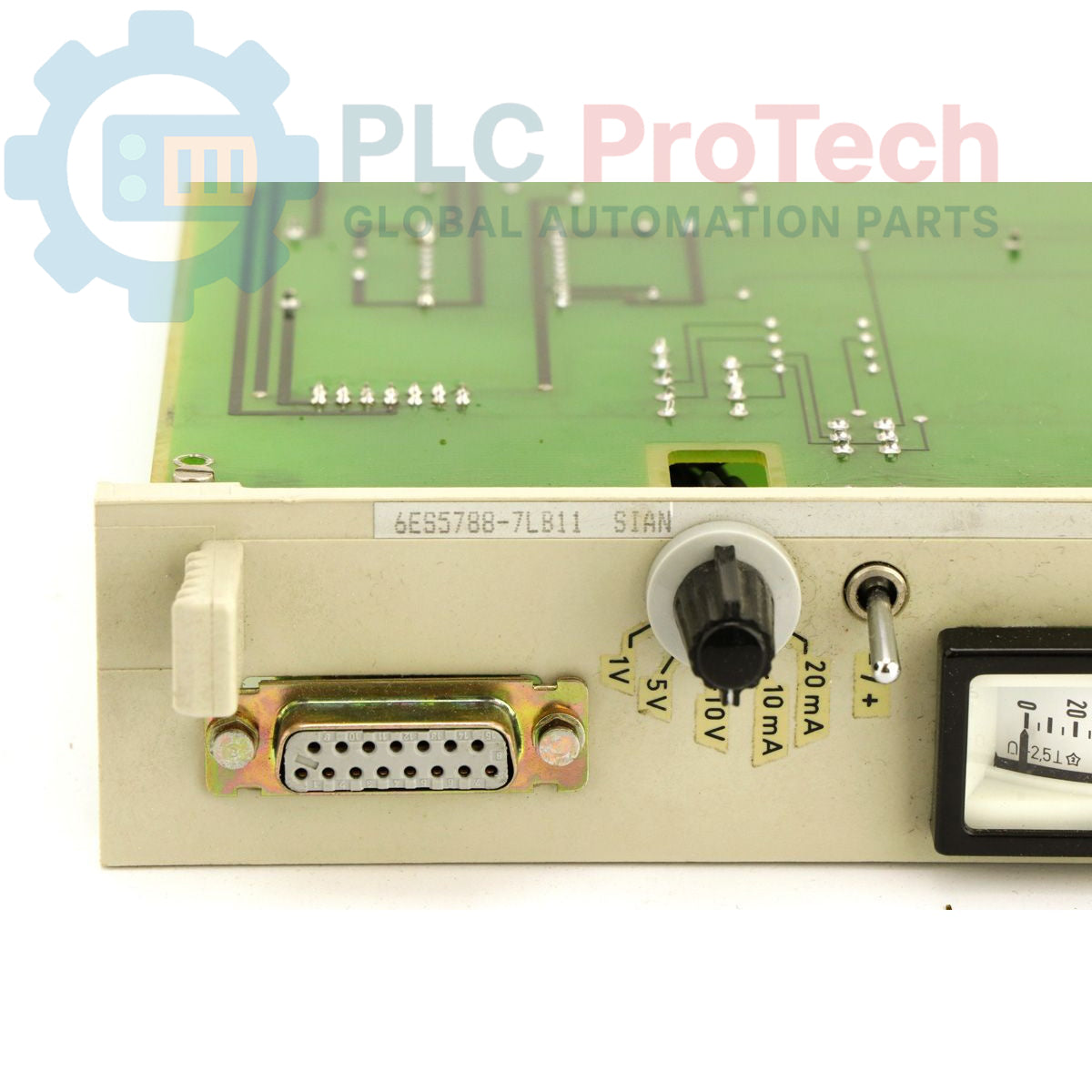

Siemens 6ES5788-7LB11 | Simatic S5 | Module de simulation analogique

Description

The 6ES5788-7LB11 is a SIMATIC S5 simulation module specifically engineered for use with the S5-115U programmable logic controller (PLC) system. This module provides a practical solution for simulating analog signals during the development, testing, and commissioning phases of automation projects. It supports one analog input (AI) and one analog output (AO), allowing engineers to emulate field sensor data or verify actuator responses without the need for live peripheral equipment. The 6ES5788-7LB11 is an essential tool for validating control logic and signal processing configurations in legacy S5 automation environments.

Features

• Specialized simulation for Simatic S5-115U PLC systems
• Dedicated hardware for testing analog control loops
• Configured for 1 analog input (AI) and 1 analog output (AO)
• Robust design tailored for frequent industrial testing and commissioning use
• Simplifies system validation and pre-deployment debugging

Applications

• Commissioning and testing of Simatic S5-115U control systems
• Validation of analog signal processing logic
• Simulation of sensors (AI) and actuators (AO) during factory acceptance testing
• Troubleshooting and maintenance of analog I/O circuits
• Development and demonstration of PLC control strategies

Technical Specifications

Installation Guidelines

• Module Placement: The module is designed to interface with the S5-115U system. Ensure that the module is correctly aligned and fully inserted into the designated slot before power-up.
• Signal Handling: Use appropriate test leads to monitor or source signals from the input/output ports. Ensure that external signal levels do not exceed the module's rated specifications to prevent damage.
• Compatibility: Verify that the S5-115U CPU firmware and configuration software support the simulation parameters set on this module.
• Environment: Although intended for testing, ensure the module is kept in a clean, dry environment free from conductive dust and excessive electromagnetic noise during operation.
