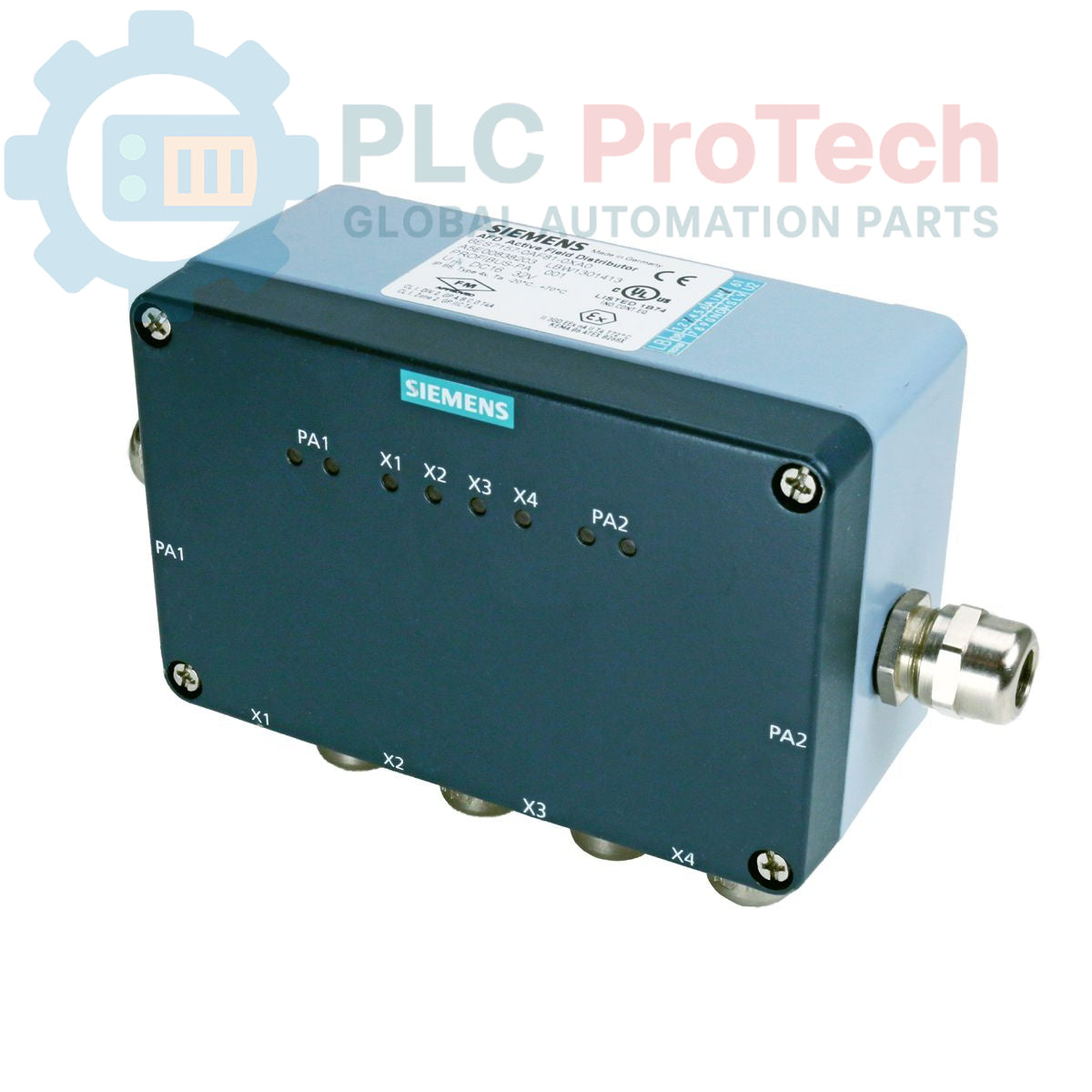

Siemens 6ES7157-0AF81-0XA0 Distributeur de terrain actif SIMATIC DP

Description

The 6ES7157-0AF81-0XA0 is a SIMATIC DP Active Field Distributor (AFD) specifically engineered for PROFIBUS PA process automation networks. This module facilitates the distribution of bus signals while providing integrated support for ring redundancy and automatic bus termination. Designed for deployment in demanding environments, the 6ES7157-0AF81-0XA0 features four short-circuit-proof spurs, which prevent individual device faults from compromising the integrity of the entire fieldbus segment. With an IP65 ingress protection rating and an expanded operating temperature range, this distributor ensures robust and reliable signal transmission in harsh industrial settings.

Features

• Functionality: Active Field Distributor for PROFIBUS PA networks.
• Redundancy: Supports ring redundancy for high-availability communication.
• Termination: Integrated automatic bus termination.
• Connectivity: Equipped with 4 short-circuit-proof spurs.
• Environmental Protection: IP65 rating for dust and moisture resistance.
• Operational Range: Designed for expanded temperature range applications.

Applications

• Chemical and petrochemical processing plants.
• Pharmaceutical manufacturing lines.
• Oil and gas field instrumentation networks.
• Water and wastewater treatment facility automation.
• Large-scale distributed I/O process control systems.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is mounted in a location that minimizes exposure to direct physical impact while remaining accessible for wiring maintenance.
• Ingress Protection: Verify that all cable glands and unused ports are correctly sealed to maintain the IP65 rating.
• Grounding: Proper grounding of the fieldbus shield is essential to minimize electromagnetic interference (EMI) and maintain signal integrity.
• Cable Routing: Maintain appropriate bending radii for PROFIBUS PA cables; avoid routing fieldbus cables in parallel with high-voltage power lines to prevent signal coupling.
• Short-Circuit Protection: The spurs are inherently short-circuit-proof; however, always verify field device wiring for correct polarity and integrity before connecting to the AFD.
