Siemens 6ES7478-2DX00-0AA0 Module d'interface SIMATIC Connection TBX478

Overview

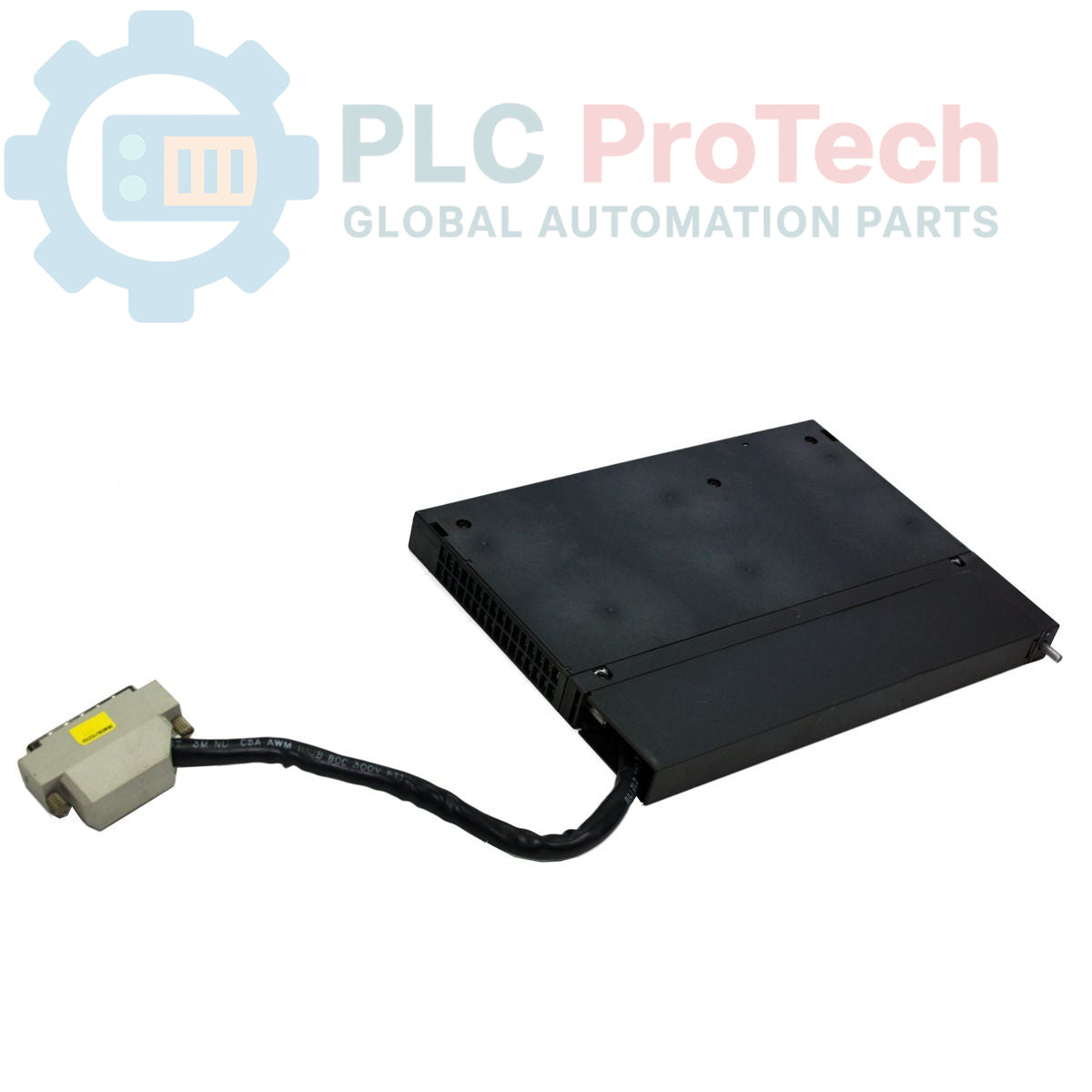

The 6ES7478-2DX00-0AA0 (6ES74782DX000AA0) is a specialized connection terminal block (TBX478) designed for high-level interface operations within the SIMATIC industrial automation ecosystem. This module is specifically engineered to facilitate the connection for the Input/Output-Bus, providing the necessary interface for I/O-Bus 1 and 2. It is a mandatory system component that functions exclusively in combination with the TPM478 (Terminal Processor Module). Together, they provide the robust data throughput and signal synchronization required for complex, high-speed PLC processing environments.

Detailed Specifications

Operational Capabilities

The 6ES7478-2DX00-0AA0 serves as a critical junction point for the I/O-Bus communication layer. In large-scale Siemens configurations, it ensures that data packets between the processor and the distributed periphery remain consistent and interference-free. Due to its "Obsolete" status, this module is primarily used in maintenance and repair cycles for existing industrial lines where the TPM478/TBX478 architecture is already established. Its robust mechanical design allows it to withstand the thermal and vibrational stresses typical of centralized control cabinets.

Technical FAQ

Can I use the 6ES7478-2DX00-0AA0 as a standalone interface?

No. The module is non-functional without the TPM478 module. It serves as the physical connection interface (TBX) for the logic processing performed by the TPM.

What is the primary function of the I/O-Bus 1/2 interface?

This interface manages the high-speed exchange of digital and analog signals between the central controller and specific specialized I/O racks, ensuring that time-critical production data is prioritized.
