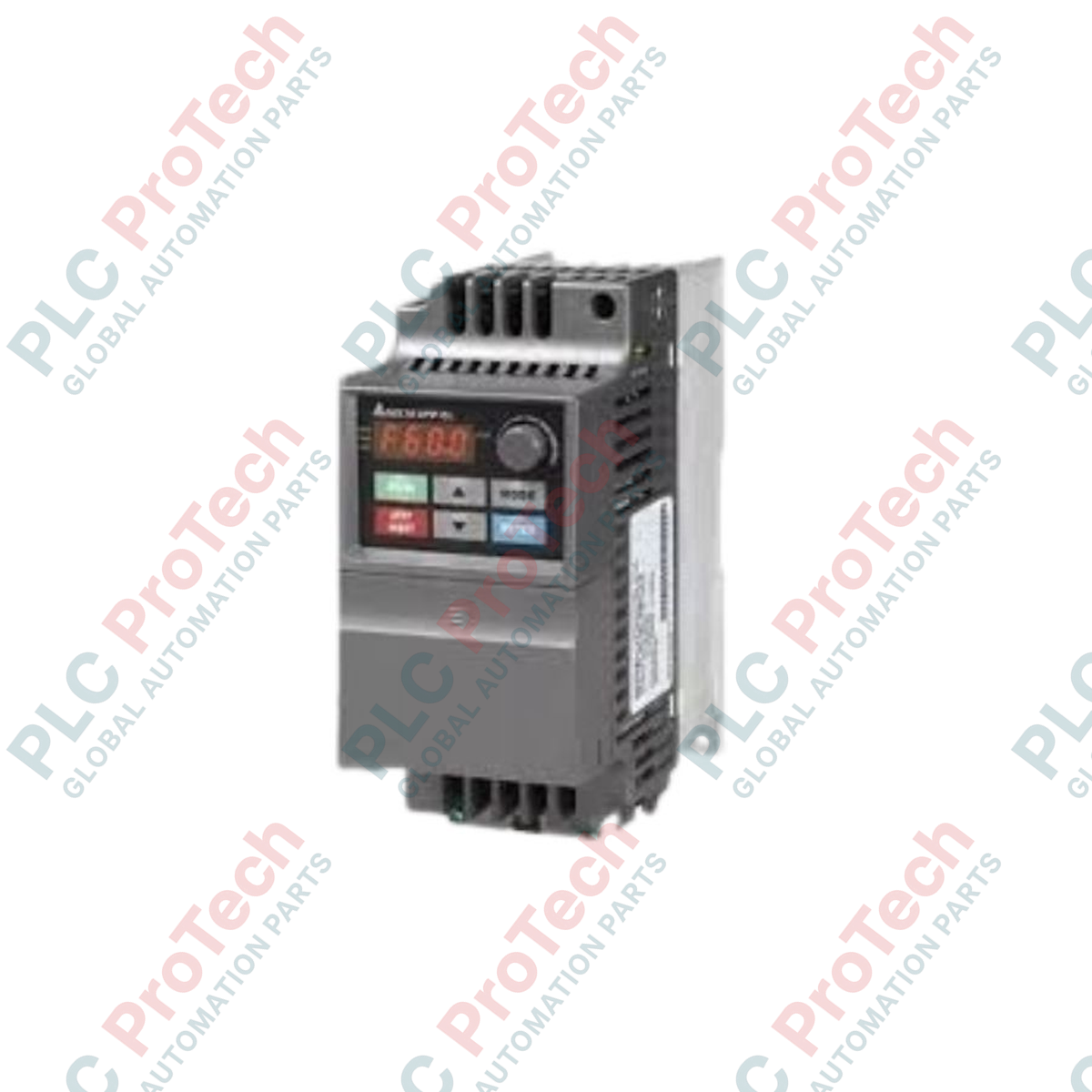

VFD037EL23A DELTA | Variateur micro VFD-EL triphasé 3,7 kW

Product Overview

The VFD037EL23A (VFD037EL23A) is a high-performance, multifunctional micro-type AC drive engineered by Delta for small-scale industrial applications where space and efficiency are critical. This Variable Frequency Drive (VFD) provides a 3.7 kW (5 HP) output capacity, making it an essential component for optimizing motor speed in conveyor systems, pump control, and simple woodworking machinery. By utilizing advanced PWM control, the VFD037EL23A significantly reduces energy consumption and mechanical wear, ensuring extended equipment life and minimized downtime in rigorous B2B manufacturing environments.

Suffix Breakdown

The model number VFD037EL23A follows a precise logic that defines its hardware capabilities and power ratings:

• VFD: Identifies the product as a Variable Frequency Drive.

• 037: Specifies the applicable motor capacity of 3.7 kW (5.0 HP).

• EL: Designates the VFD-EL Series, characterized by its compact, multifunctional micro-design.

• 23: Indicates a 230 V 3-Phase input voltage requirement.

• A: Refers to the specific version type and hardware revision for the global market.

Technical Specifications

Technical FAQs

Does the VFD037EL23A include a built-in EMI filter?

The VFD-EL series is designed for modularity; while some versions include filters, this specific micro-drive is built for compact integration. For environments with sensitive electronics, an external EMI filter is recommended to comply with local EMC directives.

Can this drive be used for single-phase 230V input?

No, the '23' designation specifically requires a 3-Phase 230V input. Running a 3-phase drive on a single-phase supply can cause DC bus undervoltage faults or damage the input rectifier bridge under high loads.

What communication protocols are supported for SCADA integration?

The unit features a built-in RS-485 communication interface supporting the Modbus ASCII/RTU protocol. This allows for seamless integration with PLCs and HMIs for real-time speed monitoring and parameter adjustment.

Is side-by-side installation permitted to save cabinet space?

Yes, the VFD-EL series supports side-by-side installation. However, proper thermal management must be maintained, and the derating curves should be consulted if the ambient temperature inside the cabinet exceeds 40 deg C.

Engineering & Installation Guide

• Ventilation Clearance: Even with fan cooling, maintain at least 50 mm of horizontal space and 120 mm of vertical space between the drive and other components. Blocked airflow is the primary cause of over-temperature (oH) faults in micro-drives.

• Grounding Protocol: Ensure a dedicated ground wire is connected to the PE terminal. Never loop the ground through other equipment. For motor cables exceeding 20 meters, use shielded cables and consider an output reactor to mitigate the reflected wave effect and protect motor insulation.

• Torque and Mounting: Mount the unit vertically on a non-flammable surface (such as a metal backplate). Use M4 mounting screws and apply a tightening torque of 1.2 to 1.5 Nm to the power terminals to prevent localized overheating caused by loose connections.
