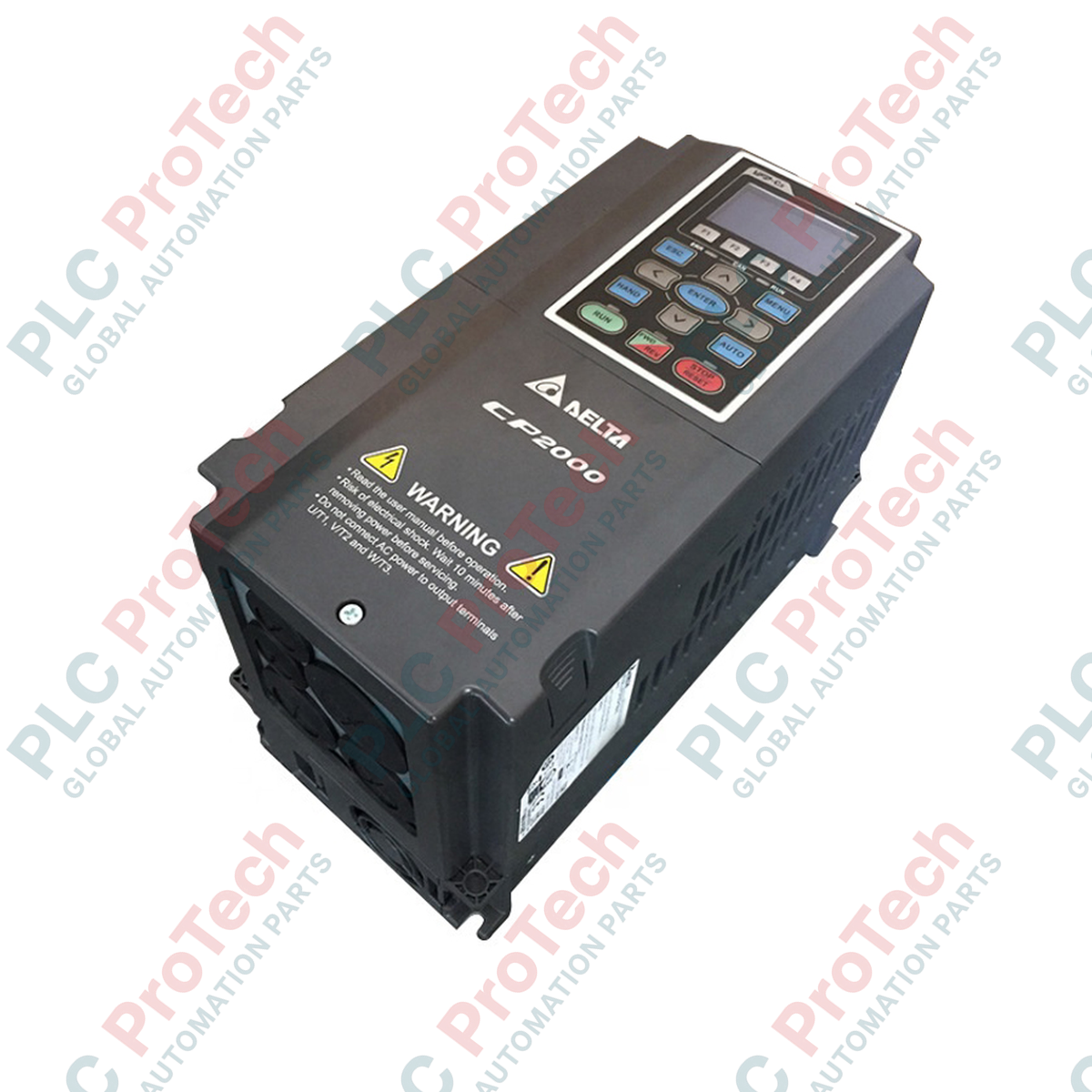

VFD1320CP43B-21 DELTA Variateur à commande vectorielle ventilateur/pompe série CP2000

Product Overview

The VFD1320CP43B-21 (VFD1320CP43B21) is a high-capacity 132 kW (175 HP) Variable Frequency Drive specifically engineered for energy-intensive fluid technology applications. As part of Delta’s specialized CP2000 series, this drive utilizes advanced sensorless vector control to optimize the performance of centrifugal fans and pumps in large-scale HVAC systems, water treatment facilities, and industrial cooling towers. By implementing precise PID control and a multi-pump master/slave configuration, the VFD1320CP43B-21 significantly reduces energy consumption and mechanical stress during start-stop cycles, providing a critical safeguard against water hammer effects and system pressure surges.

Technical Configuration

The hardware architecture of the VFD1320CP43B-21 is optimized for high-power industrial environments, featuring a robust wall-mount design with NEMA 1/IP20 protection. The drive operates on a 460V 3-Phase input, delivering a steady 260 Amps to support heavy-duty motors. It incorporates a built-in BACnet communication protocol, making it natively compatible with Building Automation Systems (BAS). The internal logic includes a "Fire Mode" for emergency tunnel ventilation and "Sleep Mode" for pump energy savings, ensuring that the drive balances performance with rigorous safety and efficiency standards.

Technical Specifications

Technical FAQs

How does the VFD1320CP43B-21 handle multi-pump control without an external PLC?

The CP2000 series features a built-in 10k step PLC and multi-pump control logic. It can manage up to 8 motors simultaneously through fixed-amount or fixed-time circulation control, balancing the runtime of each pump to extend the overall equipment lifecycle.

What is the "Fire Mode" and how does it affect drive protection?

When Fire Mode is activated via a digital input, the drive bypasses standard protective alarms (such as over-temperature) to ensure the fan continues running for smoke extraction or pressurization during an emergency, prioritizing human safety over hardware protection.

Can this drive be used in high-humidity water treatment environments?

While the drive is rated NEMA 1/IP20, it is designed for indoor cabinet installation. For high-humidity or corrosive environments typical of water treatment, it must be installed within a secondary enclosure with appropriate thermal management to prevent condensation on the internal PCBs.

Engineering & Installation Guide

• Lifting and Mounting Safety: Given the 66 kg unit weight, always use the designated lifting eyelets located at the top of the chassis. Ensure the mounting surface is a non-combustible metal plate or reinforced concrete wall capable of supporting four times the drive's weight to prevent vibration-induced fatigue.

• Thermal Displacement: This drive dissipates significant heat at a 260 Amp load. Maintain a minimum vertical clearance of 200 mm above and below the unit. If multiple drives are installed in one cabinet, use a "side-by-side" configuration only if derating factors are applied or if high-volume forced air cooling is present to maintain an ambient temperature below 40 Celsius.

• Harmonic Mitigation: For a 132 kW motor, it is highly recommended to install a DC reactor (often built-in or optional) or an AC line reactor at the input. This reduces Total Harmonic Distortion (THD) and protects the drive's bridge rectifier from voltage spikes and line imbalances common in heavy industrial grids.
