Allen-Bradley

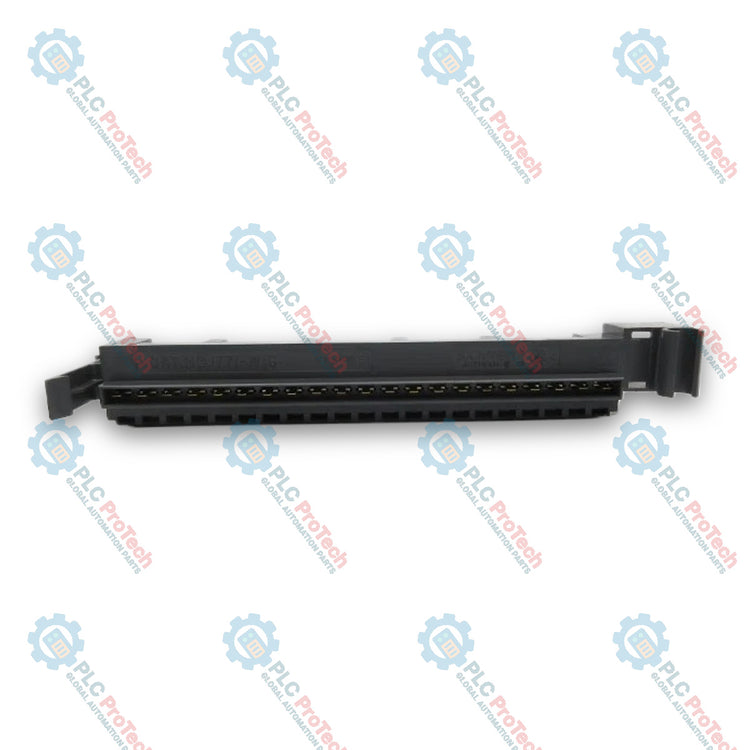

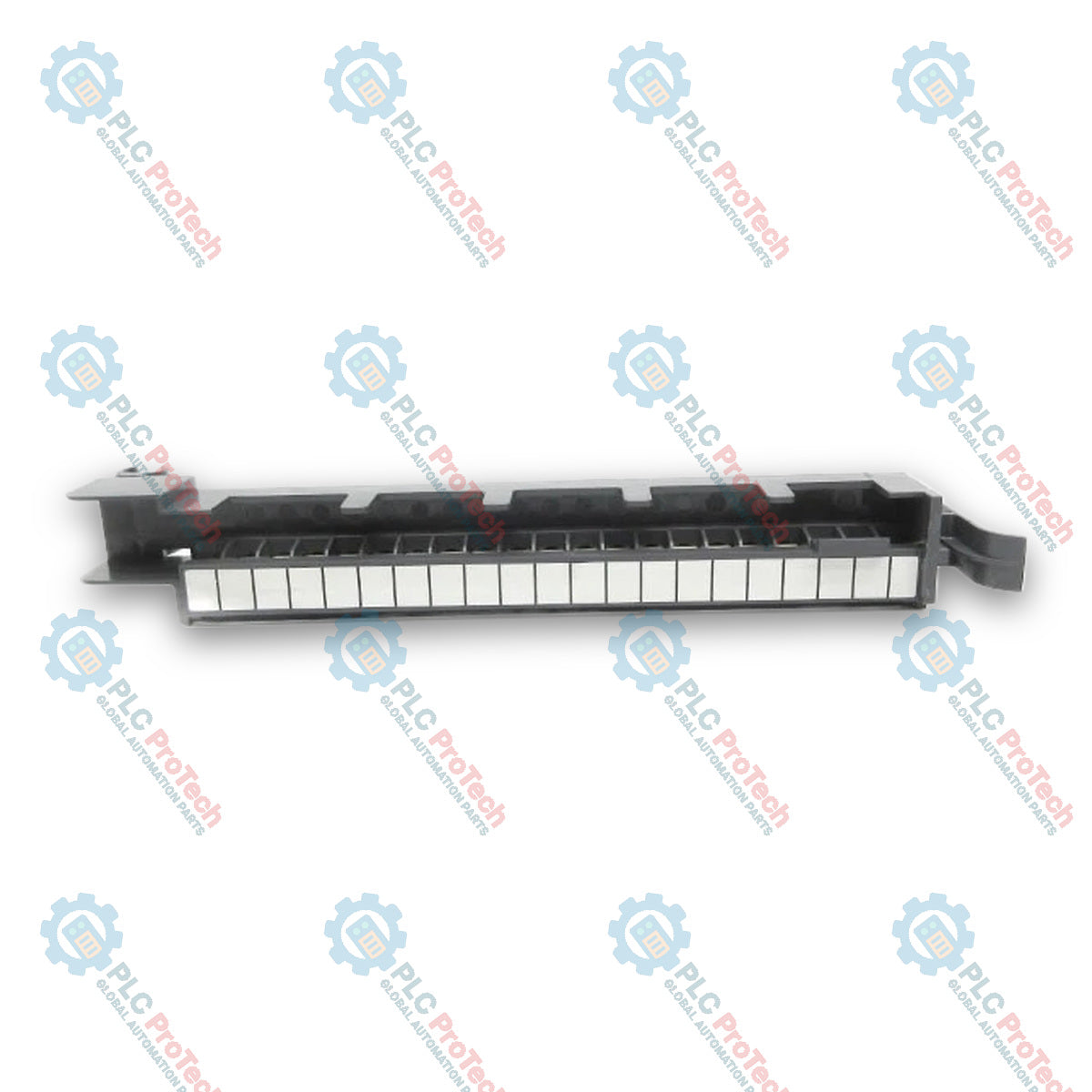

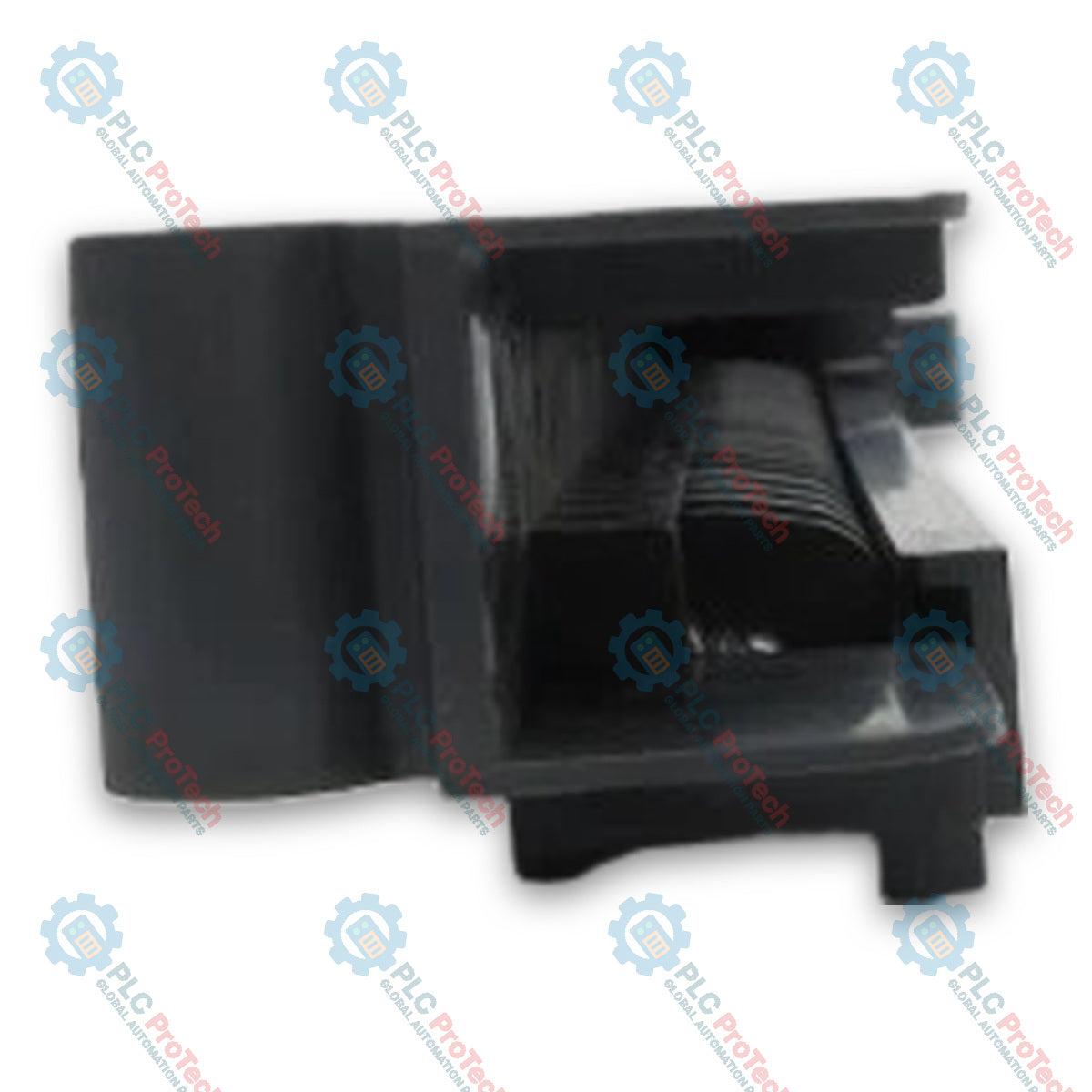

Allen-Bradley 1771-WG PLC-5 Field Wiring Arm

SKU 1771-WG

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 1771-WG
Origin United States
Product Type: Field Wiring Arms
Payment: T/T, Western Union
Weight: 0.11 kg
Dimensions: 315 mm x 114 mm x 160 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Allen-Bradley 1771-WG is a PLC-5 field wiring arm designed for use with 1771 I/O modules. It features 21 gold-plated terminals and provides connections for up to 16 I/O points. Operating as a removable connection interface, the 1771-WG attaches to the horizontal bar at the bottom of the 1771 I/O chassis, pivoting upward to connect with the module. This pivoting mechanism allows for module installation or removal without disconnecting field wiring. Featuring a conformal coating, the arm is suitable for low-resistance applications and requires no external power source.

Features

Terminal Capacity: Equipped with 21 terminals featuring gold-plated contacts.
I/O Support: Accommodates up to 16 I/O channels for field wiring termination.
Pivoting Mechanism: Mounts to the chassis horizontal bar and pivots upward, enabling module replacement without rewiring.
Conformal Coating: Provides protection for low-resistance industrial application environments.
Passive Operation: Operates without requiring external power input.

Applications

PLC-5 Systems: Interfacing field devices with Allen-Bradley 1771 I/O modules.
Industrial Automation: Low-resistance signal termination in plant wiring networks.

Technical Specifications

Parameter	Specification
Manufacturer	Allen-Bradley
Product Line	PLC-5
Part Number	1771-WG
GTIN	10612598003867
Module Type	Field Wiring Arm
Max Number of I/O	16 I/O
Number of Terminals	21 Terminals
Contact Plating	Gold
Screw Torque	7-9 lb*in (9 lb-in / 1.0 Nm max)
Conductor Wire Size	14 AWG (2.5 mm sq) to 22 AWG (0.25 mm sq) solid or stranded copper wire
Typical Application	Low Resistance
Coating	Conformal Coat
Required External Power	None
Weight	0.25 lbs (0.11 kg)
Dimensions	4.5 x 12.4 x 6.3 inches
Typical AC Signal Delay (Off)	29 (+/- 8) ms
Typical DC Signal Delay (Off)	30 (+/- 7) ms

Installation Guidelines

Mounting: Attach the wiring arm to the horizontal bar located at the bottom of the 1771 I/O chassis.
Wiring Connection: Pivot the wiring arm upward to connect with the corresponding 1771 I/O module.
Torque Rating: Tighten terminal screws to a recommended torque of 7-9 lb*in (1.0 Nm).
Power Precaution: Disconnect system power from the 1771 I/O backplane and field wiring arm before installing or removing modules to prevent equipment damage or unexpected operation.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the Allen-Bradley 1771-WG used for?

The Allen-Bradley 1771-WG is a 21-terminal field wiring arm used to connect plant wiring to 1771 I/O modules within a PLC-5 control system.

How many I/O channels does the 1771-WG wiring arm support?

The 1771-WG supports up to 16 I/O channels across its 21 available terminals.

What is the recommended screw torque for the 1771-WG terminals?

The recommended screw torque for the terminal screws on the 1771-WG is 7-9 lb*in (1.0 Nm).

Does the 1771-WG field wiring arm require an external power supply?

No. The 1771-WG is a passive wiring interface and requires no external power source to operate.
