Description

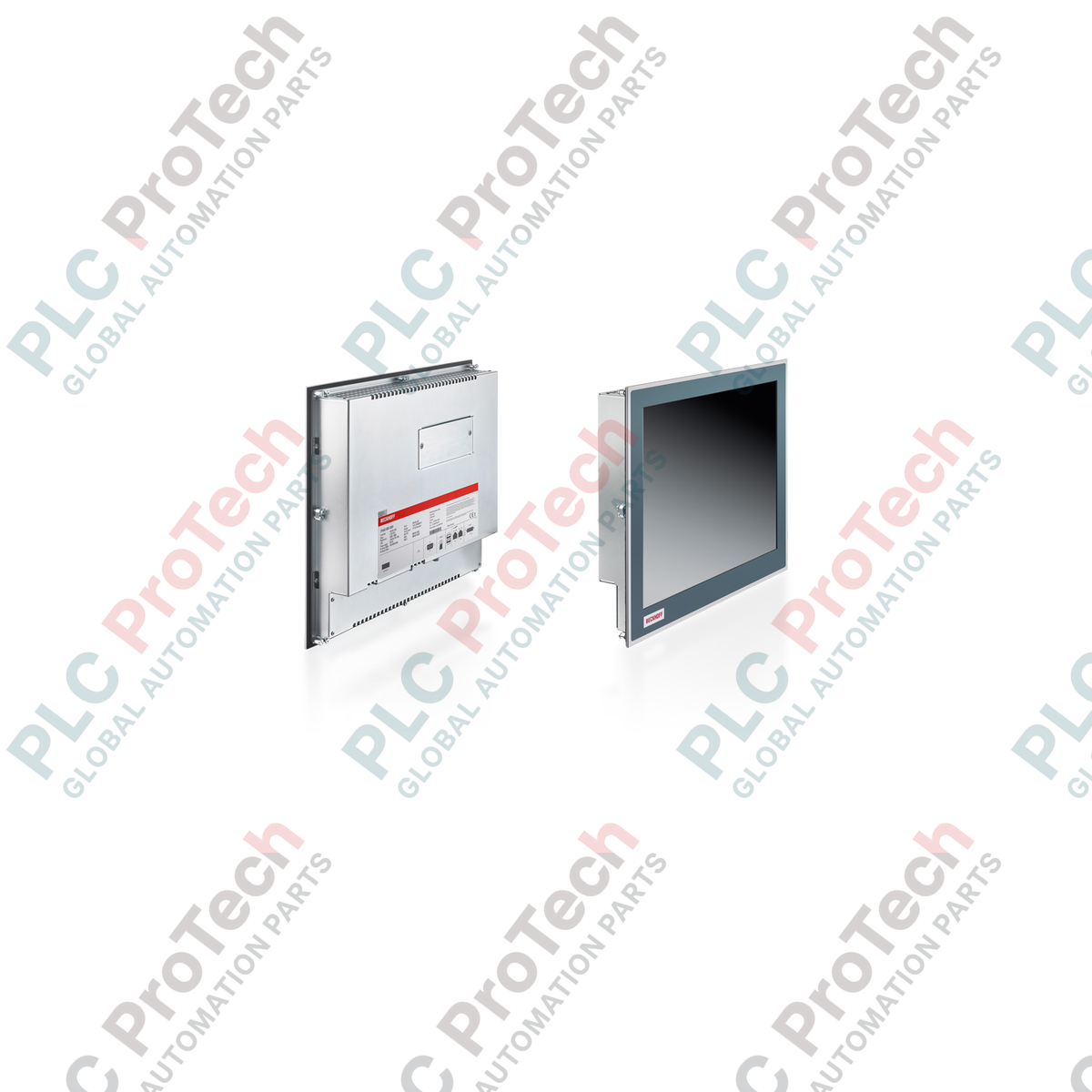

The BECKHOFF CP6609-0001-0020 is a compact, economy built-in Panel PC designed for space-saving installation in control cabinets, control panels, or operator consoles. This industrial PC combines a 6.5-inch TFT display with a resistive touch screen, providing an integrated control and visualization interface for small to medium-scale industrial automation environments.

At the heart of the system is an ARM Cortex-A8 processor running at 1 GHz on a high-integration 3½-inch motherboard. It is equipped with 1 GB DDR3 RAM and a microSD slot for flash storage, providing a highly reliable, fanless execution platform. This hardware architecture is optimized for running Windows Embedded Compact 7 (WEC7), making it compatible with TwinCAT 2 and TwinCAT 3 runtime systems under performance class 30.

For communication and connectivity, the device includes independent, onboard Ethernet and EtherCAT RJ45 interfaces, enabling direct integration into high-speed control networks without additional adapter cards. Physical assembly is simplified through integrated, pull-out clamping levers, which ensure a robust panel mounting process without loose mechanical components.

Features

• Vibrant 6.5-inch TFT display with a resolution of 640 x 480 pixels.
• Single-finger resistive touch screen interface for reliable operator input.
• Fanless ARM Cortex-A8, 1 GHz processor with 1 GB DDR3 RAM.
• 128 kB NOVRAM persistent memory for non-volatile storage of critical process data.
• Dual independent network interfaces: 1 x 10/100BASE-T Ethernet port and 1 x onboard EtherCAT port.
• IP65-rated front panel protection against dust and liquid splash; IP20-rated rear housing.
• Integrated 1-second capacitive UPS to safe-state runtime applications during a power failure.

Applications

• Machine-level human-machine interface (HMI) for localized process visualization.
• Compact, direct-control nodes in packaging, assembly, and material handling systems.
• Decentralized terminal monitoring and data acquisition in manufacturing facilities.
• Integrated operator control panels for modular machinery and auxiliary units.

Technical Specifications

Installation Guidelines

1. Verify the system voltage matches the required 24 V DC input before preparing connections.
2. Prepare the cabinet cutout according to the exact dimensional guidelines for a 6.5-inch Beckhoff Panel PC.
3. Insert the device from the front into the prepared cutout.
4. Secure the Panel PC firmly by engaging the integrated, pull-out clamping levers on the sides of the rear chassis.
5. Connect the protective earth conductor to the designated grounding terminal on the metal rear cover.
6. Connect the 24 V DC power cable, ensuring correct polarity.
7. Connect the Ethernet, EtherCAT, and serial communication cables as required by your network configuration.

Replacement Recommendations

1. Ensure the system is completely powered down and de-energized before removing an existing Panel PC.
2. Document or back up the stored configuration, operating system image, and TwinCAT projects from the active microSD card.
3. Note all network IP configurations, EtherCAT terminal routing, and communication properties.
4. Carefully detach all communication, USB, serial, and power supply connectors.
5. Release the clamping levers to extract the unit safely from the mounting cutout.
6. Install the replacement CP6609-0001-0020, restore the backed-up data or insert the configured microSD card, and re-establish wiring connections before cycling power.
