Description

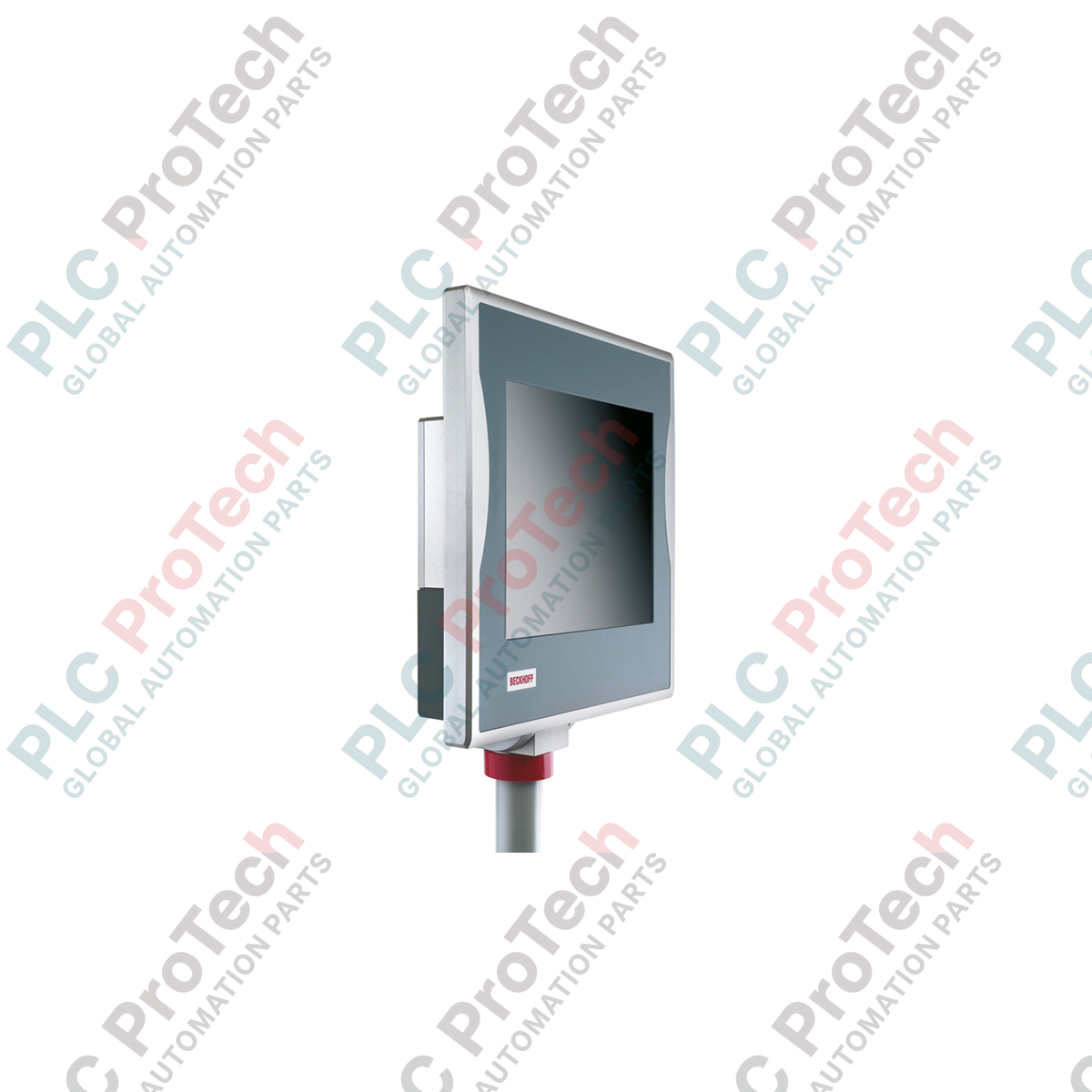

Designed for direct installation on a mounting arm, the CP7231-0001-0060 functions as a high-reliability industrial panel PC engineered for demanding control and visualization applications. Housed in a robust, fully IP65-protected aluminum enclosure, this control terminal integrates a 12-inch display with an efficient 3.5-inch industrial motherboard. It is optimized to interface with standard mechanical support configurations while offering dependable computing performance in manufacturing environments.

The unit features a specialized thermal management design that combines a passive external heat sink with an internal fan. This configuration ensures uniform internal heat distribution to all housing walls, preventing localized hotspots without compromising the environmental seal of the IP65 enclosure. For physical integration, a rotatable mounting arm adapter allows secure coupling with 48 mm tube systems from common industry manufacturers like Rittal and Rolec.

Features

• Robust IP65-rated aluminum housing suitable for heavy-duty industrial mounting arm installations.
• Equipped with an Intel Celeron G3900TE dual-core processor operating at 2.3 GHz.
• Features a 12-inch touch-enabled front panel screen with an 800x600 display resolution.
• Internal thermal management utilizing a passive outer heat sink structure and an internal distribution fan.
• Configured with dual on-board 100/1000BASE-T Ethernet interfaces, with one port directly accessible.
• Includes an integrated SATA RAID 1 controller for localized data redundancy configurations.
• Flexible wiring area supporting up to 6 IP65 connectors, keeping 4 connections free for customer-specific expansion.

Applications

• Automotive assembly lines and robot control stations.
• Packaging, sorting, and material handling systems.
• Process monitoring and HMI visualization in harsh manufacturing environments.
• Machine-level PLC and motion control integration via TwinCAT runtime environments.

Technical Specifications

Installation Guidelines

• Mounting: Attach securely to compatible 48 mm vertical or suspended tubes using the integrated top adapter. Ensure the mounting arm system can support the 5 kg unit weight plus any additional cable tension.
• Cooling Clearance: Maintain a minimum of 20 cm (7.9 inches) of unobstructed air gap around all sides of the PC to allow the passive heat sink structure to dissipate heat correctly.
• Wiring: Route cables through the designated wiring area. Ensure all unused IP65 connection points remain sealed to preserve the structural environmental rating.
• Power Input: Use a stabilized, industrially rated 24 V DC power source to prevent voltage fluctuations from impacting internal computer hardware components.
