BECKHOFF EK1814 EtherCAT Coupler with Integrated I/O

SKU EK1814

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EK1814
Origin Germany
Product Type: EtherCAT Couplers
Payment: T/T, Western Union
Weight: 5.0 kg
Dimensions: (W x H x D) 44 mm x 100 mm x 67 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

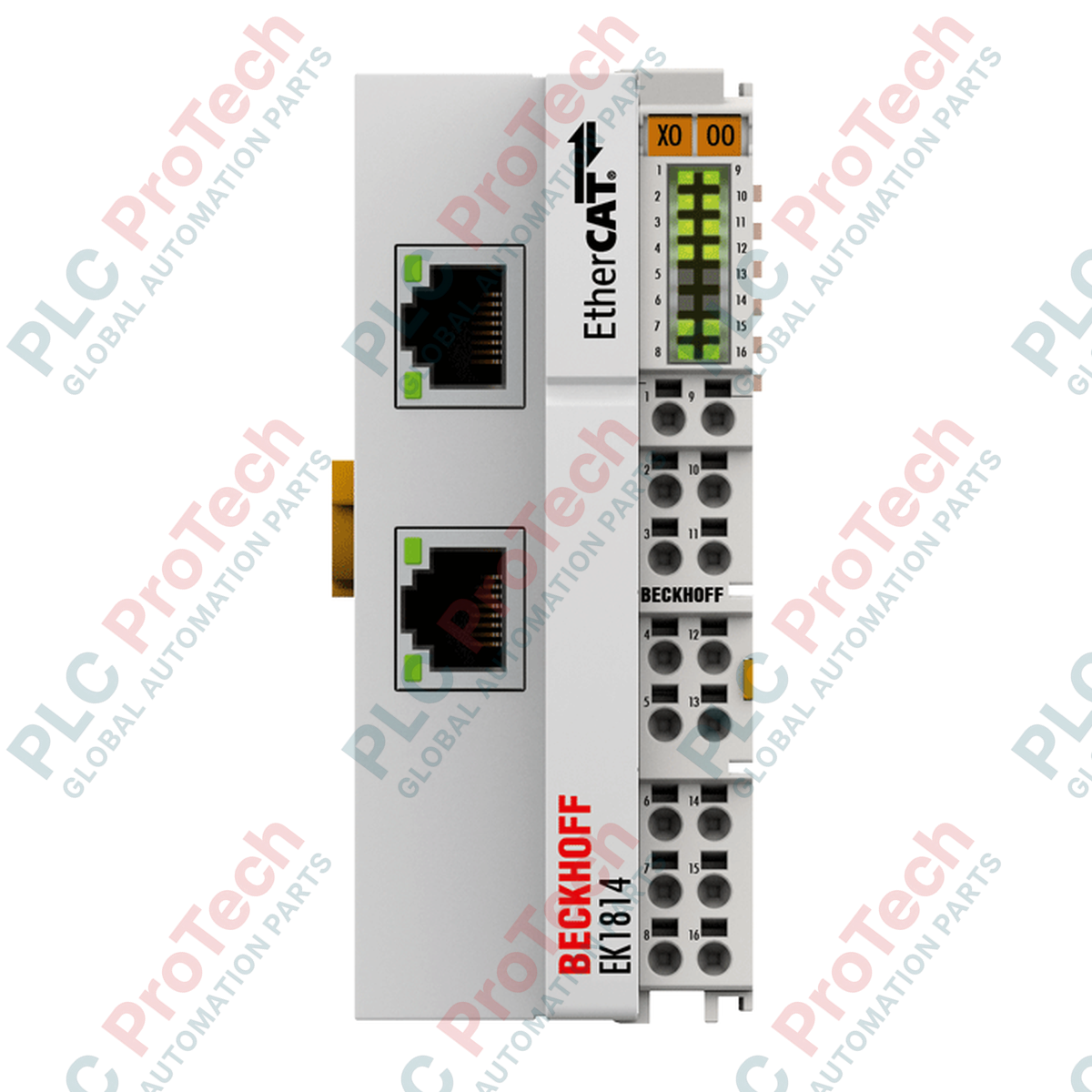

The EK1814 is a high-performance EtherCAT Coupler designed to link the EtherCAT protocol with up to 65,534 EtherCAT Terminals (ELxxxx). Manufactured by BECKHOFF, this device functions as the interface between the EtherCAT fieldbus and the individual terminal blocks. Beyond its coupling function, the EK1814 features 4 integrated digital inputs and 4 integrated digital outputs, providing a space-efficient solution for decentralized control systems. It utilizes 100BASE-TX communication at 100 Mbit/s and includes comprehensive diagnostic LEDs to monitor terminal and bus status.

Features

Coupling of EtherCAT Terminals to 100BASE-TX EtherCAT networks
Integrated I/O: 4 digital inputs and 4 digital outputs (0.5 A per channel)
High capacity: Supports up to 65,534 EtherCAT Terminals
Short-circuit-proof outputs with reverse voltage protection
Rapid data transfer rate of 100 Mbit/s with ~1 µs delay
Compact High Density (HD) housing with plug-in wiring technology
Electrical isolation of 500 V between bus and field potentials

Applications

Distributed I/O systems for machine and plant automation
High-speed industrial communication gateways
Space-constrained control cabinets requiring integrated I/O functionality
Modular manufacturing lines using EtherCAT technology

Technical Specifications

Category	Specification
Manufacturer	BECKHOFF
Model	EK1814
Protocol	EtherCAT
Data Transfer Rate	100 Mbit/s
Number of Inputs	4 (Type 1/3)
Number of Outputs	4 (0.5 A per channel)
Nominal Voltage	24 V DC (-15 %/+20 %)
Bus Interface	2 x RJ45
Input Filter	3.0 ms
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC
Dimensions (W x H x D)	44 mm x 100 mm x 67 mm
Protection Rating	IP20

Installation Guidelines

Mount the unit on a 35 mm DIN rail (EN 60715) and engage the locking mechanism for a secure fit.
Ensure the use of shielded Cat.5 (or better) Ethernet cabling for the 100BASE-TX interface to prevent EMI.
Use the direct plug-in technique for solid conductors, or a screwdriver for spring-actuation with stranded wires.
Maintain the total power contact load (Imax) below 10 A.
Operating in an IP20-rated environment is required; ensure the installation location provides adequate protection against contaminants and moisture.

Compliance and Certifications

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the EK1814?

It serves as an interface between EtherCAT networks and EL-series EtherCAT Terminals, while providing 4 integrated digital inputs and 4 digital outputs.

How many terminals can the EK1814 support?

It supports up to 65,534 EtherCAT Terminals in the network hierarchy.

Are the integrated outputs protected?

Yes, the outputs are short-circuit proof and feature reverse voltage protection.

What cable type is recommended for the bus interface?

A shielded Ethernet/EtherCAT cable, minimum category 5, is required.
