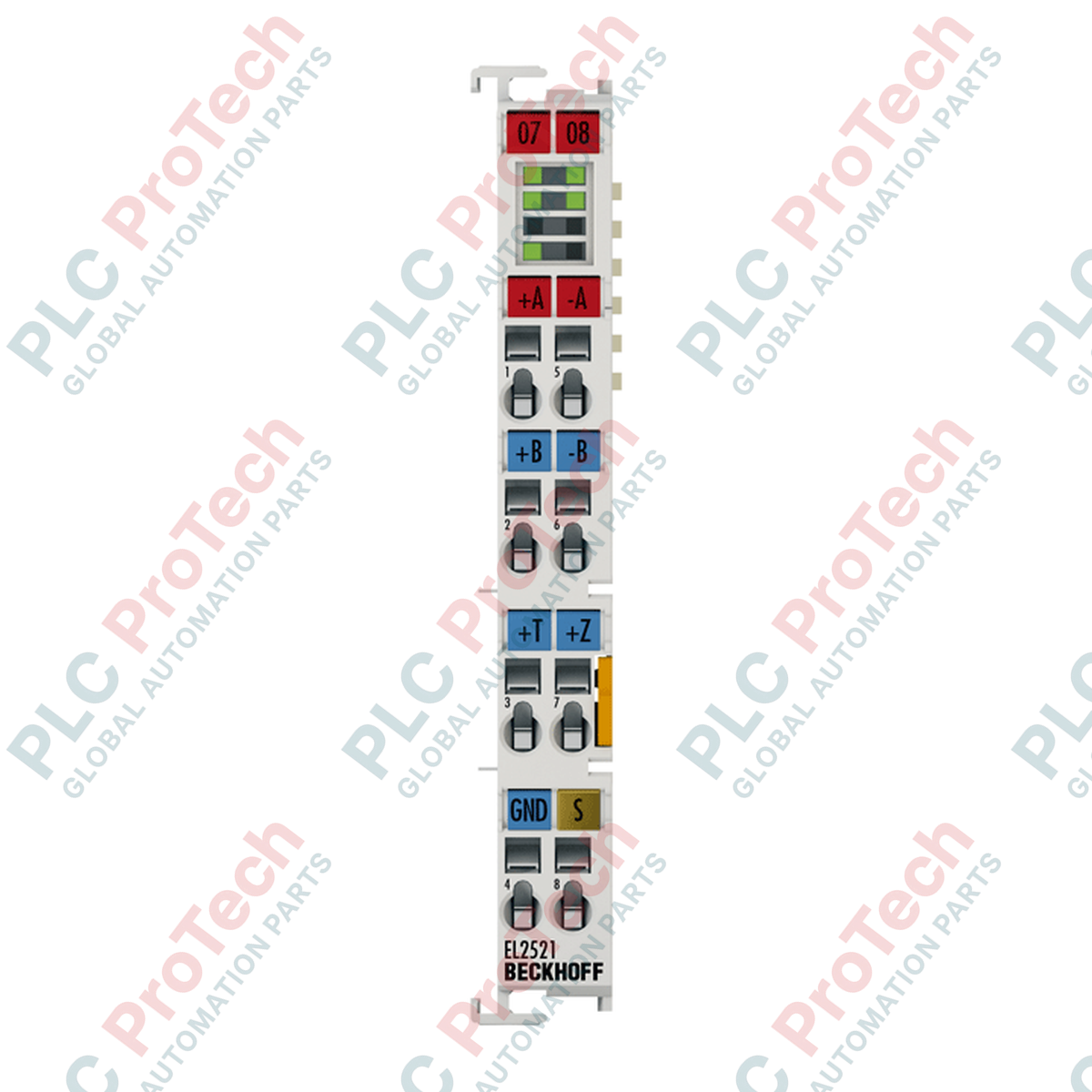

Directly integrating into the EtherCAT I/O framework, the Beckhoff EL2521-0024 delivers 1-channel pulse train output capabilities optimized for incremental encoder simulation. Operating at a signal voltage of 24 V DC with a 1 A maximum output current, this terminal converts 16-bit velocity or position commands from the controller into precise physical frequency signals. It is ideal for testing PLC positioning tasks, regulating stepper motor drives, and performing dynamic frequency synthesis in high-speed industrial networks.
| Manufacturer | Beckhoff Automation |
| Model Number | EL2521-0024 |
| Connection Technology | Pulse train (frequency output) |
| Number of Channels | 1 channel (2 differential outputs A, B) |
| Integrated Inputs | 2 inputs (+T, +Z) at 24 V DC |
| Output Signal Range | 5 to 24 V DC (externally supplied, 1 A max.) |
| Output Frequency Range | 0 to 500 kHz (50 kHz default) |
| Resolution | Max. 15 bit (16 bit + sign) |
| Step Size | 10 mHz |
| E-bus Current Consumption | Typical 280 mA (load-dependent) |
| Electrical Isolation | 500 V (E-bus / field potential) |
| Process Image Width | 14-byte output, 8-byte input |
| Device Dimensions (W x H x D) | 12 mm x 100 mm x 68 mm |
| Physical Weight | 50 g |
| Shipping Weight (Calculated) | 2.0 kg |
| Operating Temperature | 0 to 55 degC |
| Storage Temperature | -25 to 85 degC |
| Relative Humidity | 95%, non-condensing |
| Environmental Ratings | IP20 protection, CE, UL, ATEX (II 3 G Ex nA IIC T4 Gc) |
| Conductor Type | Cross-Section Range | AWG Range |
|---|---|---|
| Solid Wire (s) | 0.08 to 2.5 mm² | AWG 28 to 14 |
| Stranded Wire (st) | 0.08 to 2.5 mm² | AWG 28 to 14 |
| Wire with Ferrule (f) | 0.14 to 1.5 mm² | AWG 26 to 16 |
The EL2521-0024 is highly specialized compared to the standard EL2521 model. While the standard EL2521 utilizes a lower output stage voltage, the -0024 variant natively supports up to 24 V DC at 1 A. This makes it an ideal drop-in solution for legacy systems requiring direct 24 V actuator lines without additional signal-level shifting hardware.
At 280 mA typical E-bus current draw, this terminal exerts a substantial electrical load on the local bus segment. Systems utilizing multiple pulse train cards must verify the power budget of the upstream EtherCAT Coupler. If the calculated current consumption exceeds the coupler’s supply capacity, an EL9410 power supply terminal must be integrated immediately upstream of this module.
To prevent high-frequency noise injection into neighboring analog signals, always route the pulse output connections via shielded, twisted-pair cabling. Terminate the shield securely to the mounting plate using low-impedance grounding clamps. Strip wire jackets exactly 8 to 9 mm prior to insertion into the spring-cage terminals to prevent exposed conductors from creating short-circuits.
Before mounting, removing, or wiring any EtherCAT terminal, de-energize the entire control system. Ensure that both the primary power supply to the bus coupler and all field-side 24 V DC power contacts are completely disconnected to prevent internal terminal destruction, system communications faults, or personnel injury.
