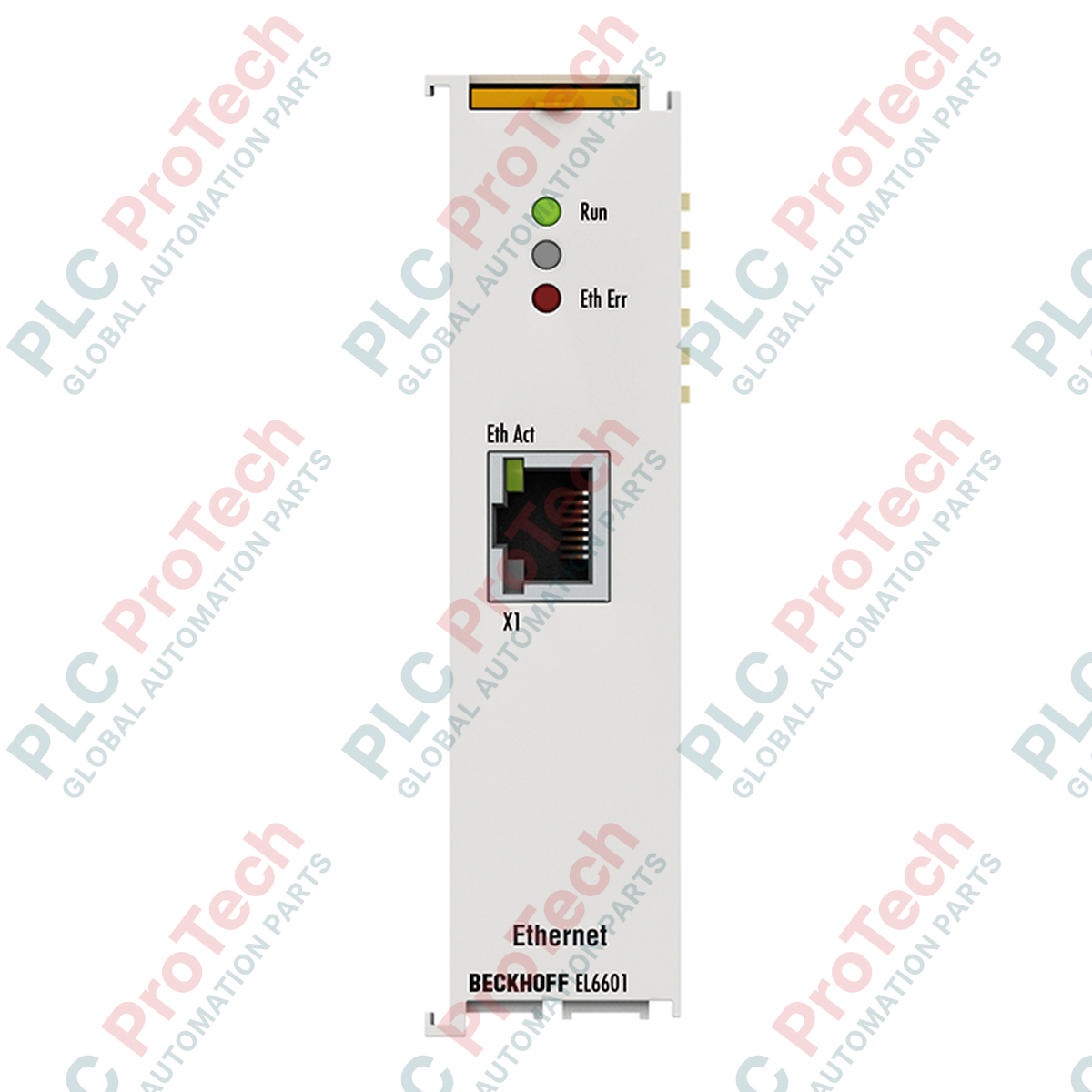

Beckhoff EL6601 EtherCAT Terminal 1-Port Ethernet Switch Port

SKU EL6601

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: BECKHOFF
Product No.: EL6601
Origin Germany
Product Type: EtherCAT Terminals
Payment: T/T, Western Union
Weight: 0.075 kg
Dimensions: 24 mm x 100 mm x 52 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed to integrate standard Ethernet devices directly into an EtherCAT terminal network, the Beckhoff EL6601 EtherCAT Terminal serves as a highly efficient 1-port Ethernet switch interface. This module enables the decentralized connection of any Ethernet-based devices—such as industrial PCs, vision systems, printers, or third-party controllers—directly to the control network. Operating in store-and-forward switching mode, the terminal supports all standard IEEE 802.3-based Ethernet protocols. Because the Ethernet frames are tunneled through the EtherCAT protocol, it guarantees seamless, transparent communication without disrupting real-time EtherCAT fieldbus performance.

Features

Single-port RJ45 Ethernet interface supporting 10BASE-T/100BASE-TX.
Automated configuration via standard EtherCAT E-bus power and communication.
Built-in IEEE 802.3u auto-negotiation for half- or full-duplex transmission.
Comprehensive hardware diagnostics via integrated status LEDs.
Robust electrical isolation of up to 500 V between the E-bus and the Ethernet interface.
Compact 24 mm housing design for efficient DIN rail utilization.

Applications

Industrial factory automation and assembly lines.
Oil and gas control systems requiring hazardous area certifications.
Integration of external vision systems, barcode readers, and printers.
Sub-network bridging in wind power and energy generation systems.

Technical Specifications

Manufacturer	Beckhoff
Part Number/Model	EL6601
Product Type	EtherCAT Terminal (Ethernet Switch Port)
Number of Ports	1 x RJ45
Physical Layer	10BASE-T/100BASE-TX Ethernet
Data Transfer Rates	10/100 Mbit/s (IEEE 802.3u auto-negotiation)
Protocol Support	All IEEE 802.3-based Ethernet protocols
Switching Mode	Store and forward
Cable Length	Up to 100 m (twisted pair)
Current Consumption E-bus	typ. 310 mA
Power Supply	Via E-bus
Electrical Isolation	500 V (E-bus/Ethernet)
Dimensions (W x H x D)	24 mm x 100 mm x 52 mm
Weight	approx. 75 g
Operating Temperature	-25 to +60 degC
Storage Temperature	-40 to +85 degC
Relative Humidity	95 %, non-condensing
Protection Rating	IP20
Housing Material	Polycarbonate
Mounting	35 mm DIN rail (EN 60715) with lock

Connections and Interfaces

Connection / Interface	Function
RJ45 Port	10/100 Mbit/s Ethernet connection to external devices
E-bus Terminal	Internal power supply and communication interface

Installation Guidelines

Mount vertically on a standard 35 mm DIN rail conforming to EN 60715.
Securely lock the terminal in place using the built-in double slot and key connection system for side-by-side modular alignment.
Ensure a minimum ventilation clearance of 50 mm above and below the module to maintain optimal operating temperatures.
Utilize shielded twisted-pair (STP) cables up to 100 m in length for reliable communication.
For hazardous environments, ensure strict compliance with ATEX/IECEx Zone 2 requirements and enclosure ratings.

Compliance and Certifications

CE, UL, ATEX, IECEx, cFMus
ATEX Marking: II 3 G Ex nA IIC T4 Gc
IECEx Marking: Ex nA IIC T4 Gc, Ex tc IIIC T135 degC Dc
cFMus Marking: Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, AEx ec IIC T4 Gc
EMC Standards: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emission)
Vibration/Shock Resistance: Conforms to EN 60068-2-6 / EN 60068-2-27

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the Beckhoff EL6601?

The Beckhoff EL6601 is an EtherCAT Terminal that functions as a 1-port Ethernet switch, allowing standard Ethernet-based devices to connect seamlessly to an EtherCAT network.

What is the maximum cable length supported by the EL6601 Ethernet port?

The module supports standard twisted-pair Ethernet cables with a maximum length of up to 100 meters.

Does the EL6601 require an external power supply?

No, the EL6601 is powered directly through the EtherCAT E-bus with a typical current consumption of 310 mA.

What hazardous area certifications does the EL6601 possess?

The terminal features multiple standard industrial certifications, including ATEX, IECEx, and cFMus Class I, Division 2 for installation in Zone 2 hazardous areas.
